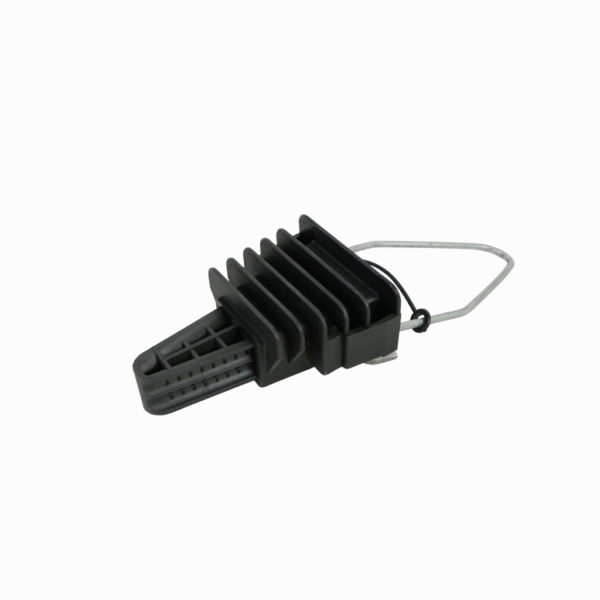

Anchor clamp for abc cable Overview:
Unsecured aerial bundled cables are highly susceptible to severe mechanical tension, weather degradation, and eventual line dropping.
Deploy our structurally reinforced insulated clamps to manage severe line tension safely and efficiently:
- Features a robust fiberglass reinforced plastic (PA66) body and wedge insert to resist extreme UV and weather exposure.
- Secures firmly to walls or poles with the help of a standard hoop or bracket, operating perfectly with a reliable 2.5kN failing load.
Key Features & Benefits:
Optimize your electrical safety installations instantly with these highly reliable, meticulously engineered advantages:
- Engineered for simple and rapid high-speed field installation.
- Provides exceptional weather and long-lasting UV resistance.
- Secures the line firmly without damaging the cable sheath.
- Suits both wall and pole mounting setups perfectly.
- Equipped with a highly durable hot dip galvanized steel bail.
Applications & Use Cases for anchor clamp for abc cable:
Integrate this dynamic mounting hardware to establish completely secure self-supporting overhead lines.
This versatile anchoring unit is the definitive safety choice for the following critical utility tasks:
- Anchoring overhead aerial bundled cables efficiently using a reliable anchor clamp for abc cable.
- Securing insulated neutral messengers safely across complex low-voltage distribution networks.
- Upgrading vulnerable wall and pole connections using a standardized, tested Insulated Dead End Clamp.
Technical Specifications:
Review the exact material composition, cable ranges, and strict mechanical capacities below to ensure perfect tension support for your network.| Material and Construction | |
| Body Material | Fibreglass reinforced plastic PA66 |
| Wedge Insert | Fibreglass reinforced plastic PA66 |
| Hook | Hot dip galvanized steel |
| Color | Black |
| Standard & Testing | |
| Design Standard | NF C 33-042 |
| Test Standard | BS EN 50483-2 |
| Cable Application & Mechanical Strength | |
| Cable Range (Min – Max) | 2x4mm² up to 4x25mm² |
| Mechanical Failing Load | 2.5kN |
| Packing Information | |
| Quantity Per Carton | 240 pcs |
| Carton Dimensions | 475mm (L) x 245mm (W) x 325mm (H) |
| Gross Weight | 26 kg |
DIMENSION:
