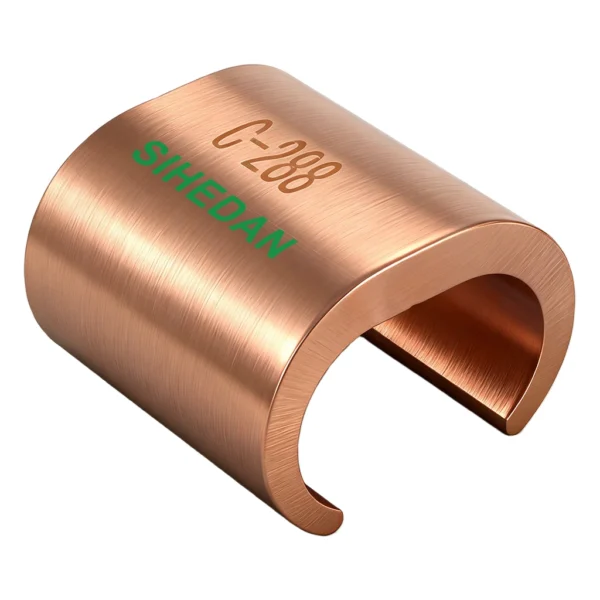

Copper C Clamp 7.5-700mm² ABC ACSR Power Line Connector

copper c clamp
Copper C Clamp 7.5-700mm² ABC ACSR Power Line Connector - Image 2
Copper C Clamp 7.5-700mm² ABC ACSR Power Line Connector - Image 3
C Type Copper Connecting Clamp 5
Copper C Clamp 7.5-700mm² ABC ACSR Power Line Connector - Image 5

Copper C Clamp 7.5-700mm² ABC ACSR Power Line Connector

Ensure absolute reliability in your high-voltage networks with the Copper C Clamp. Specifically engineered for heavy-duty power line connection tasks, this high-purity copper hardware is the preferred choice for secure wire splicing and dead-ending. Utility contractors and electrical engineers rely on its superior thermal conductivity and exceptionally low resistivity to maintain stable connections across demanding ABC, AAC, ACSR, and AAAC power grids, ensuring long-term performance in both transmission and distribution environments.

Request a Quote
Categories: ,




Copper c clamp Overview:

Contact resistance and thermal oxidation are the primary causes of power line failures and localized hotspots.

Deploy our precision-forged power line connector to eliminate these risks and ensure standardized grid performance:

  • Manufactured with a seamless, one-body construction that offers maximum resistance to oxidation and environmental corrosion.
  • Engineered to accommodate a vast range of conductor cross-sections (7.5mm² to 700mm²), meeting the strict requirements of large-scale infrastructure projects.

Key Features & Benefits:

Optimize your engineering specifications with these highly reliable, data-backed operational advantages:

  • Manufactured from high-purity solid copper for maximum electrical conductivity.
  • Features a robust one-body design to eliminate localized heating and oxidation.
  • Keeps conductors free from peeling, protecting the integrity of individual wire strands.
  • Designed for fast and secure installation in complex power line connection setups.
  • Supported by a massive production capacity of 30,000 units per month for large tenders.

Applications & Use Cases for Copper C Clamp:

Integrate this versatile connecting hardware to establish completely fail-proof power distribution systems.

This heavy-duty unit is the definitive choice for the following critical utility tasks:

  • Executing high-conductivity splicing and dead-ending for various power line connection projects.
  • Securing overhead ABC, AAC, ACSR, and AAAC conductors in high-voltage transmission networks.
  • Establishing reliable branch connections in substation wiring and primary distribution grids.

Technical Specifications:

Review the comprehensive dimensional ranges and material data below to ensure perfect compatibility with your power line engineering standards.

Technical Parameters
Primary Material High-Purity Solid Copper
Application Range (Cross-section) 7.5mm² – 700mm²
Compatible Conductors ABC, AAC, ACSR, AAAC
Monthly Production Capacity 30,000 units

Dimensional Data

copper C clamp1

ا

Part No. Copper Stranded Wire Area (mm²) A (mm) B (mm) L (mm)
CCT-10 7.5 – 14 4.0 7.0 12
CCT-16 14.5 – 16 5.0 8.5 13
CCT-20 16.5 – 20 5.5 9.0 13
CCT-26 21 – 26 7.0 10.0 16
CCT-44 27 – 44 9.0 13.5 20
CCT-60 45 – 60 10.5 15.5 22
CCT-76 61 – 76 12.0 17.2 22
CCT-98 77 – 98 14.0 21.0 25
CCT-122 99 – 120 14.0 22.5 26
CCT-154 121 – 154 17.5 25.8 28
CCT-190 155 – 190 17.5 28.5 35
CCT-240 191 – 240 19.5 30.0 40
CCT-288 241 – 288 22.8 34.5 45
CCT-365 289 – 365 24.4 37.5 50
CCT-450 366 – 450 27.0 41.5 60
CCT-560 451 – 560 31.5 46.0 65
CCT-700 561 – 700 34.0 51.5 70
