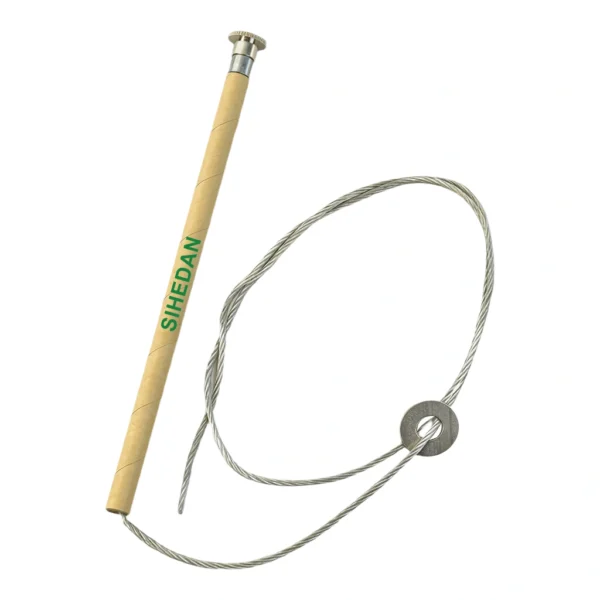

33KV Fuse Link Type K Product Overview:
Procurement teams specify the premium Fuse Link Type K to ensure rapid and accurate network isolation during sudden electrical overloads. The fast-acting performance profile was established by ANSI/NEMA to perfectly align with existing grid coordination schemes and prevent catastrophic failures.
- Capable of carrying 150% of its rated current continuously without damaging itself or the hosting cutout.
- Functions soundly at a temperature just high enough to melt the link instantly, matching the cutout’s interrupting capacity perfectly.
- Supplied in safe, effective, and highly organized individual packaging for immediate EPC field deployment.
- Backed by a strong engineering team ready to provide complete tender documents and massive MV material lots.
Key Features & Benefits of the Fuse Link Type K 33KV:
Upgrading your expulsion cutouts with a reliable Fuse Link Type K drastically reduces the risk of long-term transformer damage. Utility contractors secure immediate operational and logistical advantages when deploying this advanced k type fuse link:
- Meticulously manufactured under a full-set quality control plan within ISO 9001, ISO 14001, and ISO 18001 certified facilities.
- Buyers enjoy a highly flexible procurement process featuring zero MOQ limits on their first order.
- Provides a highly competitive low-cost structure alongside fast B2B quotations and dependably after-sale service.
- Built to operate flawlessly at altitudes up to 3000m and withstand maximum wind speeds of 35m/s.
Fuse Link Type K Applications & Use Cases:
Engineered to execute precise thermal interruptions, the Fuse Link Type K serves as a vital protective asset for modern power grids. Field technicians consistently utilize this reliable type k fuse to execute safe, uninterrupted outdoor power distribution:
- Providing fast-acting overcurrent protection directly within 33KV outdoor fuse cutouts on utility pole networks.
- Managing special loading situations, including cold load pick-ups and short-time overloads, without causing premature line disconnection.
- Functioning safely in extreme ambient temperatures ranging heavily from -30ºC up to +40ºC.
- Large-scale LV and MV EPC expansions demanding fully customized OEM hardware configurations.
Fuse Link Type K Technical Specifications:
Review the precise engineering parameters below to verify that the Fuse Link Type K aligns perfectly with your cutout’s dimensional limits. The comprehensive data sheet details the advanced metallurgical composition and exact sizing for distinct rated current brackets.
1. Material Application Data:
| Rated Current (A) | Strain Wire Material | Fuse Wire Material |
|---|---|---|
| 1 to 3 Amps | Stainless-Steel | Stainless-Steel (Integrated) |
| 6 to 10 Amps | Stainless-Steel | Copper-Alloy |
| 12 to 100 Amps | Stainless-Steel | Silver-Copper |
| 140 and 200 Amps | Silver-Copper (Serves as both strain and fuse wire) | |
2. Dimensional Data:
| Rated Current (A) | Dimensions (mm) | ||||
|---|---|---|---|---|---|
| A | B | C (Overall Length) | D | F | |
| 1 – 25 | 12.5 ± 0.2 | 19.0 ± 0.2 |
11/24KV: 530 – 600 33KV: 787 |
2 | 6.5 |
| 30 – 40 | 12.5 ± 0.2 | 19.0 ± 0.2 | 3 | 8.0 | |
| 50 – 100 | 19.0 ± 0.3 | Not applicable | 5 | 10.0 | |
| 120 – 200 | 19.0 ± 0.3 | Not applicable | 7 | 12.0 | |
33KV Fuse Link Type K Product Overview:
Procurement teams specify the premium Fuse Link Type K to ensure rapid and accurate network isolation during sudden electrical overloads. The fast-acting performance profile was established by ANSI/NEMA to perfectly align with existing grid coordination schemes and prevent catastrophic failures.
- Capable of carrying 150% of its rated current continuously without damaging itself or the hosting cutout.
- Functions soundly at a temperature just high enough to melt the link instantly, matching the cutout’s interrupting capacity perfectly.
- Supplied in safe, effective, and highly organized individual packaging for immediate EPC field deployment.
- Backed by a strong engineering team ready to provide complete tender documents and massive MV material lots.
Key Features & Benefits of the Fuse Link Type K 33KV:
Upgrading your expulsion cutouts with a reliable Fuse Link Type K drastically reduces the risk of long-term transformer damage. Utility contractors secure immediate operational and logistical advantages when deploying this advanced k type fuse link:
- Meticulously manufactured under a full-set quality control plan within ISO 9001, ISO 14001, and ISO 18001 certified facilities.
- Buyers enjoy a highly flexible procurement process featuring zero MOQ limits on their first order.
- Provides a highly competitive low-cost structure alongside fast B2B quotations and dependably after-sale service.
- Built to operate flawlessly at altitudes up to 3000m and withstand maximum wind speeds of 35m/s.
Fuse Link Type K Applications & Use Cases:
Engineered to execute precise thermal interruptions, the Fuse Link Type K serves as a vital protective asset for modern power grids. Field technicians consistently utilize this reliable type k fuse to execute safe, uninterrupted outdoor power distribution:
- Providing fast-acting overcurrent protection directly within 33KV outdoor fuse cutouts on utility pole networks.
- Managing special loading situations, including cold load pick-ups and short-time overloads, without causing premature line disconnection.
- Functioning safely in extreme ambient temperatures ranging heavily from -30ºC up to +40ºC.
- Large-scale LV and MV EPC expansions demanding fully customized OEM hardware configurations.
Fuse Link Type K Technical Specifications:
Review the precise engineering parameters below to verify that the Fuse Link Type K aligns perfectly with your cutout’s dimensional limits. The comprehensive data sheet details the advanced metallurgical composition and exact sizing for distinct rated current brackets.
1. Material Application Data:
| Rated Current (A) | Strain Wire Material | Fuse Wire Material |
|---|---|---|
| 1 to 3 Amps | Stainless-Steel | Stainless-Steel (Integrated) |
| 6 to 10 Amps | Stainless-Steel | Copper-Alloy |
| 12 to 100 Amps | Stainless-Steel | Silver-Copper |
| 140 and 200 Amps | Silver-Copper (Serves as both strain and fuse wire) | |
2. Dimensional Data:
| Rated Current (A) | Dimensions (mm) | ||||
|---|---|---|---|---|---|
| A | B | C (Overall Length) | D | F | |
| 1 – 25 | 12.5 ± 0.2 | 19.0 ± 0.2 |
11/24KV: 530 – 600 33KV: 787 |
2 | 6.5 |
| 30 – 40 | 12.5 ± 0.2 | 19.0 ± 0.2 | 3 | 8.0 | |
| 50 – 100 | 19.0 ± 0.3 | Not applicable | 5 | 10.0 | |
| 120 – 200 | 19.0 ± 0.3 | Not applicable | 7 | 12.0 | |
FAQs about fuse link type k
What is the difference between Type K and Type T fuse links?
fuse link type k are designed for fast and predictable melting characteristics, while Type T offers time-delay performance. This product meets both EEI-NEMA Type K and Type T requirements, ensuring flexible coordination with various protection schemes.
What voltage levels are these fuse links suitable for?
They are suitable for 10kV to 36kV expulsion fuse cutouts, with a maximum rated voltage of 33kV.
Can these fuse links withstand repeated overcurrent conditions?
Yes. They are specifically designed to maintain accuracy even after repeated exposure to excessive current levels that do not reach the melting point.
fuse link type k are designed for fast and predictable melting characteristics, while Type T offers time-delay performance. This product meets both EEI-NEMA Type K and Type T requirements, ensuring flexible coordination with various protection schemes.
They are suitable for 10kV to 36kV expulsion fuse cutouts, with a maximum rated voltage of 33kV.
Yes. They are specifically designed to maintain accuracy even after repeated exposure to excessive current levels that do not reach the melting point.
