Adss Anchor Clamp Overview:
Failing to secure aerial networks properly can cause severe sheath damage and catastrophic signal loss under immense tension.
Deploy our specialized PA-01-SS hardware to guarantee a permanent, fail-proof aerial connection:
- Designed with an insulated fibreglass reinforced polymer wedge to ensure a completely toolless, speed-optimized field installation.
- Features absolute weather and UV resistance to withstand prolonged exposure in aggressive and harsh outdoor environments.
- Engineered to grip the line perfectly, guaranteeing secure dead-ending without causing any harmful bending or sheath damage.
Key Features & Benefits:
Optimize your aerial network construction instantly with these rigorously tested, high-performance physical advantages:
- Manufactured with a flexible strand stainless steel hook to guarantee exceptional mechanical strength and rust resistance.
- Fully compliant with NF C 33-041, NF C 33-042, and BS EN 50483-3 standards for ultimate engineering reliability.
- Supports massive 600daN (6kN) failing loads, ensuring completely safe operations under extreme environmental tension.
- Mounts flawlessly on wooden, concrete, or metal poles utilizing a standard hoop, eye, bracket, or cross arm.
- Operates seamlessly as a heavy-duty anchor clamp for adss Cable setups with zero maintenance requirements.
Applications & Use Cases For Adss Anchor Clamp:
Ensure the absolute stability of your telecommunication networks with hardware built for extreme tension endurance.
This unit is the definitive engineering choice for the following critical utility tasks:
- Executing highly safe dead-ending for ADSS, OPGW, and FTTH networks on exterior walls or distribution poles.
- Securing aerial infrastructure permanently utilizing our extremely durable adss cable anchor clamp.
- Upgrading existing round line configurations rapidly with toolless, high-strength hardware.
Technical Specifications:
Review the exact material construction, mechanical strength, packaging data, and compliance standards below to perfectly align with your network hardware requirements.
Material, Construction & Application
| Material and Construction | |
| Body | Fibreglass reinforced thermoplastic |
| Wedge insert | Fibreglass reinforced thermoplastic |
| Hook | Flexible Strand stainless steel wire |
| Color | Black |
| Cable Application | |
| Cable type | Round |
| Minimum Diameter | 4.5mm |
| Maximum Diameter | 9mm |
| Mechanical Strength | |
| Failing load | 600daN / 6kN |
Packing & Standards:
| Packing | |
| Qty. | 100pcs / carton |
| Carton length | 475mm |
| Carton width | 245mm |
| Carton height | 295mm |
| Gross weight | 18kg |
| Standard | |
| Design | NF C 33-041, NF C 33-042 |
| Testing | BS EN 50483-3 |

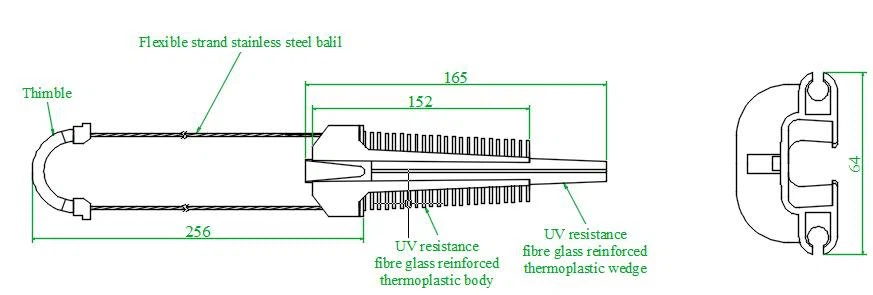

Dimensions:
