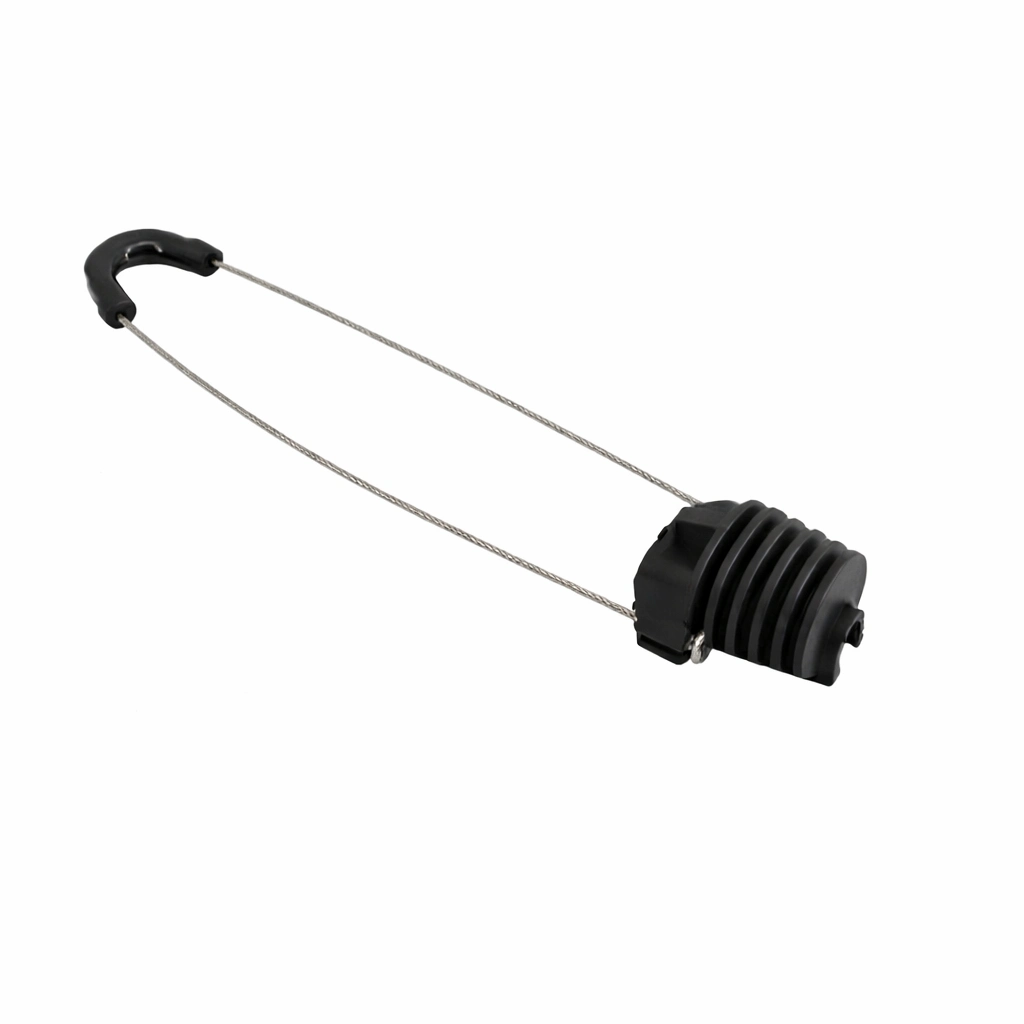

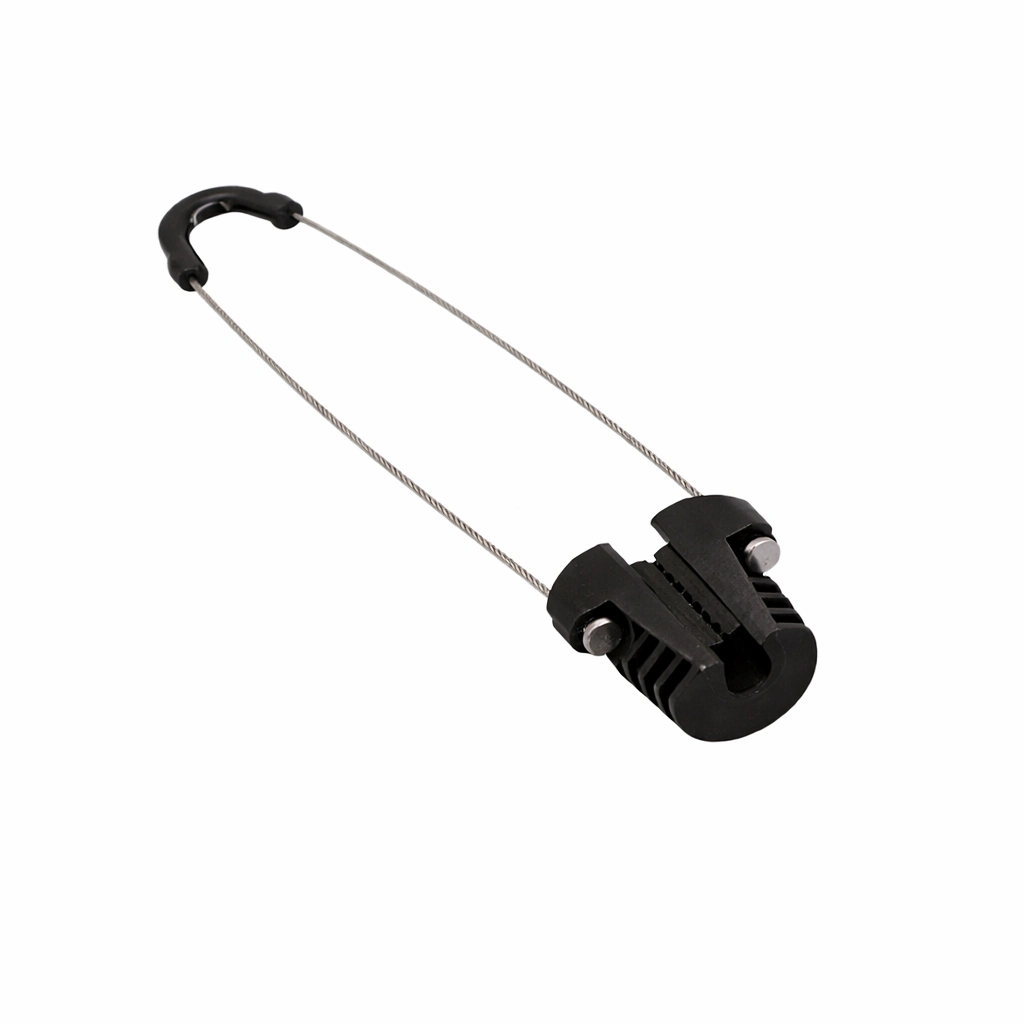

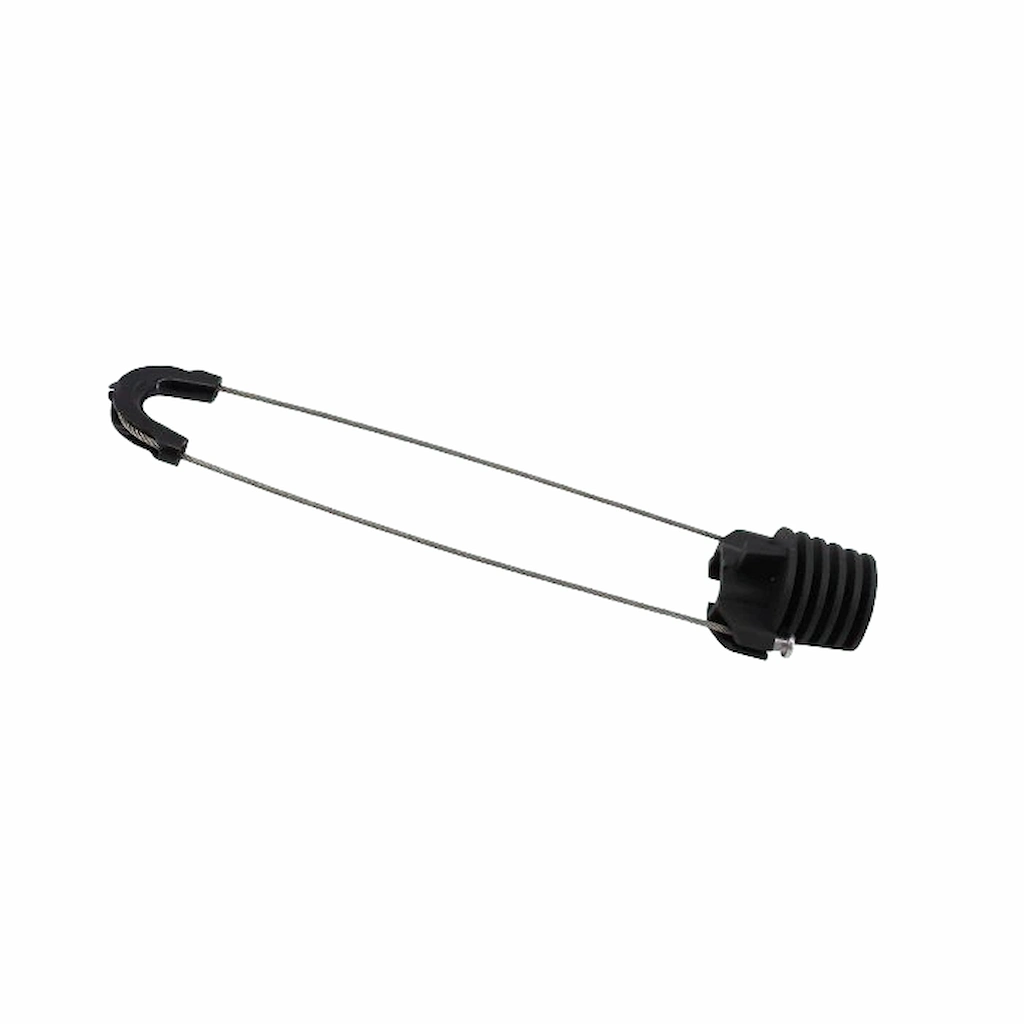

ADSS Tension Clamp Overview:
Failing to secure aerial networks properly can cause severe sheath damage and catastrophic signal loss under immense mechanical tension.
Deploy our specialized PA-03-SS hardware to guarantee a permanent, fail-proof aerial connection:
- Designed with an insulated fibreglass reinforced polymer wedge to ensure a completely toolless, speed-optimized field installation.
- Features absolute weather and UV resistance to withstand prolonged exposure in aggressive and harsh outdoor environments.
- Engineered to grip the line perfectly, guaranteeing secure dead-ending without causing any harmful bending or sheath damage.
Key Features & Benefits:
Optimize your aerial network construction instantly with these rigorously tested, high-performance physical advantages:
- Manufactured with a flexible strand stainless steel hook to guarantee exceptional mechanical strength and long-lasting rust resistance.
- Fully compliant with strict NF C 33-041, NF C 33-042, and BS EN 50483-3 standards for ultimate engineering reliability.
- Supports massive 250daN (2.5kN) failing loads, ensuring completely safe operations under extreme environmental tension.
- Mounts flawlessly on wooden, concrete, or metal poles utilizing a standard hoop, eye, bracket, or cross arm.
- Operates seamlessly as a heavy-duty ADSS Dead End Clamp with zero maintenance requirements.
Applications & Use Cases For adss tension clamp:
Ensure the absolute stability of your telecommunication and distribution networks with hardware built for extreme tension endurance.
This unit is the definitive engineering choice for the following critical utility tasks:
- Executing highly safe dead-ending for ADSS, OPGW, FTTH, and ABC networks on exterior walls or distribution poles.
- Securing aerial infrastructure permanently utilizing our extremely durable adss clamp.
- Upgrading existing 2.5-5mm round line configurations rapidly with toolless, high-strength hardware.
Technical Specifications:
Review the exact material construction, mechanical strength, and compliance standards below to perfectly align with your specific network hardware requirements.
Material, Construction & Application
| Material and Construction | |
| Body | Fibreglass reinforced thermoplastic |
| Wedge insert | Fibreglass reinforced thermoplastic |
| Hook | Flexible Strand stainless steel wire |
| Color | Black |
| Line Application | |
| Line type | Round |
| Diameter (Minimum) | 2.5mm |
| Diameter (Maximum) | 5mm |
| Cross section (Minimum) | 1.5mm² |
| Cross section (Maximum) | 6mm² |
Mechanical Strength & Standards
| Mechanical Strength | |
| Failing load | 250daN / 2.5kN |
| Standard | |
| Design | NF C 33-041, NF C 33-042 |
| Testing | BS EN 50483-3 |

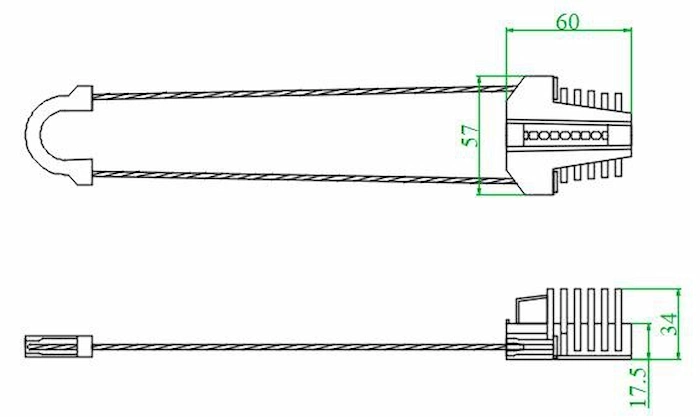

Dimensions:
