Aluminium cable lugs DL Overview:
Establishing secure and highly reliable connections between power equipment and aluminum core cables is essential for maintaining grid stability and preventing thermal bottlenecks.
Deploy our DL series terminal connectors to ensure safe, durable, and low-resistance power distribution:
- Designed primarily as compression type cable lugs aluminium, guaranteeing a firm and highly secure grip on the conductors without the risk of electrochemical degradation.
- Every aluminium cable lug in this series is expertly angled at 0°, 30°, and 90° in the direction of the tap conductor, providing essential flexibility for complex substation wiring and T-joint connections.
Key Features & Benefits:
Optimize your electrical line specifications instantly with these highly reliable, rigorously tested advantages:
- Manufactured to ensure reliable quality and extremely high safety performance.
- Delivers excellent electrical performance across all connected power equipment.
- Provides strong resistance to electrochemical corrosion in harsh environments.
- Engineered for a long service life, ensuring the connection is not easy to break.
- Functions perfectly as a versatile aluminum cable lug with multiple installation angles.
Applications & Use Cases for DL Aluminium cable lugs:
Integrate this dynamic transition hardware to establish completely fail-proof electrical distribution networks.
This heavy-duty unit is the definitive engineering choice for the following critical utility tasks:
- Connecting tap conductors to transformers and circuit breakers using reliable Aluminium cable lugs.
- Securing aluminum core cables to equipment efficiently with heavy-duty aluminum electrical lugs.
- Executing tap conductor connections to T-joints and wall substation bushings safely.
Technical Specifications:
Review the specific connection parameters and production data below to ensure perfect alignment with your power equipment engineering standards.
| Technical Parameters | |
| Product Type | DL Series Aluminium Lugs |
| Connection Method | Compression Type |
| Available Angles | 0°, 30°, and 90° (in tap conductor direction) |
| Application Scope | Aluminium core cables and electrical equipment terminals |
| Producing Capacity | 500,000 pcs / month |

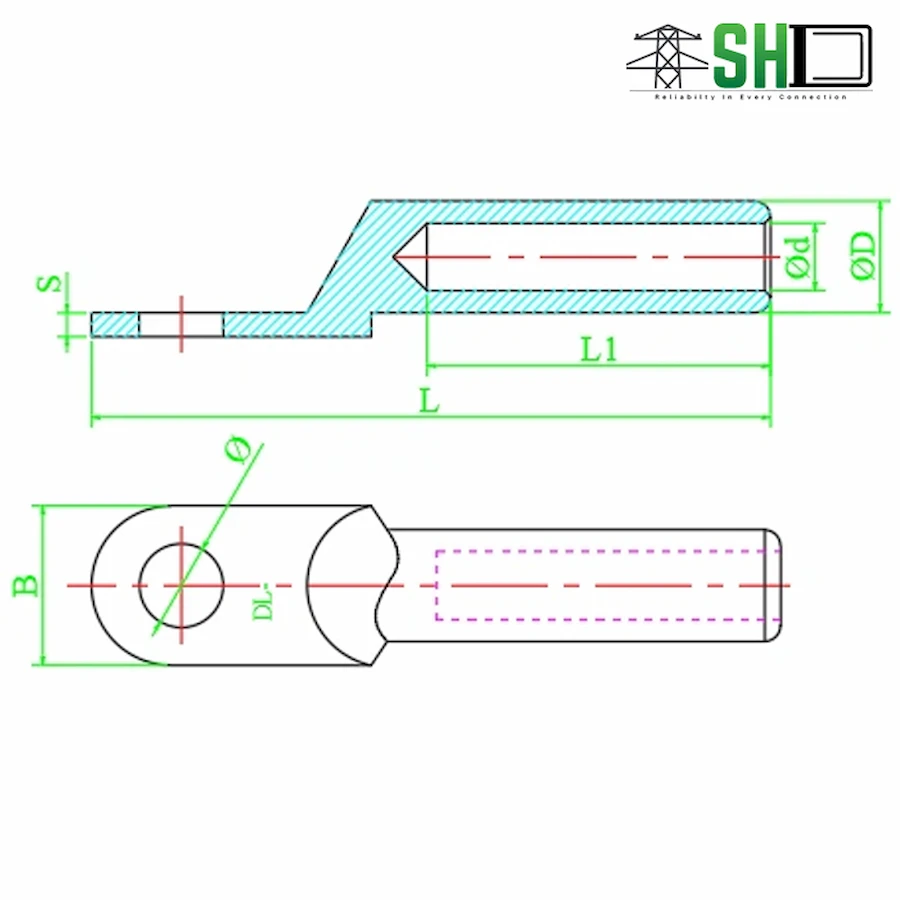

Dimensional Data (mm):
| No (Model) | Ø (mm) | B (mm) | S (mm) | Ød (mm) | ØD (mm) | L1 (mm) | L (mm) |
|---|---|---|---|---|---|---|---|
| DL-10 | 8.5 | 16 | 2.8 | 5.5 | 10 | 29 | 64 |
| DL-16 | 8.5 | 16 | 3 | 6.5 | 11 | 31 | 67 |
| DL-25 | 8.5 | 18 | 3.4 | 7.4 | 12 | 34 | 75 |
| DL-35 | 10.3 | 20.5 | 3.7 | 8.6 | 14 | 40 | 85 |
| DL-50 | 10.3 | 23 | 4 | 9.1 | 16 | 42 | 90 |
| DL-70 | 12.3 | 26 | 4.6 | 11.2 | 18 | 48.6 | 101.6 |
| DL-95 | 12.5 | 28 | 5 | 13.8 | 21 | 52 | 112 |
| DL-120 | 14.3 | 30 | 5.4 | 15 | 23 | 56 | 120 |
| DL-150 | 14.3 | 34 | 6 | 16.4 | 25 | 56.6 | 125.5 |
| DL-185 | 17 | 37 | 7 | 18.8 | 27 | 58 | 133 |
| DL-240 | 17 | 40 | 7.5 | 20.5 | 30 | 64 | 139 |
| DL-300 | 21 | 46 | 9 | 24 | 34 | 65 | 160 |
