Anchoring Clamp For Round Cable Product Overview
Constructed from black, fiberglass-reinforced thermoplastic, this anchor clamp for round cable delivers high structural integrity for aerial networks.

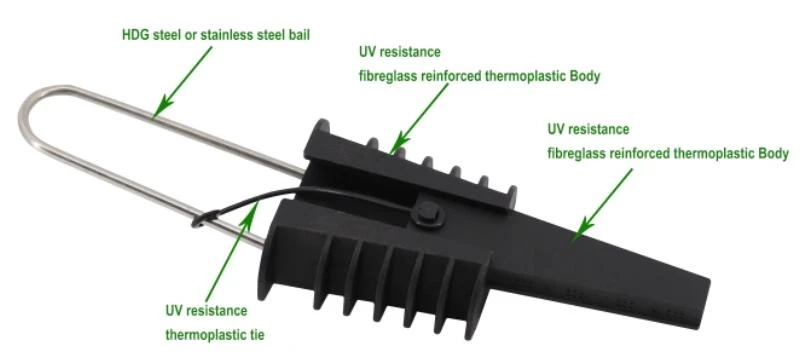

- Consists of a solid HDG (Hot-Dip Galvanized) or solid stainless steel bail.
- Features a UV-resistant insulating body and wedge insert.
- Fully tested and designed in strict compliance with NF C 33-041, NF C 33-042, and BS EN 50483-3 standards.
- Functions perfectly as dependable fiber optic anchoring clamps for round cable in varying environmental conditions.
Anchoring Clamp For Round Cable Key Features
Integrating these anchoring clamps for round cable guarantees a fast and secure network deployment:
- Toolless Installation: Simple and speedy setup requiring no special tools on-site.
- Cable Protection: Grasps the conductor firmly without bending the cable or causing any damage to the outer sheath.
- Environmental Endurance: Excellent weather and UV resistance for prolonged outdoor exposure.
- Business Support: Features low factory pricing, complete tender documents ready for submission, OEM availability, and flexible payment terms (T/T, L/C, FOB, CIF, CFR).
Anchoring Clamp For Round Cable Applications
Built for universal round section handling, this tensioner provides versatile and secure mounting solutions. It is primarily used for:
- Dead-ending round 2-core ABC, ADSS, OPGW, electric, and telecom cables (4mm to 8mm in diameter).
- Mounting securely on wooden, concrete, or metal poles, as well as walls, utilizing a threaded hook, eye, bracket, or cross arm.
Anchoring Clamp For Round Cable Technical Specifications
Review the precise material breakdown, mechanical parameters, and packaging data below to ensure compatibility with your network.
Material & Design Data
| Component / Parameter | Specification Details |
|---|---|
| Body & Wedge Material | Fiberglass Reinforced Thermoplastic |
| Hook / Bail Material | Solid HDG or Stainless Steel Bail |
| Color | Black |
| Design Standards | NF C 33-041, NF C 33-042 |
| Testing Standard | BS EN 50483-3 |
Mechanical & Packaging Specifications
| Cable Type | Diameter / Cross Section | Failing Load | Qty / Carton | Carton Dimensions (mm) | Gross Weight |
|---|---|---|---|---|---|
| Round, 2-Core | 4-8 mm (16-25 mm²) | 250 daN / 2.5 kN | 200 pcs | 475(L) × 385(W) × 305(H) | 23 kg |

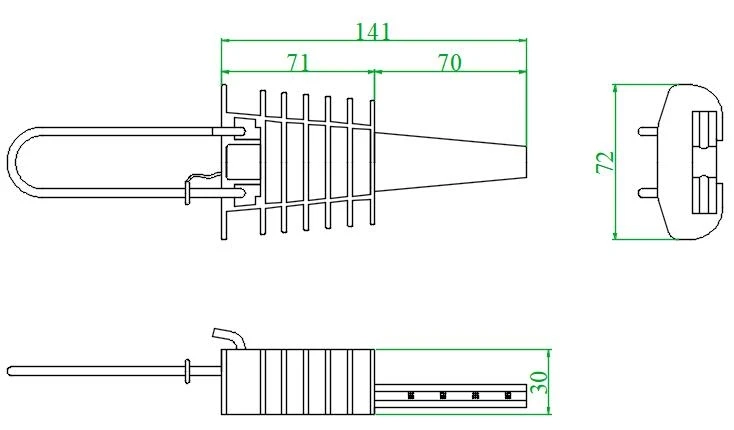

Anchoring Clamp For Round Cable DIMENSION
