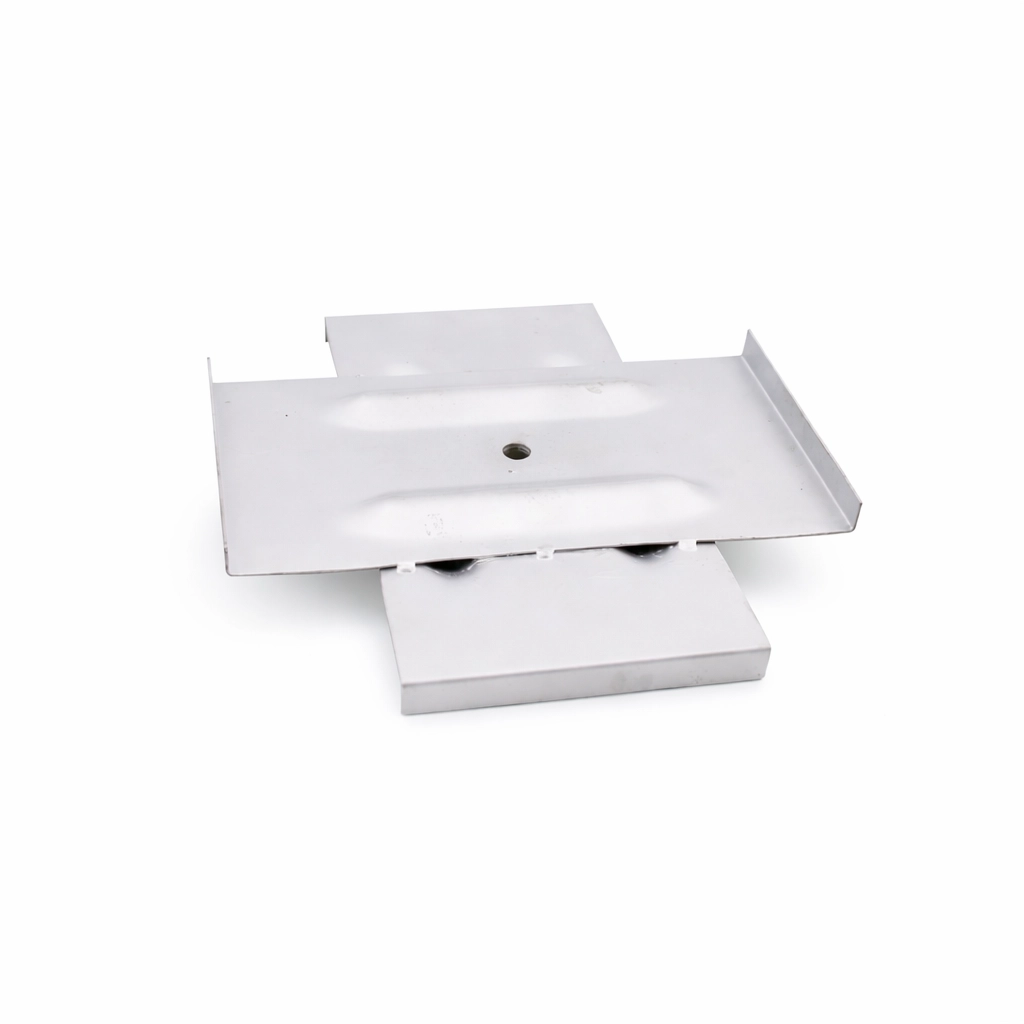

Cross Plate Anchor Product Overview:
Functioning as a heavy-duty expanding anchor, the Cross Plate Anchor ensures utility poles remain firmly grounded in challenging soil conditions. Procurement teams trust this durable carbon steel hardware for its exceptional holding power and easy installation.
To support optimal tensioning and seamless EPC integration, the system offers:
- Manufactured specifically for 16-inch (406mm) anchor holes to maximize soil displacement and grip.
- Compatible with standard 0.625-inch (15.9mm) or 0.75-inch (19.1mm) diameter rods, which are ordered separately.
- Backed by an excellent one-stop B2B service, ensuring a seamless material supply for expanding LV and MV networks.
Key Features & Benefits of the Cross Plate Anchor:
Upgrading your structural foundations with a premium Cross Plate Anchor drastically improves long-term grid stability. Utility contractors gain immediate logistical advantages from this high-quality hardware.
B2B utility procurement specialists benefit directly from these certified engineering traits:
- Fully hot-dip galvanized to provide supreme corrosion resistance and guarantee a long working life underground.
- Produced within ISO 9001, ISO 14001, and ISO 18001 certified facilities under a rigorous quality control plan.
- Buyers benefit from a low cost and low price structure, supported by a short lead time and rapid quotation process.
- Zero minimum order quantity (MOQ) on initial purchases, followed by a flexible 1000-piece threshold for subsequent massive lot orders.
Cross Plate Anchor Applications & Use Cases:
Engineered for maximum underground grip, the Cross Plate Anchor serves as a critical stabilization tool for overhead lines. Field crews consistently deploy this reliable expanding anchor to prevent structural leaning across varied topographies:
- Securing guy wires to the ground by distributing extreme tension forces across a large 150-square-inch expansion area.
- Replacing standard bust anchors in environments that require high holding power and rapid expansion upon installation.
- Large-scale infrastructure projects requiring custom OEM manufacturing capabilities tailored to strict customer requirements.
- Providing dependable underground support where free samples are necessary to verify field performance prior to bulk purchasing.
Cross Plate Anchor Technical Specifications:
Review the exact dimensional and material parameters below to verify that the Cross Plate Anchor aligns perfectly with your utility procurement requirements. This data guarantees precise compatibility with your designated anchor rods.
Technical & Dimensional Data:
| Technical Parameter | Specification Details |
|---|---|
| Anchor Style | Bust anchor / Expanding anchor |
| Base Material | Carbon Steel (Hot dip galvanized) |
| Compatible Rod Diameters | 0.625” (15.9mm) / 0.75” (19.1mm) — Ordered separately |
| Anchor Hole Size | 16” (406mm) |
| Expansion Area | 150 sq in (968 sq cm) |
| Approximate Shipping Weight | 463 Kg / 100 Pcs |
| Standard Package Qty | 6 Pcs / Carton |
