Danger Plate Sign Product Overview:
The Danger Plate Sign is built to withstand harsh outdoor environments while maintaining clear visual communication. The manufacturing process ensures each plate resists wear and fading over time:
- Manufactured from high-quality hot-dip galvanized steel, aluminum, iron, or stainless steel.
- Surface treatments include HDG, zinc-plating, or electroplating for superior corrosion resistance.
- Custom painted to feature specific safety pictures, numbers, and signs as required.
- Fully customizable length and width dimensions based precisely on customer specifications.
Key Features of the Danger Plate Sign:
Integrating this certified Danger Plate Sign into your network ensures clear safety compliance alongside highly flexible B2B procurement terms:
- Manufactured under strict quality control plans within ISO 9001, ISO 14001, and ISO 18001 facilities.
- Buyers benefit from zero minimum order quantities (MOQ) on initial purchases (1,000 pcs for further orders).
- Delivers a long working life with an appearance highly resistant to wear.
- Fast production yields short lead times and highly competitive low-cost pricing.
- Free initial samples (buyer covers freight) and complete tender documents are readily available.
Danger Plate Sign Applications:
Built for long-term outdoor visibility, the Danger Plate Sign provides steadfast safety communication. Field technicians utilize this hardware for:
- Mounting vital visual warnings directly on wooden, concrete, or metal utility poles.
- Marking hazardous electrical zones using a durable, weather-resistant danger name plate.
- Supplying large-scale low and medium-voltage (LV and MV) EPC material lots safely.
Danger Plate Sign Technical Specifications:
Review the core parameters below to verify that the Danger Plate Sign aligns with your specific utility pole requirements. The data sheet summarizes the material options and customization capabilities based strictly on our manufacturing standards.
| Technical Parameter | Specification Details |
|---|---|
| Hardware Type | Warning Sign / Danger Plate Sign |
| Body Material Options | Hot-Dip Galvanized Steel, Aluminum, Iron, or Stainless Steel |
| Surface Treatment | H.D.G., Zinc Plated, or Electroplating |
| Graphics & Paint | Custom painted pictures, numbers, and signs |
| Dimensions (Length & Width) | Fully Customizable |
| Grid Compatibility | LV and MV EPC material networks |
| Factory Certifications | ISO 9001, ISO 14001, ISO 18001 |

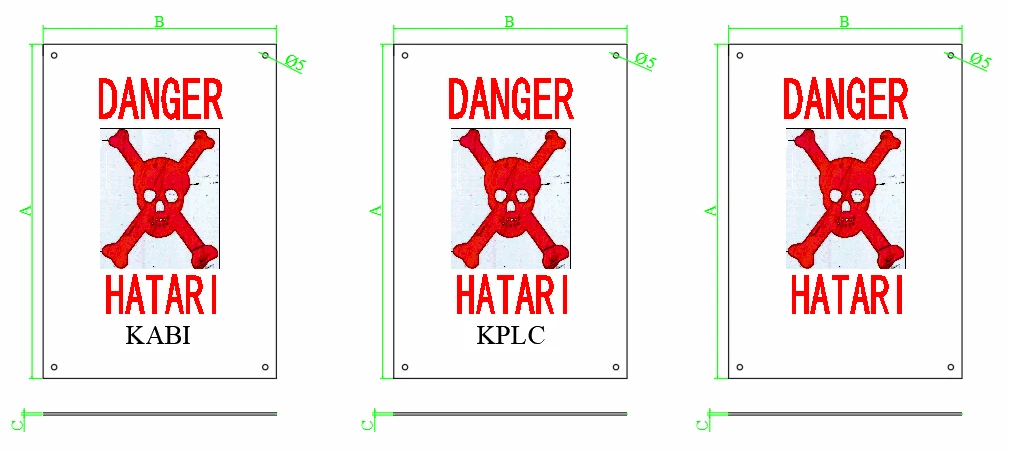

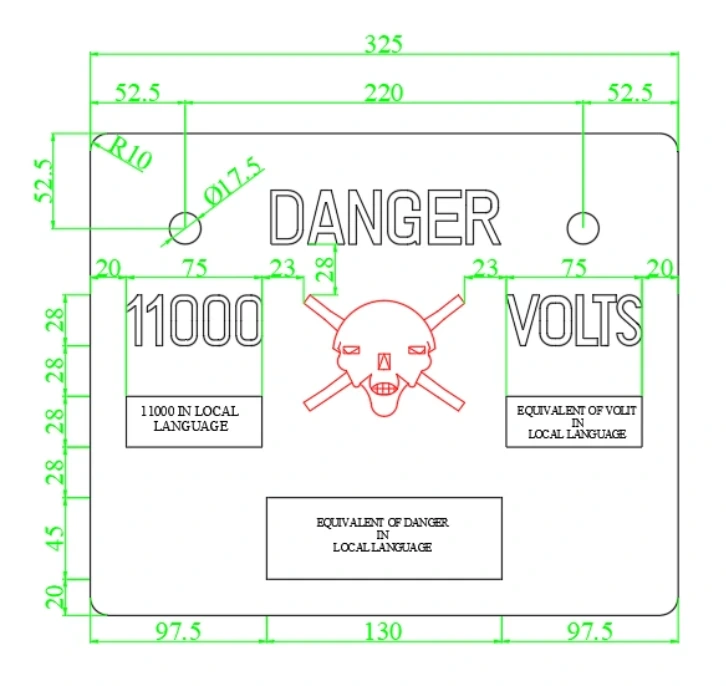

danger plate sign DIMENSIONS:
Size can be customized:
NOTE:
1.All dimension are in mm
2.Lettering&Flgure:red enamelled
3.Background: White vitreous enamelled
4.Back:Back vitreous enamelled
5.Minimum 2mm THK.M,S.Plate as PER ISO:16160
6.General tolerance±3% unless otherwise specified
7.The corners of the plates should be round off
8.All letters shoule be centrally spaced
9.Bolt/Nut to be galvanized as per standard
10.Design of danger plate is as per ISO:16160
