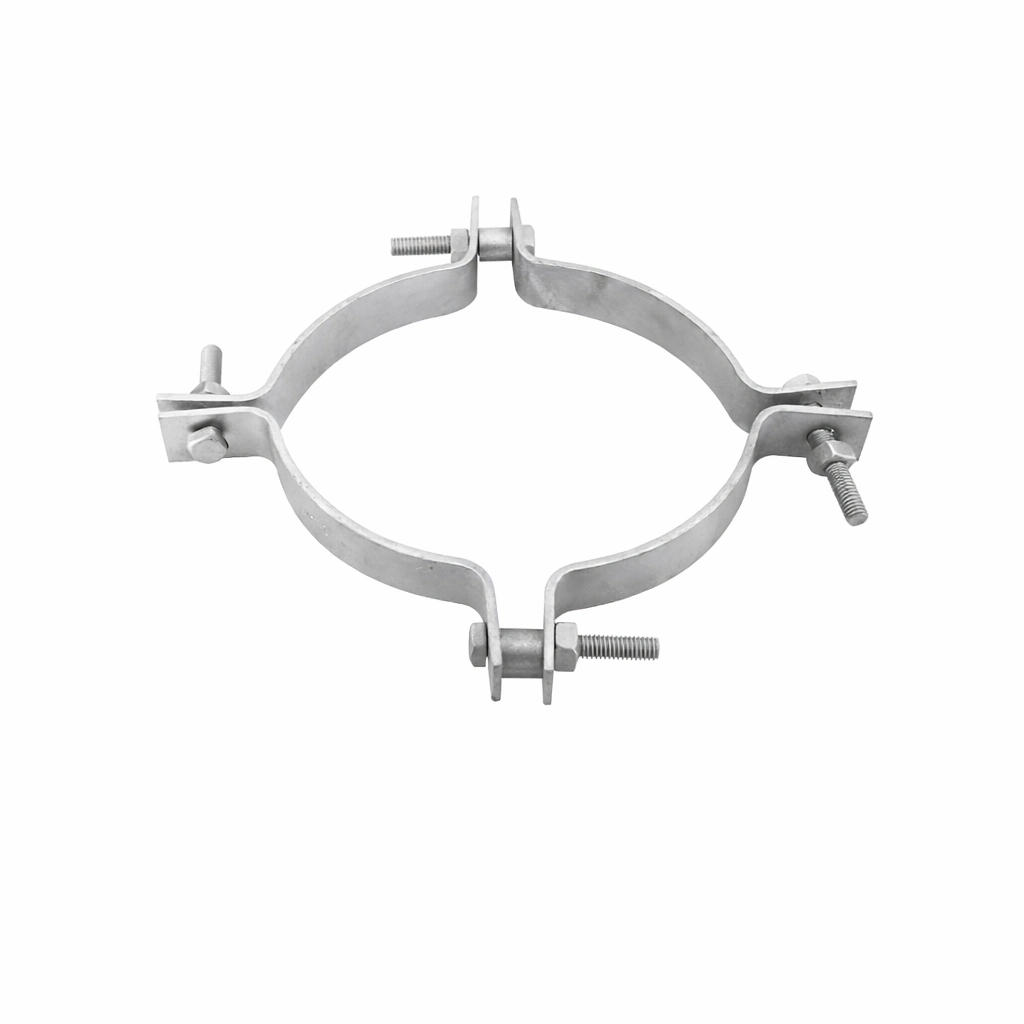

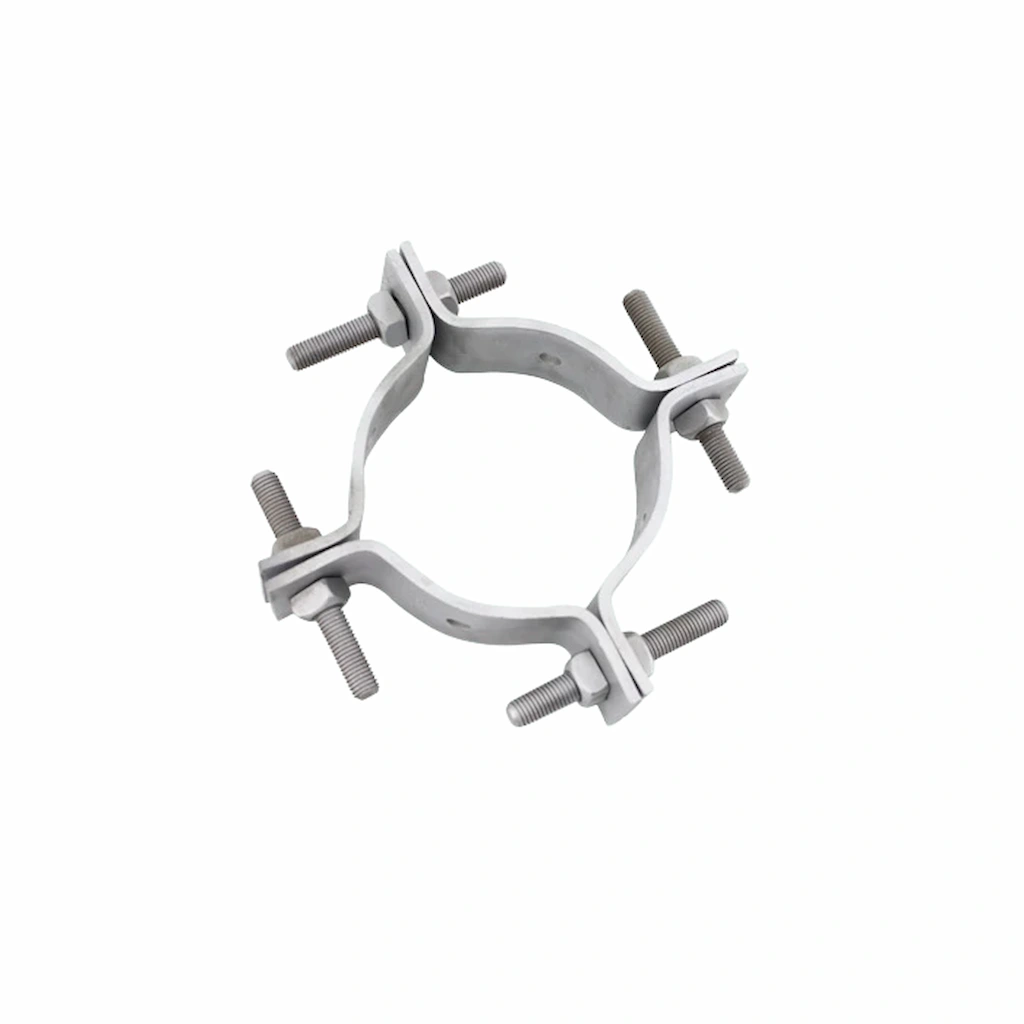

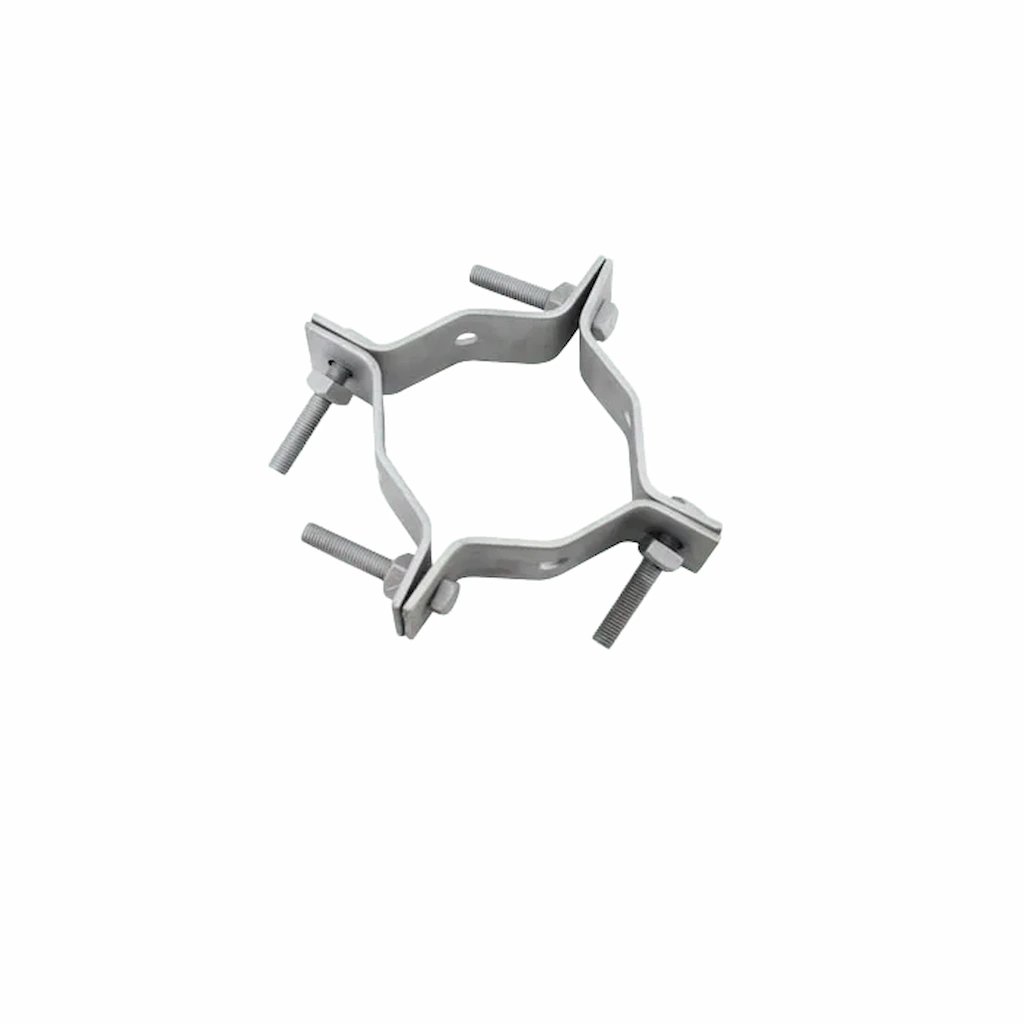

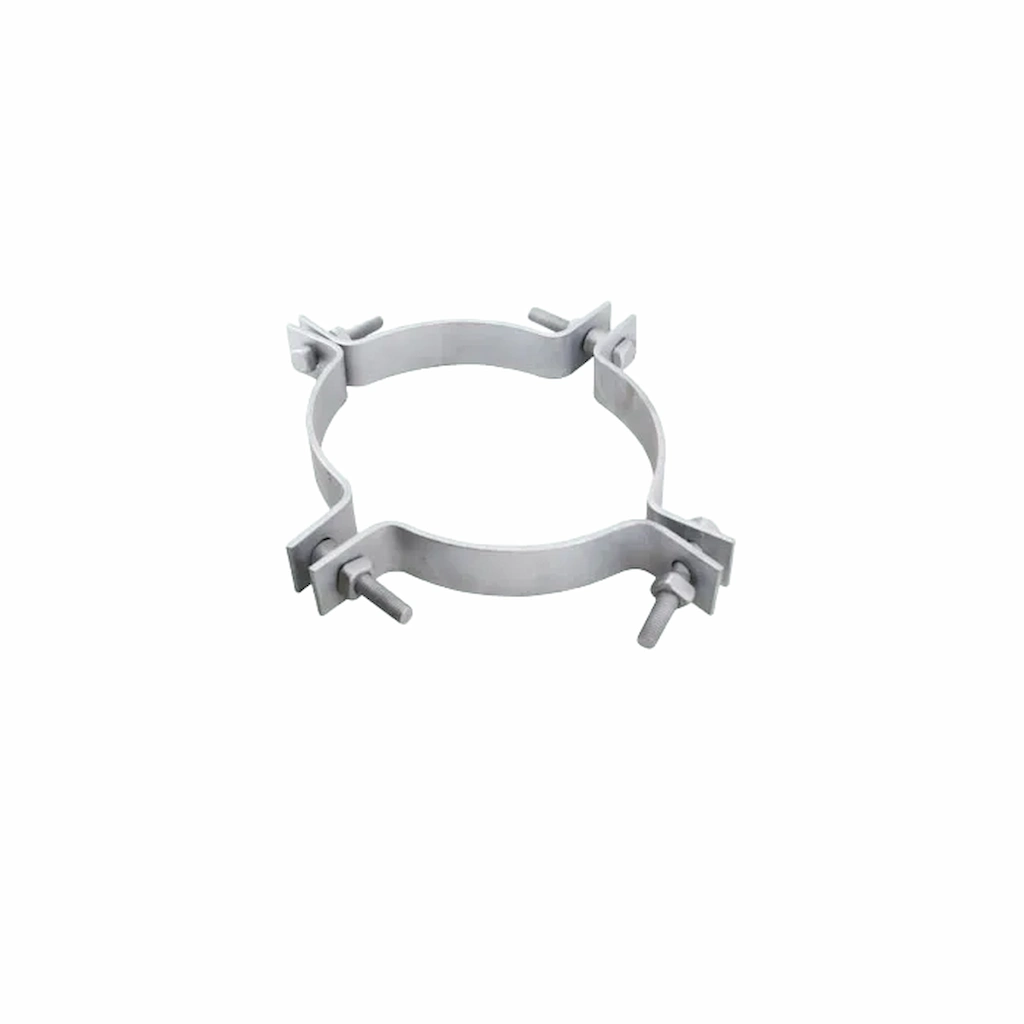

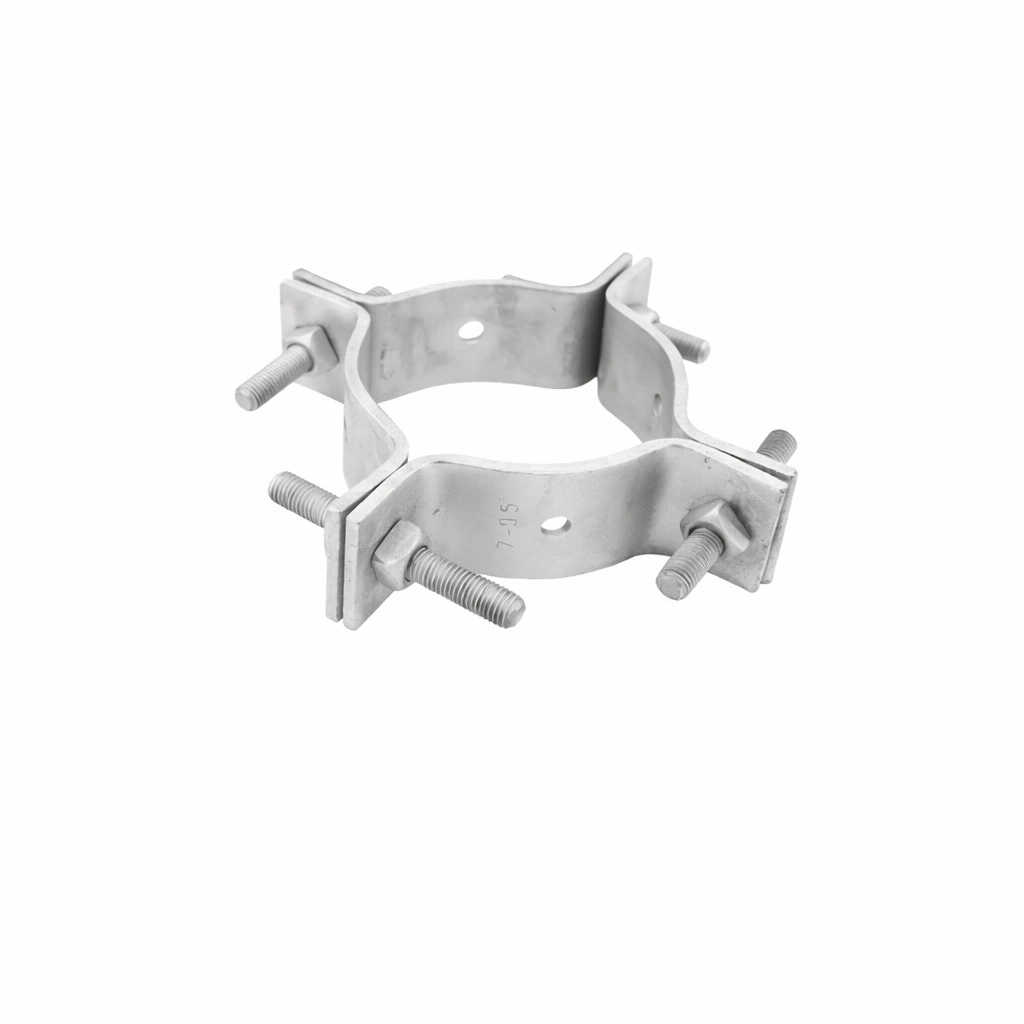

DEG Pole Clamp Product Overview:
Utility crews deploy the Pole Clamp DEG to establish secure, tension-resistant stay assemblies. Choosing the correct hoop size before installation is crucial; oversized bands cannot grip the pole tightly, while undersized clamps will break under mechanical tension.
- Specifically engineered for secure guy clip and guy thimble mounting.
- Manufactured entirely from Hot-Dip Galvanized (H.D.G.) steel according to international standards.
- Eliminates the need for pole drilling, ensuring exceptionally fast and easy installation.
- Engineered with exact dimensions to deliver a long working life under continuous outdoor exposure.
Key Features of the DEG Pole Clamp:
Integrating this certified DEG Pole Clamp into your network guarantees dependable holding power alongside highly flexible B2B procurement terms:
- Manufactured under strict quality control plans within ISO 9001, ISO 14001, and ISO 18001 certified facilities.
- Buyers benefit from zero minimum order quantities (MOQ) on initial purchases (100 pcs for further orders).
- Highly competitive low-cost pricing complemented by quick responses, OEM availability, and short lead times.
- Complete tender documents and free initial samples (buyer covers freight) are readily available for immediate EPC submission.
DEG Pole Clamp Applications:
Built for robust guy wiring requirements, the Pole Clamp DEG provides steadfast structural support across low and medium-voltage (LV and MV) networks. Field technicians consistently utilize this hardware for:
- Mounting one or two sets of guy assemblies efficiently.
- Attaching guy clips and stay thimbles safely to overhead line structures.
- Fastening essential accessories securely to diverse utility poles across large-scale EPC material lots.
DEG Pole Clamp Technical Specifications:
Review the exact dimensional parameters below to verify that the DEG Pole Clamp aligns perfectly with your specific pole diameters. The data sheets summarize the material composition and precise millimeter measurements for the entire DEG series.
General Technical Data:
| Technical Parameter | Specification Details |
|---|---|
| Hardware Type | Guy Attaching Pole Band / Fastening Clamp |
| Clamp Style Model | Type DEG |
| Body Material | H.D.G. (Hot-Dip Galvanized) Steel |
| Pole Compatibility | Wooden, Concrete, and Metal Poles |
| Grid Compatibility | LV and MV EPC material networks |
| Factory Certifications | ISO 9001, ISO 14001, ISO 18001 |

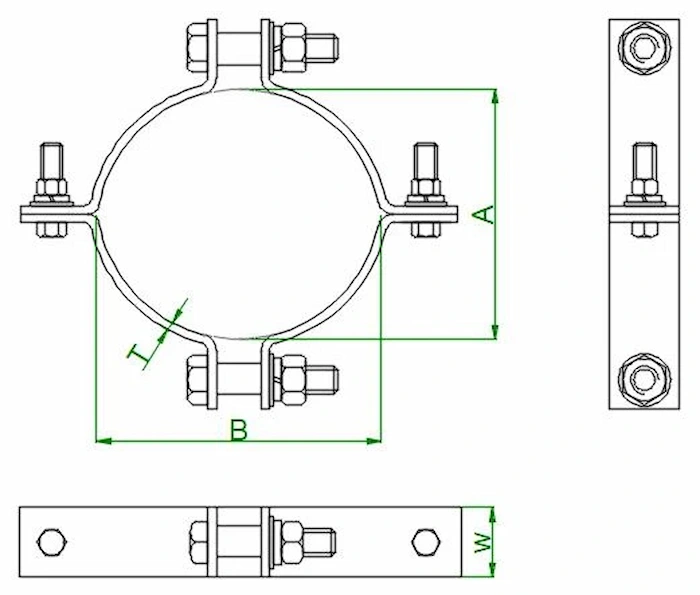

Dimensions Data:
| Part No. | Pole Dia. Range | Dimensions (mm) | ||||
|---|---|---|---|---|---|---|
| mm | inch | A | B | W | T | |
| DK-DEG1L | 127 – 152 | 5 – 6 | 127 | 152 | 50 | 6 |
| DK-DEG1H | 152 – 178 | 6 – 7 | 127 | 152 | 64 | 8 |
| DK-DEG2L | 178 – 203 | 7 – 8 | 178 | 203 | 50 | 6 |
| DK-DEG2H | 178 – 203 | 7 – 8 | 178 | 203 | 64 | 8 |
| DK-DEG3L | 203 – 229 | 8 – 9 | 203 | 229 | 50 | 6 |
| DK-DEG3H | 203 – 229 | 8 – 9 | 203 | 229 | 64 | 8 |
| DK-DEG4L | 229 – 254 | 9 – 10 | 229 | 254 | 50 | 6 |
| DK-DEG4H | 229 – 254 | 9 – 10 | 229 | 254 | 64 | 8 |
| DK-DEG5L | 254 – 279 | 10 – 11 | 254 | 279 | 50 | 6 |
| DK-DEG5H | 254 – 279 | 10 – 11 | 254 | 279 | 64 | 8 |
| DK-DEG6L | 279 – 305 | 11 – 12 | 279 | 305 | 50 | 6 |
| DK-DEG6H | 279 – 305 | 11 – 12 | 279 | 305 | 64 | 8 |
