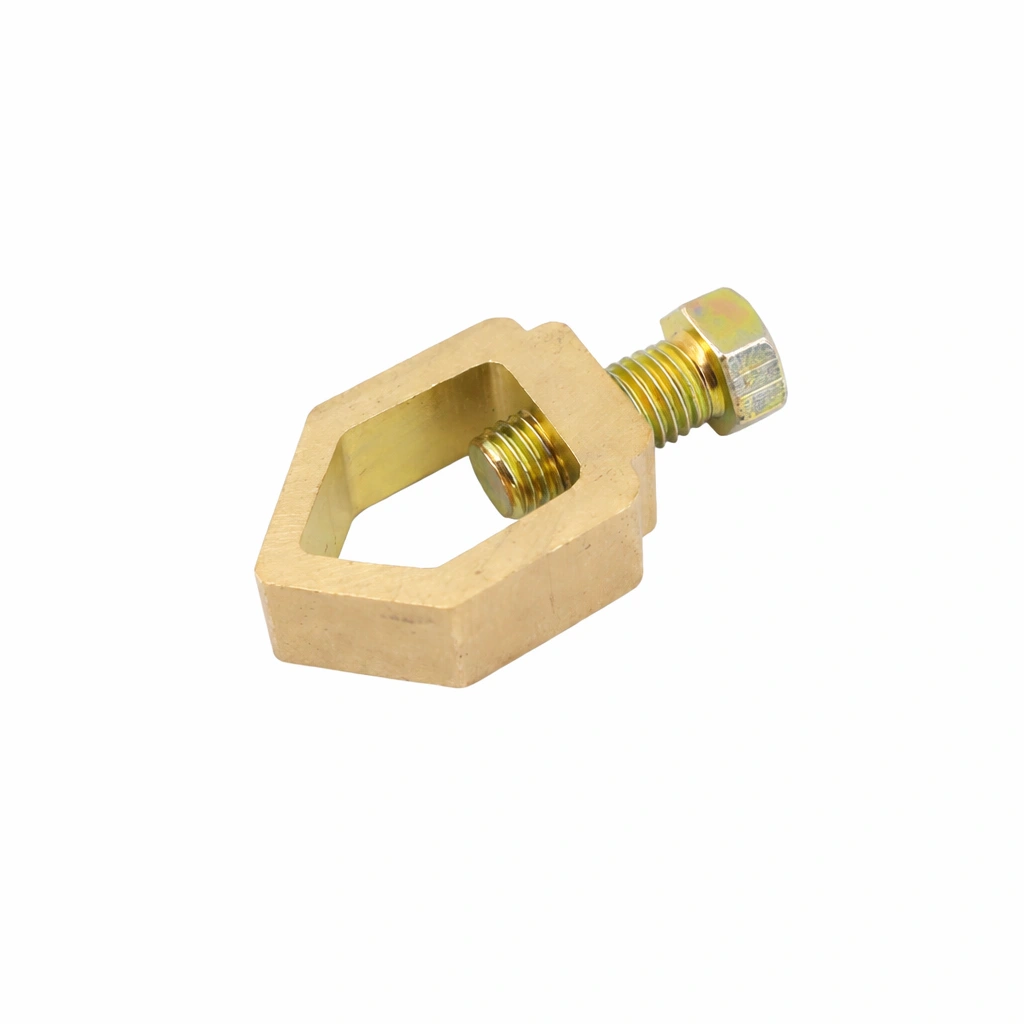

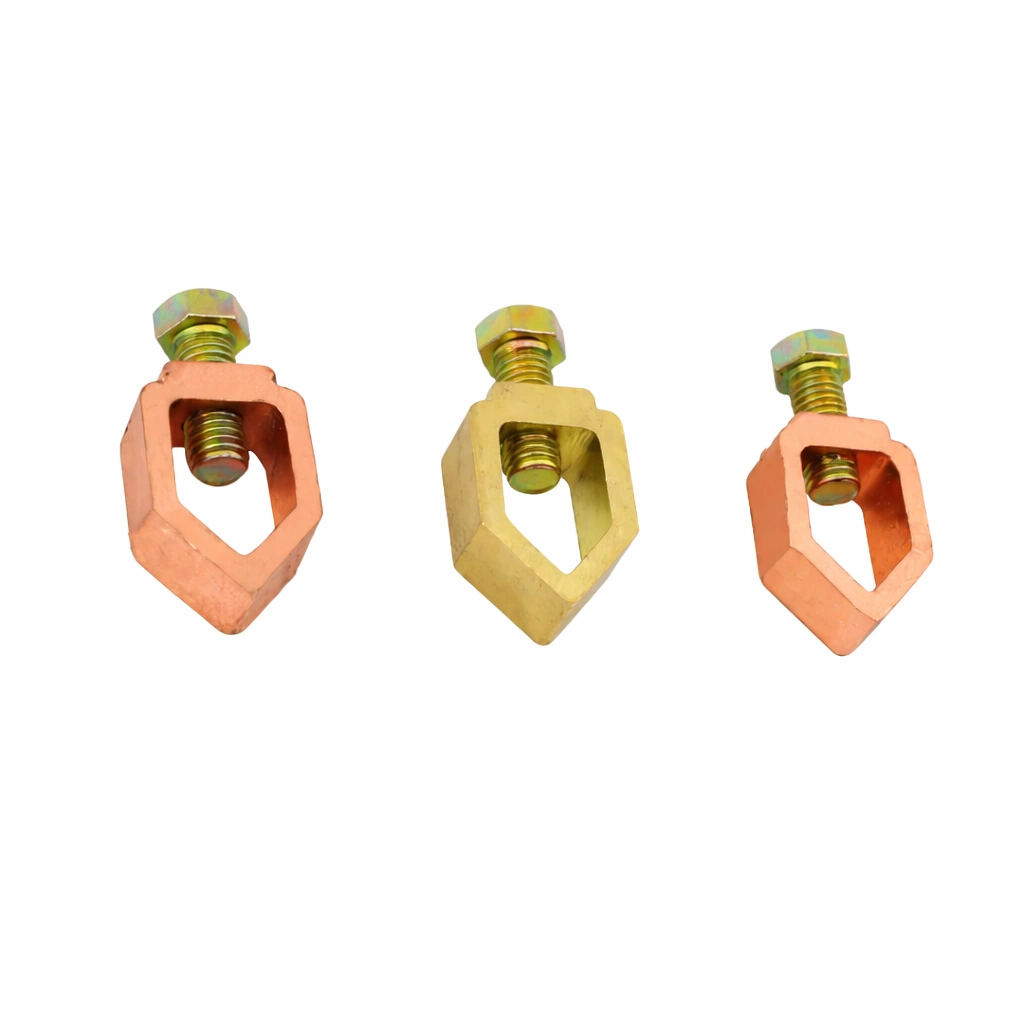

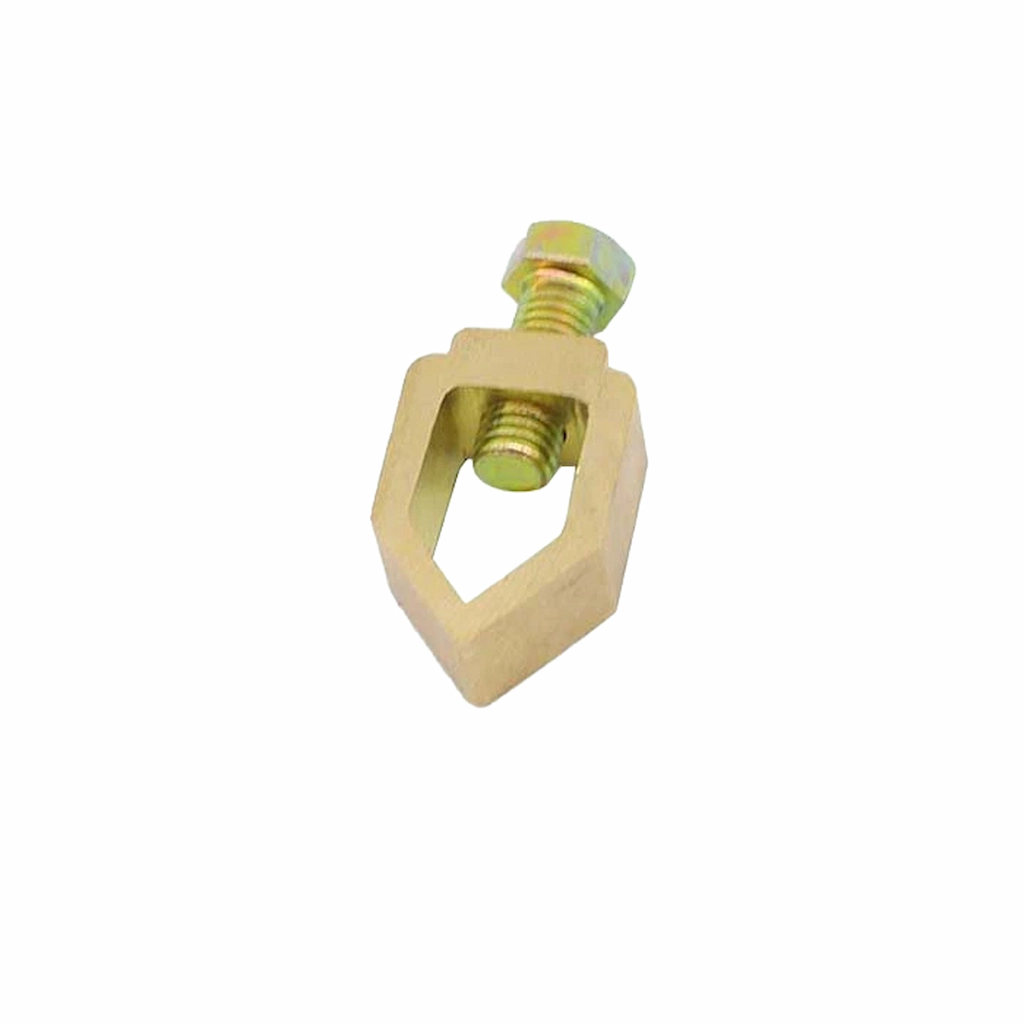

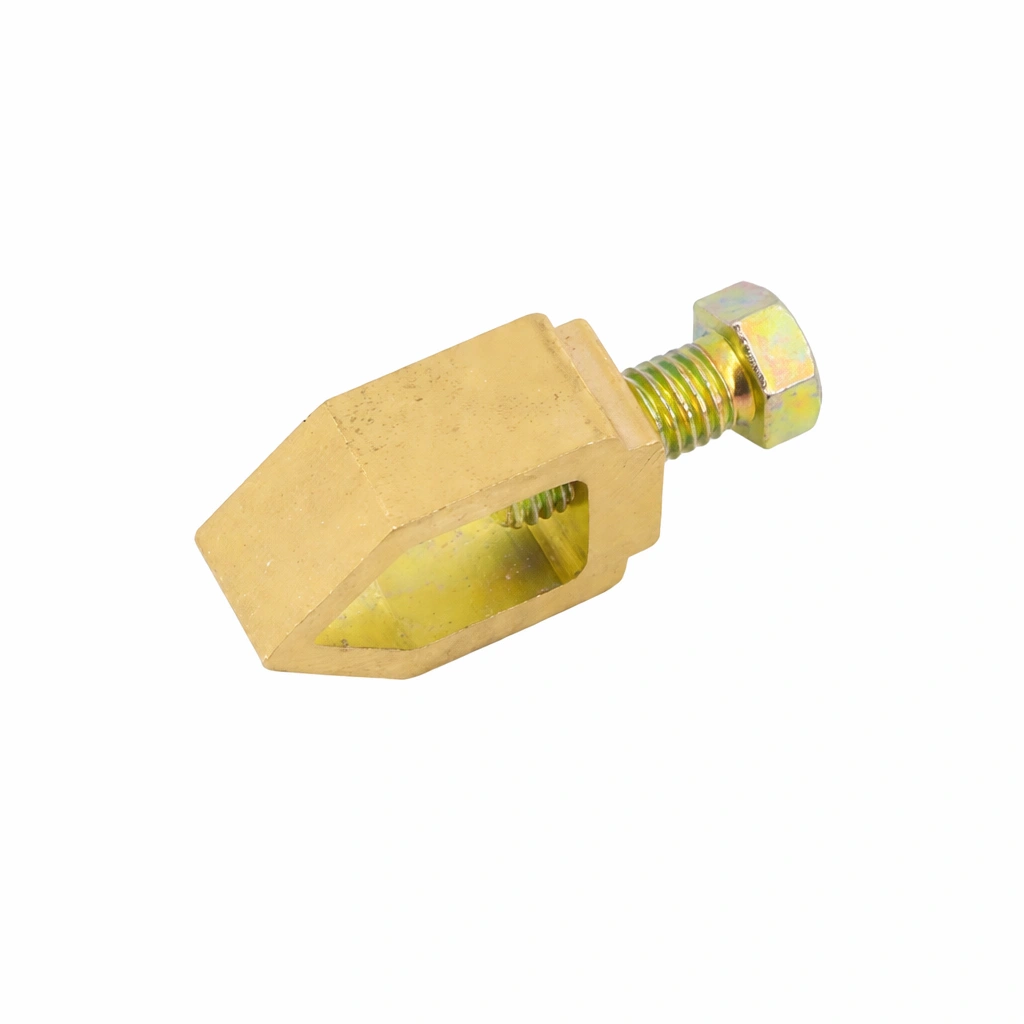

Earth Rod To Cable Clamp Product Overview:
As a critical bonding point within any electrical grounding grid, the earth rod to cable clamp prevents dangerous voltage buildups by safely directing fault currents into the soil. Grounding specialists and procurement teams rely on this heavy-duty hardware to maintain flawless electrical continuity without degradation through the following structural elements:
- Material Synergy: Crafted from a high-strength copper alloy that perfectly matches the conductivity of stranded copper cables, eliminating galvanic corrosion risks.
- Secure Fastening: Utilizes tightly machined stainless steel or naval brass bolts to maintain permanent clamping pressure, even under extreme ground vibrations.

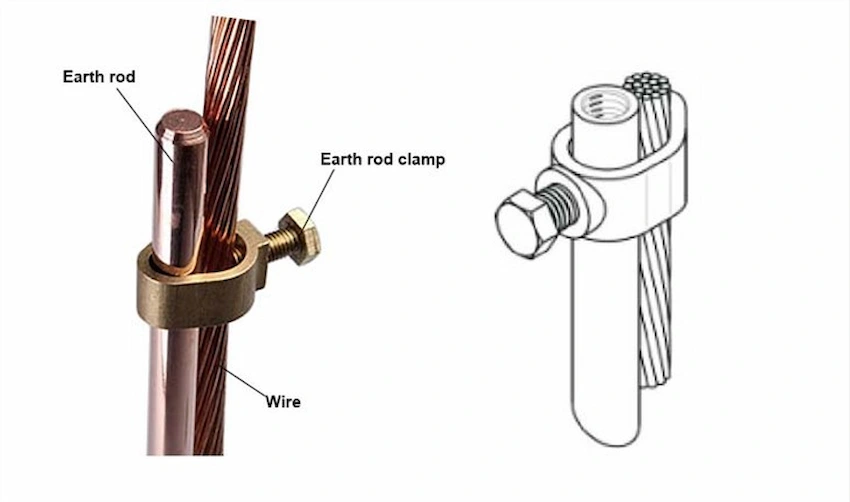

- Versatile Combination: Intelligently designed to join solid ground rods directly to varying sizes of stranded conductors without requiring secondary adapters.
Key Features & Benefits of the Earth Rod To Cable Clamp:
Integrating the earth rod to cable clamp into your substation or facility ensures permanent grounding security. The metallurgical composition of this specific hardware provides immediate mechanical and electrical benefits:
- Exceptional Conductivity: The pure gunmetal and brass body ensures minimal electrical resistance, allowing fault currents to dissipate safely and instantly into the earth.
- High Tensile Strength: Forged to resist extreme mechanical pulling and subsurface shifting, maintaining a shock-proof connection over decades of deployment.
- Anti-Corrosion Build: Specifically treated to resist aggressive soil chemistry, moisture, and oxidation, extending the long service life of the entire grounding framework.
Earth Rod To Cable Clamp Industrial Applications:
The durable, anti-rust construction makes the earth rod to cable clamp an optimal bonding solution for versatile power safety expansions. Whenever technical teams deploy this fitting, they secure exact electrical safety standards across multiple high-risk sectors:
- Substation grounding grids requiring permanent, shock-proof connections between rods and cables.
- Lightning protection systems deployed on commercial buildings and heavy industrial manufacturing plants.
- Telecommunication towers demanding an unyielding ground connection to protect sensitive transmission electronics.
- Large-scale EPC electrical networks operating in highly corrosive, wet, or chemically active soil conditions.
Earth Rod To Cable Clamp Technical Specifications:
Evaluate the precise metallurgical and structural parameters below to confirm that the earth rod to cable clamp aligns flawlessly with your safety procurement requirements and B2B earthing standards.
Type G Clamp Technical Data Sheet
| Technical Parameter | Specification Details |
|---|---|
| Hardware Classification | Type G (Combination Earthing Accessory) |
| Main Body Material | High-Strength Copper Alloy / Gunmetal / Naval Brass |
| Fastening Bolt Material | Naval Brass or Stainless Steel |
| Combination Type | Rod to Conductor Joint |
| Conductor Compatibility | Different Sizes of Stranded Copper Conductor |
| Key Performance Traits | Shock Proof / High Tensile Strength |
| Environmental Resistance | Strong Corrosion Resistance (Subsurface Safe) |
Dimensions for Earth Rod To Cable Clamp Type G:
