Forged Shoulder Eye Bolt Integral HDG Steel 150-550mm

Shoulder Eye Bolt
Forged Shoulder Eye Bolt

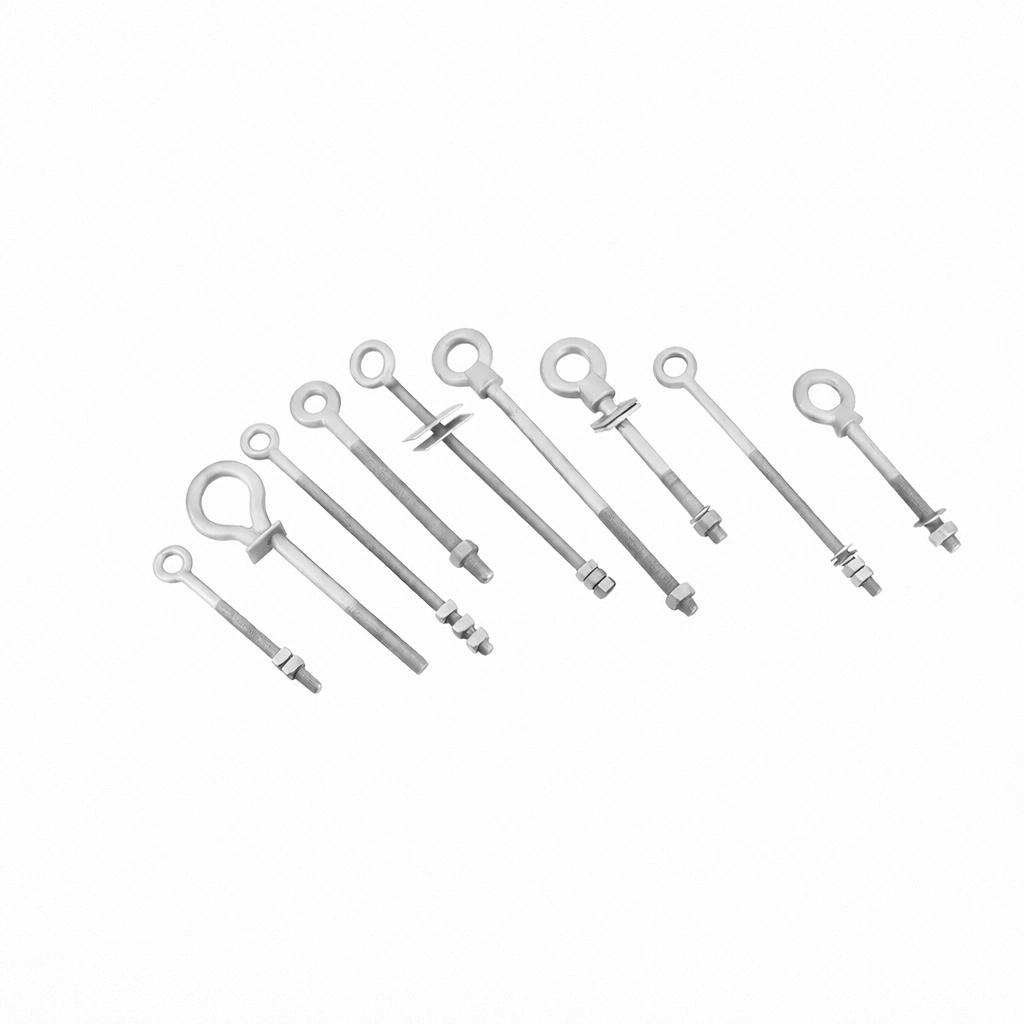

Forged Shoulder Eye Bolts
Shoulder Eye Bolt 04

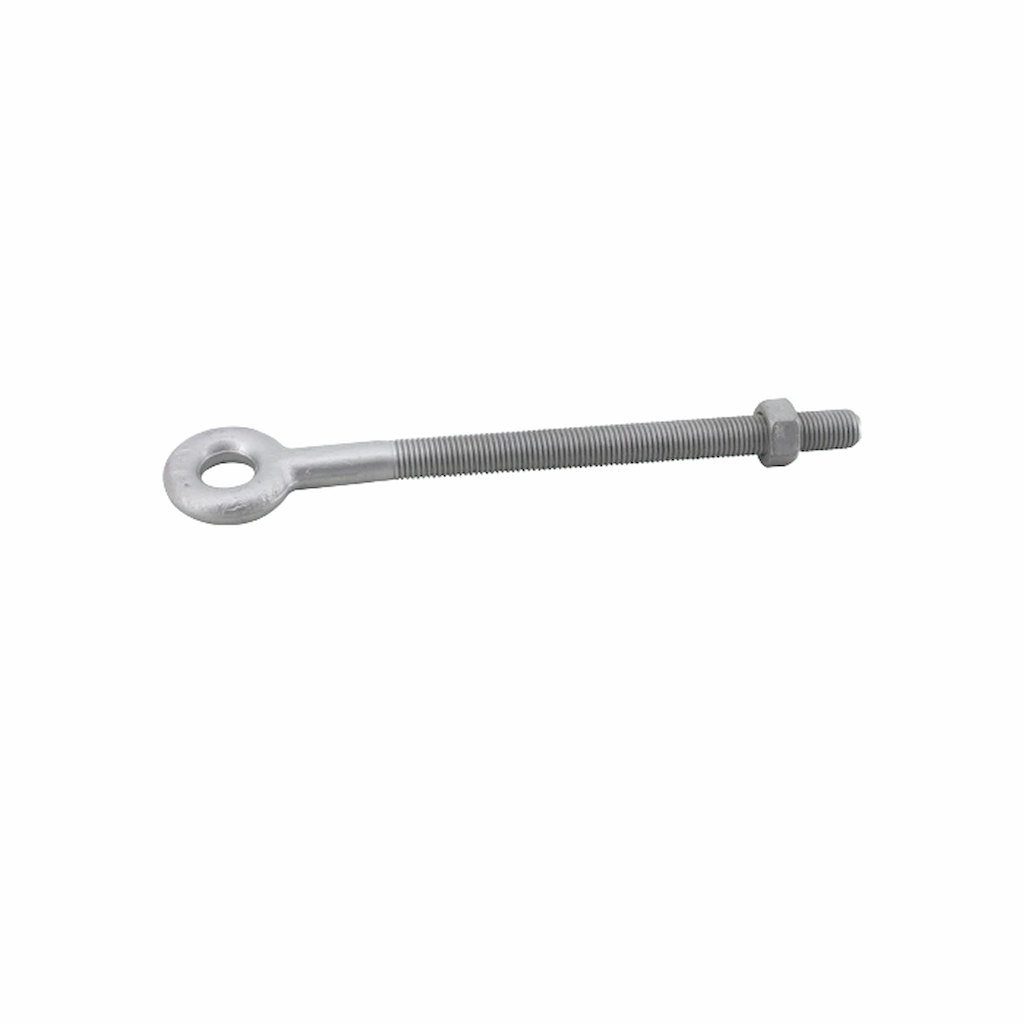

Shoulder Eye Bolt 05

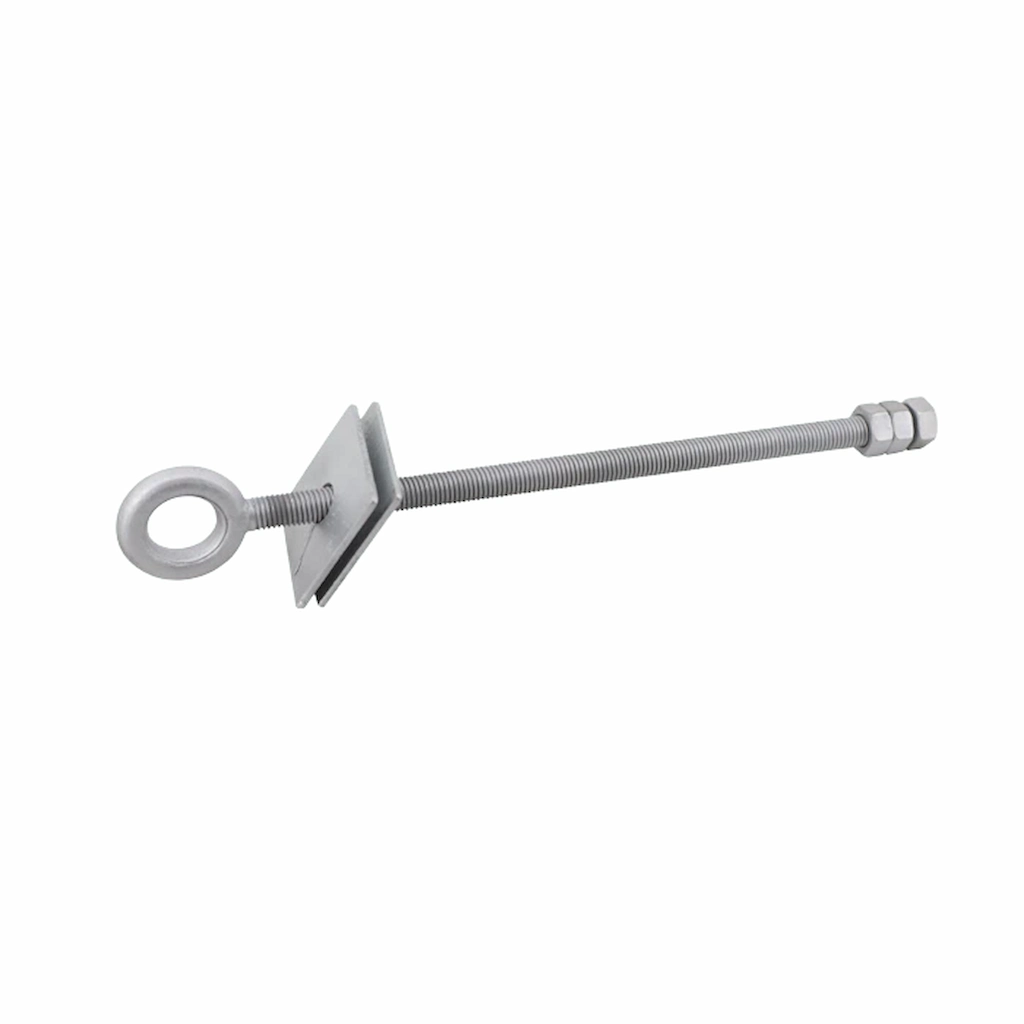

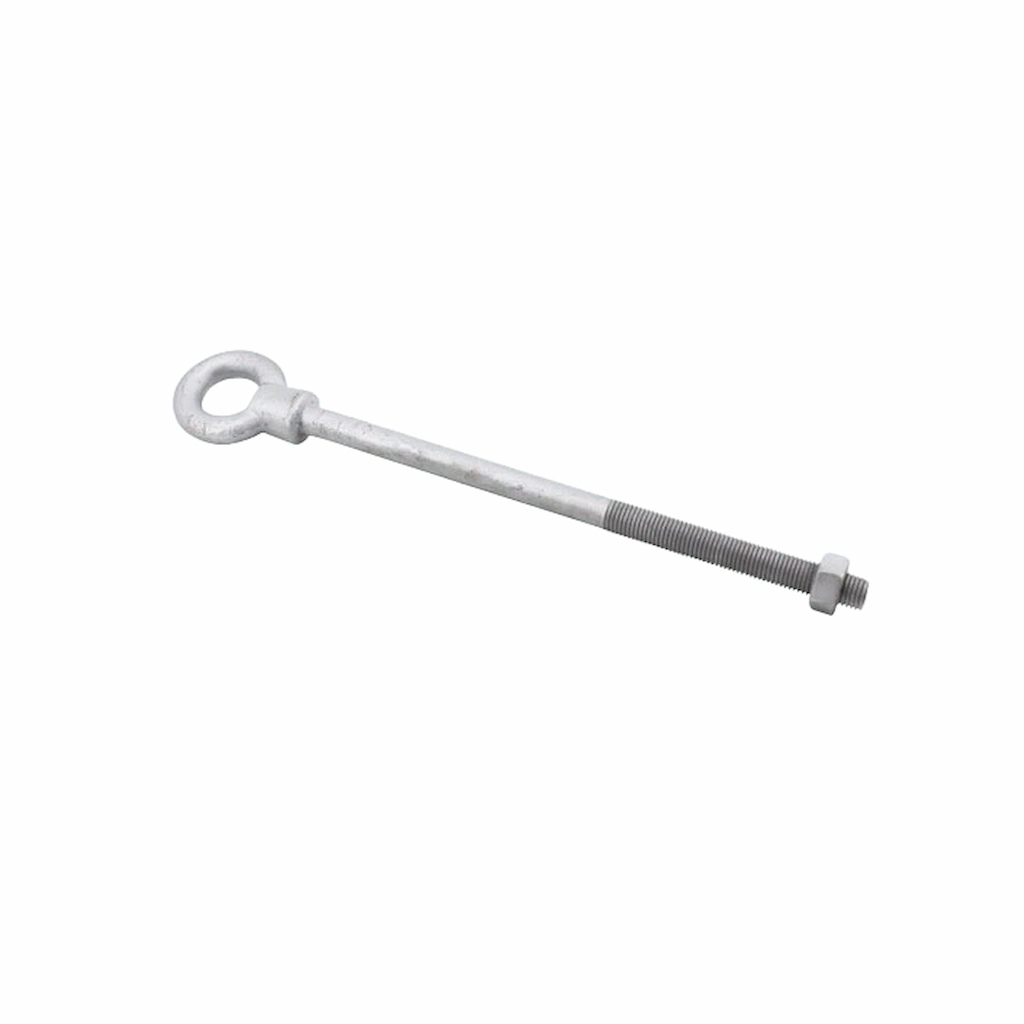

Shoulder Eye Bolt 06

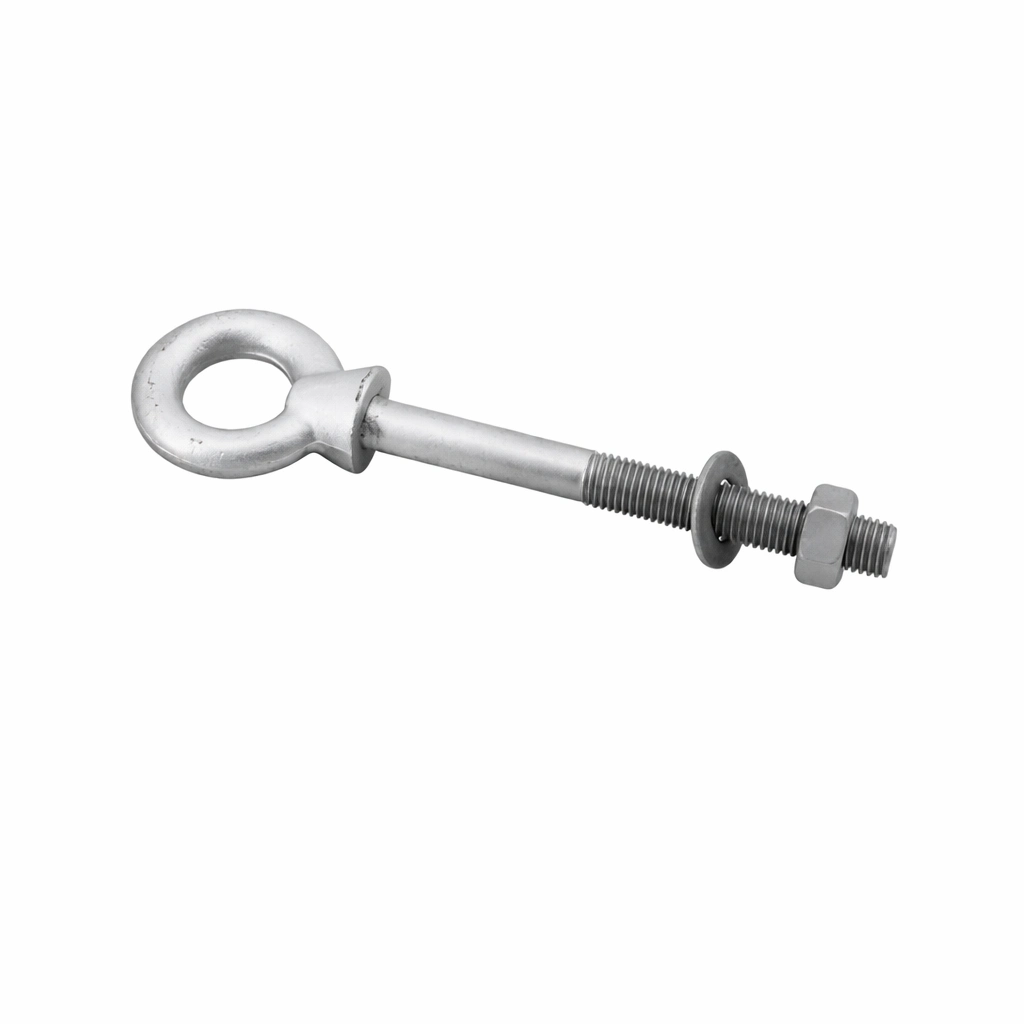

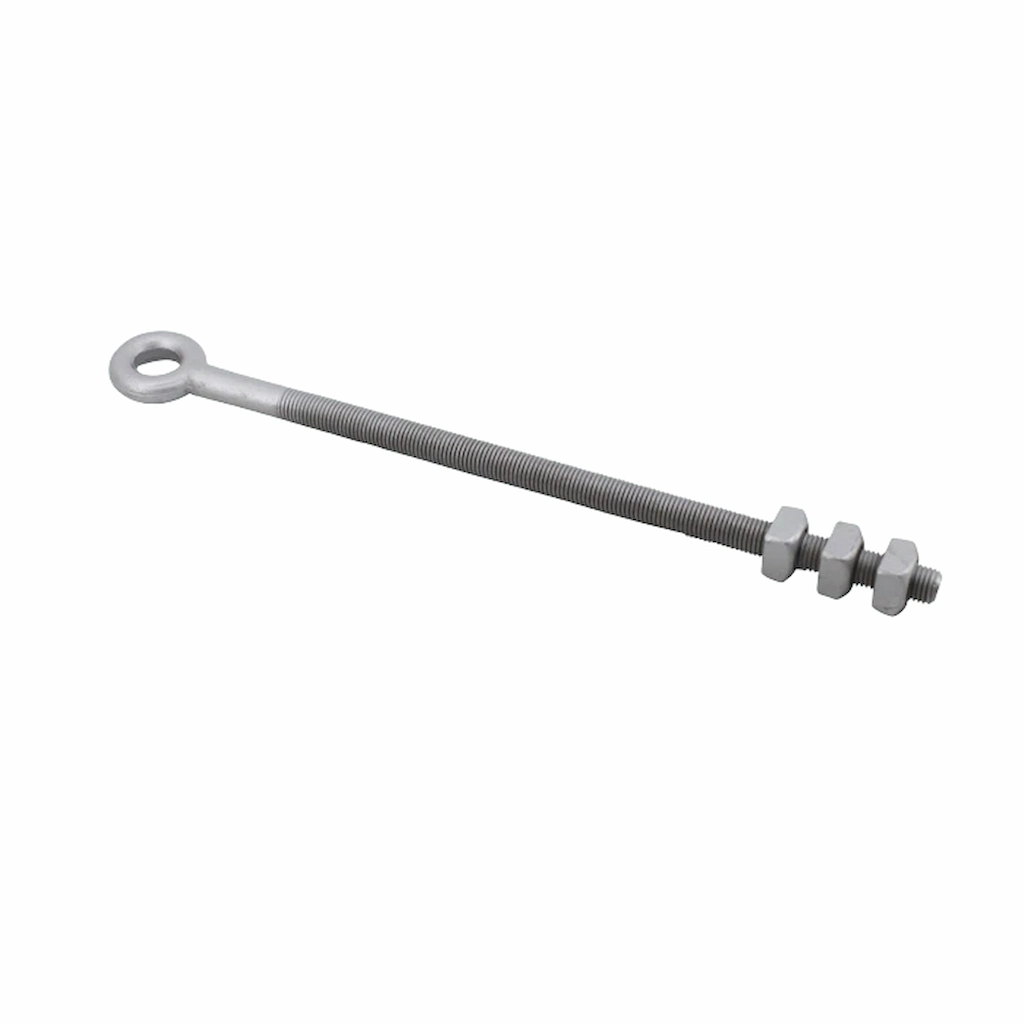

Forged Shoulder Eye Bolt Integral HDG Steel 150-550mm

Forged from high-strength H.D.G steel, the Forged Shoulder Eye Bolt minimizes structural stress across transmission and distribution lines. Utility crews depend on its integrated shoulder design to significantly increase the load area on cross arms, thereby protecting the utility pole from concentrated mechanical pressure. Engineered precisely with a cone point thread rod and a solid forged eye, this fastener safely supports critical network hardware including dead end insulators, shackles, clevis units, and guy thimbles.

Production Capacity: 50,000 pcs per month.

Request a Quote
Categories: ,




Forged Shoulder Eye Bolt Overview:

Concentrated pressure from heavy attachments can cause long-term structural damage to utility poles and wooden cross arms.

Implementing this integrated fastener effectively reduces stress per unit area to protect your infrastructure:

  • Manufactured as a heavy-duty forged shoulder eye bolt to deliver exceptional mechanical stability compared to standard alternatives.
  • Part of a broader classification that includes the oval eye bolt and the regular eye bolt, allowing engineers to select the exact shape required for the line.
  • Designed with a smooth coating over the thread rod, making it noticeably easy to fasten a nut during fast-paced field operations.

Key Features & Benefits of Shoulder Eye Bolts:

Shoulder Eye Bolts enhance your transmission line hardware inventory with these rigorously tested physical advantages:

  • Integrally forged to provide consistent material strength without the vulnerabilities of welded joints.
  • Features a specialized shoulder that actively increases the load area to minimize structural fatigue on poles.
  • Fully treated with hot-dip galvanizing according to international standards for maximum rust prevention.
  • Eliminates the stress concentration typically associated with a non shouldered eye bolt or a standard round eye bolt without shoulder.
  • Supplied in highly exact dimensions (ranging from 150mm up to 550mm) to accommodate diverse structural configurations.

Applications & Use Cases For Forged Shoulder Eye Bolt:

Distribute mechanical tension safely across your infrastructure with hardware engineered for structural protection.

This component is the definitive engineering choice for the following requirements:

  • Supporting heavy dead end insulators securely across overhead transmission and distribution lines.
  • Providing a highly stable anchoring point for shackles, clevis components, and guy thimbles.
  • Safeguarding utility cross arms from extreme unit area stress utilizing the broadened shoulder design.

Technical Specifications:

Review the exact material properties and comprehensive dimensional data below to ensure precise alignment with your overhead line requirements.

Material and Construction

Technical Parameters
Body Material H.D.G steel

Dimensions:

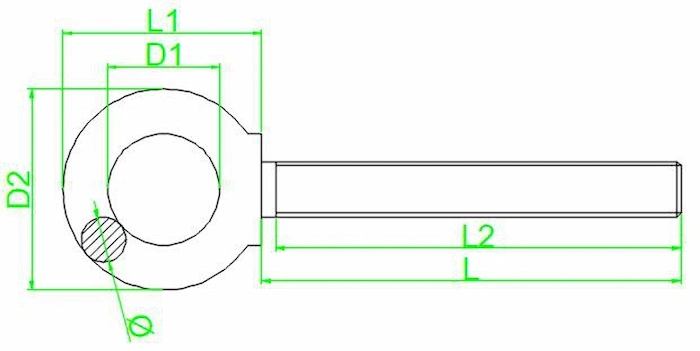

Forged Shoulder Eye Bolt DIMENSIONS

Part No. D1 (mm) D2 (mm) L1 (mm) L2 (mm) L (mm) Φ (mm)
DK-JDHK12/150 40 80 80 75 150 20
DK-JDHK12/200 40 80 80 100 200 20
DK-JDHK12/250 40 80 80 150 250 20
DK-JDHK12/300 40 80 80 150 300 20
DK-JDHK12/325 40 80 80 150 325 20
DK-JDHK16/150 40 80 80 75 150 20
DK-JDHK16/200 40 80 80 100 200 20
DK-JDHK16/250 40 80 80 150 250 20
DK-JDHK16/300 40 80 80 150 300 20
DK-JDHK16/350 40 80 80 150 350 20
DK-JDHK16/400 40 80 80 150 400 20
DK-JDHK16/450 40 80 80 150 450 20
DK-JDHK20/150 40 80 80 75 150 20
DK-JDHK20/200 40 80 80 100 200 20
DK-JDHK20/250 40 80 80 150 250 20
DK-JDHK20/300 40 80 80 150 300 20
DK-JDHK20/350 40 80 80 150 350 20
DK-JDHK20/400 40 80 80 150 400 20
DK-JDHK20/450 40 80 80 150 450 20
DK-JDHK20/480 40 80 80 150 580 20
DK-JDHK20/500 40 80 80 150 500 20
DK-JDHK20/550 40 80 80 150 550 20
