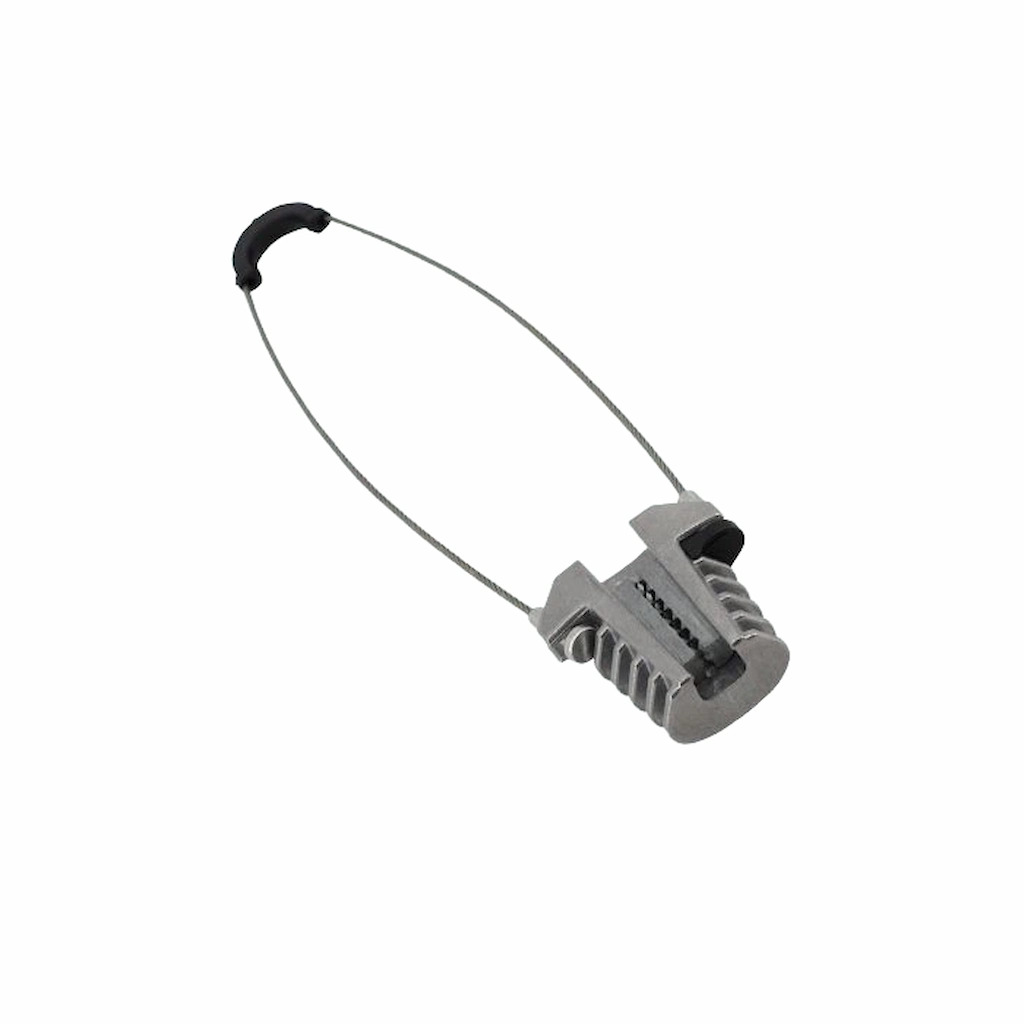

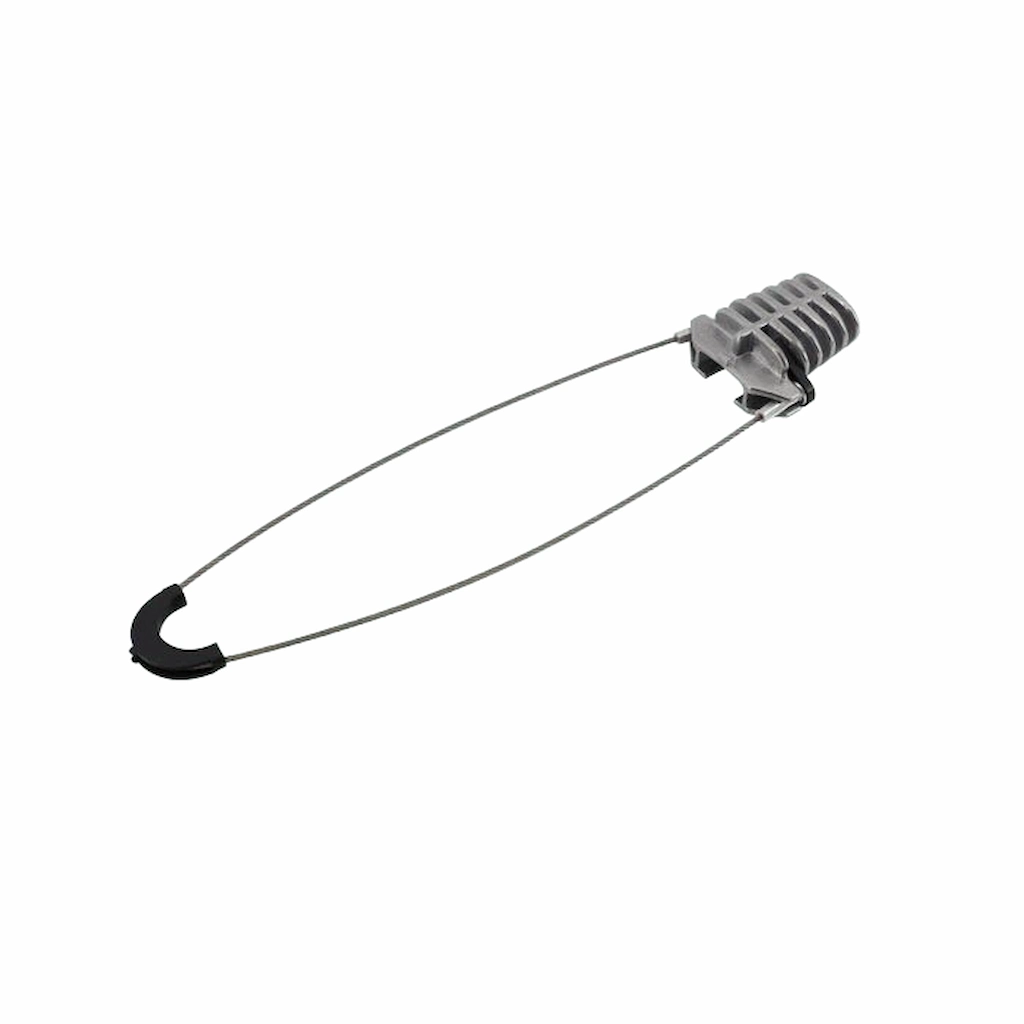

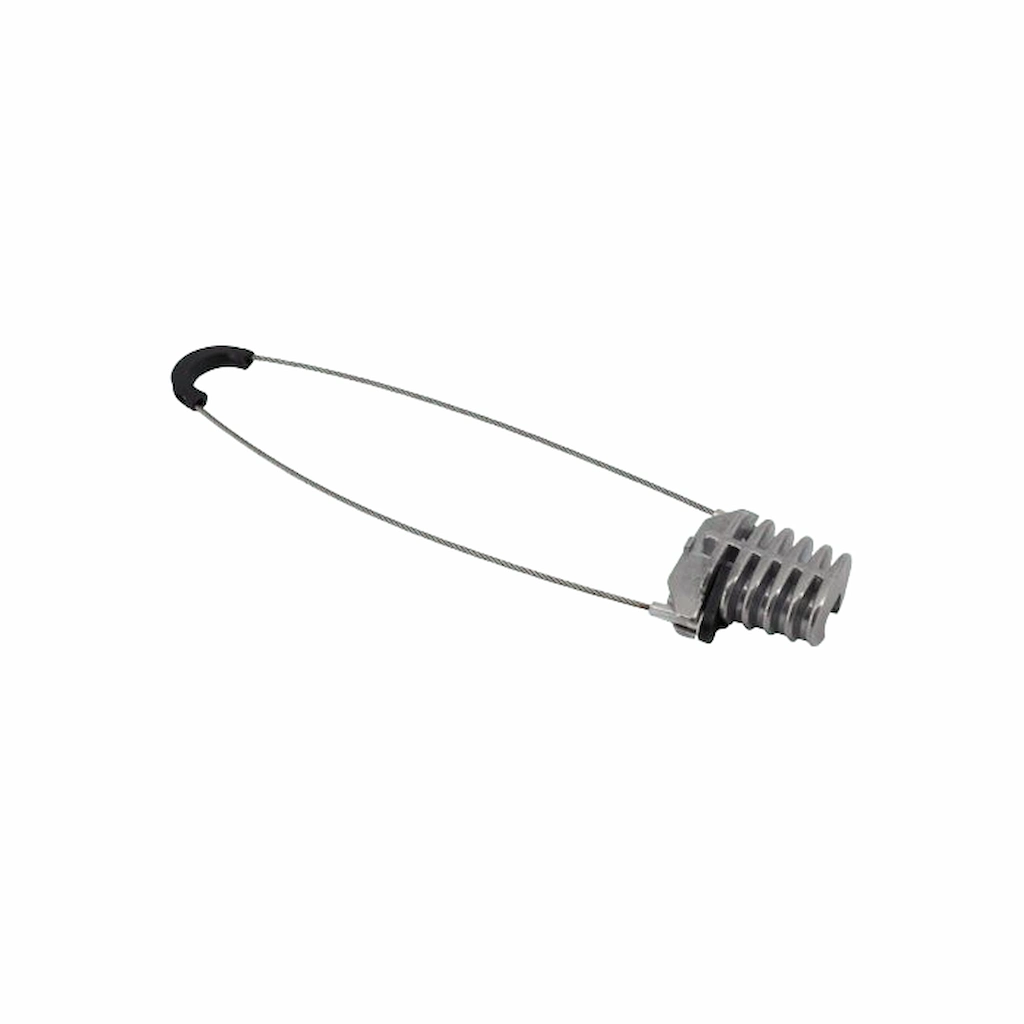

FTTH Fiber Optic Cable clamp Overview:
Applying incorrect tensioning hardware can crush delicate optical fibers and degrade telecommunication performance rapidly.
Implementing our specialized fiber optic dead end clamp guarantees a secure hold without any line bending:
- Features a UV-resistant, fiberglass-reinforced thermoplastic wedge that ensures simple, completely toolless, and high-speed field installations.
- Grips the outer sheath perfectly to prevent slippage without causing any microscopic damage to the internal optical threads.
- Mounts universally on wooden, concrete, or metal poles with the assistance of standard utility hoops, eyes, brackets, or cross arms.
Key Features & Benefits:
Optimize your telecommunication rollouts with these heavily tested mechanical advantages:
- Constructed with a high-strength aluminum alloy body to provide superior endurance against aggressive weather elements.
- Equipped with a flexible strand stainless steel wire hook to ensure long-term, rust-free operational stability.
- Designed specifically for reliable fiber optic Dead Ending, accommodating both figure-8 and round profiles seamlessly.
- Delivers a robust 600daN (6kN) failing load, fully compliant with rigorous NF C 33-041, NF C 33-042, and BS EN 50483-3 standards.
- Functions flawlessly as a heavy-duty fiber optic cable pole clamp, requiring zero specialized tools for assembly.
Applications & Use Cases For Fiber Optic Cable Clamp:
Secure your optical infrastructure safely with hardware engineered specifically for precise tension control.
This advanced unit is the definitive choice for the following requirements:
- Executing highly secure and permanent dead-ending for ADSS, OPGW, and FTTH aerial lines utilizing this advanced fiber optic dead end clamp.
- Upgrading telecommunication grids efficiently using our specialized FTTH Dead Ending components.
- Installing 3-7mm optical networks on exterior walls or distribution poles with complete engineering confidence.
Technical Specifications:
Review the exact dimensional range, mechanical strength, material composition, and compliance standards below to verify alignment with your project requirements.

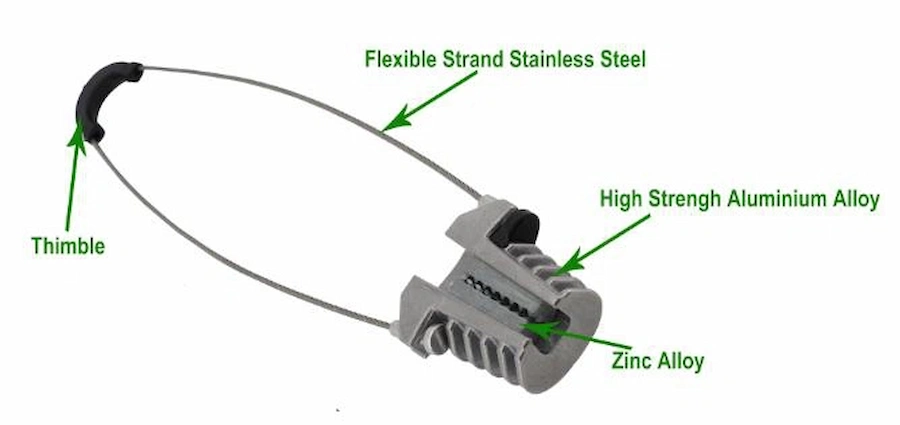

Material, Construction & Application
| Material and Construction | |
| Body Material | High strength Aluminium Alloy |
| Wedge insert | Fibreglass reinforced thermoplastic |
| Hook | Flexible Strand stainless steel wire |
| Color | Silver |
| Line Application | |
| Line type | Round / Figure-8 |
| Diameter (Minimum) | 3.0mm |
| Diameter (Maximum) | 7.0mm |
| Cross section (Minimum) | 16mm² |
| Cross section (Maximum) | 25mm² |
Mechanical Strength & Standards
| Mechanical Strength | |
| Failing load | 600daN / 6kN |
| Standard | |
| Design | NF C 33-041, NF C 33-042 |
| Testing | BS EN 50483-3 |

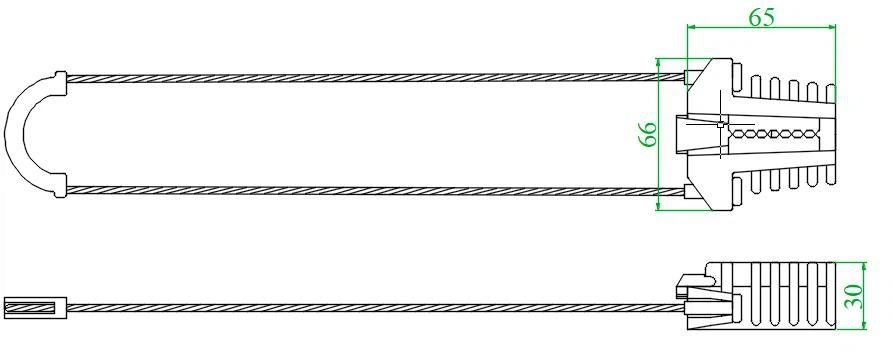

Dimensions:
