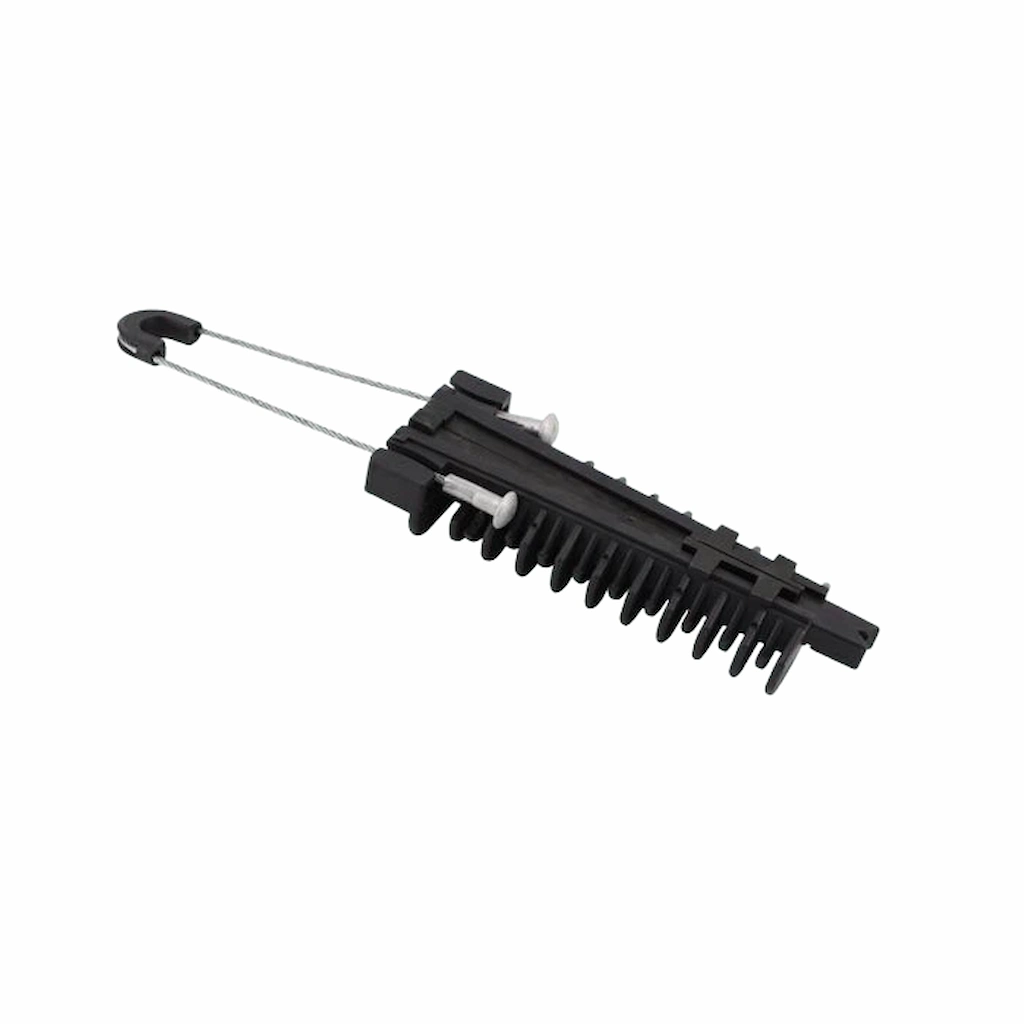

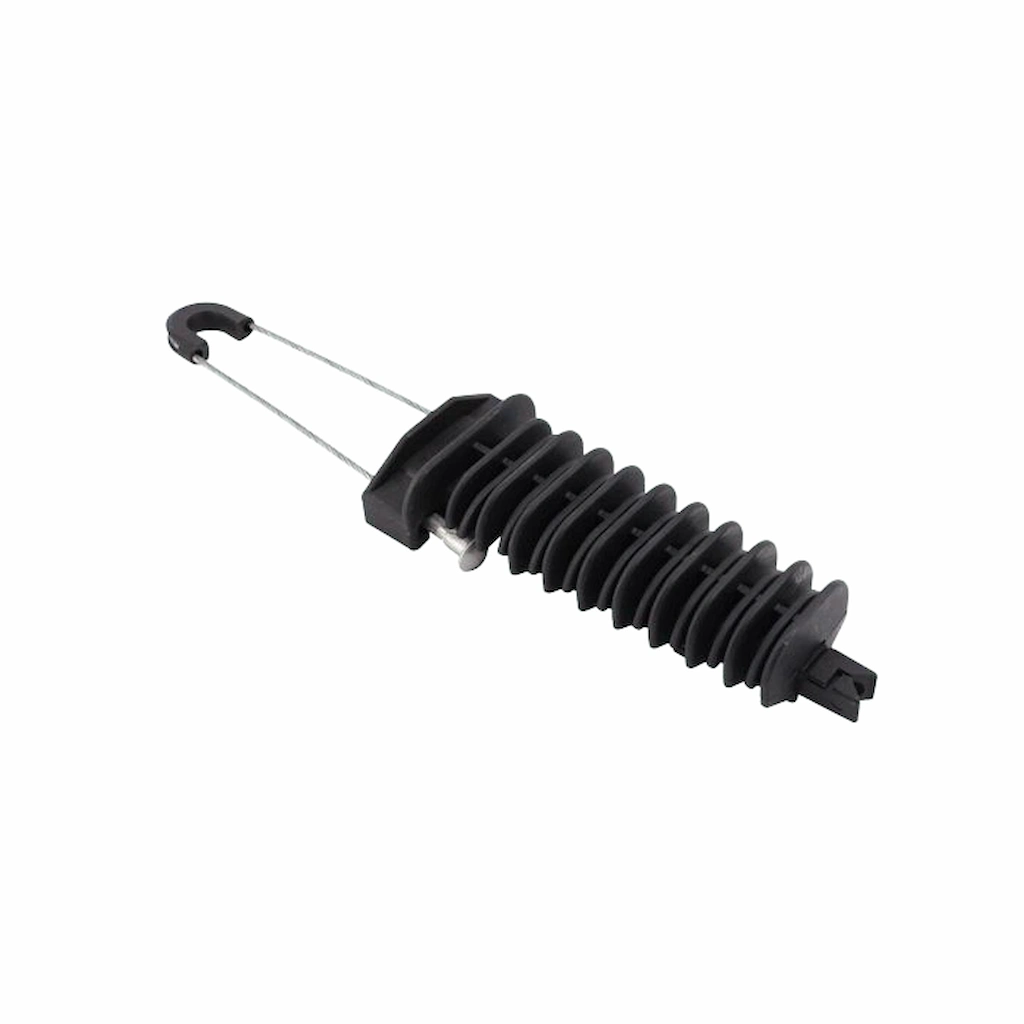

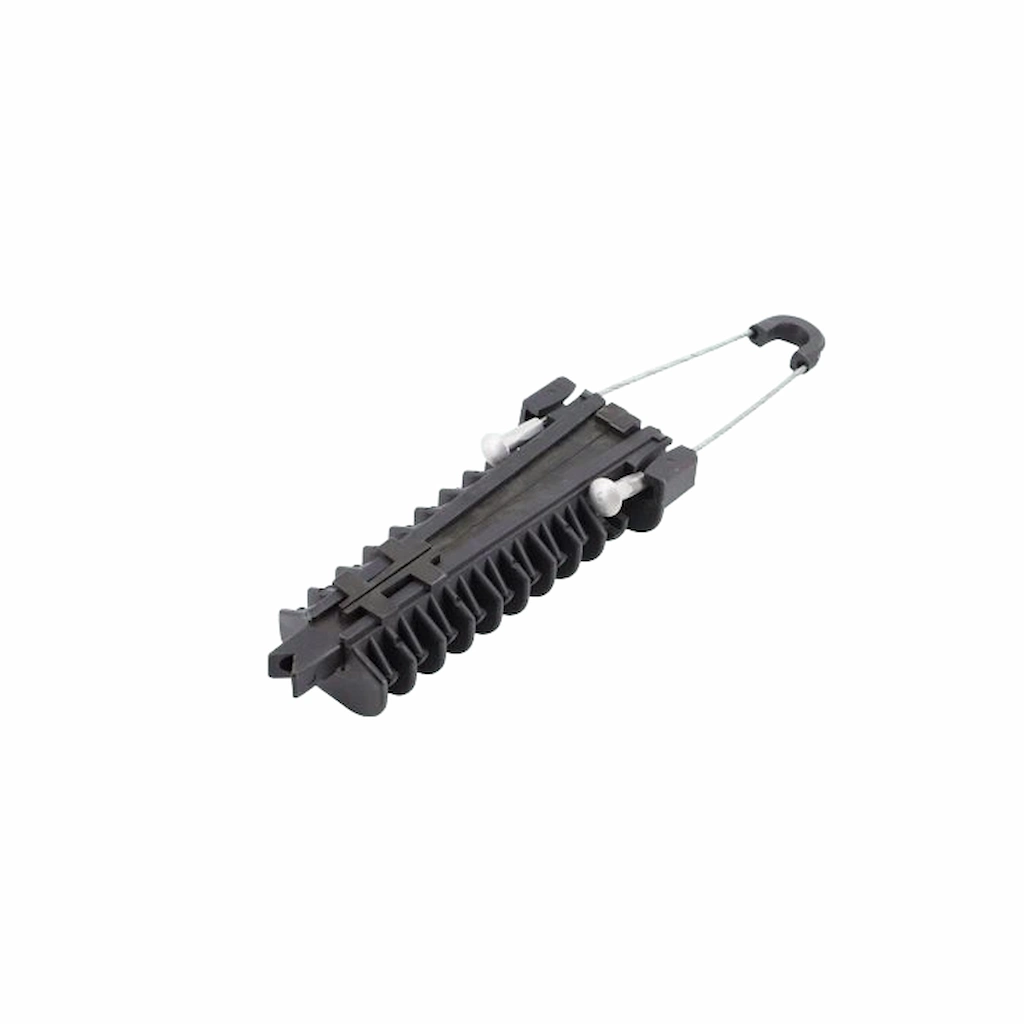

FTTH Fiber Optic Tension Clamp Overview:
Unstable mechanical stress can compromise optical network functionality and degrade signal transmission over time.
Integrating this insulated wedge hardware ensures consistent holding strength across your infrastructure:
- Constructed from high-grade fibreglass reinforced polymer to resist severe environmental aging and continuous UV exposure.
- Features a streamlined design that facilitates simple, high-speed, and completely toolless field installation for field crews.
- Secures the outer sheath firmly to prevent line slippage and eliminate microscopic core damage under continuous structural tension.
Key Features & Benefits:
Enhance your telecommunication hardware inventory with these rigorously tested material advantages:
- Manufactured with a flexible stainless steel bail to ensure long-term, rust-free operational stability.
- Functions reliably as a heavy-duty fiber cable tension clamp, continuously supporting 1500daN load requirements.
- Complies directly with strict NF C 33-041, NF C 33-042, and BS EN 50483-3 engineering testing standards.
- Eliminates complex assembly procedures by offering a fully toolless, secure wedge integration.
- Integrates perfectly as a standard cable tension clamp across standard wooden, concrete, or metal pole layouts.
Applications & Use Cases For FTTH Fiber Optic Tension Clamp:
Control mechanical tension safely utilizing hardware built specifically for sensitive optical fiber requirements.
This component is the definitive engineering choice for the following tasks:
- Executing safe, permanent dead-ending configurations for ADSS and FTTH aerial network infrastructures.
- Anchoring 10-13mm round optical lines directly to exterior walls, distribution poles, or standard cross arms.
- Maintaining reliable structural tension using a verified fiber tension clamp during rapid network expansions.
Technical Specifications:
Review the exact material composition, mechanical strength, packaging details, and compliance standards below to verify alignment with your project requirements.
Material, Construction & Application
| Material and Construction | |
| Body Material | Fibreglass reinforced thermoplastic |
| Wedge insert | Fibreglass reinforced thermoplastic |
| Hook | Flexible Strand stainless steel wire |
| Color | Black |
| Line Application | |
| Line type | Round |
| Minimum Diameter | 10mm |
| Maximum Diameter | 13mm |
Mechanical Strength, Standards & Packing
| Mechanical Strength & Standards | |
| Failing load | 1500daN / 15kN |
| Design Standards | NF C 33-041, NF C 33-042 |
| Testing Standard | BS EN 50483-3 |
| Packing Information | |
| Qty. per carton | 50 pcs |
| Carton Dimensions | 470mm (L) x 455mm (W) x 370mm (H) |
| Gross weight | 13.5kg |

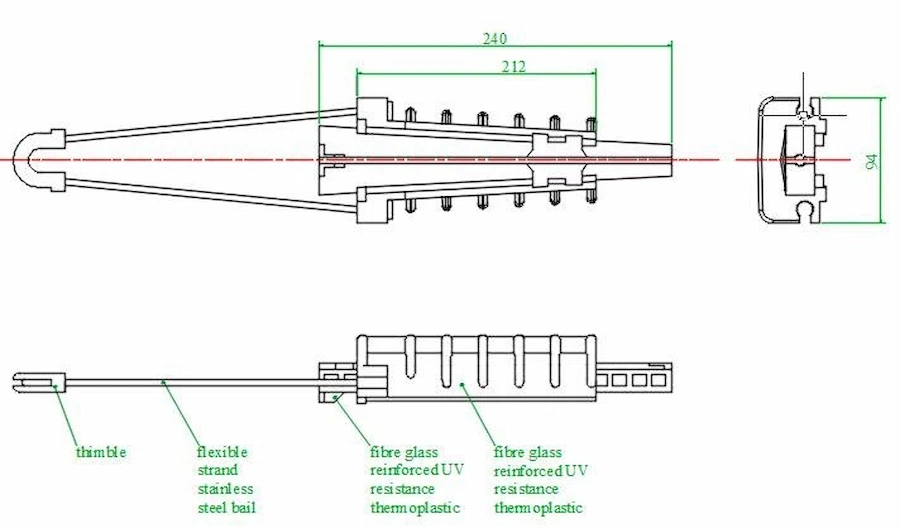

Dimensions:
