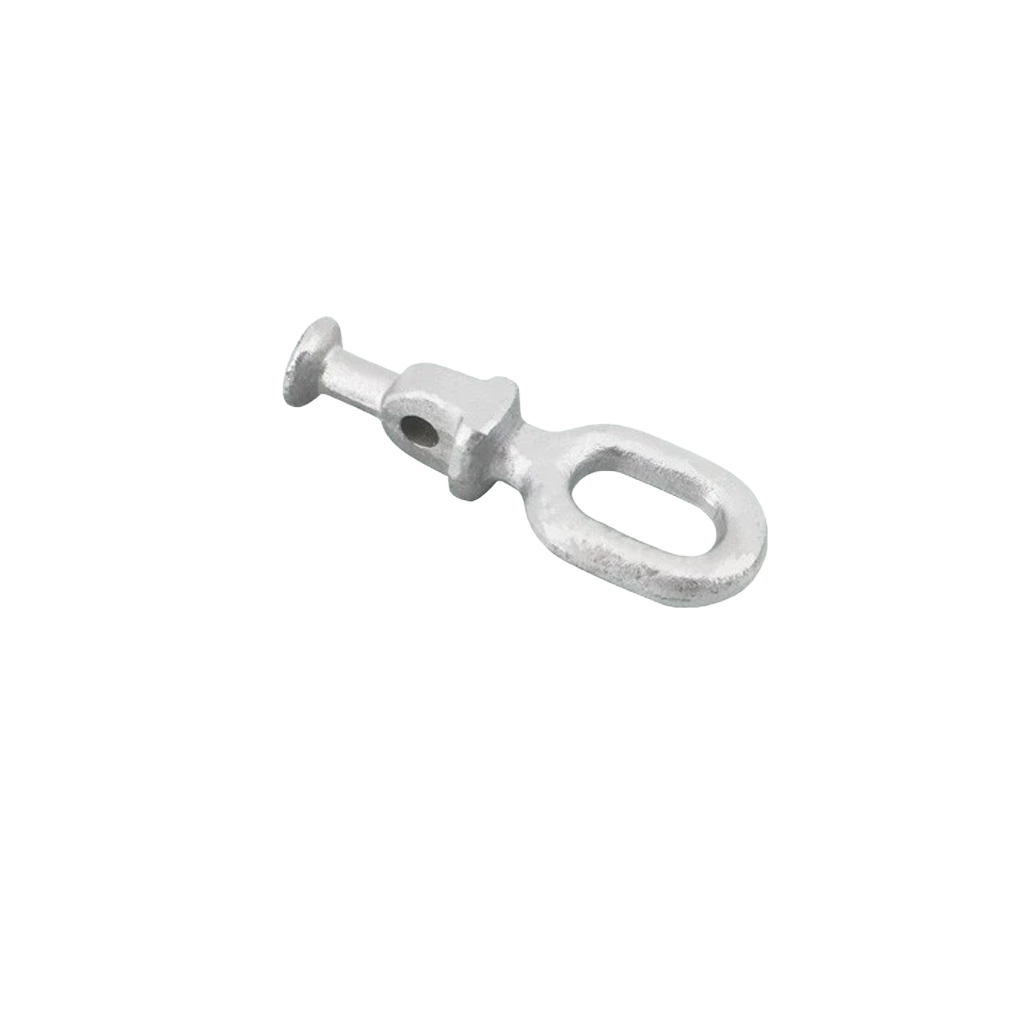

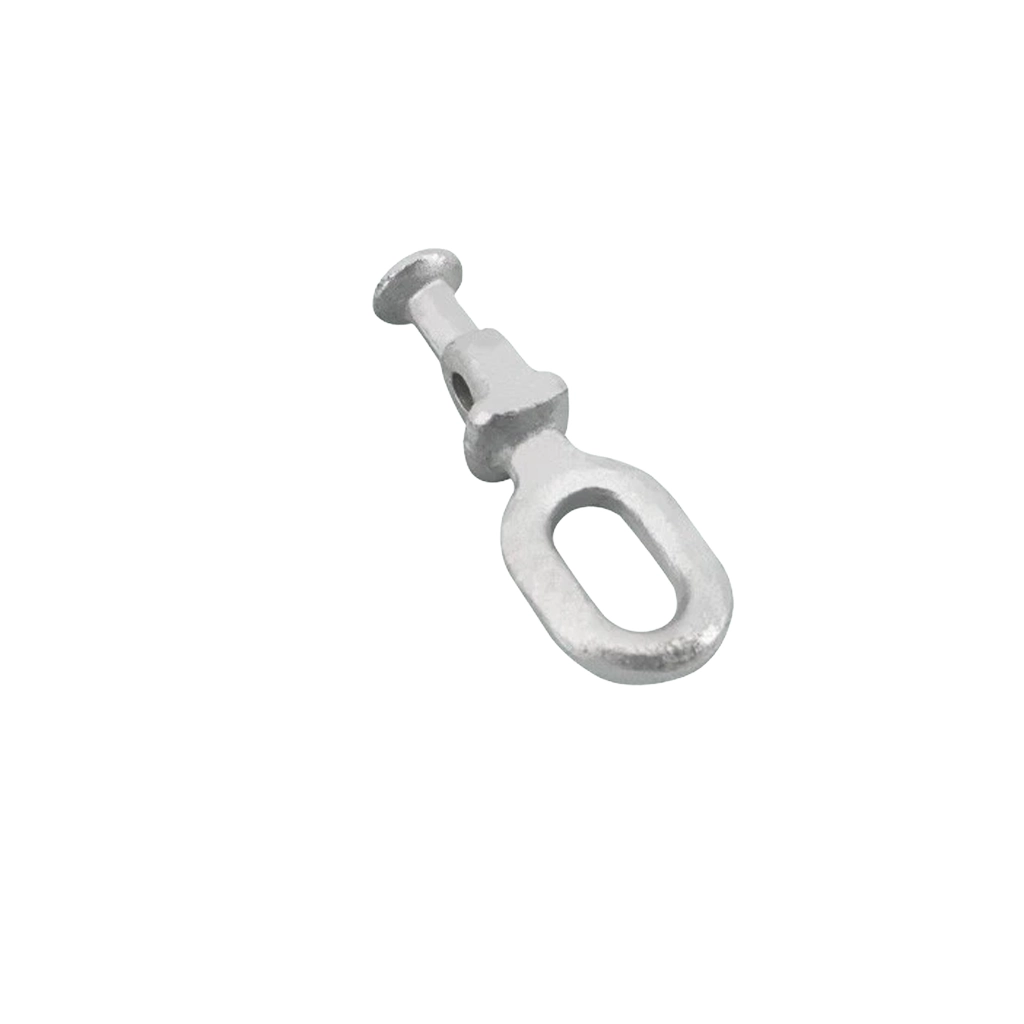

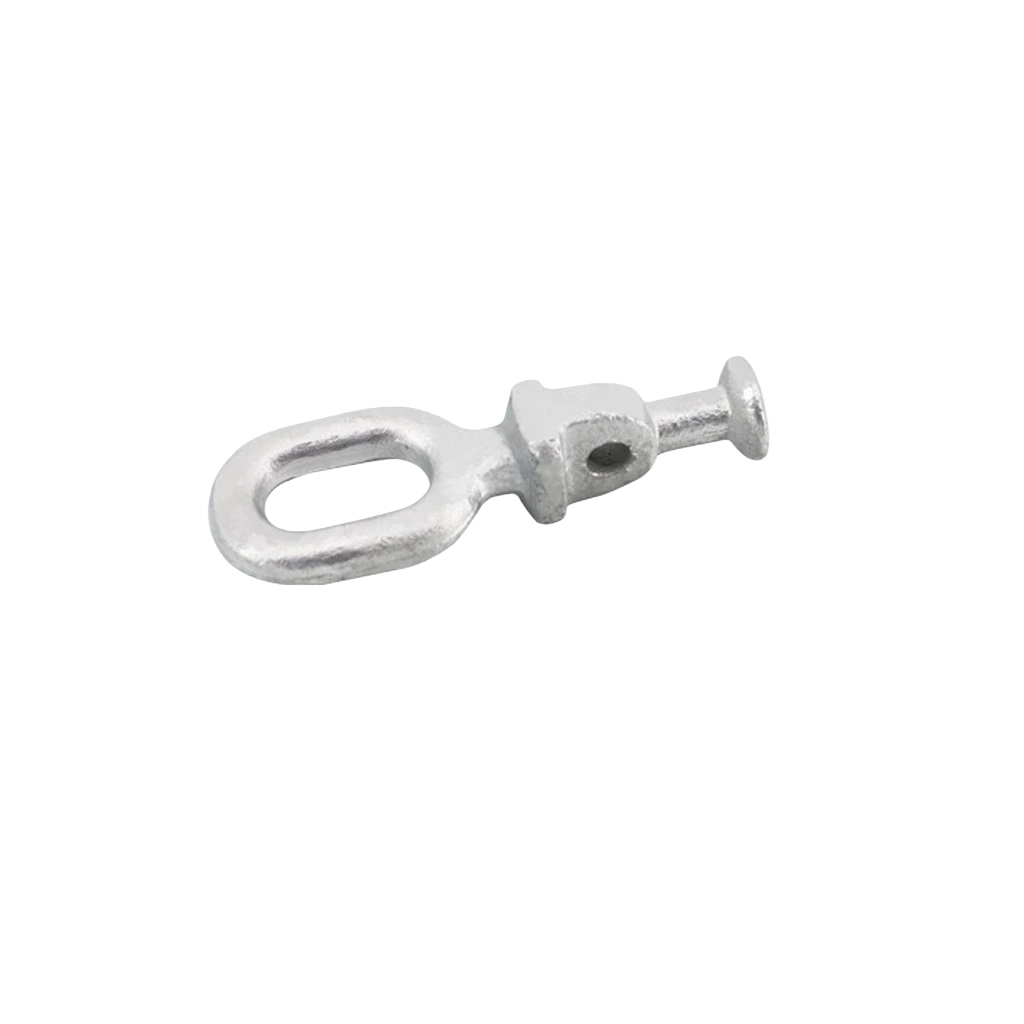

Galvanized Eye ball Product Overview
Crafted from premium heat-treated steel, the Galvanized Eye ball exhibits exceptional ductility and mechanical strength. The forging process ensures this hardware maintains optimal short-circuit capabilities, functioning perfectly as a durable Ball End Eye for highly demanding structural setups.
- Manufactured with a Hot-Dip Galvanized (H.D.G.) steel body to provide excellent, long-lasting corrosion resistance.
- Features high-strength connecting bolts strictly rated at grade 4.8 or 8.8.
- Equipped with durable split pins fabricated from either stainless steel or tinned copper.
- Supports massive project demands with an exceptional producing capacity of 5,000,000 pieces per month.
- The smooth bolt holes and precise cross-sections of the Q-N model guarantee safe and stable load distribution.
Galvanized Eye ball Key Features
Sourcing the Galvanized Eye ball for your utility infrastructure guarantees dependable mechanical performance backed by highly advantageous B2B procurement terms:
- Certified Manufacturing: Produced under comprehensive quality control plans within ISO 9001, ISO 14001, and ISO 18001 facilities.
- Flexible Ordering: Buyers enjoy zero Minimum Order Quantities (MOQ) on initial purchases, with a low 100-piece threshold for subsequent orders.
- Cost Efficiency: Delivers low-cost factory pricing paired with rapid quotation responses and professional technology assistance.
- Project Support: OEM customization is available upon request, and complete tender document sets are ready for immediate EPC submission.
- Sample Availability: Free product samples are provided for quality verification (buyer covers freight).
Galvanized Eye ball Applications
Field technicians consistently rely on the Galvanized Eye ball to withstand demanding mechanical tension in outdoor line installations. It is primarily utilized for:
- Connecting heavy-duty insulators directly to transmission towers and structural conductors.
- Securing protective Q-N fittings safely to form cohesive string groups.
- Fulfilling large-scale low and medium-voltage (LV and MV) EPC material lots efficiently.
Galvanized Eye ball Technical Specifications
Review the mechanical load ratings and dimensional data below to ensure the Galvanized Eye ball fits your exact structural requirements. The data sheets summarize the precise parameters for the entire Q-N series.
| Technical Parameter | Specification Details |
|---|---|
| Hardware Type | Connecting Fitting / Galvanized Eye ball |
| Model Series | Q-N Series |
| Body Material | Forged, Heat-Treated H.D.G. Steel |
| Connecting Bolts Grade | Grade 4.8 or 8.8 |
| Split Pin Material | Stainless Steel or Tinned Copper |
| Producing Capacity | 5,000,000 sets per month |
| Factory Certifications | ISO 9001, ISO 14001, ISO 18001 |

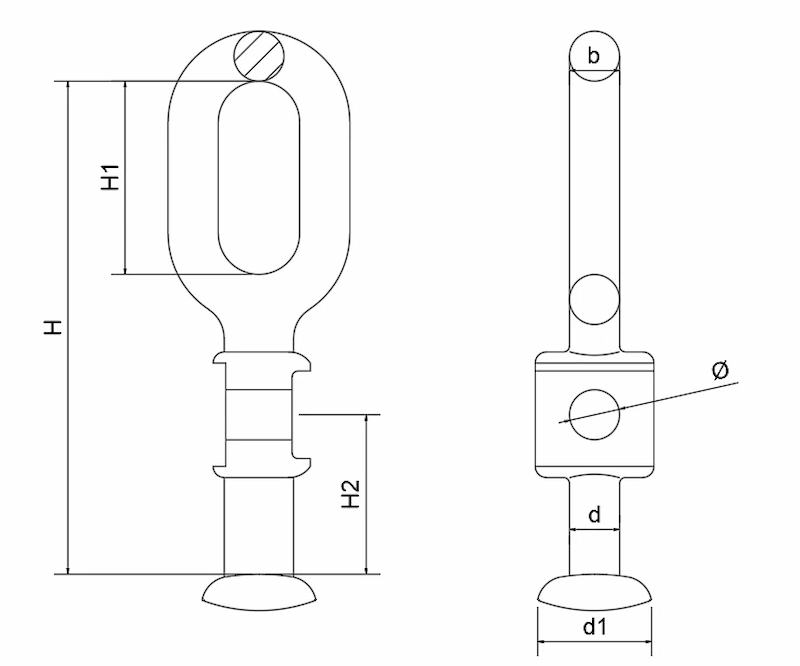

Galvanized Eye ball Dimensions & Failure Load Sheet
| Cat. No. | Dimension (mm) | Failure Load (kN) | Weight (kg) | ||||||
|---|---|---|---|---|---|---|---|---|---|
| H | b | ∅ | d | d1 | H1 | H2 | |||
| Q-7N | 140 | 16 | 14 | 17 | 33.3 | 42 | 55 | 70 | 0.6 |
| Q-10N | 140 | 16 | 14 | 17 | 33.3 | 42 | 55 | 100 | 0.7 |
| Q-12N | 165 | 16 | 14 | 17 | 33.3 | 48 | 65 | 120 | 0.8 |
