Grounding plate Overview:
Inadequate soil contact and the rapid corrosion of buried earthing components are the primary causes of high earth fault loop impedance, leading to catastrophic equipment damage and severe safety hazards.

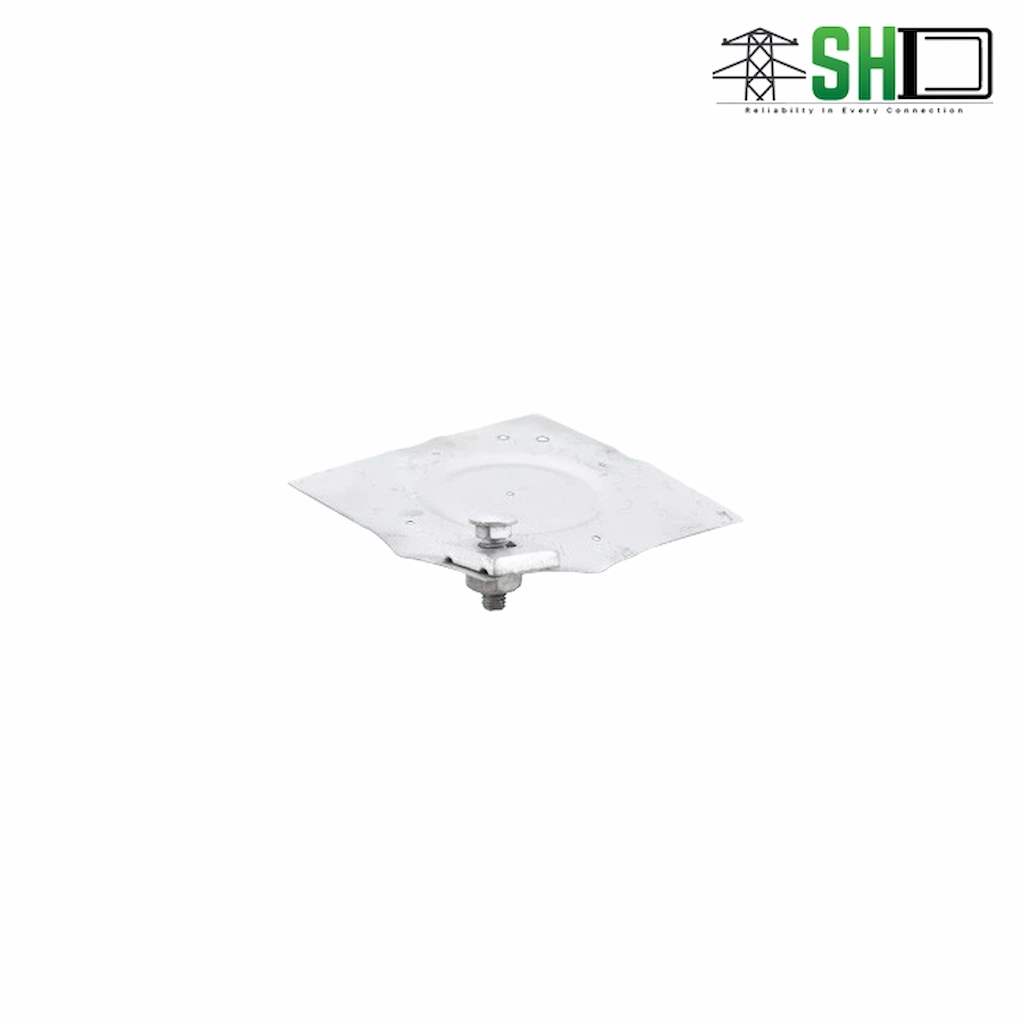

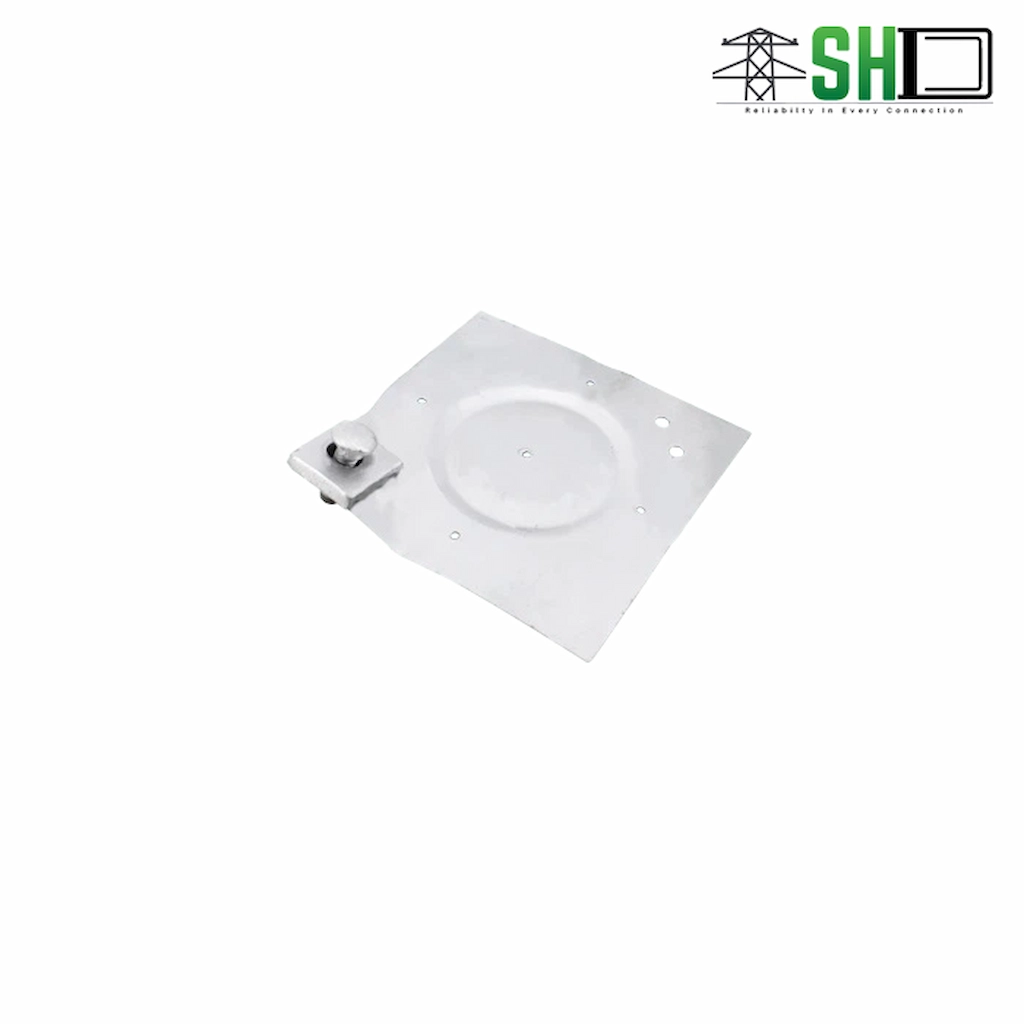

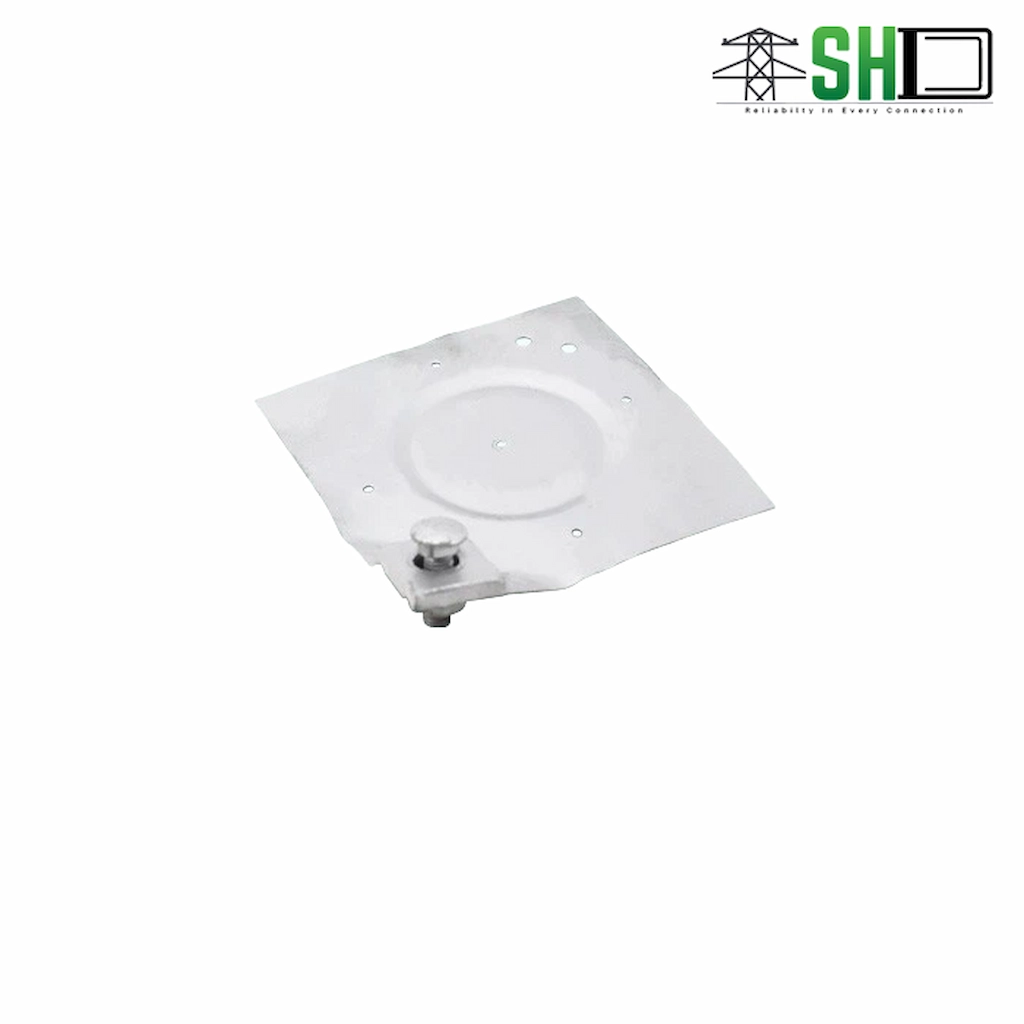

Deploy our specialized pole butt grounding plate to ensure a permanent, highly secure mechanical and electrical bond:
- Features a precision-engineered embossed ring on the plate surface, uniquely designed to assure a firm, high-pressure, and positive contact with the surrounding earth.
- Fully treated with a heavy-duty hot-dip galvanized finish to provide absolute resistance against aggressive soil chemistry and underground moisture, guaranteeing a long working life.
Key Features & Benefits:
Optimize your utility pole grounding specifications instantly with these highly reliable, rigorously tested advantages:
- Manufactured with an embossed ring to guarantee maximum, positive earth contact.
- Fully hot-dip galvanized to ensure exceptional underground corrosion resistance.
- Equipped with a sturdy galvanized steel clamp for secure iron wire connections.
- Supported by strict quality assurance and short lead times for large-scale projects.
- Functions flawlessly as a heavy-duty electrical ground plate for pole butt setups.
Applications & Use Cases for grounding plate:
Integrate this dynamic earthing hardware to establish completely fail-proof electrical distribution networks.
This heavy-duty unit is the definitive engineering choice for the following critical utility tasks:
- Terminating pole butt earthing systems safely using a standardized grounding plate.
- Securing galvanized iron grounding wires securely at the base of utility poles.
- Executing highly stable, long-lasting grounding configurations utilizing a tested electrical ground plate.
Technical Specifications:
Review the exact material properties, dimensional sizing, and packaging data below to ensure perfect alignment with your earthing system engineering standards.Technical Parameters
| General Specifications | |
| Product Type | Pole Butt Grounding Plate |
| Surface Treatment | Hot Dip Galvanized |
| Clamp Material | Galvanized Steel |
| Wire Compatibility | Galvanized Iron Grounding Wire |
| Special Feature | Embossed Ring for Firm Earth Contact |
Dimensional & Packaging Data:
| Plate Size (mm) | Approximate Shipping Weight (Kg / 100 Pcs) | Standard Packaging (Qty / Carton) |
|---|---|---|
| #16 Gauge x 187.5 x 187.5 | 66 | 40 |
