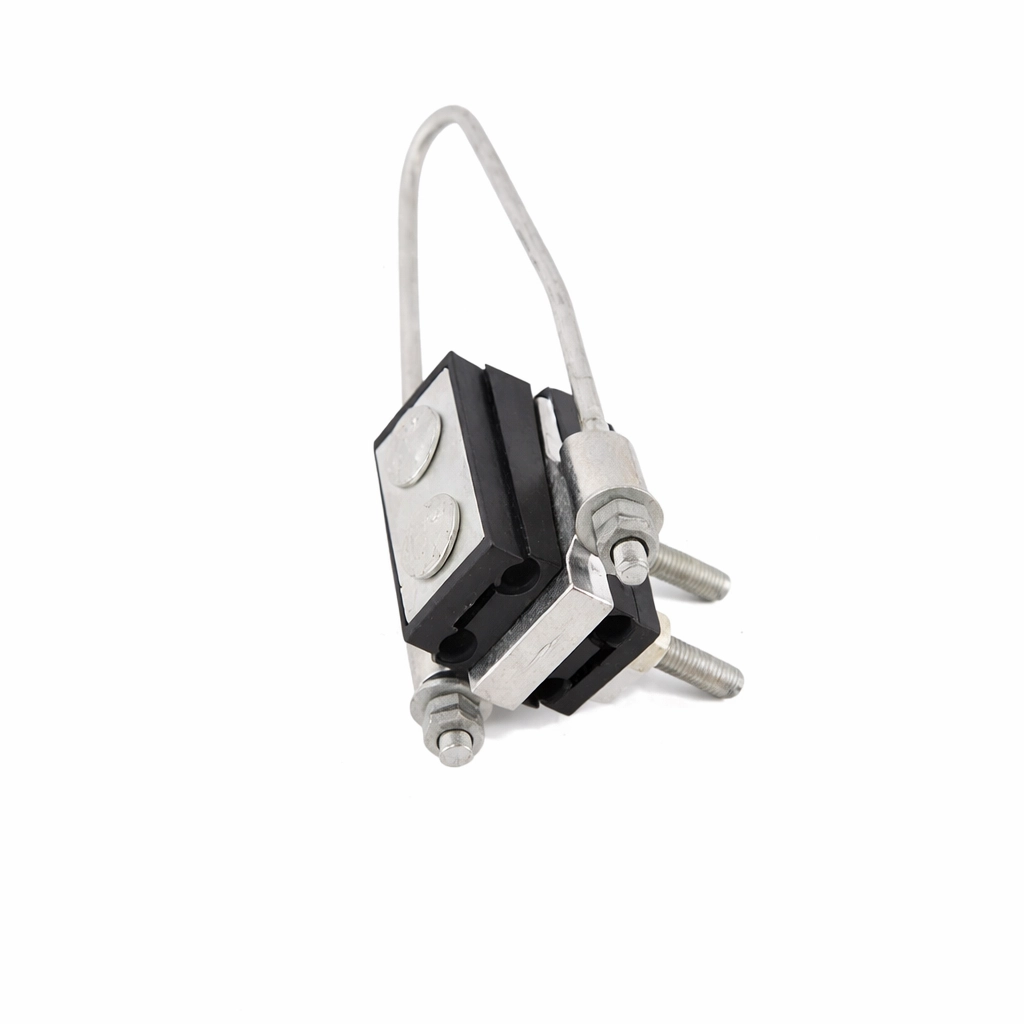

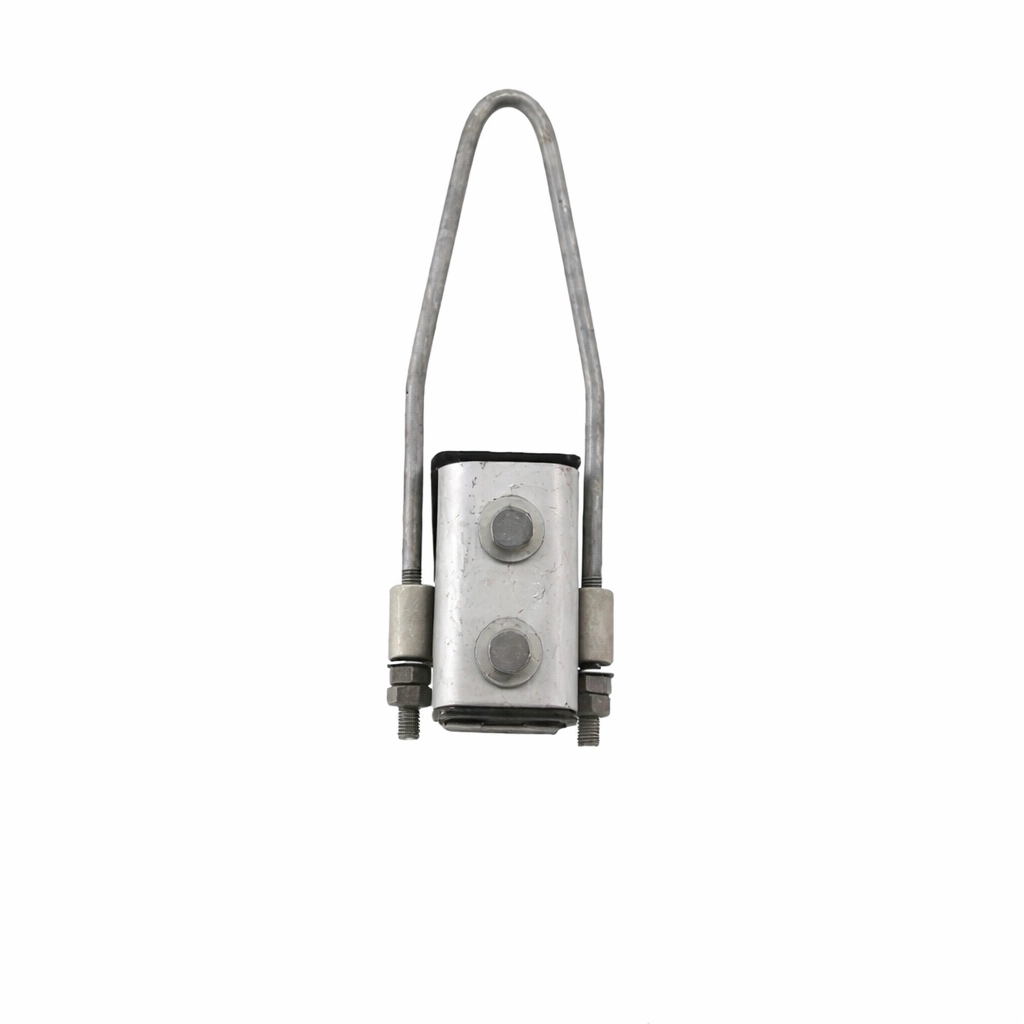

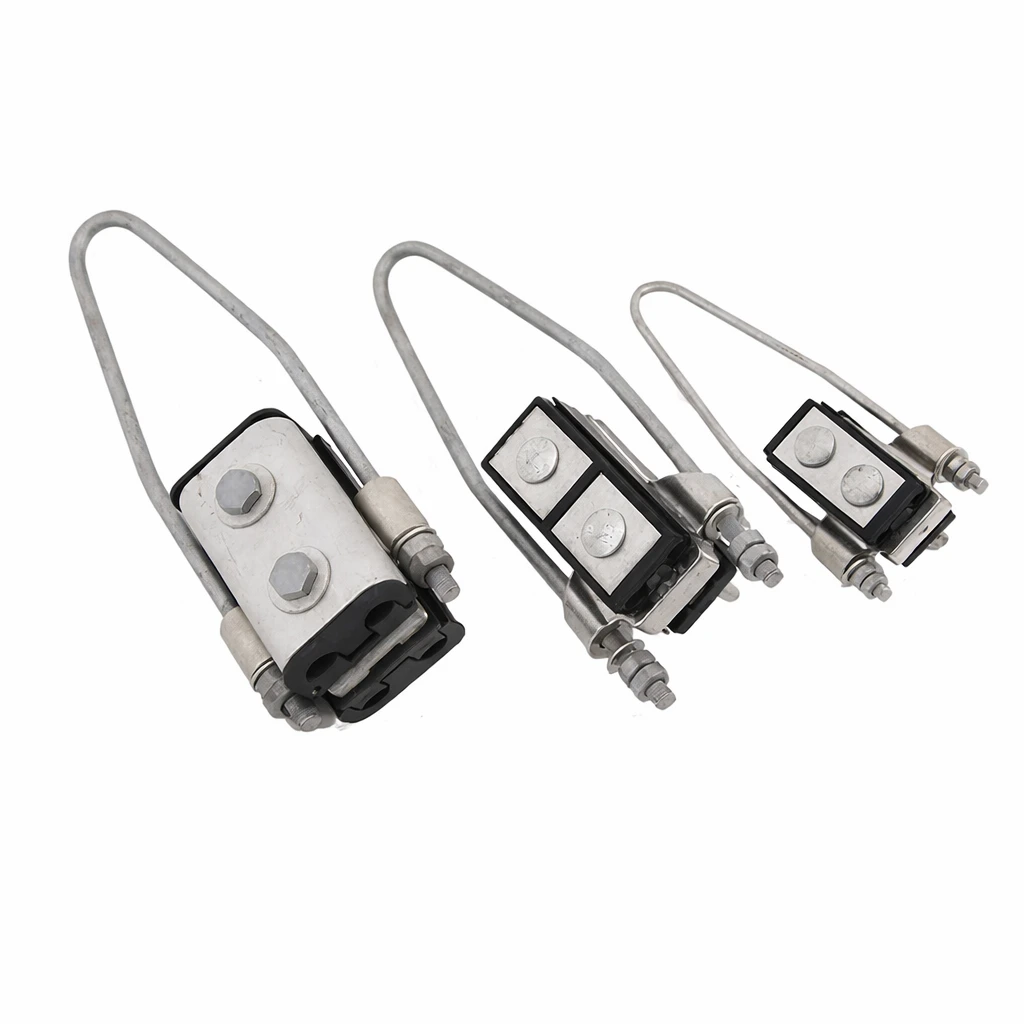

JNS wedge type tension clamp Overview:
This specialized JNS series provides the ultimate anchoring solution for tightening overhead bunched cables at terminal circuit ends of 1kV and below.
Choose the ideal casing material to match your precise line load and efficiency requirements:
- High-strength iron casing designed to withstand immense physical strain.
- Premium aluminum alloy casing engineered to significantly reduce eddy current loss.
- Innovative six-angle fixing device integrated to guarantee convenient and rapid field installation.
Key Features & Benefits:
Every individual component is meticulously crafted to accelerate operations while preserving cable integrity.
Experience the superior technical advantages built into our fastening hardware:
- Insulation-Friendly Mounting: The 4(2)-core parallel structure bunches your cables securely without ever exposing the inner wires.
- Extreme Weather Resistance: Features a robust inner block and filling pole manufactured from highly durable, anti-climate insulation plastic.
- Automatic Locking Mechanism: Incorporates an advanced wedge self-tighten structure that locks firmly into the ring for a tremendously powerful grip.
- Optimized Energy Efficiency: The proprietary aluminum alloy cover plate dramatically lowers the overall hardware weight.
Applications & Use Cases for wedge type tension clamp:
Deploy our dependable hardware to establish foolproof tensioning across modern power distribution grids.
This structural unit serves as the premier choice for the following critical tasks:
- Tightening 4-core overhead bunched cables safely at network endpoints and junction terminals.
- Anchoring 2-core wire setups effortlessly using the fast-locking abc tension clamp mechanism.
- Upgrading low-voltage power lines with highly reliable, weather-resistant holding structures.
Technical Specifications:
Review the precise operational parameters and physical dimensions to ensure flawless integration into your project.
| Model | Applicable Voltage | Applicable Conductor | Dimension (mm) | Note | ||
|---|---|---|---|---|---|---|
| A | B | C | ||||
| JNS-1A-1 | 1KV | 4*10-4*16 mm² | 200 | 78 | 45 | Four cores |
| JNS-1A-2 | 4*16-4-50 mm² | 245 | 90 | 50 | ||
| JNS-2A | 4-50-4*120 mm² | 300 | 105 | 72 | ||
| JNS-1C | 1KV | 2*10-2*16 mm² | 200 | 78 | 30 | Two cores |
| JNS-2C | 2*16-2*50 mm² | 245 | 90 | 30 | ||
| JNS-1A-1 | 1KV | 4*10-4*16 mm² | 200 | 78 | 47 | Four cores |
| JNS-1A-2 | 4*16-4-50 mm² | 260 | 100 | 66 | ||
| JNS-2A | 4-50-4*120 mm² | 330 | 105 | 75 | ||
| JNS-1C | 1KV | 2*10-2*16 mm² | 200 | 78 | 32 | Two cores |
| JNS-2C | 2*16-2*50 mm² | 260 | 100 | 42 | ||

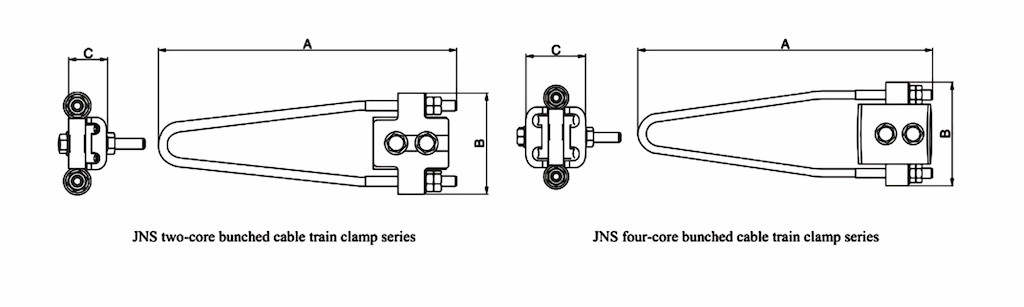

DIMENSION:
