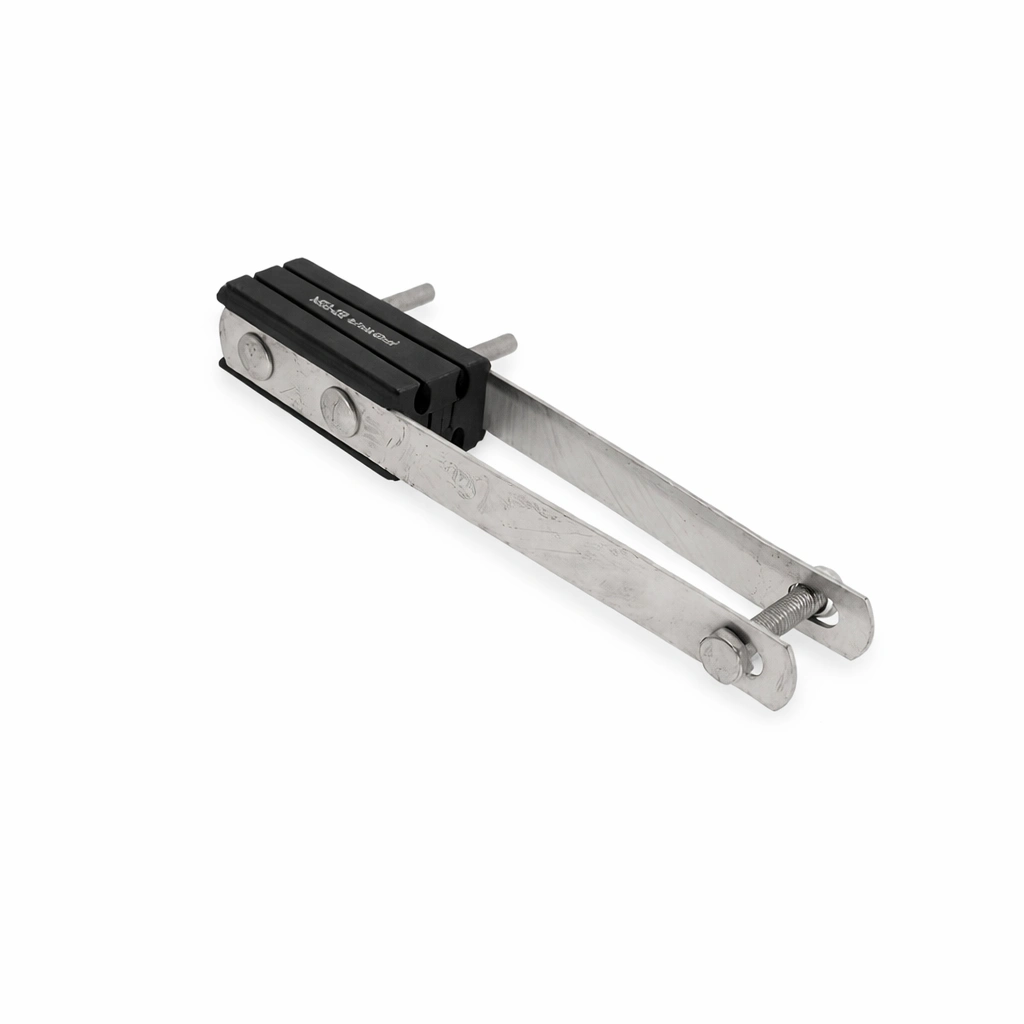

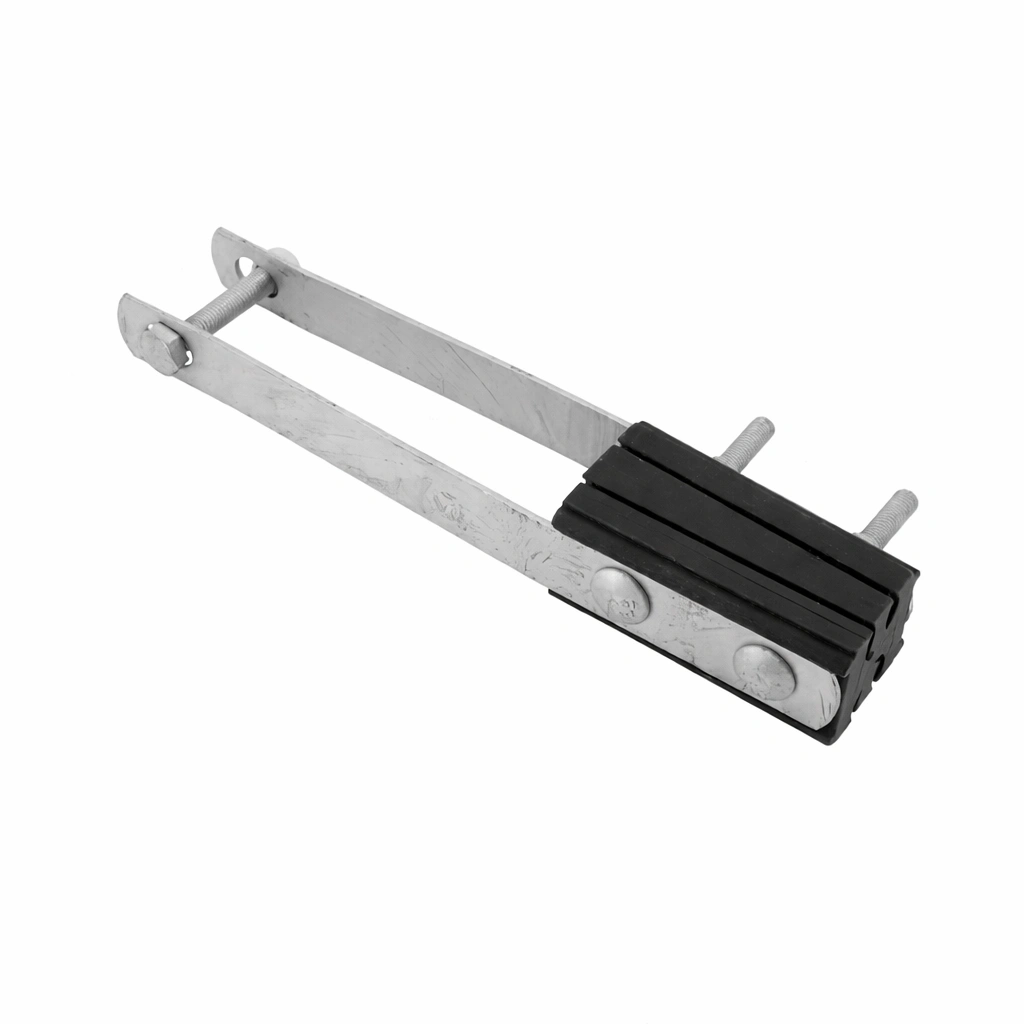

Low Voltage Tension Clamp Product Overview
Built to provide maximum mechanical stability, this anchoring hardware is designed for straightforward integration into existing utility infrastructure.

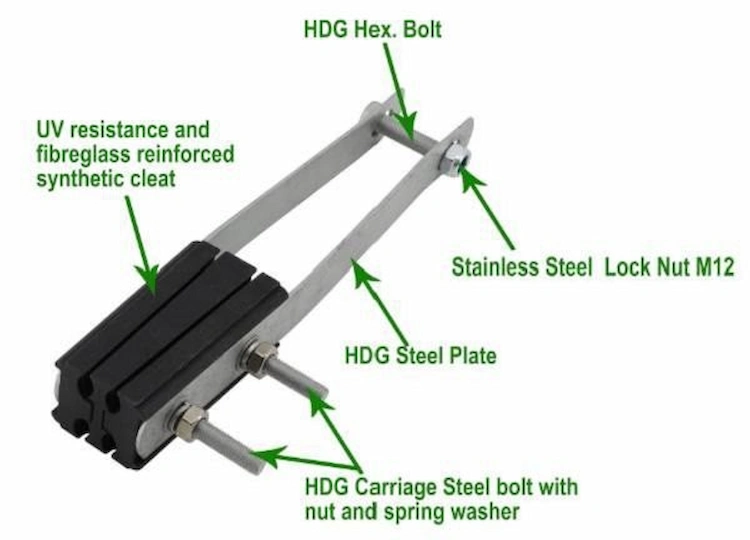

- Comprises two Hot-Dip Galvanized (HDG) steel plates paired with a UV-resistant and fiberglass-reinforced synthetic cleat.
- Equipped with two HDG carriage bolts (including spring washers and nuts) and one hex bolt featuring a stainless steel lock nut.
- Standardized manufacturing guarantees a strong producing capacity of 300,000 pieces per month, which can scale up for large orders.
- Fully compliant with strict design and testing standards, including NF C 33-041, NF C 33-042, and BS EN 50483-3.
Low Voltage Tension Clamp Key Features
Integrating this Low Voltage Tension Clamp into your distribution network provides simple and fast installation backed by highly competitive direct-factory pricing:
- Cable Safety: Grips the conductor firmly without causing any damage to the outer sheath or requiring harsh cable bending.
- Environmental Endurance: Highly resistant to severe weather conditions and prolonged UV exposure.
- Project Flexibility: Fast quotations, complete tender documents ready for submission, and flexible payment terms (T/T, L/C, FOB, CIF, CFR). OEM customization is also available.
Low Voltage Tension Clamp Applications
Designed for universal cable application, this anchoring hardware provides versatile mounting solutions for various environments. It is strictly used for:

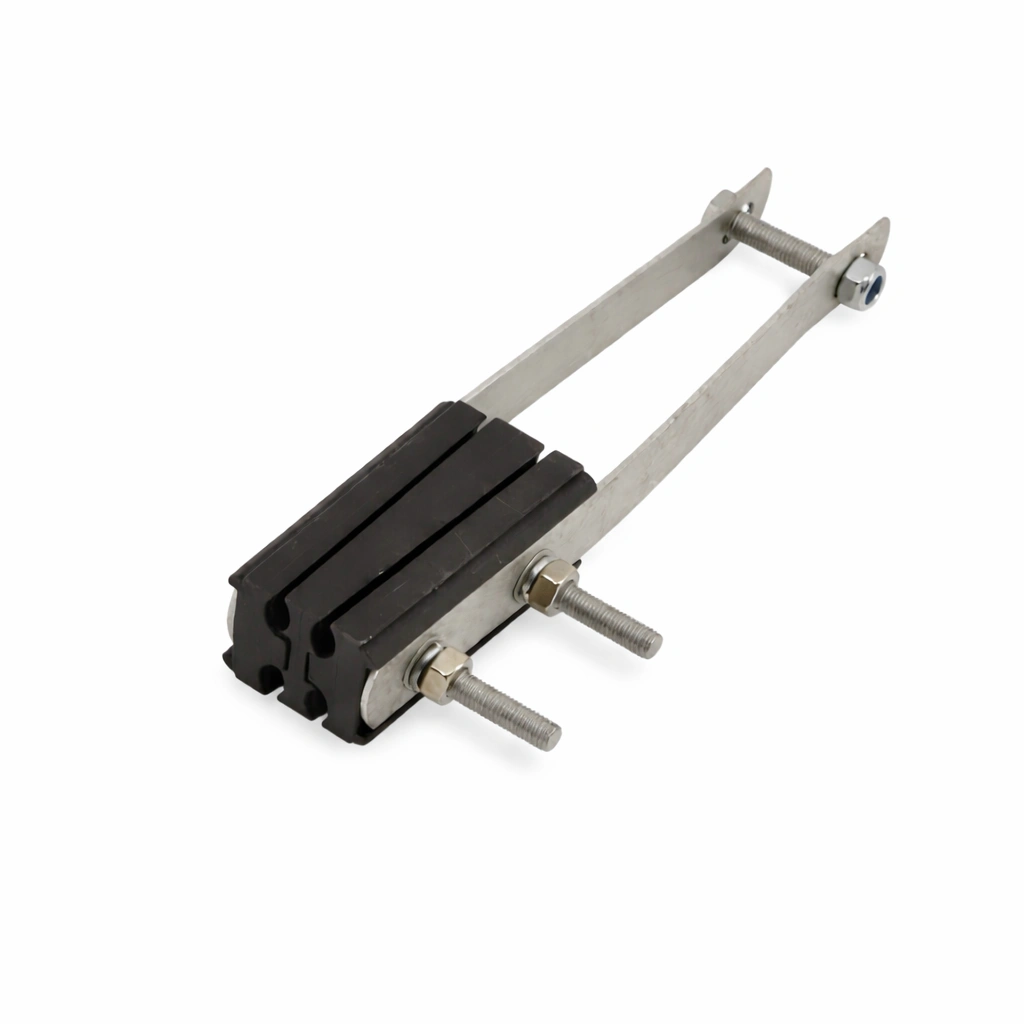

- Cable Types: Supporting ABC, ADSS, OPGW, electric, and telecom cables in round sections (2 or 4 core).
- Mounting Locations: Installing securely on wooden, metal, or concrete poles, as well as wall mounting with the help of a hoop, eye, bracket, or cross arm.
Low Voltage Tension Clamp Technical Specifications
Review the exact material breakdown and the mechanical load parameters for the NES series below to ensure the Low Voltage Tension Clamp matches your project’s cable dimensions.
Material & Construction Data
| Component / Parameter | Specification Details |
|---|---|
| Cable Application | Round, 2 or 4-Core |
| Plate Material | HDG Steel |
| Cleat Material | UV Resistant & Fiberglass Reinforced Synthetic |
| Carriage Bolt and Nut | HDG Steel (Includes Spring Washer) |
| Hex Bolt | HDG Steel (Stainless Steel carrier/bolt available) |
| Lock Nut | Stainless Steel |
| Design Standards | NF C 33-041, NF C 33-042 |
| Testing Standard | BS EN 50483-3 |

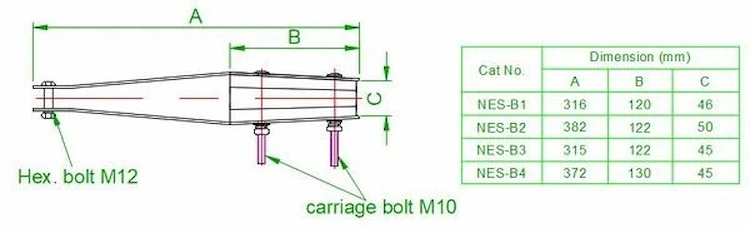

Dimensional & Mechanical Parameter List
| Cat No. | Diameter Range (mm) | Cross Section (mm²) | Failing Load | Qty / Carton | Gross Weight |
|---|---|---|---|---|---|
| NES-B1 | 7 – 11 | 16 – 35 | 25 kN (2500 daN) | 25 pcs | 18 kg |
| NES-B2 | 11 – 17 | 50 – 120 | 35 kN (3500 daN) | 25 pcs | 18 kg |
| NES-B3 | 8 – 17 | 25 – 120 | 35 kN (3500 daN) | 25 pcs | 24 kg |
| NES-B4 | 14.5 – 19 | 95 – 150 | 45 kN (4500 daN) | 25 pcs | 24 kg |
