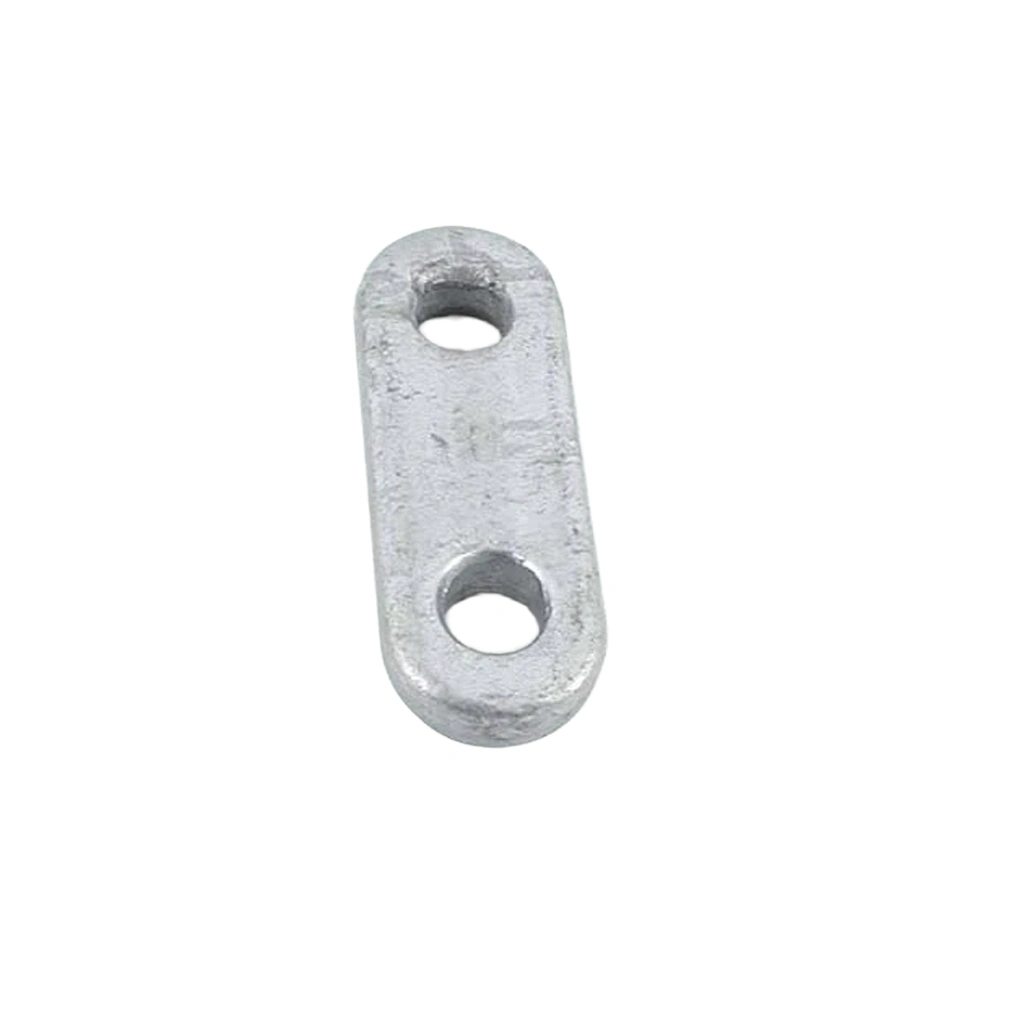

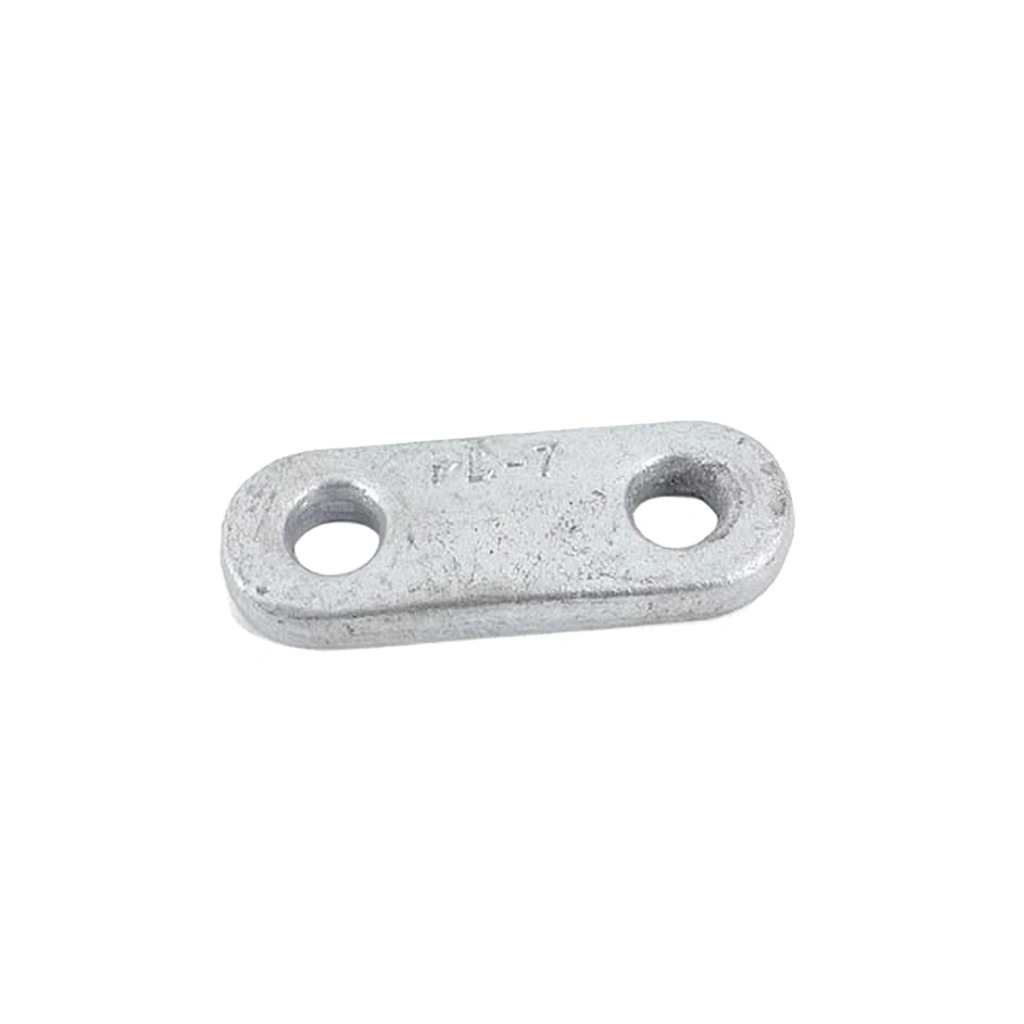

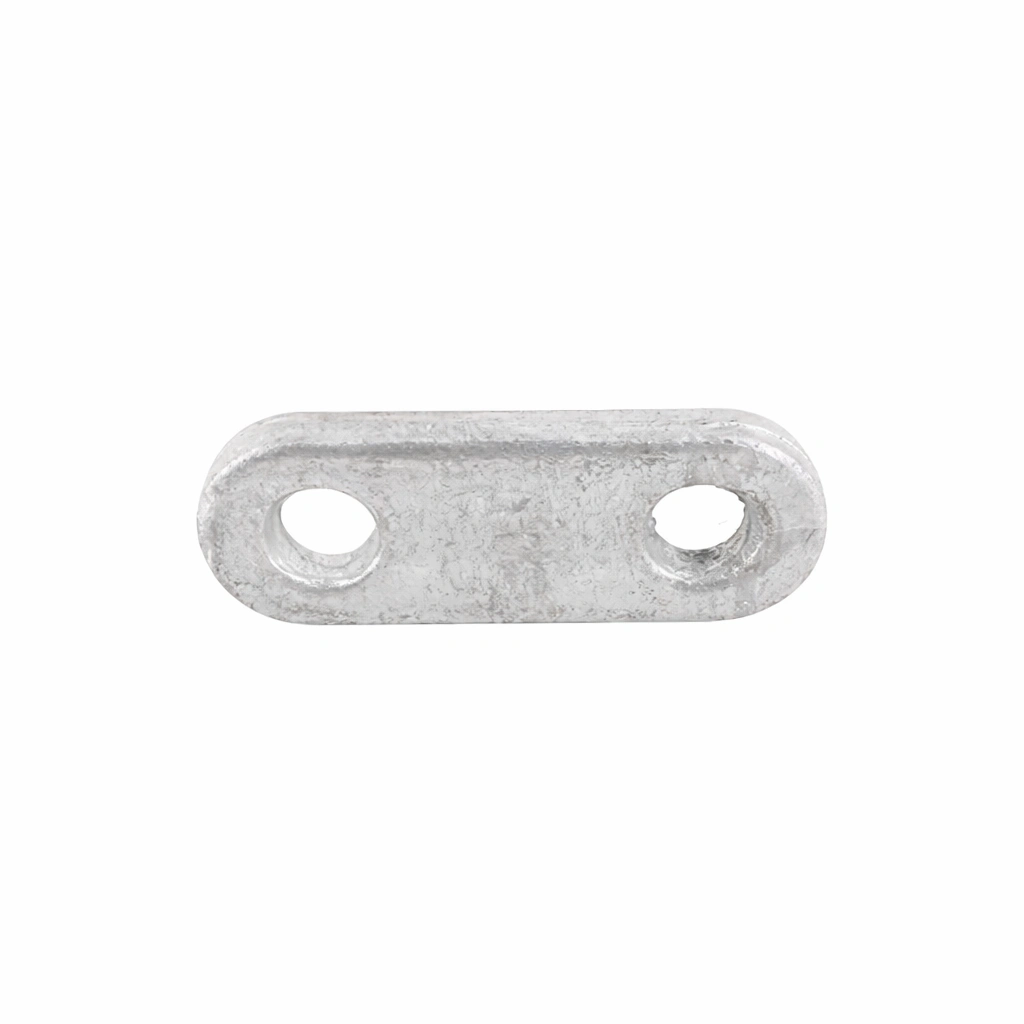

PD Strap Product Overview
Manufactured from premium heat-treated Hot-Dip Galvanized (H.D.G) steel, this forged hardware delivers exceptional ductility and structural strength.
- Specifically suited for forging, allowing it to easily absorb dynamic loads caused by oscillations or ice shedding.
- Highly adaptable design available in special steels for environments where extreme low-temperature dynamic stresses occur.
- Maintains excellent structural integrity without deformation under continuous tension.
PD Strap Key Features
Deploying the PD Strap within your network ensures a highly durable installation backed by reliable direct-factory terms:
- Premium Material: The heat treatment process guarantees superior ductility and resistance to mechanical fatigue.
- Weather Protection: Highly corrosion-resistant H.D.G steel extends the operational lifespan in aggressive outdoor conditions.
- Project Efficiency: Simple and easy to use on-site, supported by professional technology assistance.
PD Strap Applications
Designed strictly for overhead electrical and mechanical assemblies, this pd link plate provides essential structural linkage. It is used strictly for:
- Connecting insulators directly to transmission towers and overhead conductors.
- Forming secure tensioning string groups of protective fittings safely.
PD Strap Technical Specifications
Review the exact material parameters and dimensional failure loads for the PD catalog series below to ensure exact compatibility with your tensioning groups.
Material & Design Data
| Component / Parameter | Specification Details |
|---|---|
| Hardware Type | Link Fitting / PD Strap |
| Main Material | Hot-Dip Galvanized (H.D.G) Steel |
| Manufacturing Process | Forged & Heat-Treated |
| Key Properties | High Ductility, Corrosion Resistant |
| Environmental Tolerance | Handles dynamic loads (ice shedding, oscillations) |
Dimensional & Failure Load Parameter List
| Catalog No. | Dimension (mm) | Specified Failure Load (kN) | ||||
|---|---|---|---|---|---|---|
| Φ | H | b | L | R | ||
| PD-7 | 18 | 70 | 16 | 40 | 26 | 70 |
| PD-10 | 20 | 80 | 16 | 36 | 26 | 100 |
| PD-12 | 24 | 100 | 16 | 50 | 24 | 120 |
| PD-16 | 26 | 100 | 18 | 60 | 35 | 160 |
| PD-20 | 30 | 120 | 26 | 70 | 40 | 200 |
| PD-2109 | 30 | 95 | 26 | 70 | 30 | 210 |
| PD-3018 | 39 | 180 | 32 | 100 | 45 | 300 |
| PD-5020 | 45 | 200 | 38 | 100 | 45 | 500 |
| PD- | 51 | 160 | 42 | 110 | 54 | 600 |
