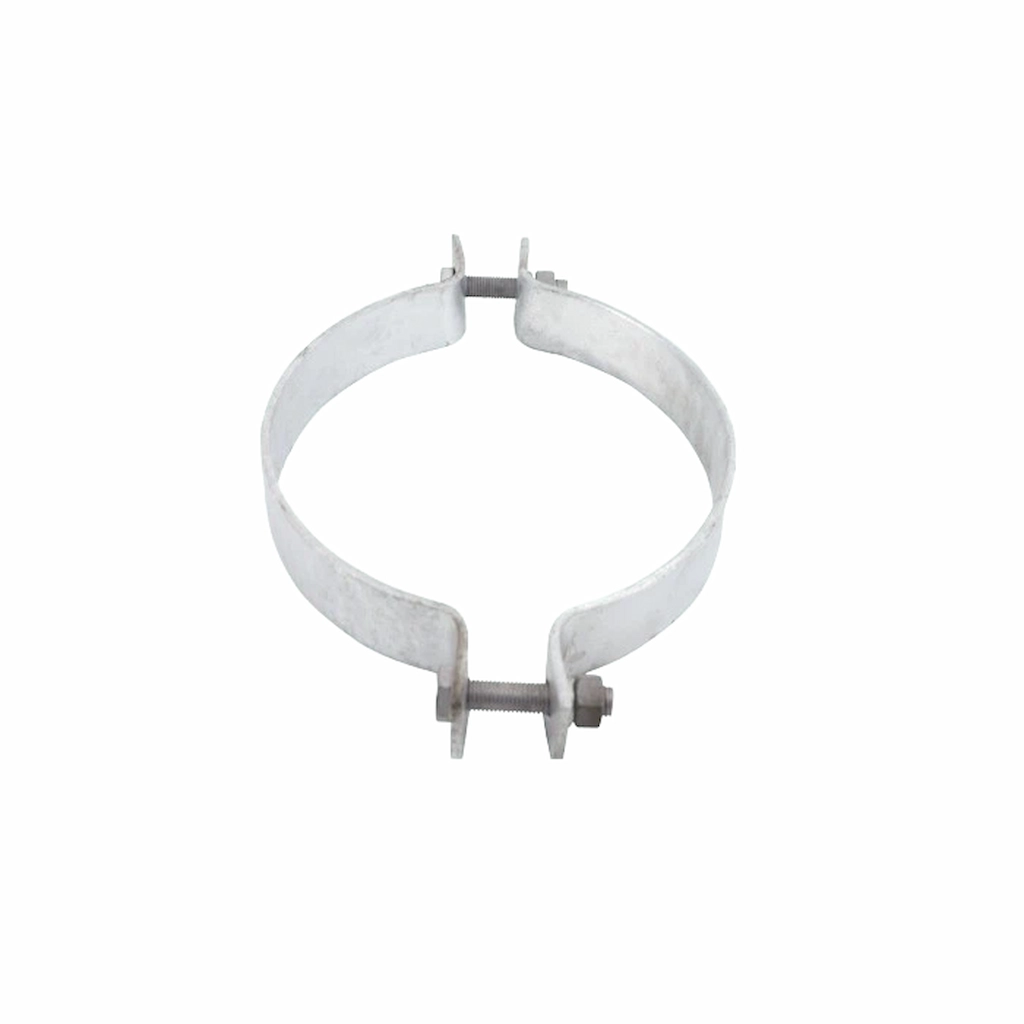

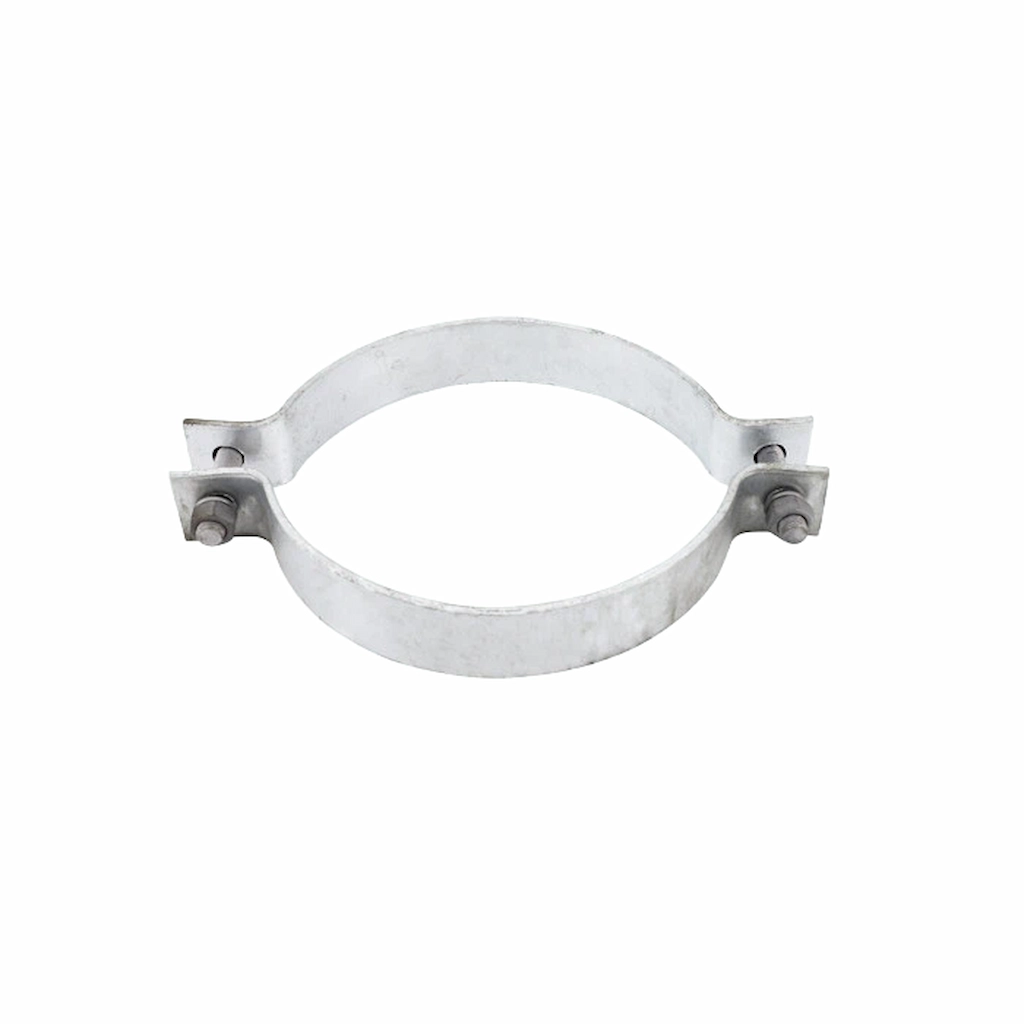

Pole Band Clamp Overview:
Drilling holes into utility poles significantly weakens their structural integrity and invites severe environmental rot or corrosion over time.
Deploy our specialized fastening hardware to preserve your infrastructure and secure heavy accessories flawlessly:
- Available in different configurations including RL, CA, GCA, DEG, and 2A to match your specific line requirements.
- Requires accurate sizing prior to installation; choosing the correct hoop prevents loose attachments or clamp breakage.
Key Features & Benefits:
Optimize your pole installations instantly with these highly reliable, damage-free structural advantages:
- Completely eliminates the need for destructive pole drilling.
- Hot dip galvanized strictly according to international standards.
- Ensures fast and easy installation in challenging environments.
- Delivers a long working life with exact dimensional precision.
- Supported by a short lead time to meet urgent project deadlines.
Applications & Use Cases for Pole Band Clamp:
Integrate this dynamic mounting hardware to establish completely rigid and safe connections without compromising pole strength.
This versatile anchoring unit is the definitive choice for the following critical industrial tasks:
- Attaching guy clips and guy thimbles securely for reliable stay line assemblies.
- Mounting secondary racks, cross braces, and insulator supports to standard poles.
- Installing street lights, signs, and heavy panel enclosures using a highly adaptable utility pole band clamp.
Technical Specifications:
Review our precise material parameters and comprehensive dimensional ranges below to select the exact clamp size for your pole diameter.
| Material and Construction | |
| Body Material | H.D.G steel |
| Producing Capacity | |
| Producing Capacity | 45000sets per month |

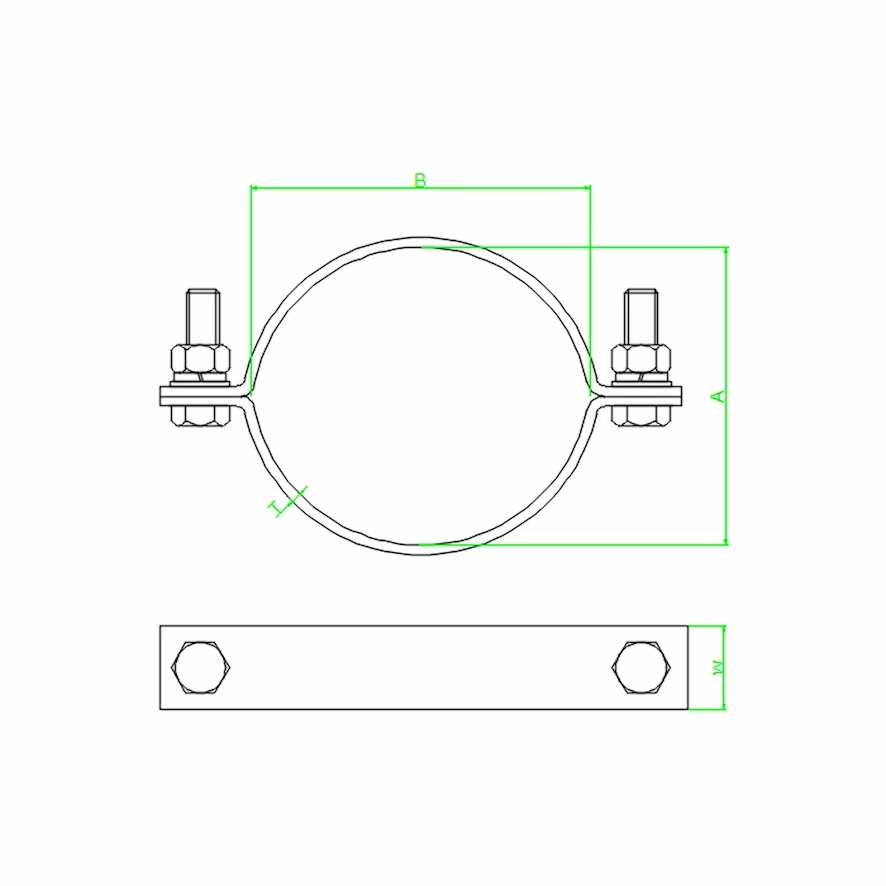

DIMENSIONS:
| Part No. | Pole dia. Range | Dimensions(mm) | ||||
|---|---|---|---|---|---|---|
| mm | inch | A | B | W | T | |
| DK-2A1L | 127-152 | 5-6 | 127 | 152 | 50 | 6 |
| DK-2A1H | 152-178 | 6-7 | 127 | 152 | 64 | 8 |
| DK-2A2L | 178-203 | 7-8 | 178 | 203 | 50 | 6 |
| DK-2A2H | 178-203 | 7-8 | 178 | 203 | 64 | 8 |
| DK-2A3L | 203-229 | 8-9 | 203 | 229 | 50 | 6 |
| DK-2A3H | 203-229 | 8-9 | 203 | 229 | 64 | 8 |
| DK-2A4L | 229-254 | 9-10 | 229 | 254 | 50 | 6 |
| DK-2A4H | 229-254 | 9-10 | 229 | 254 | 64 | 8 |
| DK-2A5L | 254-279 | 10-11 | 254 | 279 | 50 | 6 |
| DK-2A5H | 254-279 | 10-11 | 254 | 279 | 64 | 8 |
| DK-2A6L | 279-305 | 11-12 | 279 | 305 | 50 | 6 |
| DK-2A6H | 279-305 | 11-12 | 279 | 305 | 64 | 8 |
