Pole Mounted Fuse Cutout Product Overview:
Serving as a critical defense mechanism, the Pole Mounted Fuse Cutout actively prevents electrical surges from compromising insulated cable networks. Procurement managers select this versatile 400 amp cut out hardware to streamline grid maintenance and installation procedures through the following structural features:
- Standardized Compatibility: Specifically designed to accommodate standard wedge-type fuse links adhering to BS88-5:1988 and conforming to 415AC80.
- Precise Alignment: Features an exact fixing center requirement of 82mm, ensuring seamless alignment during complex B2B installations.
- Accessible Maintenance: Incorporates a slide-fit front cover that drastically simplifies jointing and inspection procedures for technical teams in the field.
Key Features & Benefits of the Pole Mounted Fuse Cutout:
Integrating the Pole Mounted Fuse Cutout into your electrical grid guarantees enhanced structural security against extreme short-circuit conditions. This 400a cut out unit is purposefully built to sustain demanding operational environments:
- High Current Capacity: Operates flawlessly across multiple class ratings, spanning from 20A up to a maximum of 630A under a 415V system.
- Heavy-Duty Terminations: Features highly efficient ‘easy fit’ studs that securely accept large cable sockets and lugs up to 300mm².
- Vandal Resistant Design: Manufactured with a tough, reinforced housing to withstand physical impacts and prevent unauthorized tampering in public or industrial sectors.
- Verified Standards: Fully certified to GB13539, IEC60269, and BS88 specifications, ensuring the hardware meets rigorous international safety benchmarks.
Applications & Use Cases For Pole Mounted Fuse Cutout 400A:
The rugged construction makes the Pole Mounted Fuse Cutout a dependable isolation and protection node for varied distribution expansions. Whenever engineering teams deploy a reliable Pole Mounted Fuse Cutout, they achieve exact overload protection across several sectors:
- Low-voltage distribution lines requiring dependable short circuit isolation and rapid maintenance access.
- Underground to pole transitional connections utilizing heavy 300mm² cables.
- Industrial wall-mounted localized distribution panels operating efficiently at 415V AC.
- Commercial and municipal B2B networks requiring highly vandal-resistant electrical enclosures.
Technical Specifications of the Pole Mounted Fuse Cutout:
Evaluate the precise electrical and mechanical parameters below to confirm that the Pole Mounted Fuse Cutout aligns flawlessly with your B2B grid requirements.
| Technical Parameter | Specification Details |
|---|---|
| Rated Voltage | 415 V AC |
| Rated Frequency | 50 Hz |
| Rated Current Capacity | Up to 630 A |
| Class Rating Options (A) | 20-315 / 32-200 / 200-400 / 315-500 / 355-400 / 560-630 |
| Fuse Link Compatibility | Standard Wedge Type (BS88-5:1988, 415AC80) |
| Standard Compliance | GB13539 / IEC60269 / BS88 |
| Maximum Cable Socket Size | Up to 300 mm² |
| Fixing Center Requirement | 82 mm |
| Mounting Hardware | Pole or Wall Mounting (with M12 Coach Screw) |

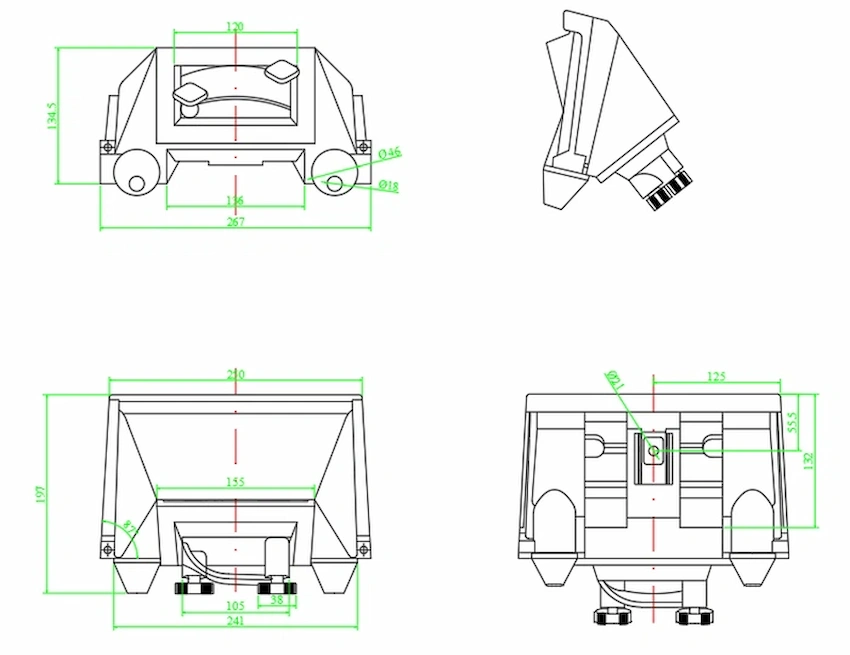

Dimensions:
