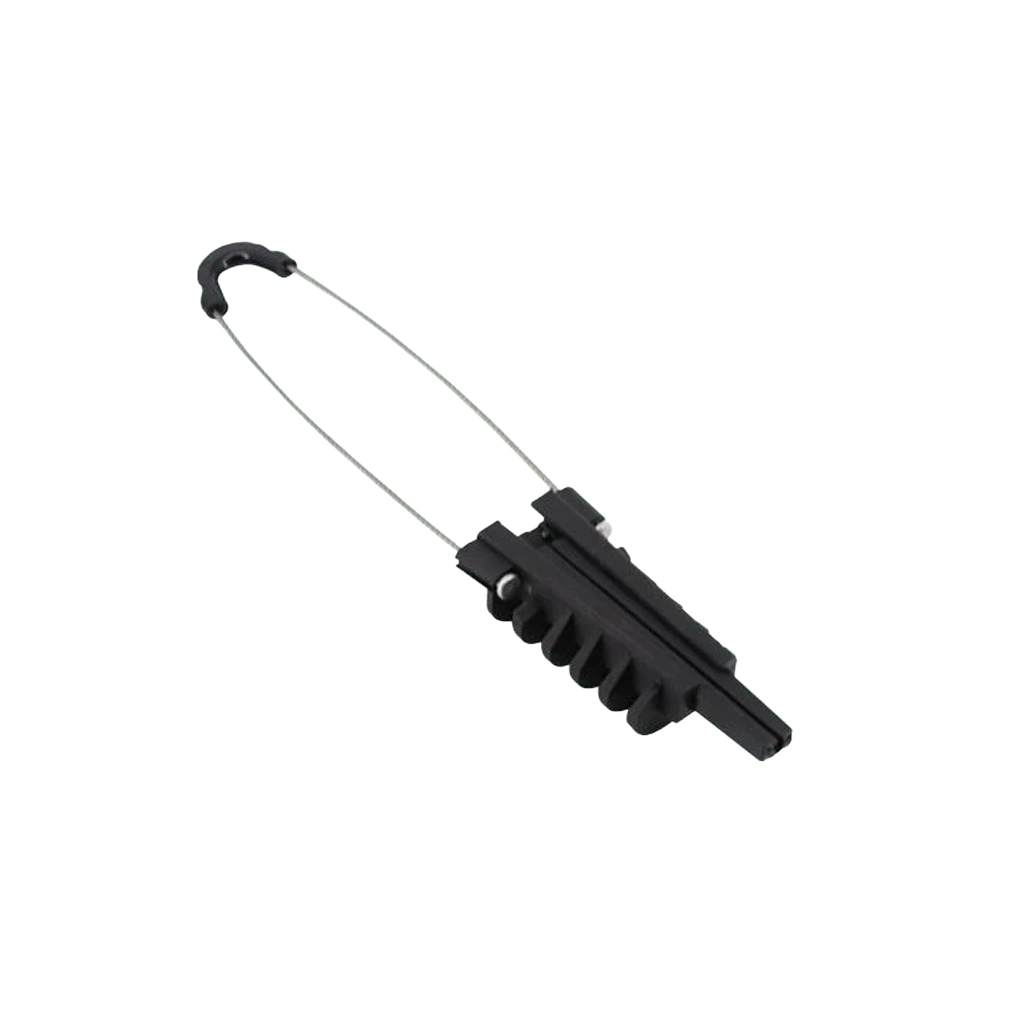

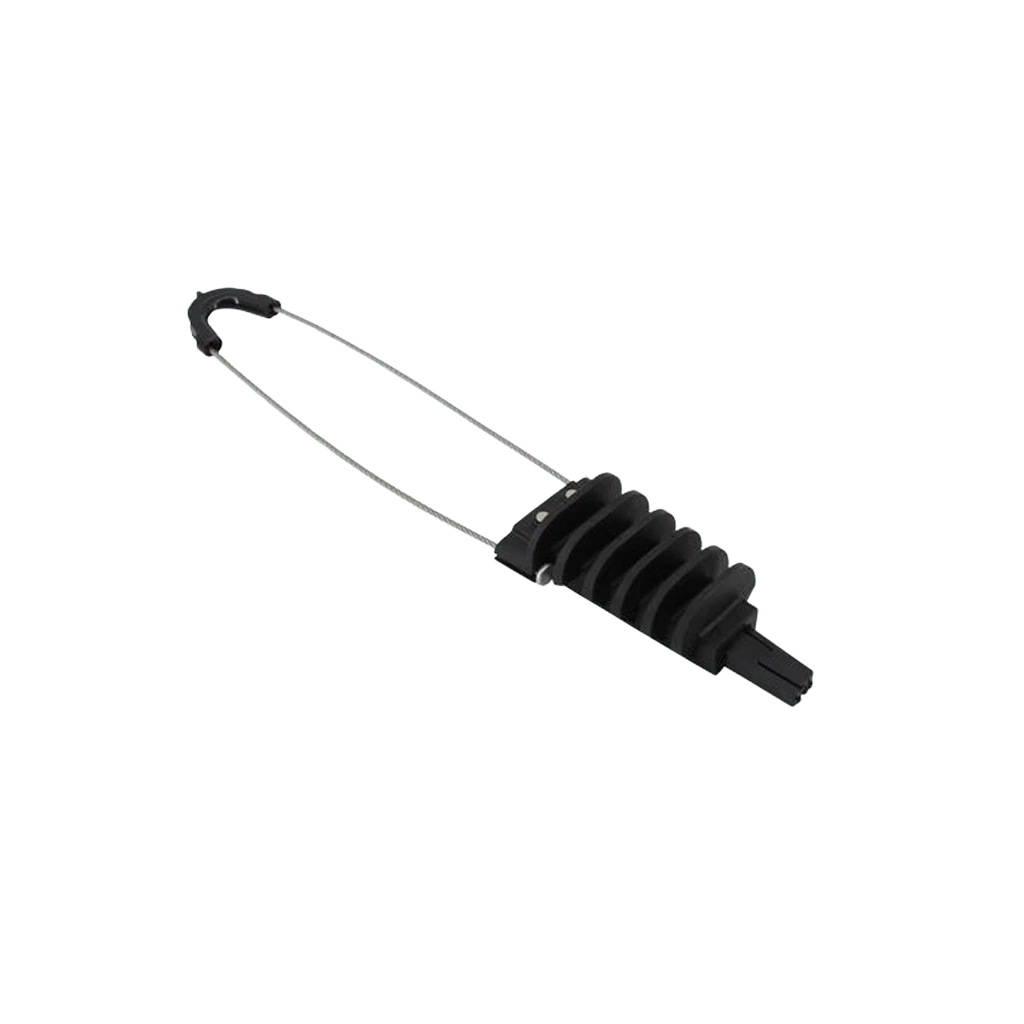

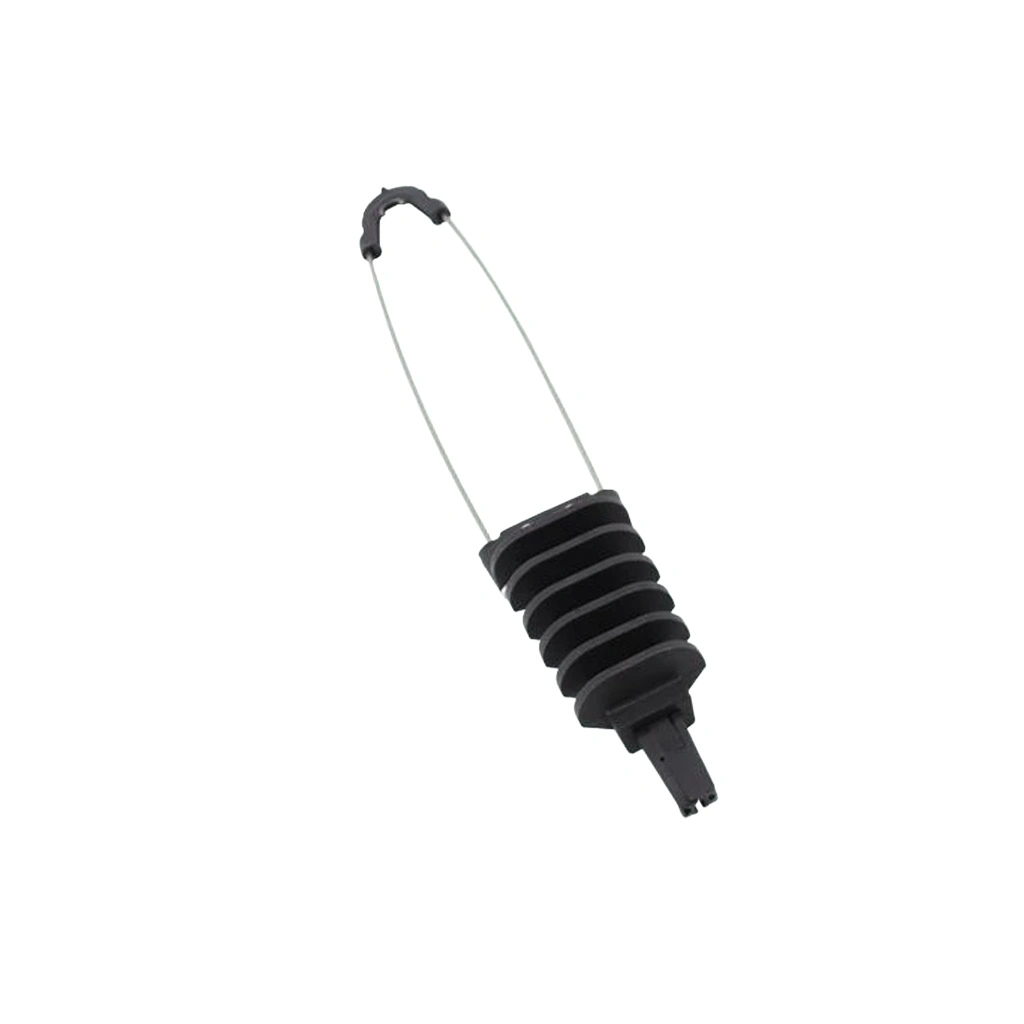

Round Cable Clamp Product Overview
Constructed for high environmental endurance, this insulated wedge dead-end tensioner guarantees long-term mechanical stability across utility poles and walls.
- The main body and wedge insert are manufactured from black, fiberglass-reinforced thermoplastic.
- Equipped with a flexible, high-strength stranded stainless steel wire hook (bail).
- Offers exceptional weather and UV resistance for prolonged outdoor exposure.
- Tested and designed strictly according to NF C 33-041, NF C 33-042, and BS EN 50483-3 standards.
- Compatible with standard utility line setups, including Nxjg network configurations.
Round Cable Clamp Key Features
Integrating this Round Cable Clamp ensures rapid line deployment supported by excellent factory-direct B2B conditions:
- Toolless Installation: Simple and speedy setup that requires no specialized tools on-site.
- Complete Cable Protection: Grasps the conductor firmly without bending the cable or causing any damage to the outer sheath.
- Versatile Mounting: Mounts easily on wooden, concrete, or metal poles, as well as walls, using a hoop, eye, bracket, or cross arm.
- Business Support: Features highly competitive pricing, OEM customization, complete tender documents ready for submission, and flexible payment terms (T/T, L/C, FOB, CIF, CFR).
Round Cable Clamp Applications
Designed for universal round cable handling, this tensioner provides secure anchoring across telecom and electrical lines. It is strictly used for:
- Dead-ending aerial optical and electrical cables (ADSS, FTTH, OPGW, ABC).
- Securing lightweight distribution spans that require an insulated gripping mechanism.
Round Cable Clamp Technical Specifications
Review the precise material breakdown, mechanical failure loads, and packaging data below to ensure the PA2.1 Round Cable Clamp meets your project’s demands.
Material & Design Data
| Component / Parameter | Specification Details |
|---|---|
| Clamp Type | PA2.1 (Insulated Anchor Clamp) |
| Body & Wedge Material | Fiberglass Reinforced Thermoplastic |
| Hook Material | Flexible Strand Stainless Steel Wire |
| Color | Black |
| Design Standards | NF C 33-041, NF C 33-042 |
| Testing Standard | BS EN 50483-3 |
Mechanical & Packaging Specifications
| Cable Type | Diameter Range | Failing Load | Qty / Carton | Carton Dimensions (mm) | Gross Weight |
|---|---|---|---|---|---|
| Round Aerial Cable | 7.00 mm – 9.5 mm | 500 daN / 5 kN | 100 pcs | 475(L) × 245(W) × 295(H) | 15 kg |

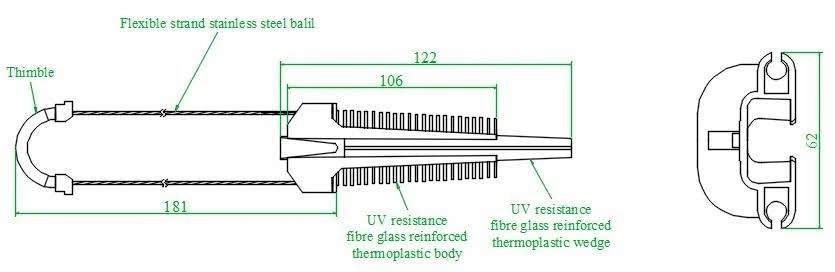

Insulated Round Cable Clamp DIMENSIONS
