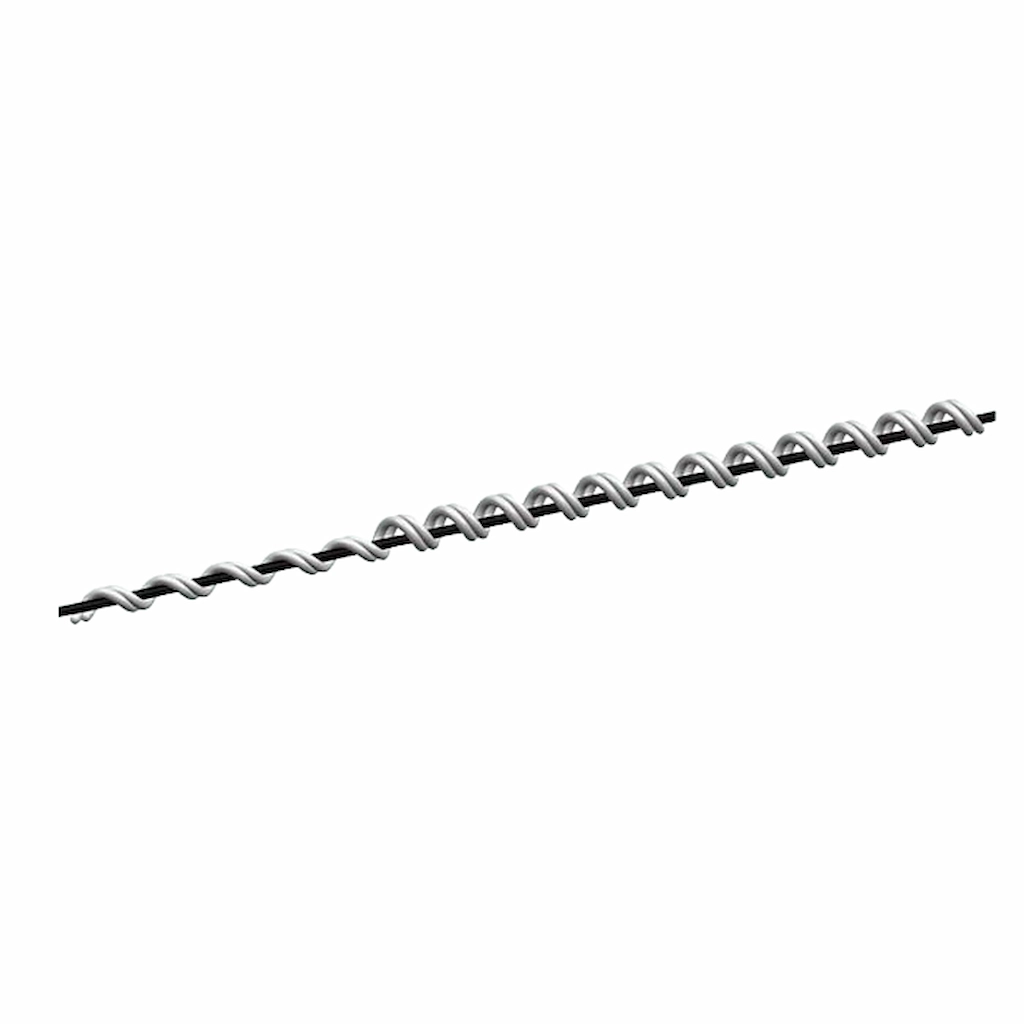

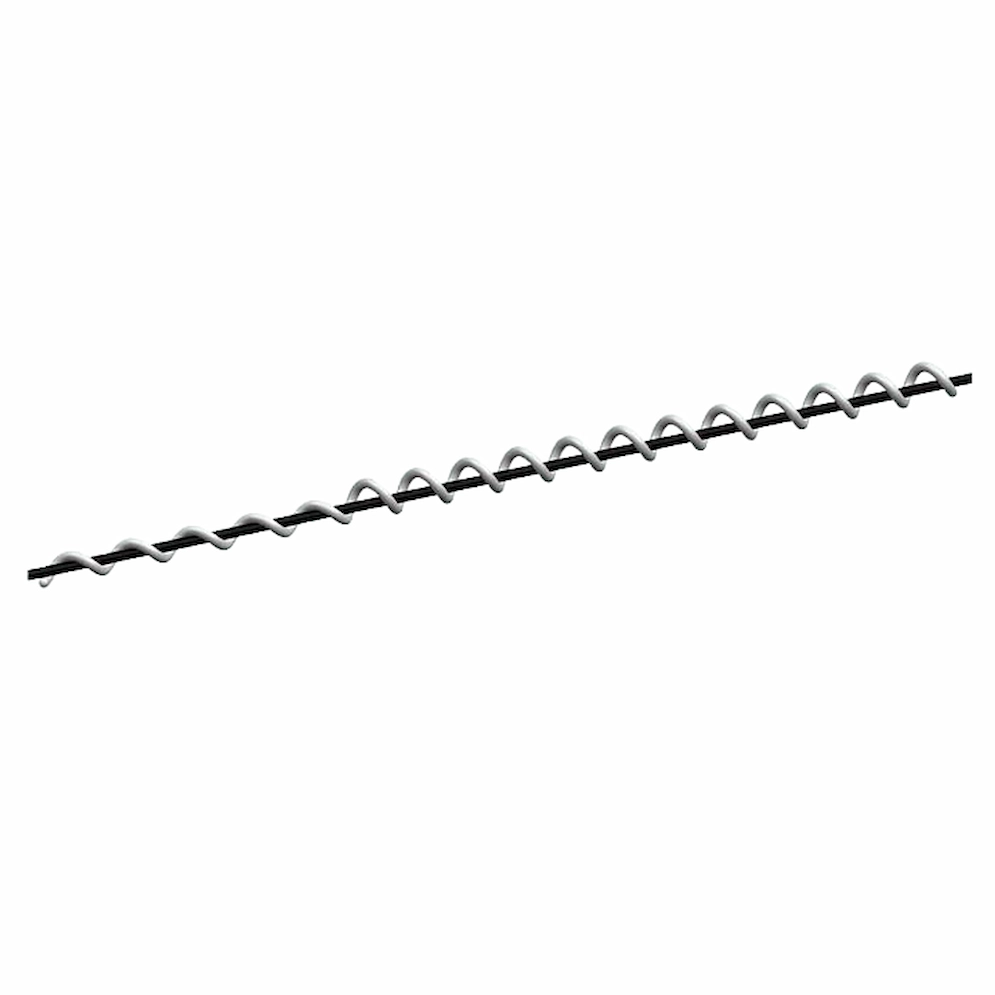

SVD spiral vibration dampers Overview:
This highly specialized dampening hardware provides an uncompromising action/reaction motion to safely oppose natural vibration waves along your transmission lines.
Rely on our structurally optimized solution to establish ultimate physical protection across highly vulnerable overhead optical networks:
- Features a precisely engineered smaller gripping section to gently hold the cable without distorting delicate internal fibers.
- Highly recommended as superior plp spiral vibration dampers alternatives for lightweight ADSS cable requiring special handling and care.
Key Features & Benefits:
Every structural curve is meticulously optimized to completely eliminate environmental wear and optical signal degradation across your grid.
Upgrade your line infrastructure instantly with these heavily tested operational advantages:
- Total Vibration Elimination: Effectively reduces high levels of Aeolian vibration on cables continuously exposed to severe wind flows.
- Optical Fiber Protection: The gentle gripping mechanism ensures that the cable and internal fibers suffer absolutely no physical distortion.
- Extreme Weather Resistance: Manufactured entirely from durable non-corrosive plastic to deliver outstanding elasticity and harsh weather endurance.
- Rapid Visual Identification: Each individual damper is smartly color-coded and clearly marked with the exact conductor range to accelerate field installation.
Applications & Use Cases for spiral vibration dampers:
Deploy this dependable dampening solution to drastically extend the lifespan of your critical utility cable hardware and support locations.
This highly versatile unit is the definitive choice for the following critical transmission tasks:
- Eliminating Aeolian vibration perfectly across high-altitude ADSS cable installations prone to severe wind exposure.
- Safeguarding vital OPGW bare cable configurations using reliable, standard-compliant plp spiral vibration dampers equivalents.
- Installing seamlessly on both sides of the support location to maximize mechanical holding power and reduce span tension.
Technical Specifications:
Review the exact cable diameter ranges and weights below to guarantee flawless dampening integration into your specific project.
SVD for OPGW
| Catalog Number | Cable diameter range | Length mm | Weigh kg | |
|---|---|---|---|---|
| Inch | mm | |||
| SVDO3 | 0.327-0.461 | 8.3-11.6 | 1300 | 0.3 |
| SVDO4 | 0.462-0.563 | 11.7-14.3 | 1300 | 0.3 |
| SVDO5 | 0.564-0.760 | 14.4-19.3 | 1500 | 0.9 |
SVD for ADSS
| Catalog Number | Cable diameter range | Length mm | Weigh kg | |
|---|---|---|---|---|
| Inch | mm | |||
| SVDA2 | 0.250-0.326 | 6.3-8.2 | 1240 | 0.2 |
| SVDA3 | 0.327-0.461 | 8.3-11.6 | 1300 | 0.2 |
| SVDA4 | 0.462-0.563 | 11.7-14.2 | 1350 | 0.2 |
| SVDA5 | 0.564-0.770 | 14.3-19.5 | 1650 | 0.4 |
| SVDA7 | 0.771-0.876 | 19.5-22.2 | 1800 | 0.5 |
| SVDA8 | 0.877-1.000 | 22.3-25.3 | 1910 | 0.6 |
| SVDA10 | 1.001-1.200 | 25.4-30.5 | 2290 | 0.7 |
