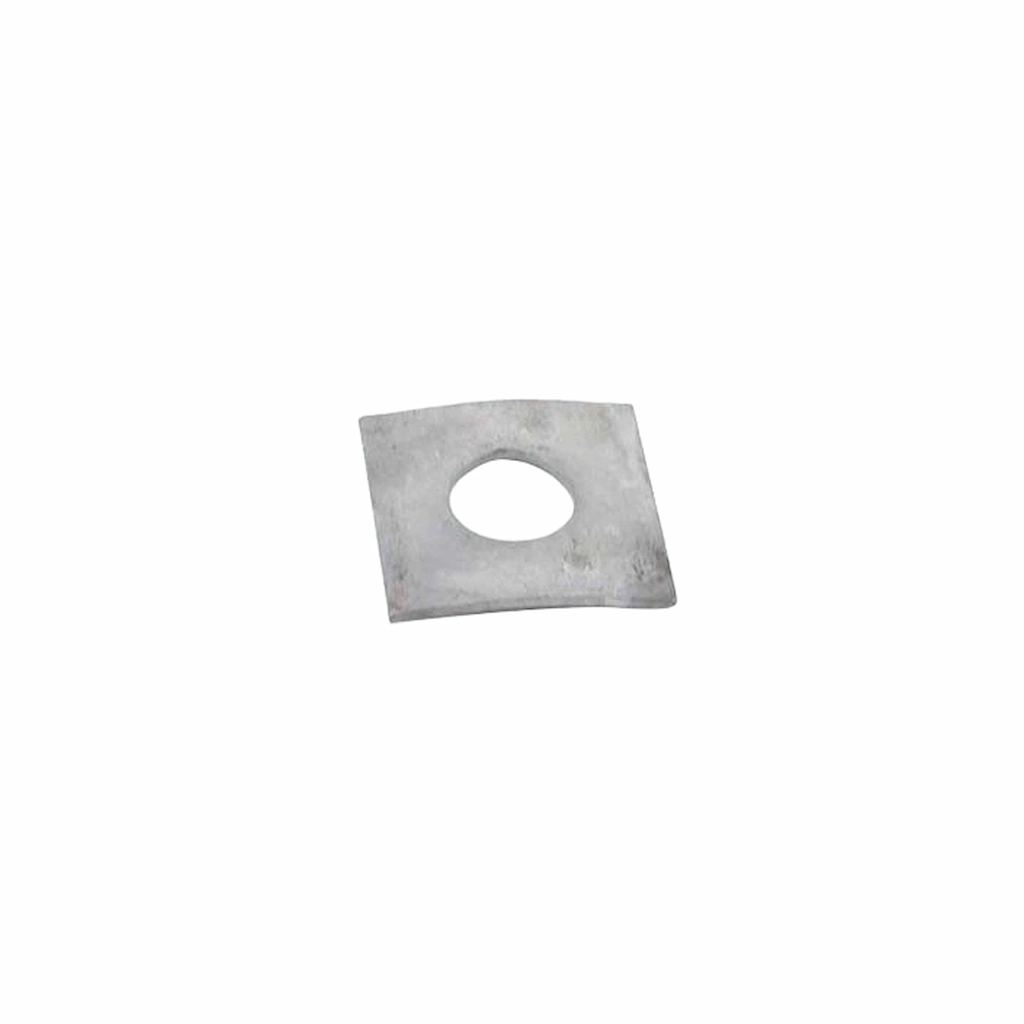

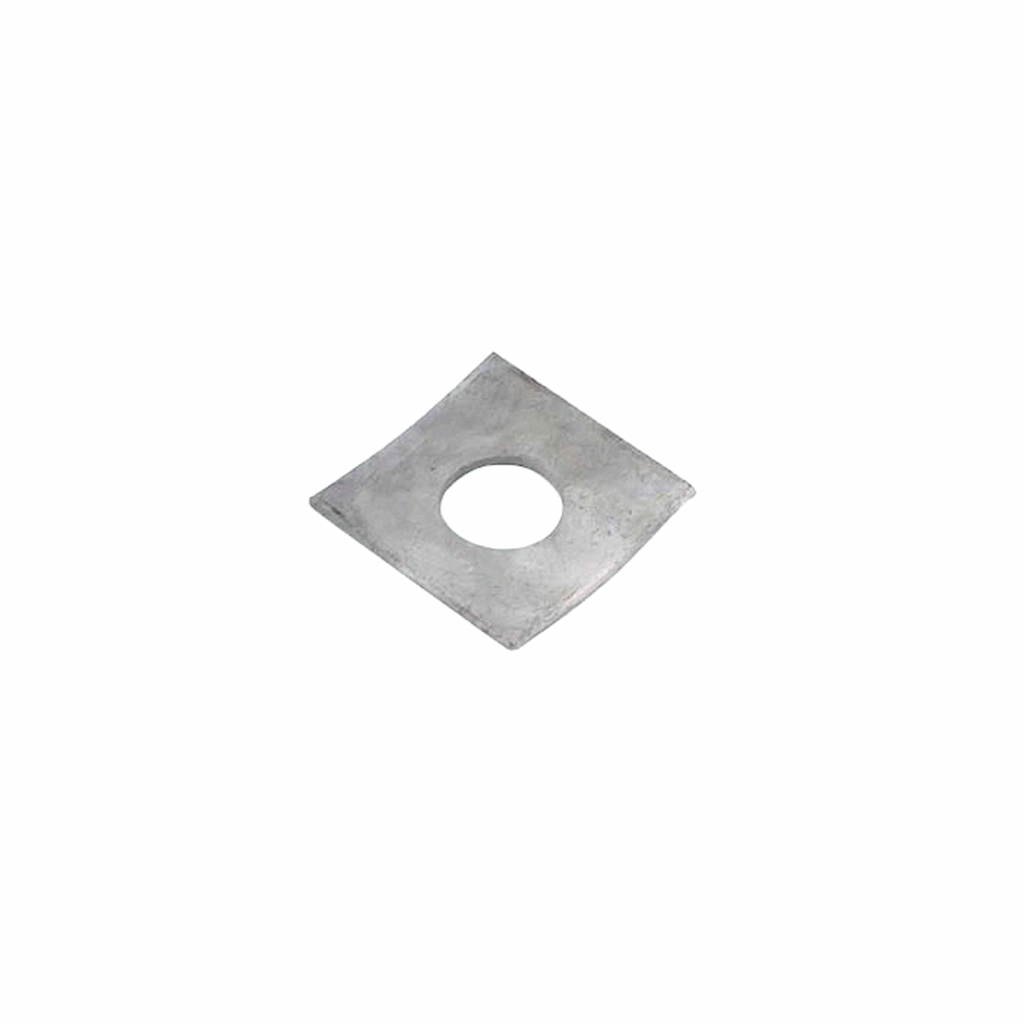

Square Curved Washer Overview:
Generic flat hardware often fails to distribute tension properly across rounded wooden or concrete utility poles, creating dangerous stress points.
Upgrade your fastening approach with this specialized structural spacer designed to perfectly match your pole’s actual shape:
- Delivers the exact same reliable fastening function as standard flat options but optimized specifically for curved surfaces.
- Offers exceptional thickness configurations capable of completely replacing outdated and heavy cast washers in the field.
Key Features & Benefits:
Optimize your pole line assemblies instantly with these highly efficient, high-volume production advantages:
- Perfect 4% bending radius
- Replaces heavy cast washers
- Premium H.D.G steel build
- 1,000,000pcs monthly capacity
- Total corrosion resistance
Applications & Use Cases for square curved washer:
Deploy this perfectly contoured spacer to eliminate dangerous structural gaps and ensure a flush, rigid fit on round utility structures.
This heavy-duty hardware is the definitive anchoring choice for the following critical tasks:
- Distributing high mechanical tension evenly across rounded electrical and telecommunication transmission poles.
- Upgrading legacy line infrastructure using a lightweight yet incredibly strong curved square washer alternative.
- Securing massive crossarm bolts tightly against curved surfaces to prevent structural shifting during severe storms.
Technical Specifications:
Review our impressive monthly production capabilities and precise dimensional options below to secure the perfect contoured fit for your grid expansion.
| Material and Construction | |
| Material | H.D.G steel |
| Producing Capacity | |
| Producing Capacity | 1000000sets per month |
DIMENSION:
| Type | Dimensions(mm) | |||
|---|---|---|---|---|
| Length | Wide | Thickness | Hole | |
| DK301 | 75 | 75 | 6 | 17.5 |
| DK302 | 65 | 65 | 5 | 17.5 |
| DK303 | 60 | 60 | 5 | 17.5 |
| DK304 | 75 | 75 | 6 | 20.5 |
| DK305 | 90 | 90 | 6 | 20.5 |
| DK306 | 90 | 90 | 10 | 28.5 |
| DK307 | 100 | 100 | 6 | 23.5 |
| DK308 | 150 | 150 | 10 | 30 |
