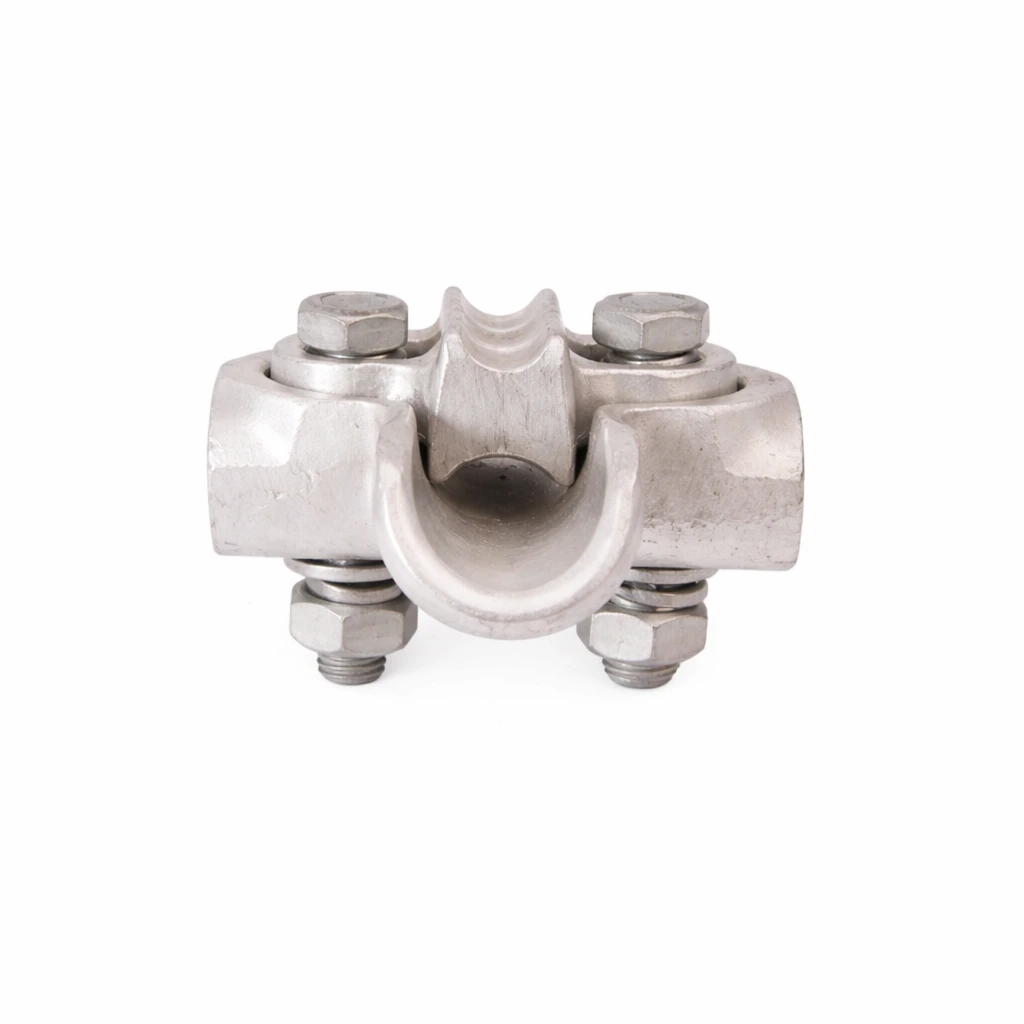

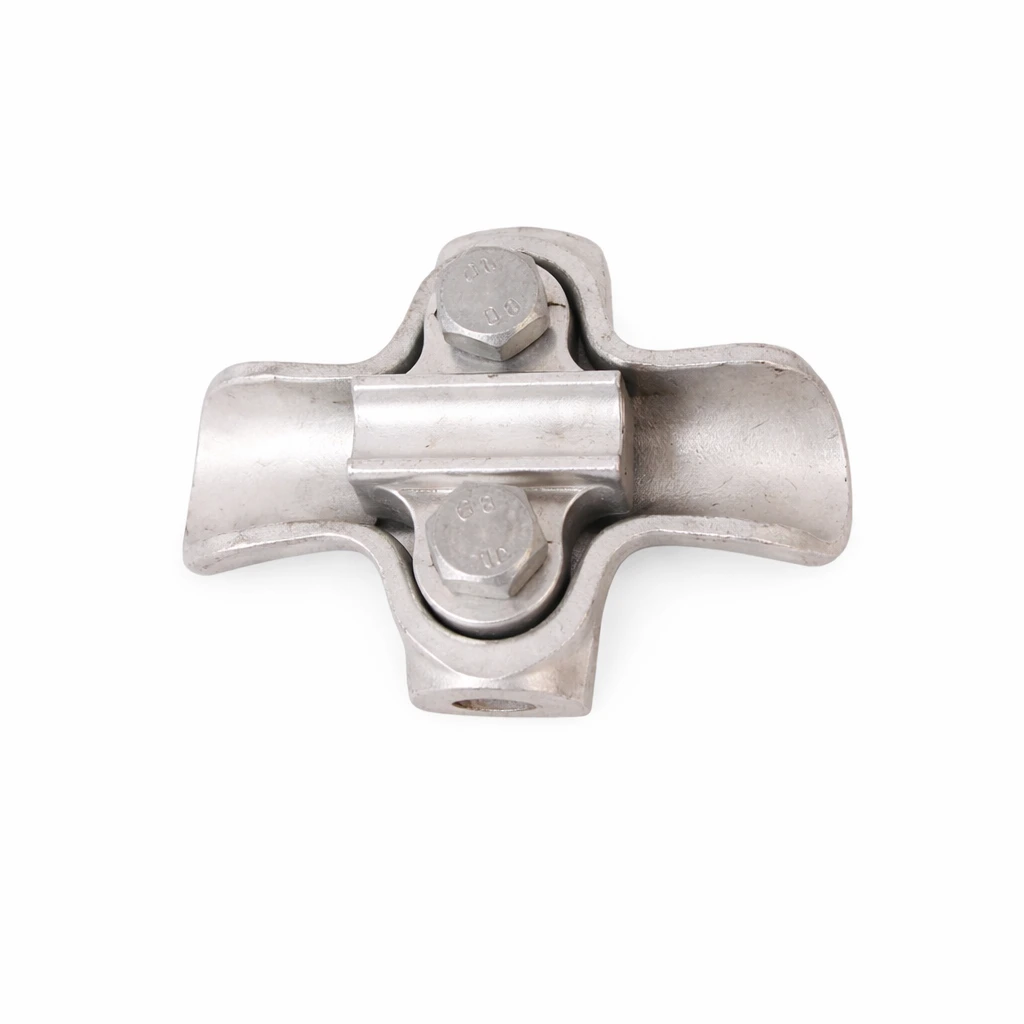

Trunnion Clamp Product Overview:
Acting as a critical stabilization component, the trunnion suspension clamp safely cradles overhead lines across expansive distribution networks. Utility engineers rely on this XZL hardware because of its resilient design and comprehensive commercial backing.
To ensure long-lasting tensioning stability without compromising the cable’s internal structure, the system offers:
- Armor Rod Integration: We highly recommend placing Armor Rods directly over the conductor at suspension points to minimize stress at the XZL clamp ends.
- Extensive Conductor Matching: Perfectly suited for all aluminum-based conductors, securing the structural integrity of the aluminum trunnion suspension clamp.
- Zero Initial MOQ: Test the XZL model quality firsthand with free samples and no minimum order limits on your very first purchase, accelerating approvals.
Key Features & Benefits of the Trunnion Clamp XZL:
Upgrading your grid with a premium aluminum suspension clamp actively extends the operational lifespan of the entire overhead conductor. The precise engineering of these trunnion clamps yields distinct mechanical and financial advantages:
- Engineered to endure severe thermal loads, maintaining a consistent grip at continuous conductor operating temperatures reaching 125℃.
- Manufactured under strict ISO 9001, ISO 14001, and ISO 18001 standards, guaranteeing a full quality control plan for every XZL batch.
- Direct factory sourcing secures a low cost and low price structure, complete with fast quotation responses and dependable after-sale service.
Trunnion Clamp Applications & Use Cases:
Built to adapt to challenging environmental parameters, the Suspension Clamp For Aluminum serves as an indispensable tool for upgrading overhead lines. Field crews deploy this versatile XZL equipment to guarantee precise alignment across diverse utility scenarios:
- Suspending standard voltage overhead networks utilizing ACSR, pure aluminum, or aluminum alloy conductors.
- High-temperature distribution lines where the conductor operates continuously near peak thermal capacities.
- Large-scale LV and MV EPC projects requiring complete tender documents and rapid, bulk lot deliveries of aluminum trunnion clamps.
- Custom OEM utility installations demanding specialized sizing to match unique rural or urban grid layouts.
Trunnion Clamp Technical Specifications:
Review the detailed mechanical, thermal, and commercial parameters below to confirm that the XZL trunnion clamp perfectly aligns with your overhead procurement needs.
Technical & Commercial Data Sheet:
| Technical Parameter | Specification Details |
|---|---|
| Hardware Type / Series | Suspension Trunnion Clamp (XZL Series) |
| Conductor Compatibility | All Aluminum, ACSR, Aluminum Alloy |
| Voltage Application | Standard Voltage / LV & MV Networks |
| Max Operating Temperature | Up to 125℃ (Continuous) |
| Recommended Accessory | Armor Rods (To minimize dynamic/static stress) |
| Manufacturing Certifications | ISO 9001, ISO 14001, ISO 18001 |
| Order Flexibility (MOQ) | No limit for 1st order / 500 pcs for further orders |
| Sample Policy | Free samples provided (Freight charge paid by buyer) |
| OEM & Tender Support | Custom requirements accepted; full documents ready |
