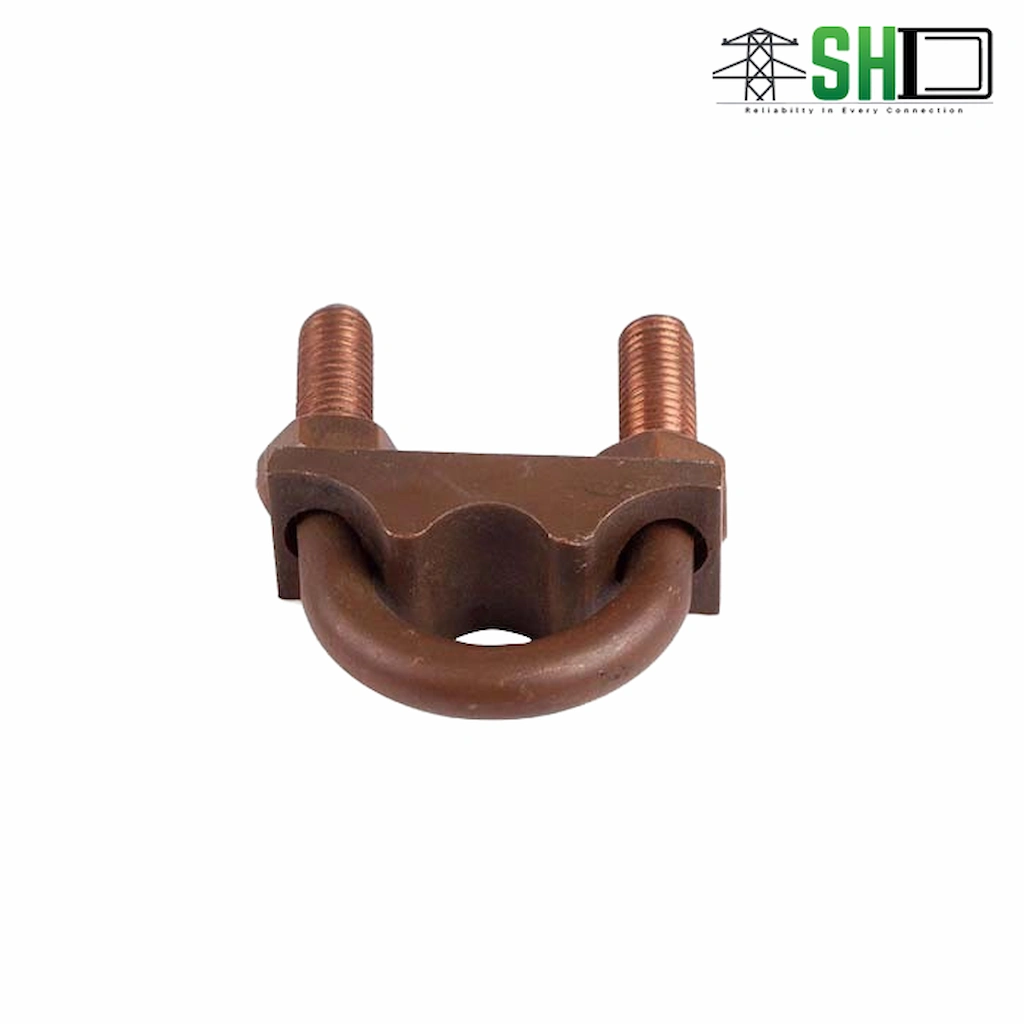

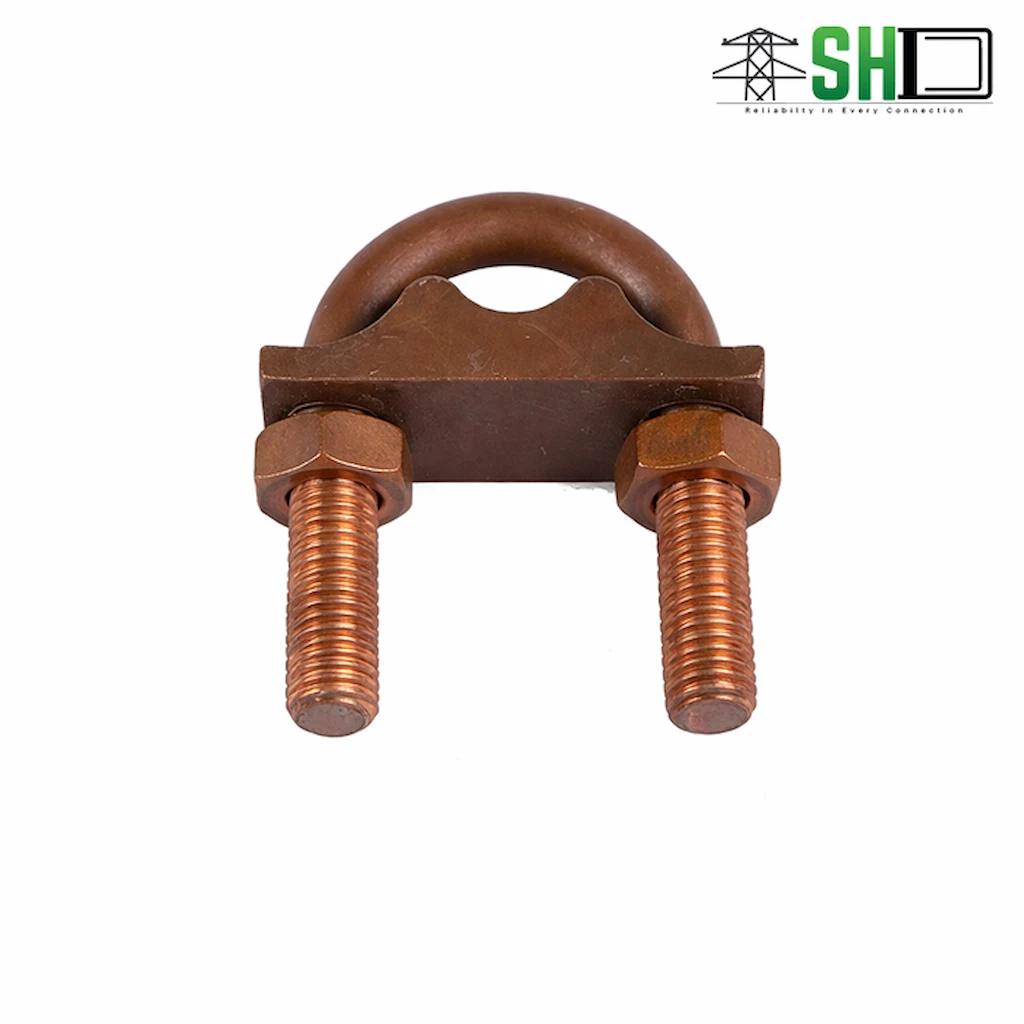

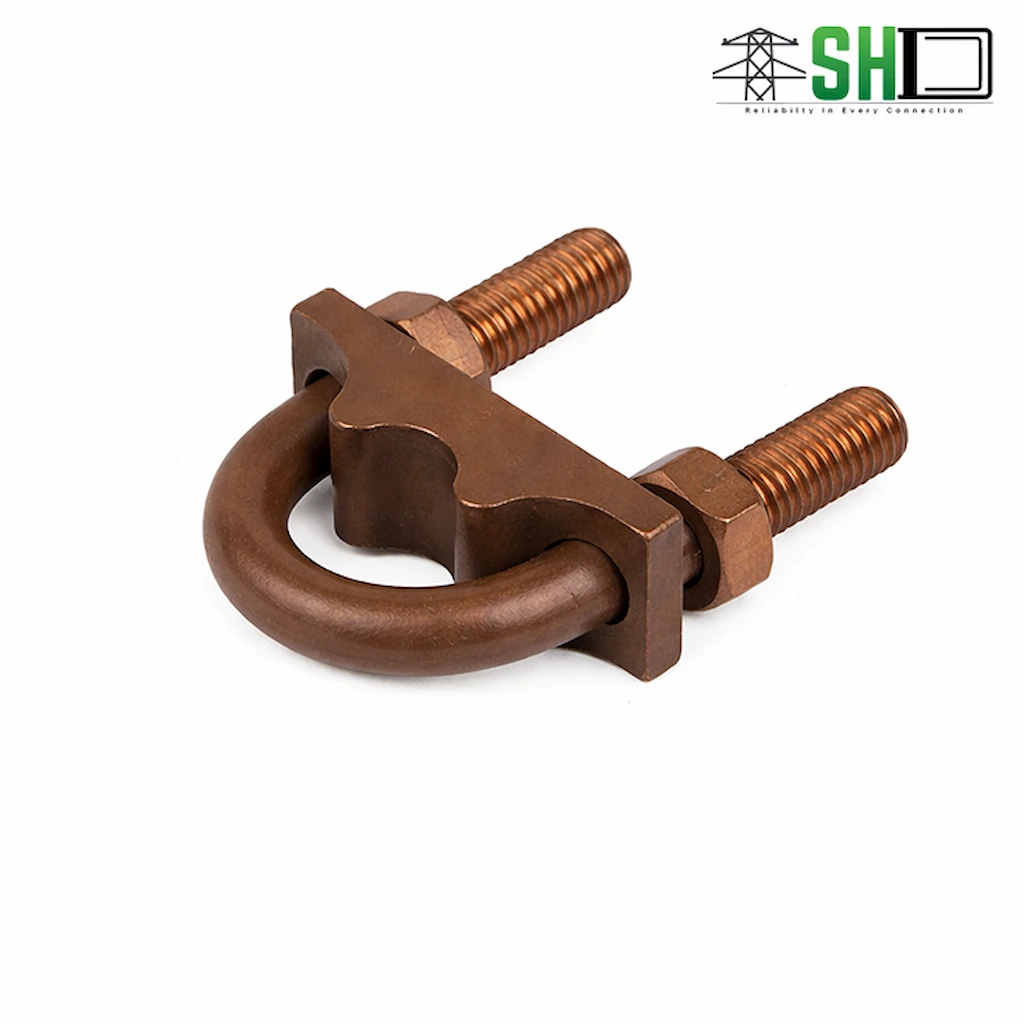

U bolt rod clamp Overview:
Inadequate earthing connections caused by weak grounding hardware inevitably lead to high earth fault loop impedance, jeopardizing both personnel and sensitive substation equipment.
Deploy our specialized single plate u bolt rod clamp to ensure a permanent, highly secure mechanical bond:
- The clamp body is cast from premium gunmetal, while the U-Bolt is manufactured from a high-strength copper alloy, guaranteeing exceptional electrical conductivity and preventing galvanic corrosion in harsh buried environments.
- Designed specifically for the horizontal combination of rod and tape, providing a firm, vibration-proof grip that maintains optimal ground resistance over an extended service life.
Key Features & Benefits:
Optimize your lightning protection and grounding specifications instantly with these highly reliable advantages:
- Manufactured with a gunmetal clamp and high-strength copper alloy U-bolt.
- Delivers excellent electrical conductivity for reliable earthing systems.
- Provides strong corrosion resistance against harsh soil and weather conditions.
- Engineered for a long service life without mechanical degradation or loosening.
- Functions perfectly as a heavy-duty u bolt ground rod clamp for horizontal tape routing.
Applications & Use Cases for u bolt rod clamp:
Integrate this dynamic transition hardware to establish completely fail-proof earthing and grounding networks.
This heavy-duty unit is the definitive engineering choice for the following critical utility tasks:
- Connecting horizontal flat copper tapes securely to earth rods using a reliable u bolt rod clamp.
- Securing stranded copper cables to reinforcing bars (re-bars) and handrails flawlessly.
- Executing highly stable grounding setups utilizing a tested u bolt ground rod clamp.
Technical Specifications:
Review the comprehensive material data and specific dimensional ranges below to ensure perfect alignment with your earthing system engineering standards.
Technical Parameters
| General Specifications | |
| Product Type | U-Bolt Single Plate Type |
| Clamp Material | Gunmetal |
| U-Bolt Material | High-Strength Copper Alloy |
| Combination Type | Rod and Tape |
| Positioning Usage | Horizontal Position Connection |
Dimensional Data:
| Type (Model) | Nominal Diameter | Hole Centres (mm) | |
|---|---|---|---|
| Inch | mm | ||
| DKU-01 | 5/8″ | 16 | 37 |
| DKU-02 | 3/4″ | 19 | 37 |
| DKU-03 | 1″ | 25 | 37 |
| DKU-04 | 1 1/2″ | 38 | 54 |
| DKU-05 | 2″ | 51 | 64 |
