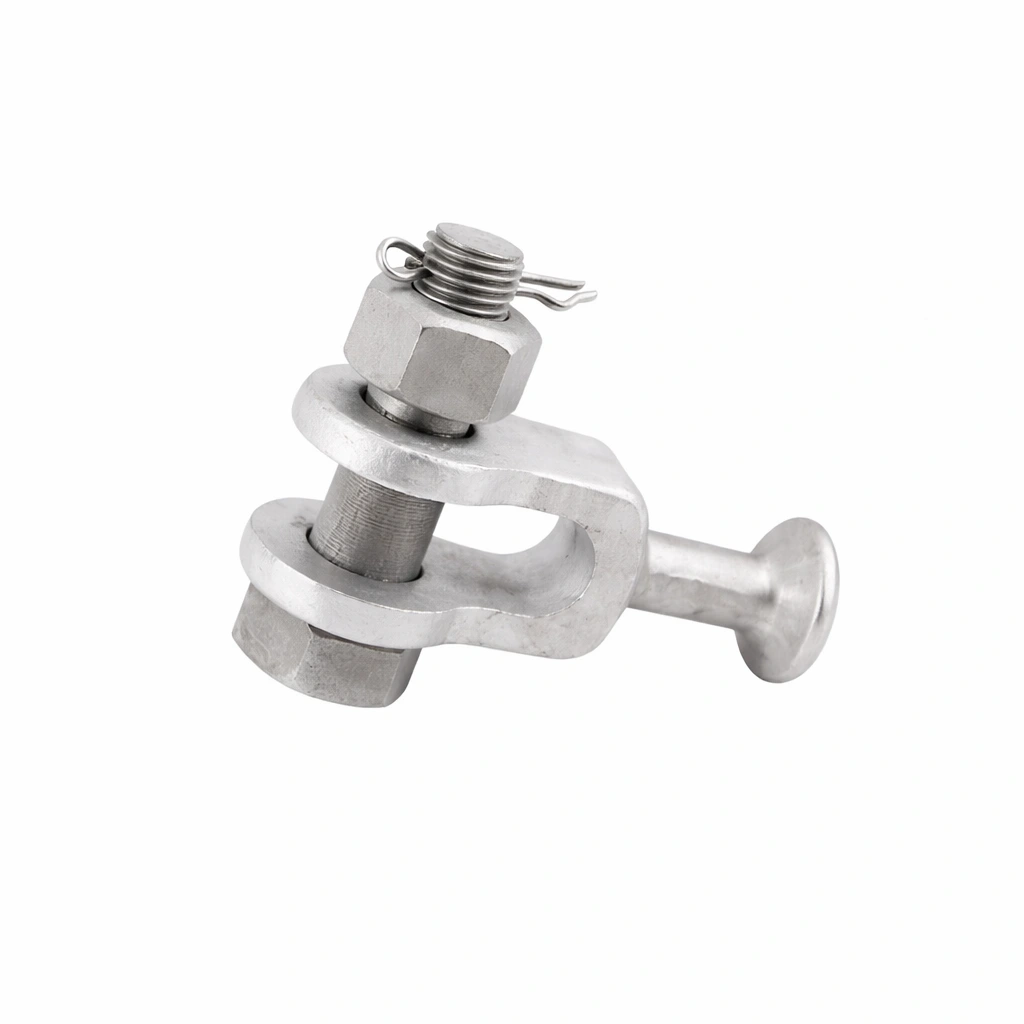

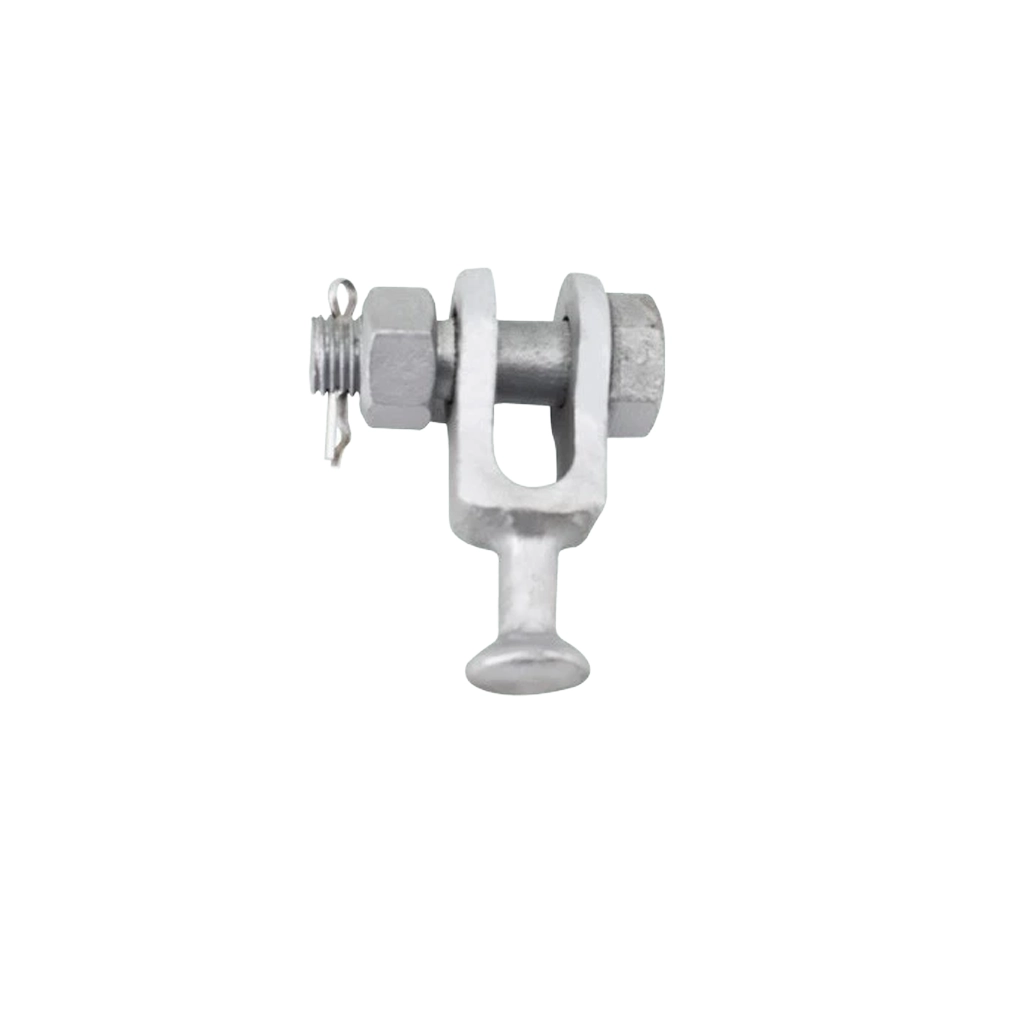

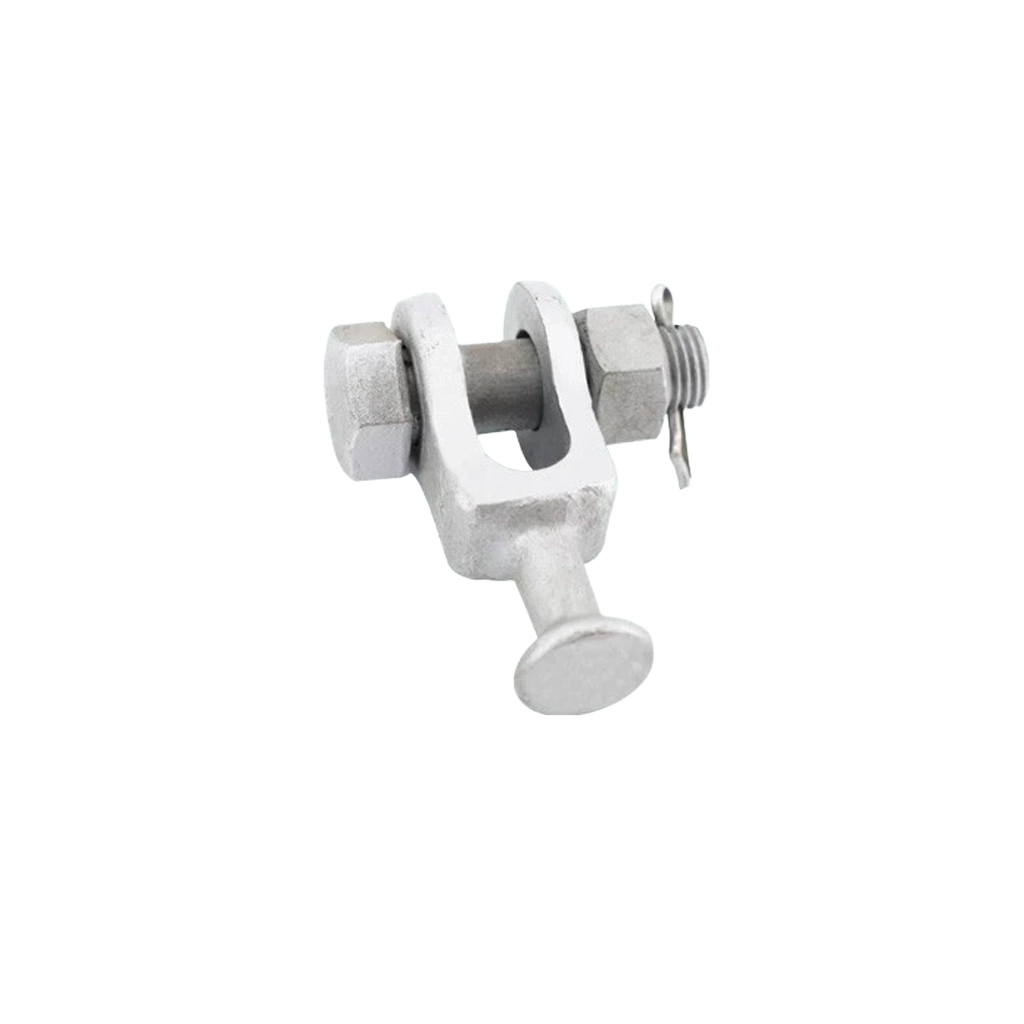

U Shaped Clevis Product Overview
Crafted from heat-treated steel, the U Shaped Clevis delivers outstanding ductility and performance in the field. The forging process ensures this u clevis maintains exceptional short-circuit capabilities, which rely directly on the exact cross-sections, the smoothness of bolt holes, and the applied mechanical loads.
- Constructed from Hot-Dip Galvanized (H.D.G.) steel for excellent, long-lasting corrosion resistance.
- The Q-U model features high-strength connecting bolts strictly rated at grade 4.8 or 8.8.
- Equipped with highly durable split pins crafted from either stainless steel or tinned copper.
- Engineered to withstand heavy structural stress (Note: overall hardware strength naturally reduces at extremely high temperatures).
U Shaped Clevis Key Advantages
Selecting the U Shaped Clevis for your electrical infrastructure guarantees dependable mechanical performance combined with highly flexible B2B purchasing options:
- Massive Output: Achieves an impressive producing capacity of 5,000,000 sets per month to efficiently fulfill LV and MV EPC material lots.
- Quality Assurance: Manufactured under a full quality control plan within ISO 9001, ISO 14001, and ISO 18001 certified facilities.
- Order Flexibility: Offers zero Minimum Order Quantity (MOQ) on initial purchases, and a low 100-piece threshold for subsequent orders.
- Value & Speed: Delivers low factory pricing alongside fast quotations, OEM availability, and dependable after-sale service.
- Tender Support: Complete document sets are prepared for tender submission, and free samples are provided (buyer assumes freight charge).
U Shaped Clevis Applications
Utility professionals rely on the U Shaped Clevis to manage demanding mechanical tension across outdoor line installations safely. It is predominantly used for:
- Connecting robust insulators directly to transmission towers and structural conductors.
- Integrating seamlessly with other protective hardware to form highly secure Q-U and QS series string groups.
U Shaped Clevis Technical Specifications
Review the precise mechanical load ratings and dimensional data below to ensure the U Shaped Clevis meets your project’s structural requirements.
| Technical Parameter | Specification Details |
|---|---|
| Hardware Type | Connecting Fitting / Ball Clevis |
| Model Series | Q-U and QS Series |
| Body Material | Forged, Heat-Treated H.D.G. Steel |
| Connecting Bolts Grade | Grade 4.8 or 8.8 |
| Split Pin Material | Stainless Steel or Tinned Copper |
| Producing Capacity | 5,000,000 sets per month |
| Factory Certifications | ISO 9001, ISO 14001, ISO 18001 |

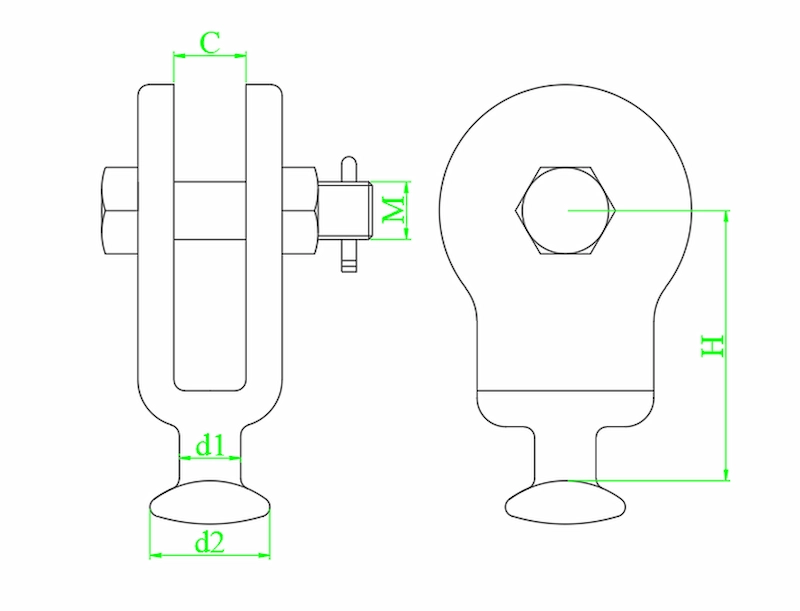

U Shaped Clevis Dimensions & Failure Load Sheet
| Cat. No. | Dimension (mm) | Failure Load (kN) | Weight (kg) | ||||
|---|---|---|---|---|---|---|---|
| H | C | M | D | D1 | |||
| Q-7U | 80 | 18 | 16 | 33.3 | 17 | 70 | 0.9 |
| Q-10U | 80 | 20 | 18 | 33.3 | 17 | 100 | 0.9 |
| Q-12U | 95 | 22 | 22 | 33.3 | 17 | 120 | 1.0 |
| Q-16U | 80 | 22 | 24 | 41 | 21 | 160 | 1.2 |
| Q-16UA | 80 | 26 | 24 | 41 | 21 | 160 | 1.2 |
| Q-21U | 95 | 24 | 24 | 41 | 21 | 210 | 1.35 |
| Q-30U | 120 | 32 | 30 | 49 | 25 | 300 | 2.14 |
| QS-0775 | 75 | 20 | 16 | 33.3 | 17 | 70 | 0.9 |
| QS-1075 | 75 | 20 | 18 | 33.3 | 17 | 100 | 1.0 |
| QS-1275 | 75 | 20 | 22 | 33.3 | 17 | 120 | 1.1 |
| QS-1680 | 80 | 22 | 24 | 41 | 21 | 160 | 1.2 |
| QS-32120 | 120 | 32 | 30 | 49 | 25 | 320 | 3.2 |
| QS-42140 | 140 | 38 | 36 | 57 | 29 | 420 | 5.73 |
| QS-55150 | 150 | 38 | 36 | 65 | 33 | 550 | 6.0 |
