W Socket Eye Link Fitting For Insulators

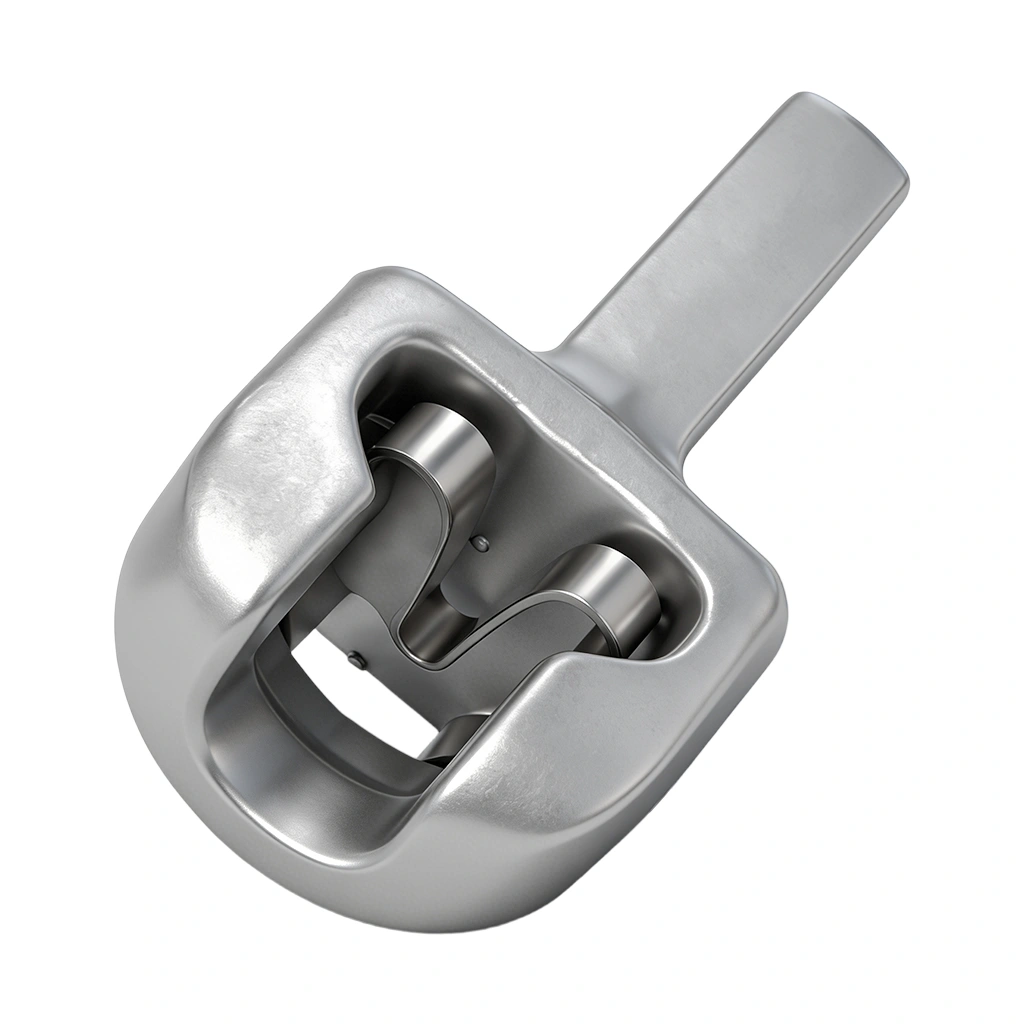

W Socket Eye

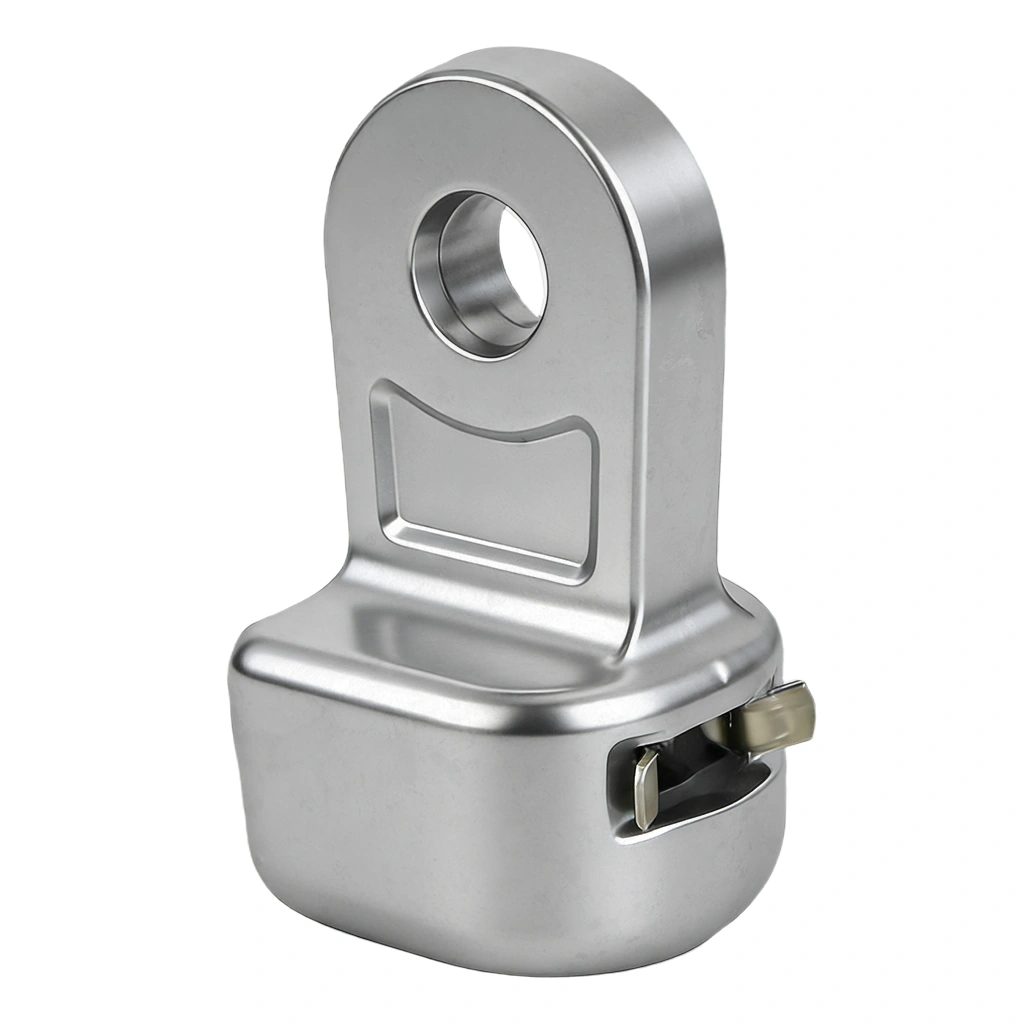

W Socket Eye

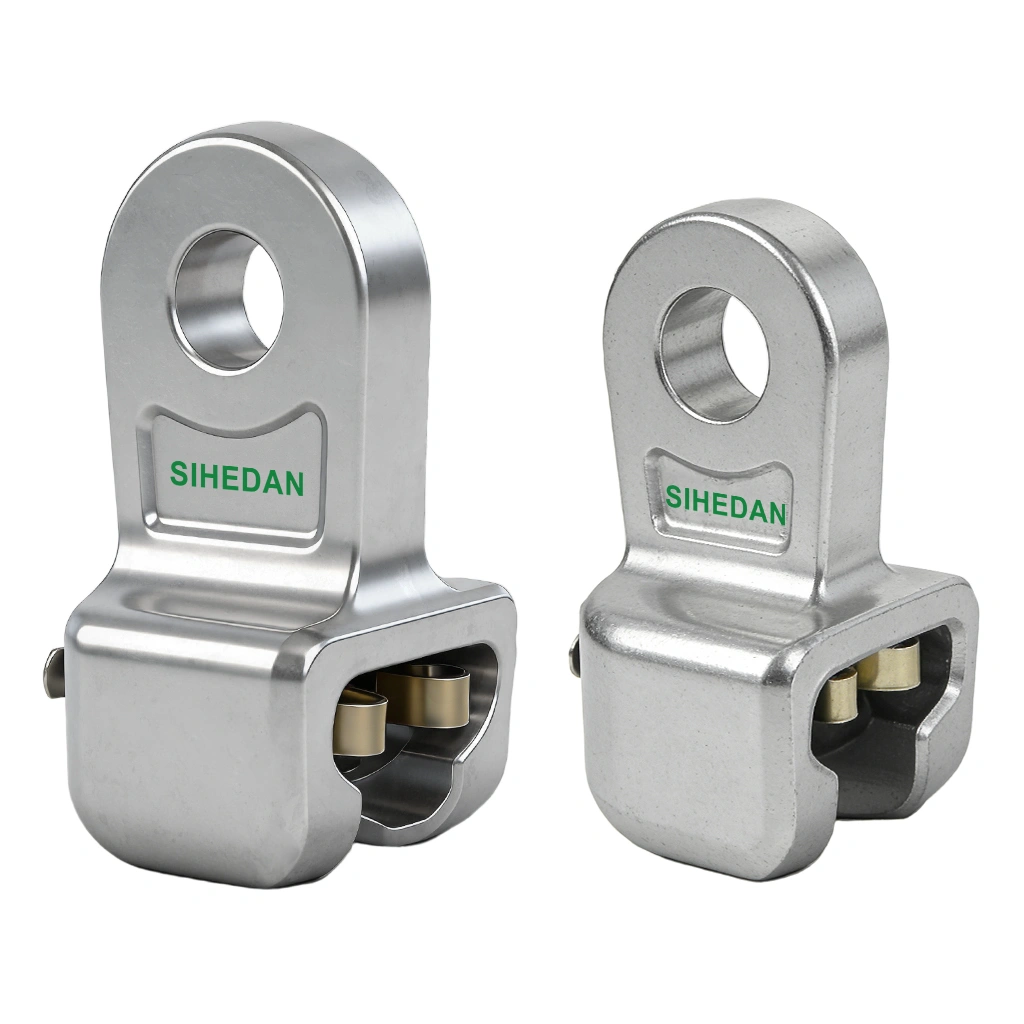

W Socket Eye
W Socket Eye Link Fitting For Insulators - Image 4

The W Socket Eye is a specialized link fitting utilized to connect clamps to insulators, or to safely attach insulator strings and ground wire clamps directly to transmission tower arms or subjection structures according to specific mounting conditions.

Producing capacity: 1,000,000 pcs / month.

Request a Quote
Category:




W Socket Eye Overview

Designed to handle continuous mechanical tension, this W Socket Eye functions as a highly reliable special-type connection point for electrical networks.

  • Manufactured completely from Hot-Dip Galvanized (H.D.G) steel for maximum structural integrity.
  • Available in various dimensional sizes to match specific failure load requirements accurately.
  • Provides a straightforward, secure mechanism for linking overhead line components safely.

W Socket Eye Features

Integrating the W Socket Eye into your power lines guarantees excellent long-term performance backed by flexible direct-factory B2B terms:

  • Corrosion Resistance: The heavy-duty galvanized coating protects the hardware against harsh environmental wear and rust.
  • Certified Manufacturing: Produced under a strict quality control plan conforming to ISO 9001, ISO 14001, and ISO 18001 standards.
  • Order Flexibility: Zero Minimum Order Quantity (MOQ) on initial purchases, followed by a 100-piece threshold. Free samples are provided (buyer covers freight).
  • EPC Project Ready: Delivers low-cost pricing, professional technology support, OEM customization, and complete tender documents ready for submission.

W Socket Eye Applications

Built for secure overhead linkage, the W Socket Eye is strictly utilized for:

  • Linking suspension and tension clamps directly to insulator strings.
  • Connecting insulators and ground wire hardware safely to utility tower arms.
  • Fulfilling high-volume supply requirements for low and medium-voltage (LV and MV) EPC material lots.

W Socket Eye Specifications

Review the precise material data and dimensional failure loads for the W series below to ensure exact compatibility with your tower hardware.

Material & Design Data:

Component / Parameter Specification Details
Hardware Type Link Fitting / W Socket Eye
Body Material Hot-Dip Galvanized (H.D.G) Steel
OEM Availability Yes (Customizable based on requirements)
Factory Certifications ISO 9001, ISO 14001, ISO 18001

Dimensional & Failure Load Parameters:

W Socket Eye

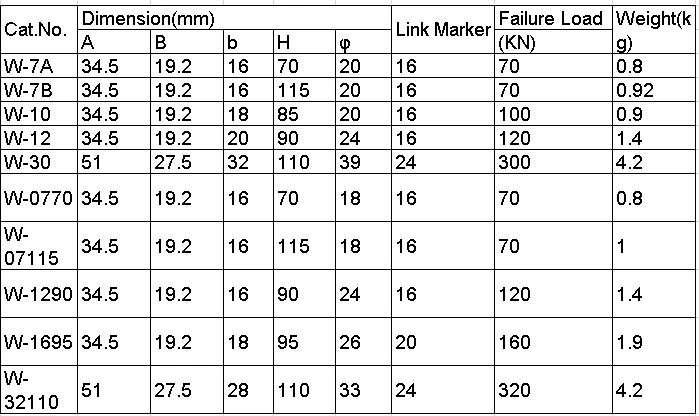

Cat. No. Dimension (mm) Link Marker Failure Load (kN) Weight (kg)

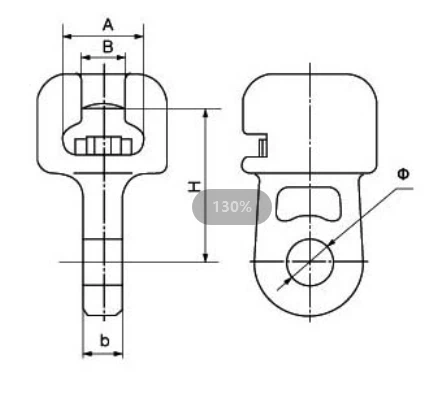

A B b H Φ
W-7A 34.5 19.2 16 70 20 16 70 0.8
W-7B 34.5 19.2 16 115 20 16 70 0.92
W-10 34.5 19.2 18 85 20 16 100 0.9
W-12 34.5 19.2 20 90 24 16 120 1.4
W-30 51.0 27.5 32 110 39 24 300 4.2
W-0770 34.5 19.2 16 70 18 16 70 0.8
W-07115 34.5 19.2 16 115 18 16 70 1.0
W-1290 34.5 19.2 16 90 24 16 120 1.4
W-1695 34.5 19.2 18 95 26 20 160 1.9
W-32110 51.0 27.5 28 110 33 24 320 4.2
