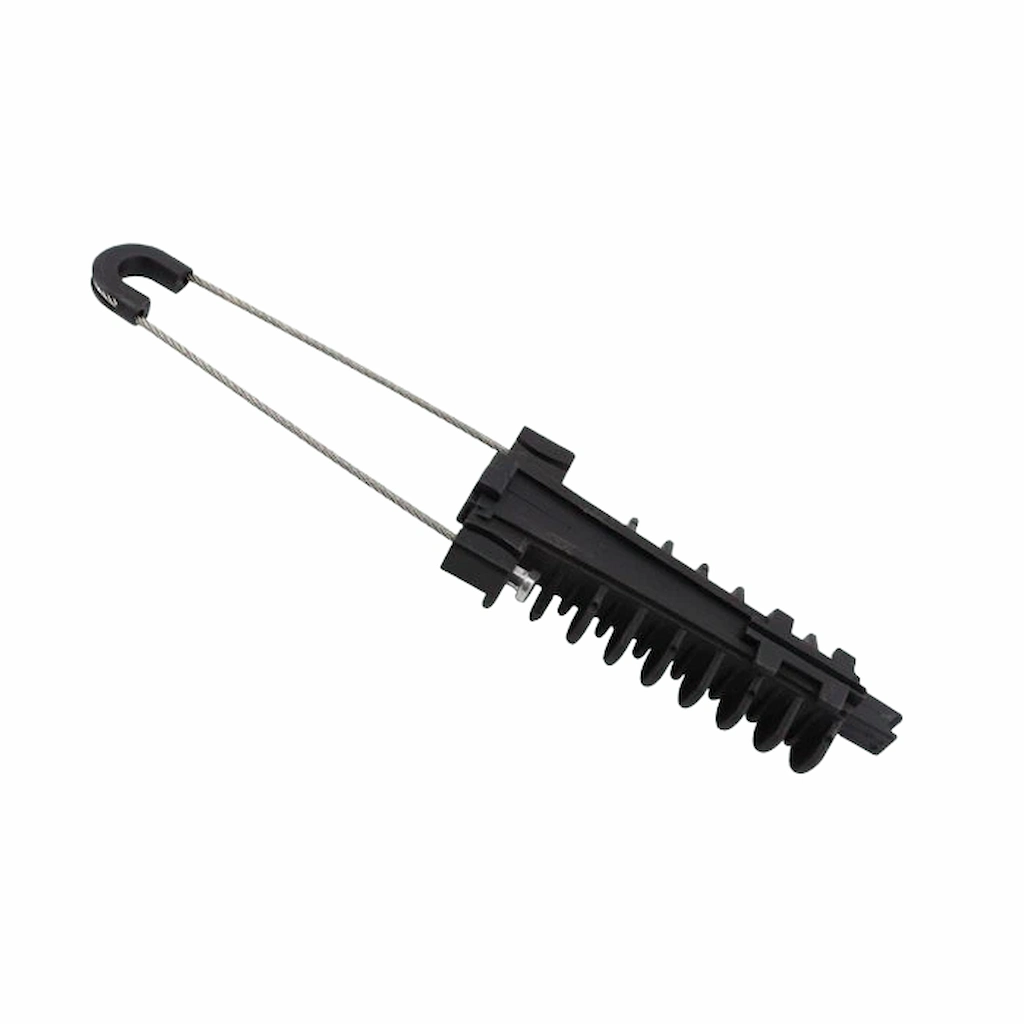

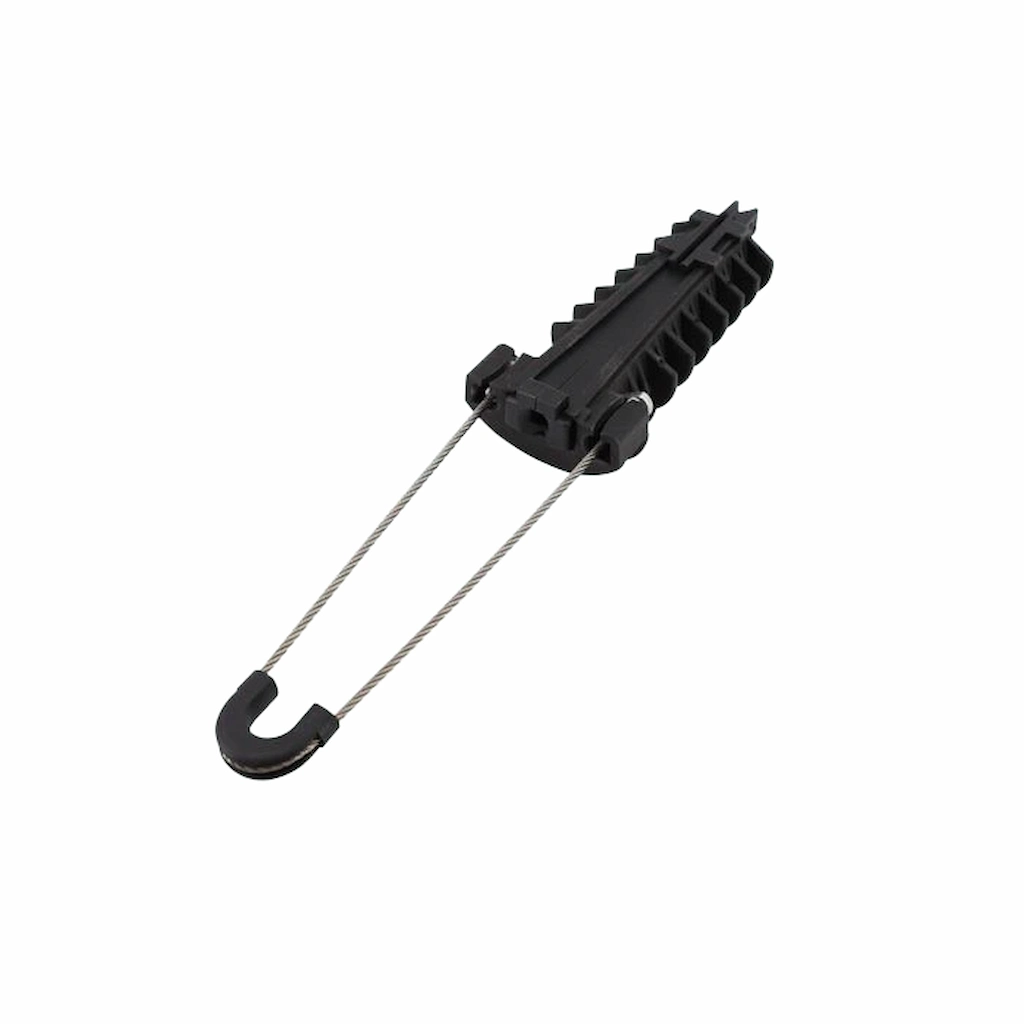

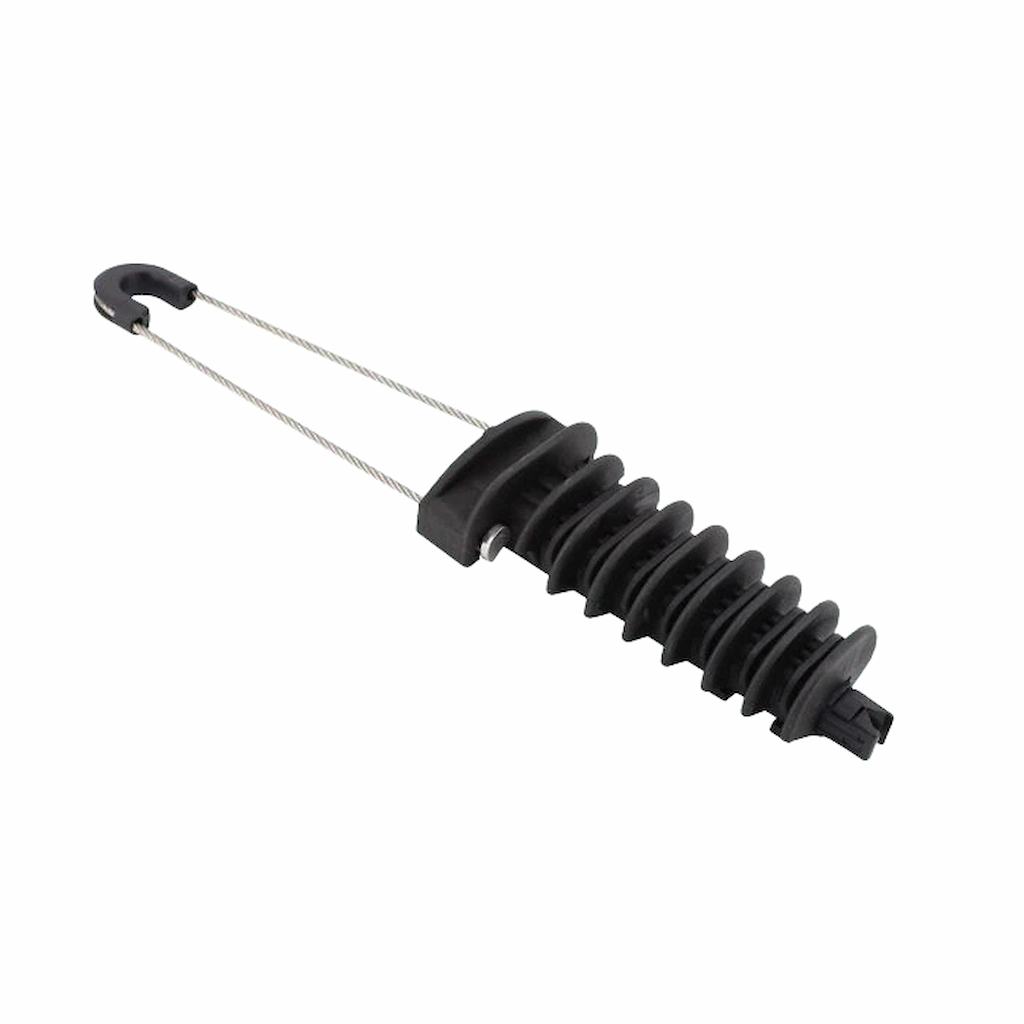

Wedge Clamp for Cable Overview:
Failing to secure aerial optical networks properly can cause severe sheath damage and catastrophic signal loss under immense mechanical tension.
Deploy our specialized PA1500 hardware to guarantee a permanent, fail-proof aerial connection:
- Functions perfectly as an Insulated Dead End Clamp, utilizing a fibreglass reinforced polymer wedge to ensure a completely toolless, speed-optimized field installation.
- Features absolute weather and UV resistance to withstand prolonged exposure in aggressive and harsh outdoor environments.
- Engineered to grip the line perfectly, guaranteeing secure dead-ending without causing any harmful bending or structural sheath damage.
Key Features & Benefits:
Optimize your aerial network construction instantly with these rigorously tested, high-performance physical advantages:
- Manufactured with a flexible strand stainless steel hook to guarantee exceptional mechanical strength and long-lasting rust resistance.
- Operates seamlessly as a highly durable wedge Insulated Dead End Clamp with zero maintenance requirements.
- Fully compliant with strict NF C 33-041, NF C 33-042, and BS EN 50483-3 standards for ultimate engineering reliability.
- Supports massive 1000daN (10kN) failing loads, ensuring completely safe operations under extreme environmental tension.
- Mounts flawlessly on wooden, concrete, or metal poles utilizing a standard hoop, eye, bracket, or cross arm.
Applications & Use Cases For Wedge Clamp for Cable:
Ensure the absolute stability of your telecommunication networks with hardware built for extreme tension endurance.
This unit is the definitive engineering choice for the following critical utility tasks:
- Executing highly safe dead-ending for ADSS and FTTH networks on exterior walls or distribution poles.
- Securing aerial infrastructure permanently utilizing our highly reliable Insulated wedge Dead End Clamp.
- Upgrading existing 8-11mm round line configurations rapidly with modern, toolless, and high-strength hardware.
Technical Specifications:
Review the exact material construction, mechanical strength, packaging data, and compliance standards below to perfectly align with your specific network hardware requirements.
Material, Construction & Application
| Material and Construction | |
| Body | Fibreglass reinforced thermoplastic |
| Wedge insert | Fibreglass reinforced thermoplastic |
| Hook | Flexible Strand stainless steel wire |
| Color | Black |
| Line Application | |
| Line type | Round |
| Minimum Diameter | 8mm |
| Maximum Diameter | 11mm |
Mechanical Strength & Standards
| Mechanical Strength | |
| Failing load | 1000daN / 10kN |
| Standard | |
| Design | NF C 33-041, NF C 33-042 |
| Testing | BS EN 50483-3 |
Packing Data
| Packing Information | |
| Qty. | 50pcs / carton |
| Carton length | 490mm |
| Carton width | 295mm |
| Carton height | 320mm |
| Gross weight | 12.5kg |

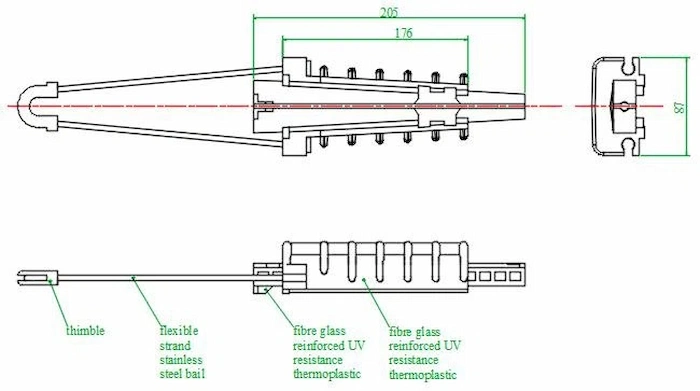

Dimensions:
