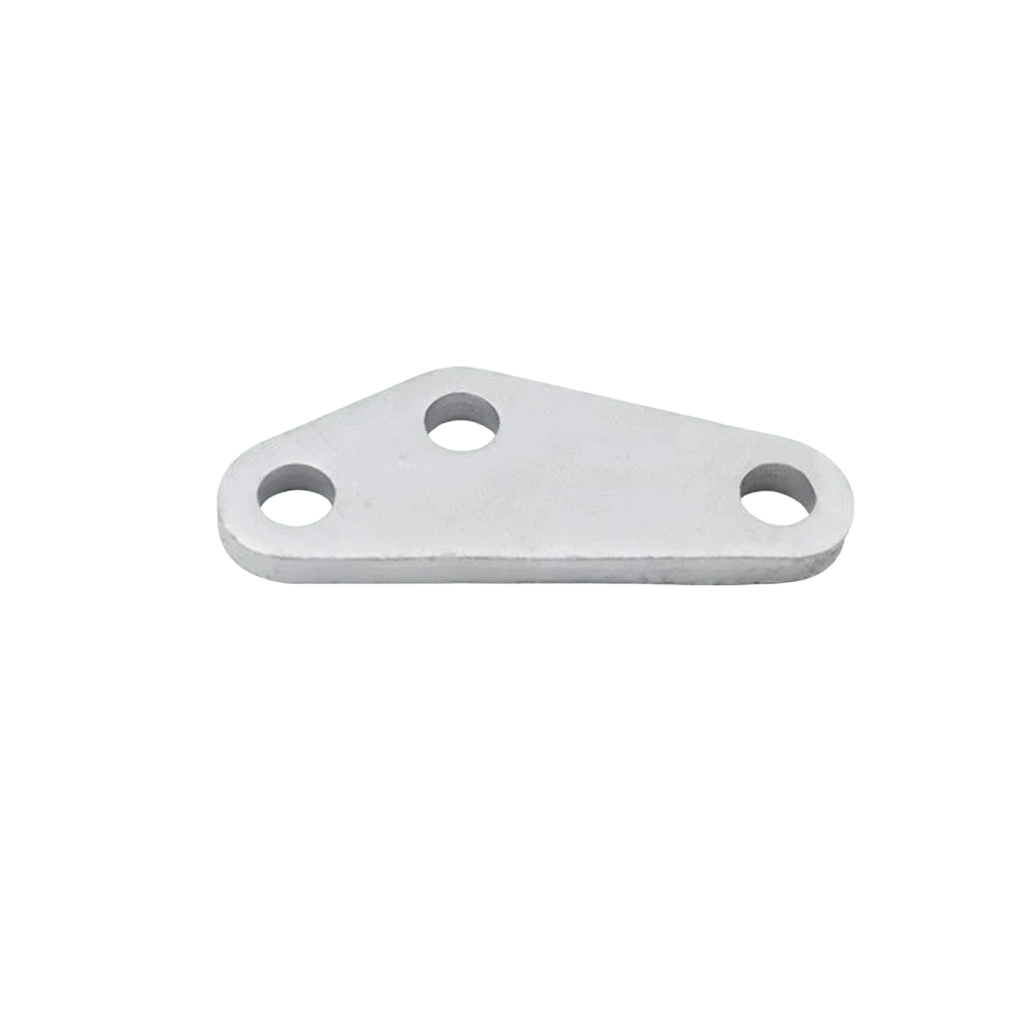

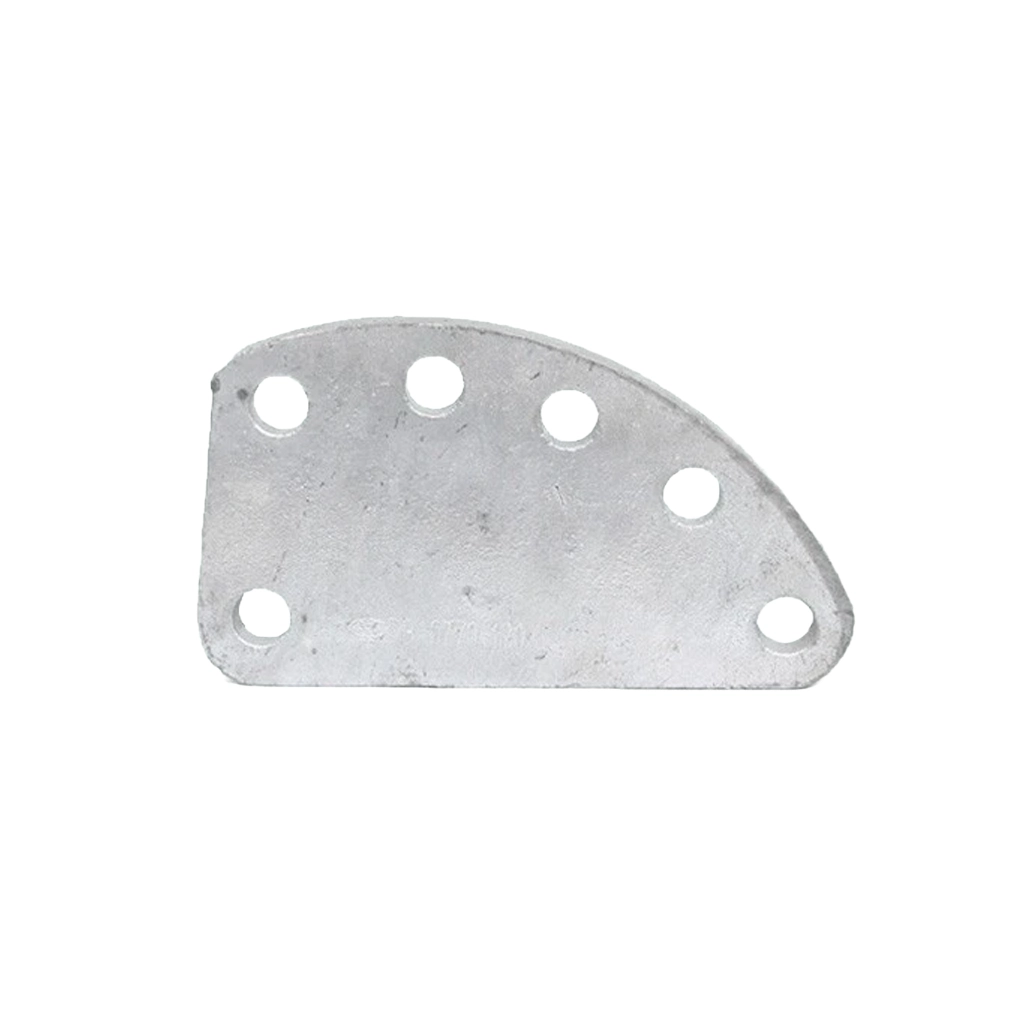

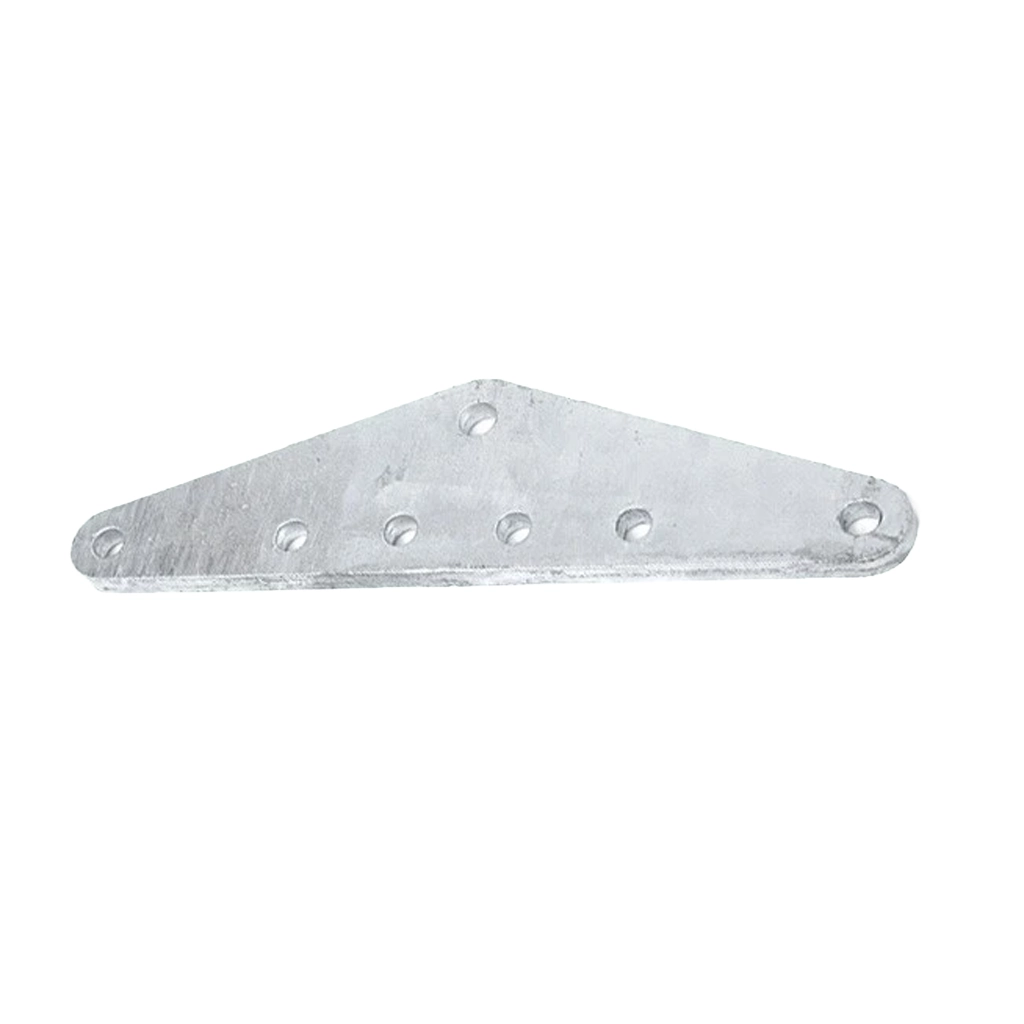

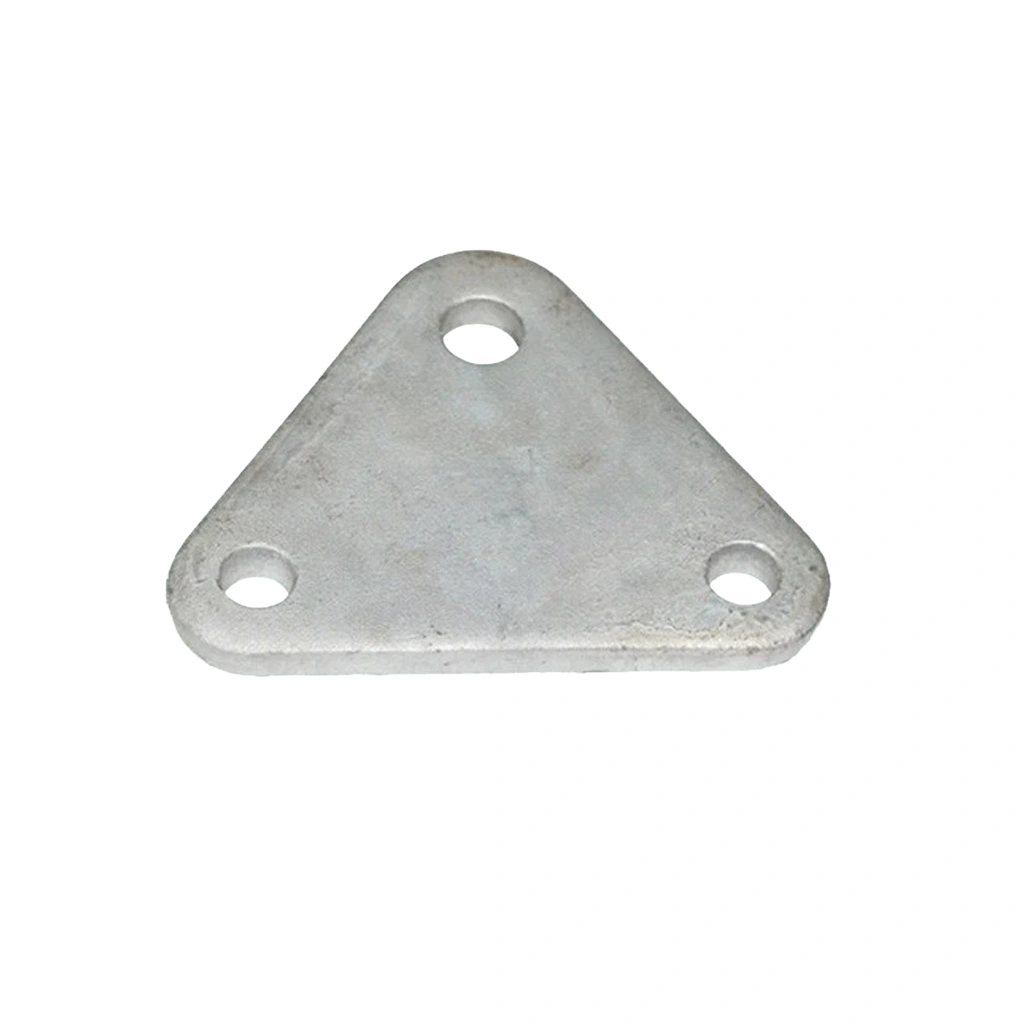

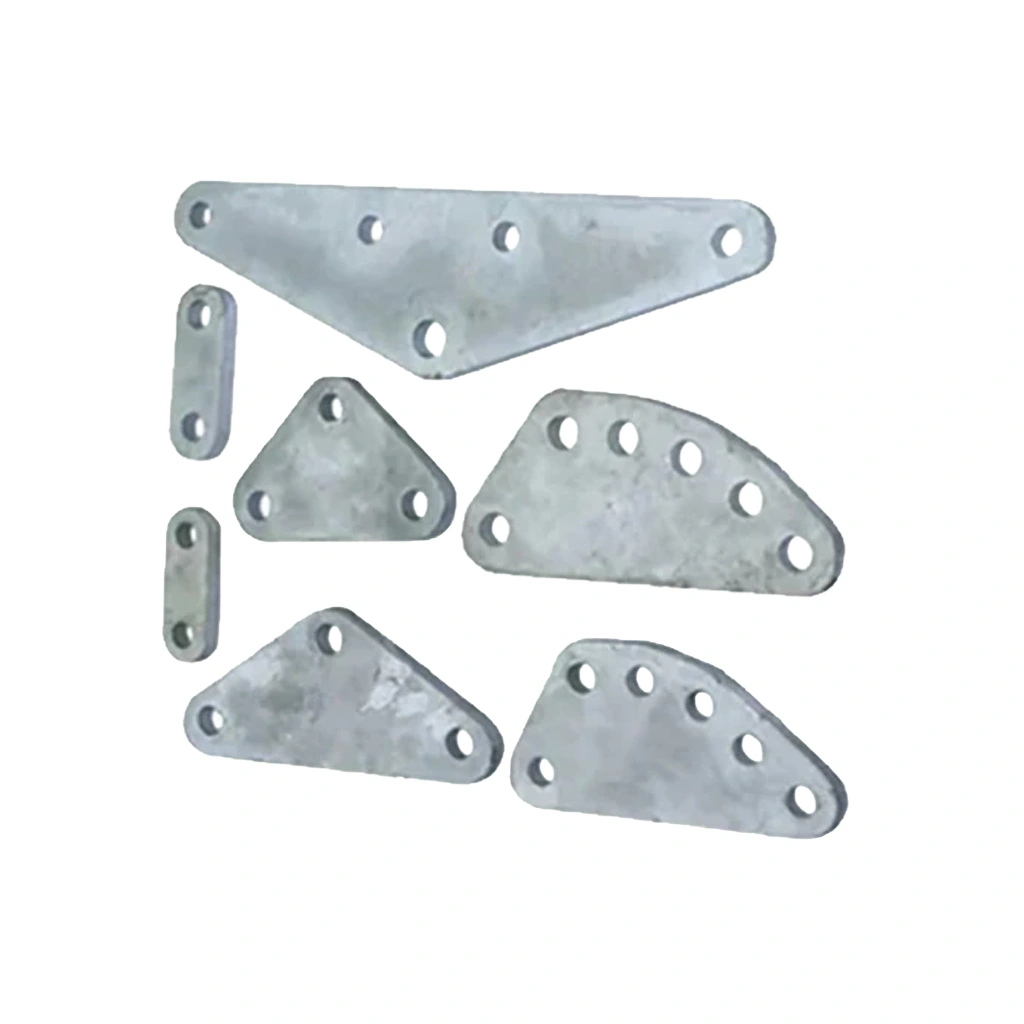

Yoke Plates Product Overview
Manufactured to meet strict international standards, the Yoke Plates deliver exceptional reliability and structural integrity in the field. The design prioritizes straightforward handling and long-term durability.
- Constructed entirely from Hot-Dip Galvanized (H.D.G.) steel.
- Fully customizable according to specific customer requirements, including shape and exact dimensions.
- Engineered for fast and easy installation to reduce labor time on site.
- Features an extremely durable appearance that is highly resistant to wear over a long working life.
Yoke Plates Key Features
Procuring these Yoke Plates guarantees top-tier mechanical performance supported by flexible, B2B-friendly purchasing conditions:
- Manufacturing Scale: Delivers a massive production capacity of 100,000 sets per month to support LV and MV EPC material lots.
- Certified Quality: Backed by a full quality control plan within ISO 9001, ISO 14001, and ISO 18001 certified facilities.
- Order Flexibility: Zero Minimum Order Quantity (MOQ) on initial purchases, and a low 100-piece threshold for further orders.
- Value & Speed: Offers low factory pricing, fast quotations, short lead times, and dependable after-sale service.
- Tender & Customization: Complete document sets are ready for tender submission. OEM customization and free samples (buyer covers freight) are readily available.
Yoke Plates Applications
Utility teams rely on Yoke Plates to maintain stability in high-tension outdoor line installations. They are primarily utilized for:
- Line Hardware Assemblies: Linking multiple insulators and transmission line components securely.
- EPC Projects: Providing reliable, custom-sized structural fittings for large-scale low and medium-voltage distribution networks.
Yoke Plates Technical Specifications
Review the precise dimensional data and weights below to ensure the Yoke Plates meet your specific structural requirements.
| Technical Parameter | Specification Details |
|---|---|
| Hardware Type | Yoke Plate (L Type) |
| Body Material | H.D.G. Steel |
| Surface Finish | Hot Dip Galvanizing (International Standard) |
| Customization | Shape, dimensions, and OEM available |
| Producing Capacity | 100,000 sets per month |
| Factory Certifications | ISO 9001, ISO 14001, ISO 18001 |

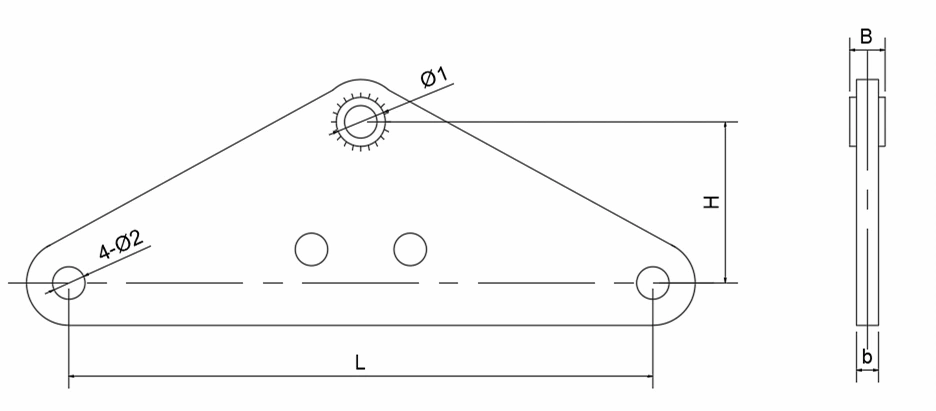

Yoke Plate Dimensions & Weight Sheet
| TYPE | Dimension (mm) | Weight (kg) | |||||
|---|---|---|---|---|---|---|---|
| b | B | H | ∅1 | ∅2 | L | ||
| L-1040 | 16 | 16 | 70 | 20 | 18 | 400 | 4.4 |
| L-1240 | 16 | 16 | 70 | 24 | 18 | 400 | 4.7 |
| L-1640 | 18 | 18 | 100 | 26 | 20 | 400 | 5.8 |
| L-2140 | 16 | 26 | 100 | 30 | 20 | 400 | 7.0 |
| L-2540 | 16 | 30 | 110 | 33 | 24 | 400 | 9.0 |
| L-3040 | 18 | 32 | 110 | 39 | 26 | 400 | 10.0 |
| L-4255 | 24 | 38 | 250 | 45 | 30 | 550 | 24.4 |
| L-5040 | 30 | 38 | 110 | 45 | 33 | 400 | 14.8 |
| L-6045 | 32 | 42 | 200 | 51 | 39 | 450 | 25.5 |
| L-6050 | 32 | 42 | 250 | 51 | 39 | 500 | 23.3 |
