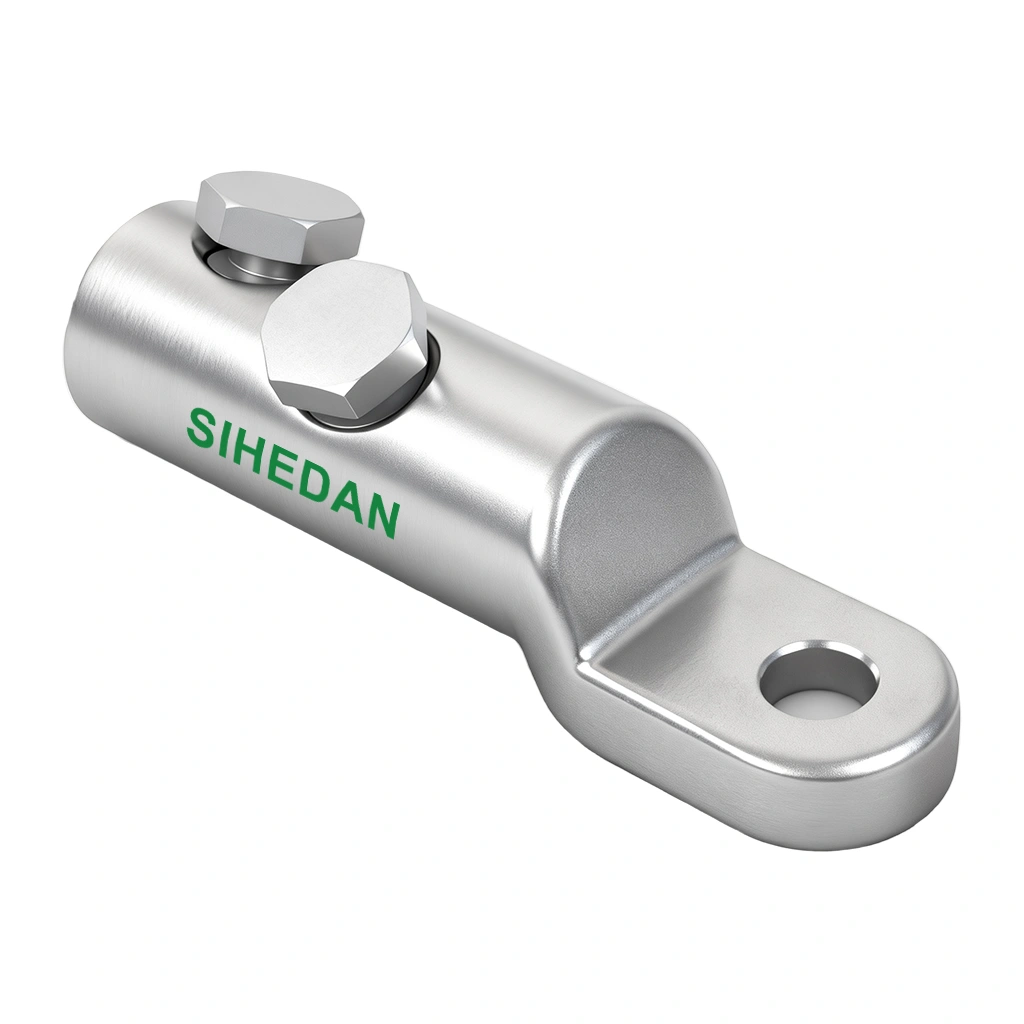

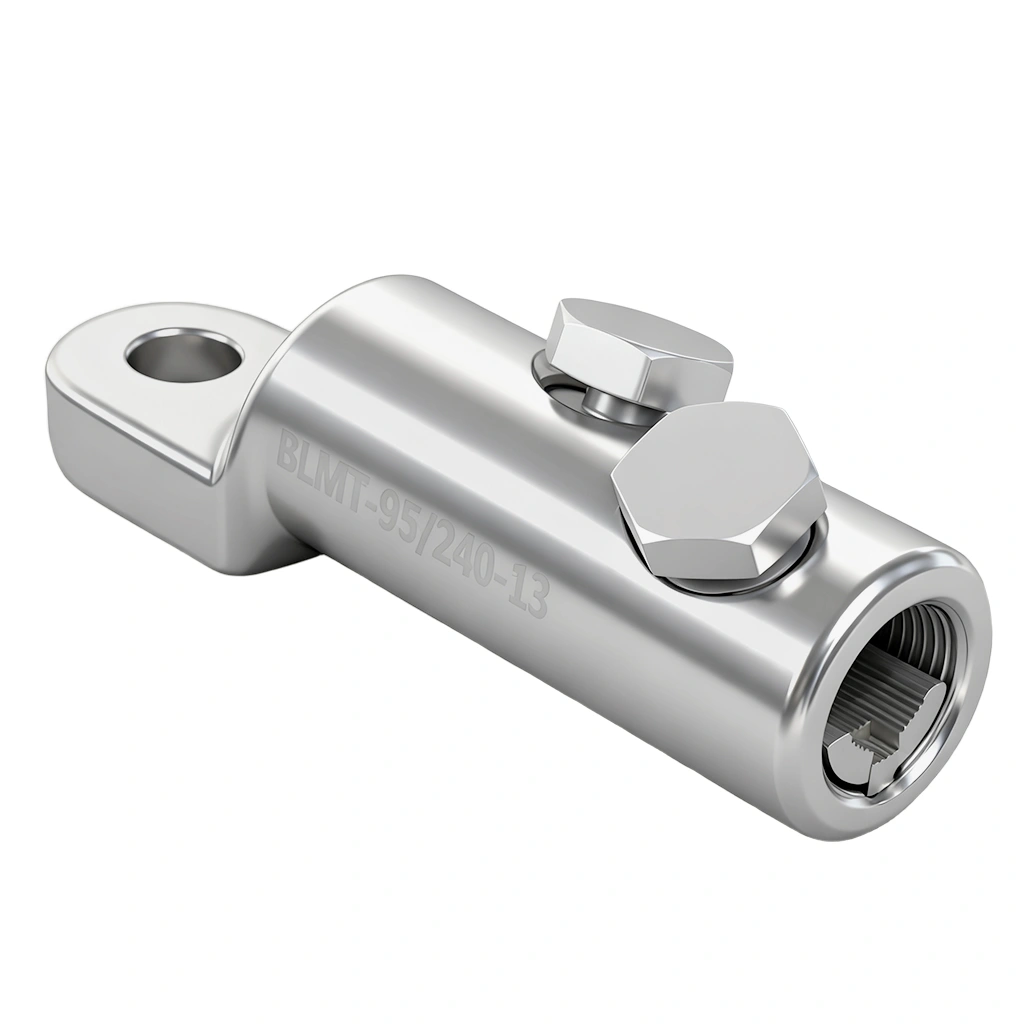

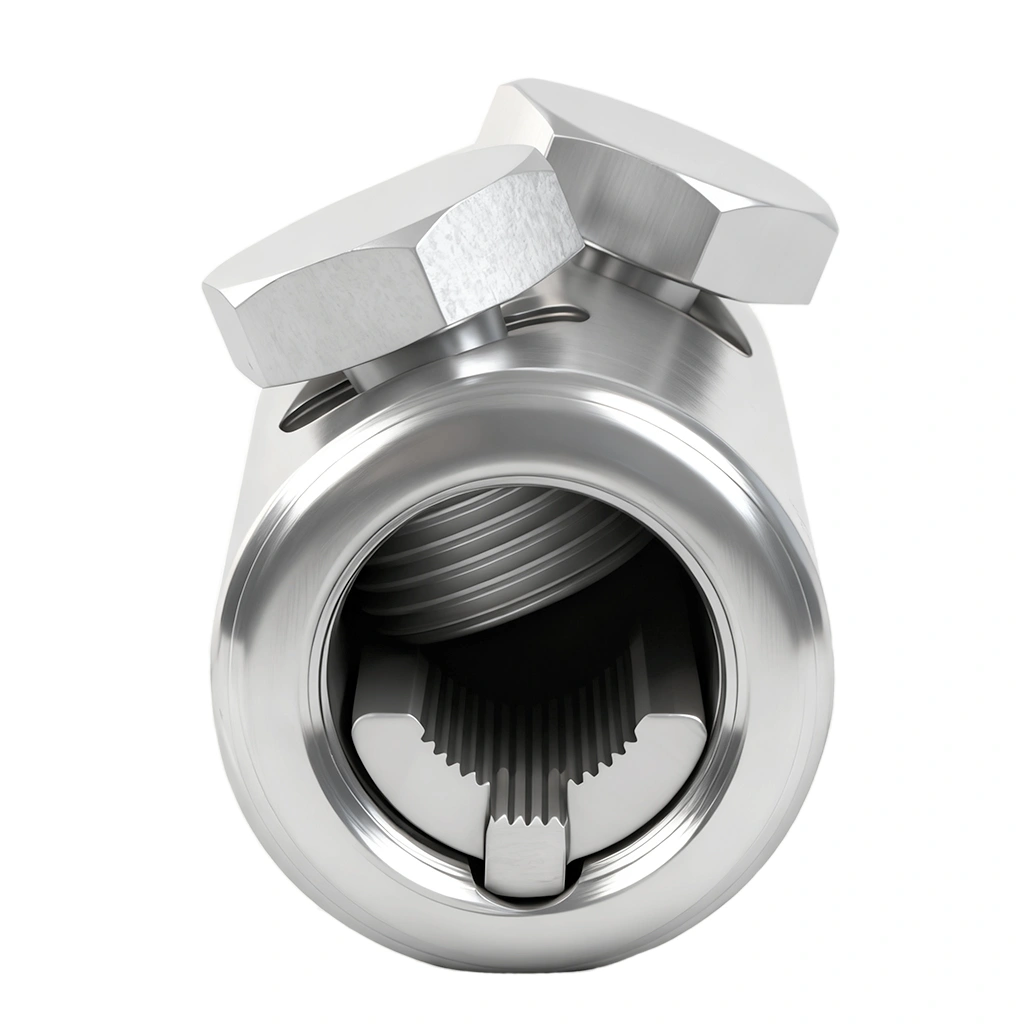

BLMT shear bolted lug is connection type power fitting between the wire and equipment, mainly used for non-bearing connection in insulated wire, aluminum wire, ACSR and copper wire.The terminal body is made of a high strength tinned aluminum alloy, and the inner surface of the conductor hole has a mesh concave design. Double shear head bolts are made of special aluminum alloy and are treated with high quality lubricants and are equipped with a special contact ring which can not be removed once the bolt head is cut off. Insert or remove the special insert to adjust the scope of the applicable conductor. These inserts have longitudinal stripes and a positioning slot.This product model is streamlined, suitable for different diameter connection. For example: three models can cover from 25mm2 to 240mm2 conductor.The terminals are suitable for outdoor and indoor applications and can provide different bolt size specifications.
- Wide range of applications
- Compact design
- Can be used with almost all types of conductors and materials
ADVANTAGE:
- Full set quality control plan to confirm the quality;
- ISO 9001, ISO 14001 and ISO 18001 factor;
- Low cost low price.
- Quick response, fast quotation.
- Dependably after-sale service.
- Full set documents to submit the tender.
