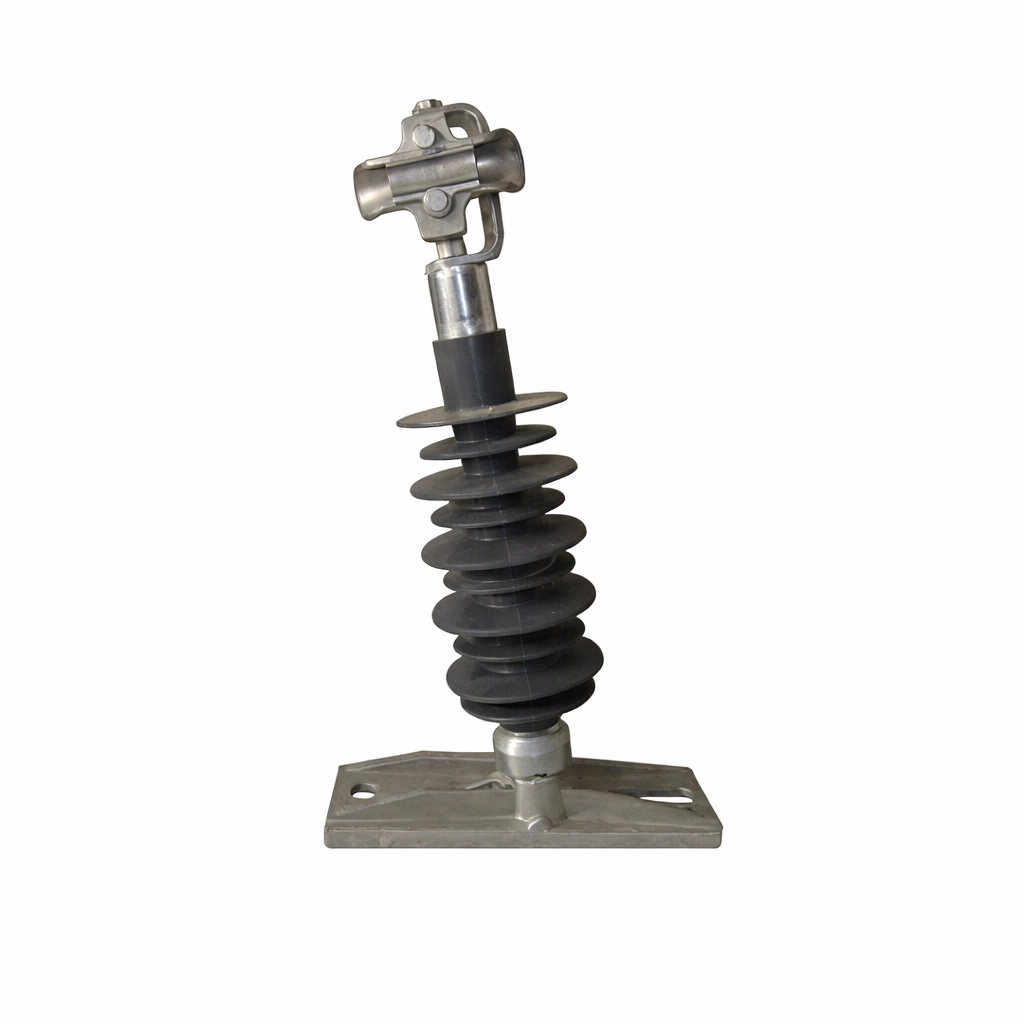

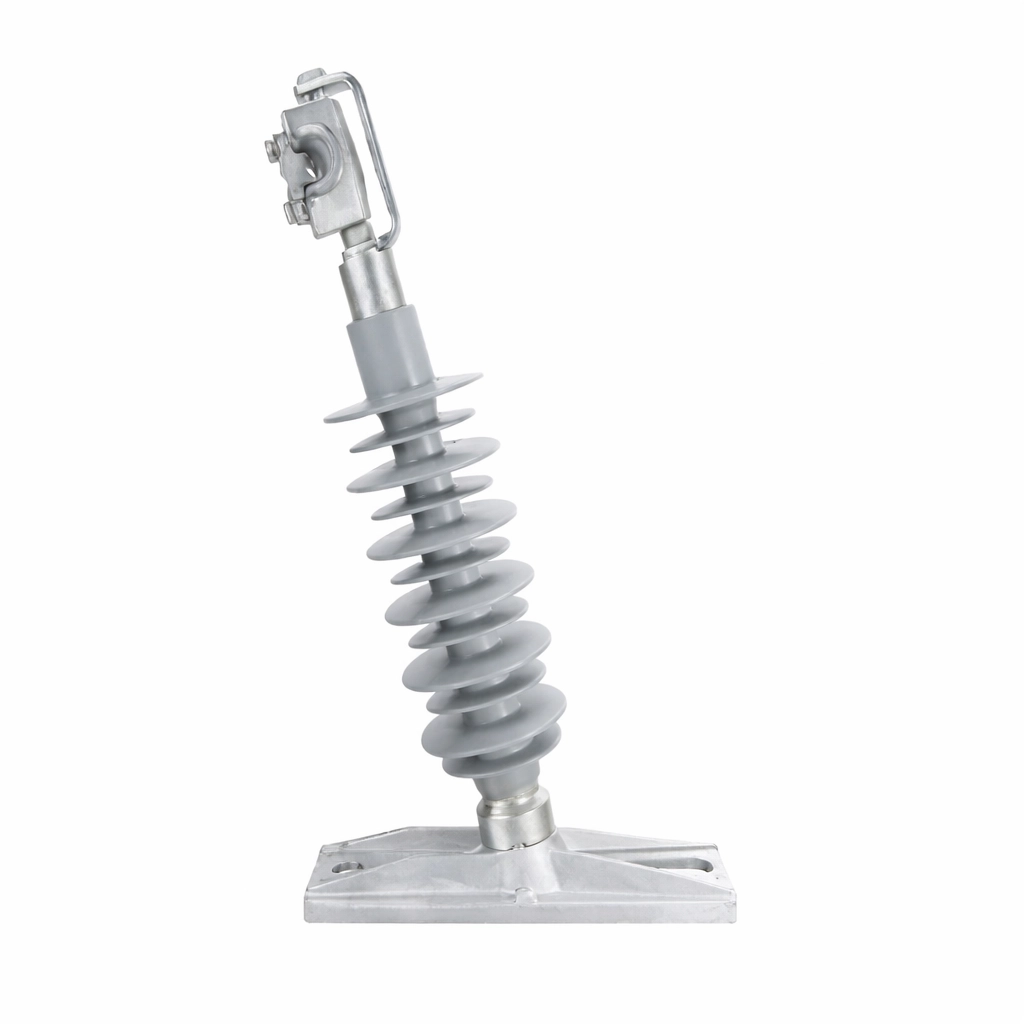

Horizontal line post insulator Overview:
Unreliable insulating hardware can lead to catastrophic electrical failures and severe grid downtime during peak loads.
Deploy our custom-specified horizontal post insulator to manage extreme cantilever loads safely and efficiently:
- Engineered specifically to act as a highly dependable insulating support component for active high-voltage switchgears.
- Manufactured, rigorously tested, and fully customized to meet your exact overhead network specifications without failure.
Key Features & Benefits:
Optimize your electrical grid safety instantly with these highly reliable, rigorously tested operational advantages:
- Manufactured from premium silicone rubber and fiberglass.
- Features extremely strong steel and aluminium end-fittings.
- Ensures exceptionally reliable and long functional life.
- Delivers accurate dimensions for fast field installation.
- Fully compliant with the strict IEC61952 international standard.
Applications & Use Cases for horizontal line post insulator:
Integrate this dynamic insulating hardware to establish completely secure and fault-proof high voltage lines.
This versatile support unit is the definitive choice for the following critical electrical tasks:
- Constructing heavy-duty AB switches and protective drop out fuses safely.
- Providing essential, structural insulation support for active current carrying parts.
- Upgrading high voltage networks (from 15KV to 132KV) using a tested horizontal post insulator.
Technical Specifications:
Review the exact voltage ratings, material compositions, and cantilever loads below to ensure a perfect match for your high voltage grid.
| Nominal system voltage | Using materials | Endfitting materials | Rod materials | Maximum design cantilever load | Creepage distance | Standard |
|---|---|---|---|---|---|---|
| 15KV | Silicone Rubber | Steel&Alu | Fiber Glass | 10KN | 400mm | IEC61952 |
| 33KV | Silicone Rubber | Steel&Alu | Fiber Glass | 10KN | 1120mm | IEC61952 |
| 66KV | Silicone Rubber | Steel&Alu | Fiber Glass | 10.5KN | 1950mm | IEC61952 |
| 132KV | Silicone Rubber | Steel&Alu | Fiber Glass | 12KN | 4292mm | IEC61952 |
