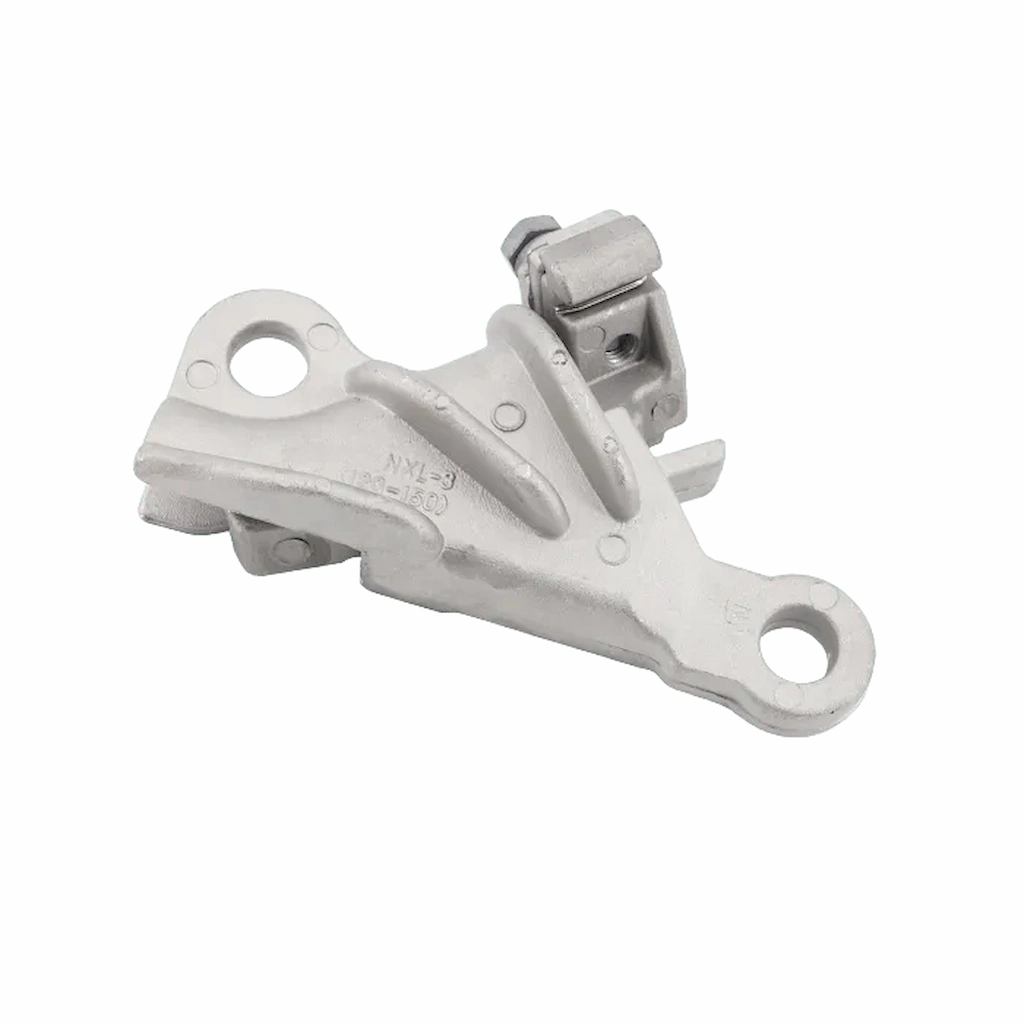

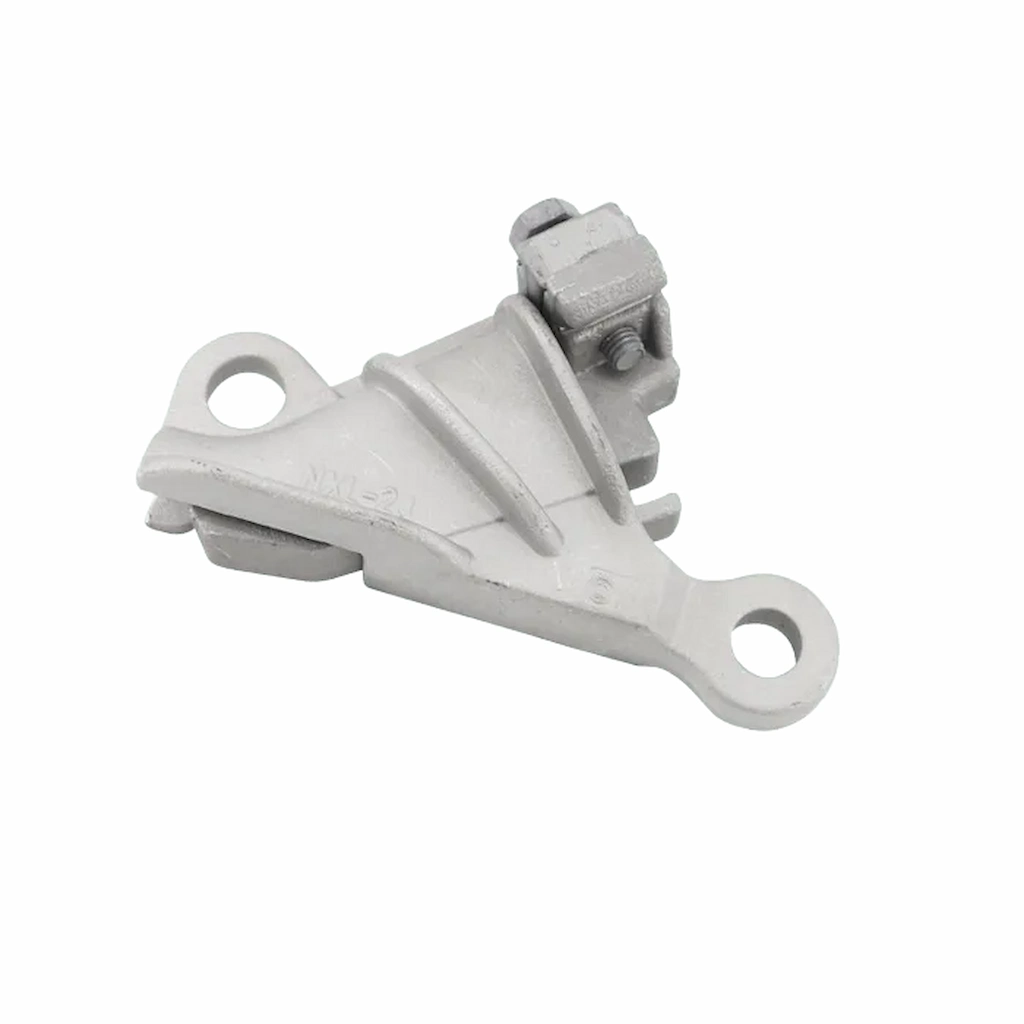

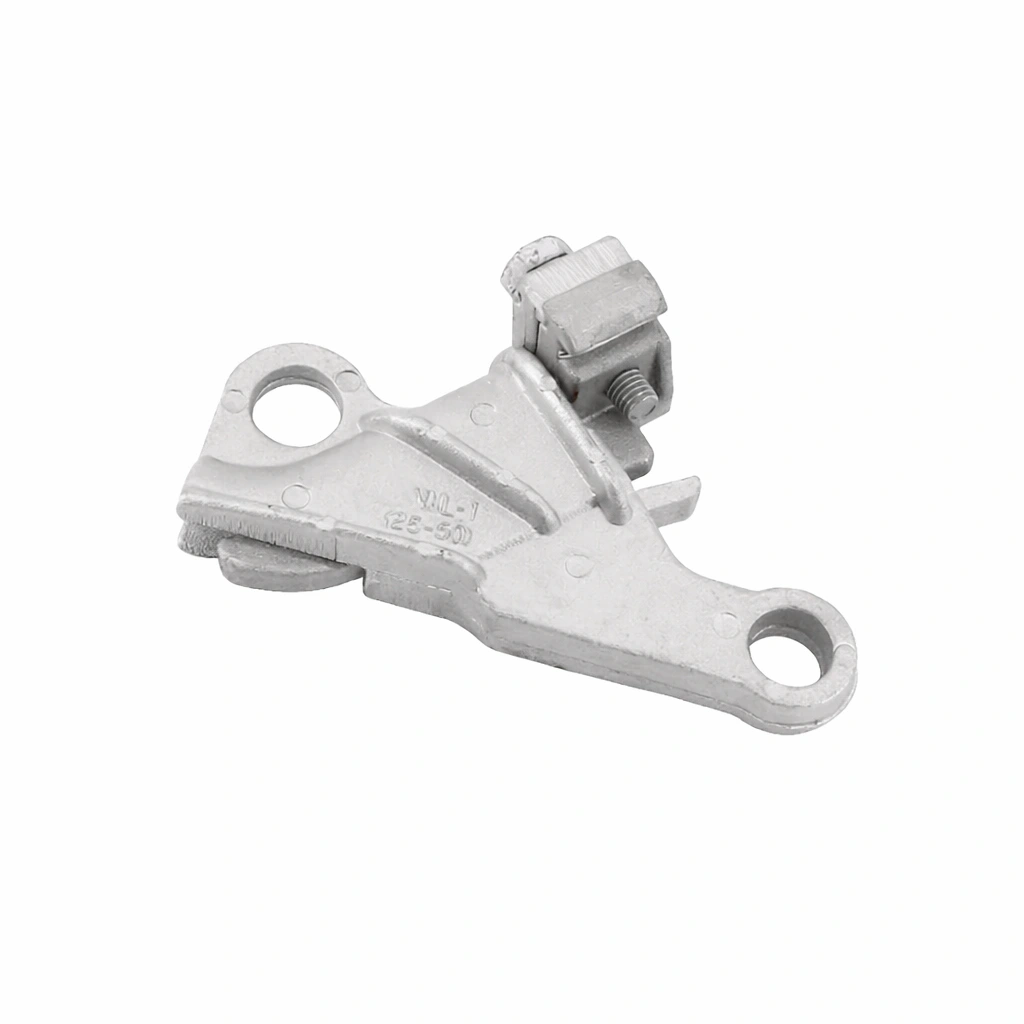

NXL Aluminium Strain Clamp Product Overview:
Procurement teams specify the premium NXL model Aluminium Strain Clamp to fix bare or insulated conductors directly onto terminal strain bars. This highly efficient hardware ensures optimal alignment and structural safety across expanding electrical grids:
- Wedge Structure: Engineered for intuitive, rapid installation without compromising overall structural holding power.
- Arc Large Area Contact: Ensures the wire is not easy to creep, delivering an exceptionally large grip force.
- B2B Scalability: Fully supported by a strong engineering team capable of supplying complete LV and MV material lots.
Key Features & Benefits of the Aluminium Strain Clamp NXL:
Upgrading your power grid with a heavy-duty Aluminium Strain Clamp drastically reduces electrical creeping and mechanical failures. Procurement specialists secure immediate structural and logistical advantages when deploying this advanced hardware:
- Delivers exceptional insulation performance, protecting both the hardware and the overhead network from flashovers.
- Manufactured under a full-set quality control plan to confirm unwavering structural reliability in the field.
- Buyers enjoy zero MOQ limits on their first order, backed by free samples and fast quotation responses.
- Provides a highly competitive low cost and low price structure coupled with dependable after-sale service.
NXL wedge Aluminium Strain Clamp Applications & Use Cases:
Built to manage heavy mechanical tension safely, this specialized Aluminium Strain Clamp serves as an indispensable tool for utility line crews. Field teams consistently utilize it to execute safe and rapid overhead connections:
- Securing and tightening bare aluminum or overhead insulated conductors on distribution lines up to 20kV.
- Fixing wires securely onto terminal strain bars to maintain optimal line sag and prevent structural drooping.
- Large-scale utility expansions demanding complete tender documents ready for immediate EPC engineering submission.
- Custom OEM utility deployments needing adaptable hardware configurations with highly responsive lead times.

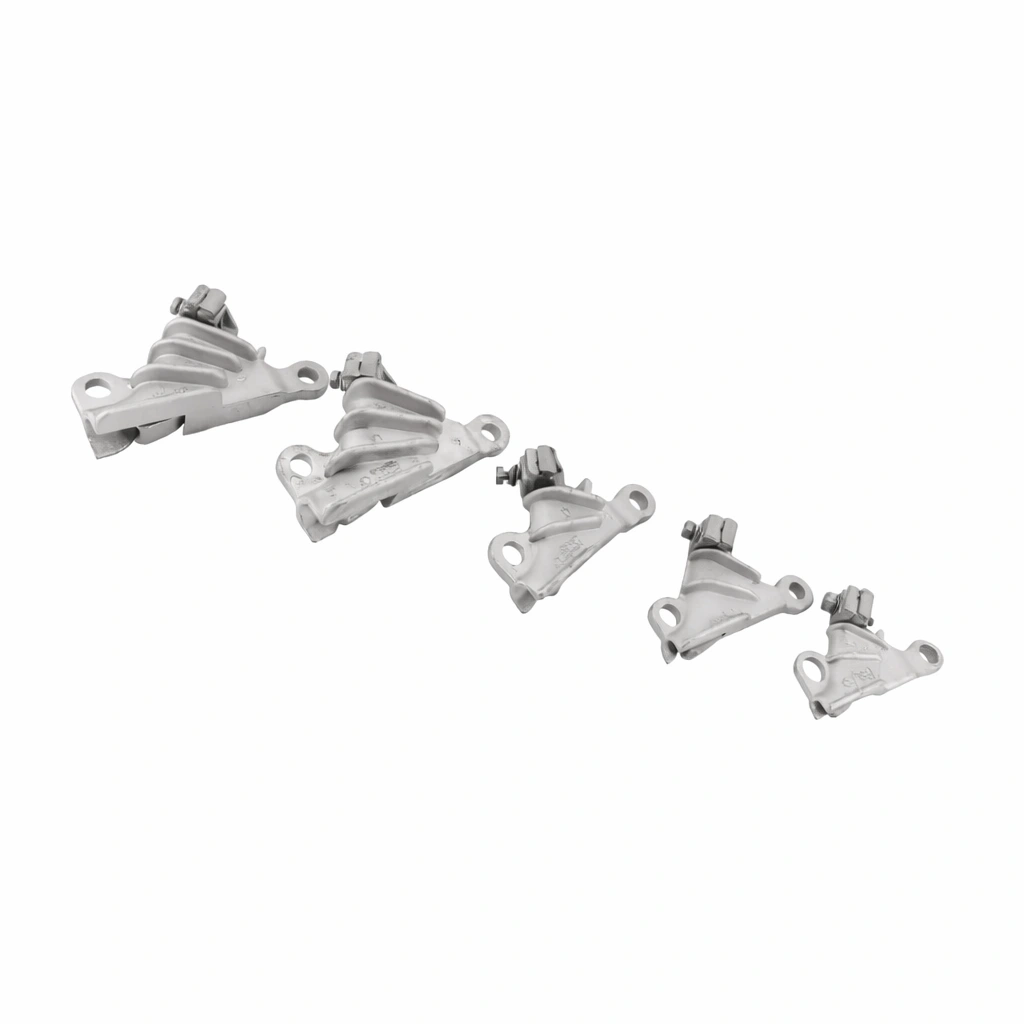

NXL Aluminium Strain Clamp Technical Specifications:
Review the extensive engineering parameters below to verify that the Aluminium Strain Clamp aligns perfectly with your specific conductor diameters. The following technical sheets are segmented by voltage rating and NXL series models:
1. Specifications for 1-10KV Networks
NXL Series (Standard)
| Catalog No. 10KV |
Suitable Conductor | Stripping Length (mm) | Grip Strength (KN) | Specified Failure Load (KN) |
|---|---|---|---|---|
| NXL-1 | 35 / 50 | 245 | 3.4 / 4.6 | 7.5 |
| NXL-2 | 70 / 95 | — | 6.7 / 8.9 | 14.5 |
| NXL-3 | 120 / 150 | 255 | 11.3 / 13.7 | 23.4 |
| NXL-4 | 185 / 240 | 300 | 17.3 / 22.5 | 36.4 |
| NXL-5 | 300 / 400 | 320 | 28.2 / 39.8 | 61.0 |

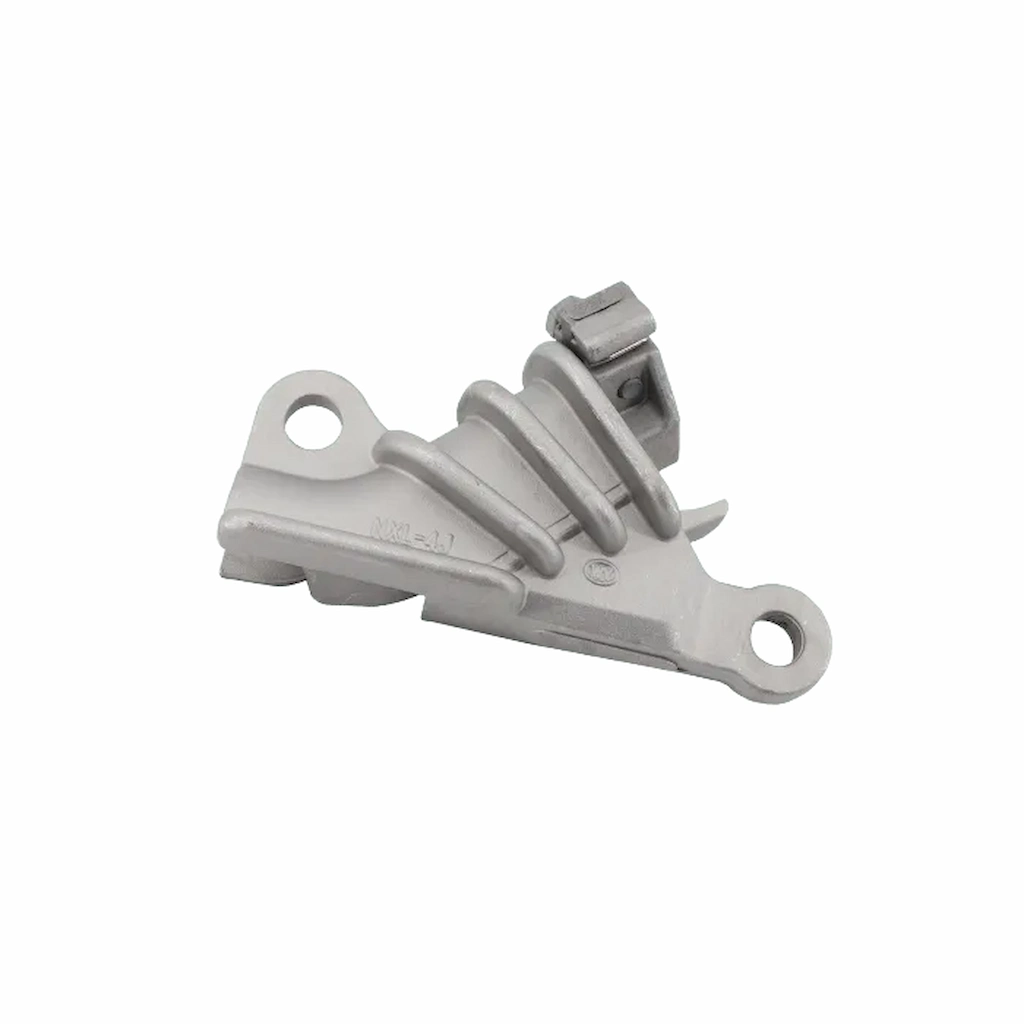

NXL-J Series (Insulation Piercing / Non-Stripping)
| Catalog No. | Suitable Conductor | Stripping Requirement | Grip Strength (KN) | Specified Failure Load (KN) |
|---|---|---|---|---|
| NXL-2J | 10kv/35, 10kv/50, 10kv/70 | Do not strip the insulation sheet | 3.4 / 4.6 / 6.7 | 14.5 |
| NXL-3J | 10kv/95, 10kv/120, 10kv/150 | 8.9 / 11.3 / 13.7 | 23.4 | |
| NXL-4J | 10kv/185, 10kv/240 | 17.3 / 22.5 | 36.4 |
NXLJ Series (Diameter Specific)
| Catalog No. | Suitable Conductor | Dia (mm) | Grip Strength (KN) | Specified Failure Load (KN) |
|---|---|---|---|---|
| NXLJ-1 | LGJ-35/6 | 8.2 | 11.4 | 38 |
| LGJ-50/8 | 9.6 | 15.2 | ||
| LGJ-70/10 | 11.4 | 21.0 | ||
| NXLJ-2 | LGJ-65/15 | 13.6 | 31.5 | 50 |
| LGJ-120/7 | 14.5 | 24.8 | ||
| LGJ-150/8 | 16.0 | 29.6 | ||
| LGJ-185/10 | 18.0 | 36.8 | ||
| NXLJ-3 | LGJ-240/30 | 21.6 | 68.0 | 70 |
2. Specifications for 20KV Networks
20KV NXLJ Series
| Catalog No. | Suitable Conductor | Dia (mm) | Grip Strength (KN) | Specified Failure Load (KN) |
|---|---|---|---|---|
| NXLJ-1 (20kv) | JKLGJ-35/6 | 19.9 | 8.3 | 38 |
| JKLGJ-50/8 | 21.2 | 11.0 | ||
| JKLGJ-70/10 | 22.9 | 15.3 | ||
| NXLJ-2 (20kv) | JKLGJ-65/15 | 25.1 | 23.0 | 50 |
| JKLGJ-120/7 | 25.7 | 18.0 | ||
| JKLGJ-150/8 | 27.1 | 21.4 | ||
| JKLGJ-185/10 | 29.0 | 26.6 | ||
| NXLJ-3 (20kv) | JKLGJ-240/30 | 32.4 | 49.2 | 70 |
| Catalog No. 20KV |
Suitable Conductor | Stripping Length (mm) | Grip Strength (KN) | Specified Failure Load (KN) |
|---|---|---|---|---|
| NXL-1 | 35 / 50 | 245 | 3.4 / 4.6 | 7.5 |
| NXL-2 | 70 / 95 | — | 6.7 / 8.9 | 14.5 |
| NXL-3 | 120 / 150 | 255 | 11.3 / 13.7 | 23.4 |
| NXL-4 | 185 / 240 | 300 | 17.3 / 22.5 | 36.4 |
| NXL-5 | 300 / 400 | 320 | 28.2 / 39.8 | 61.0 |
20KV NXL-J Series:
| Catalog No. | Suitable Conductor | Dia (mm) | Grip Strength (KN) | Specified Failure Load (KN) |
|---|---|---|---|---|
| NXL-2J (20kv) | JKLYJ-20/35 | 19.2 | 3.4 | 10.8 |
| NXL-3J (20kv) | JKLYJ-20/50 | 20.5 | 4.6 | 22.1 |
| JKLYJ-20/70 | 22.0 | 6.4 | ||
| JKLYJ-20/95 | 23.7 | 8.9 | ||
| NXL-4J (20kv) | JKLYJ-20/120 | 25.2 | 11.3 | 36.4 |
| JKLYJ-20/150 | 26.7 | 13.7 | ||
| NXL-5J (20kv) | JKLYJ-20/185 | 28.3 | 17.3 | 45.5 |
| JKLYJ-20/240 | 30.6 | 22.5 | ||
| JKLYJ-20/300 | 32.8 | 28.2 |
