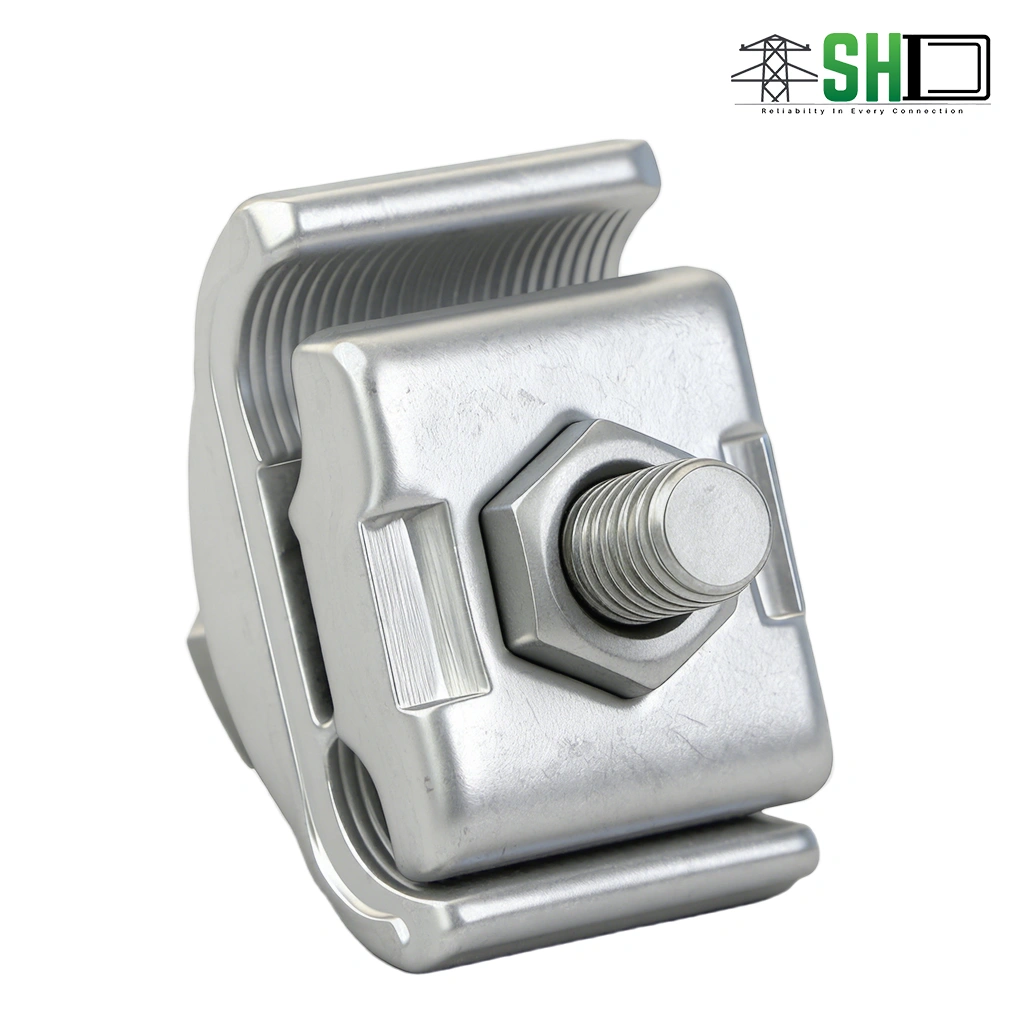

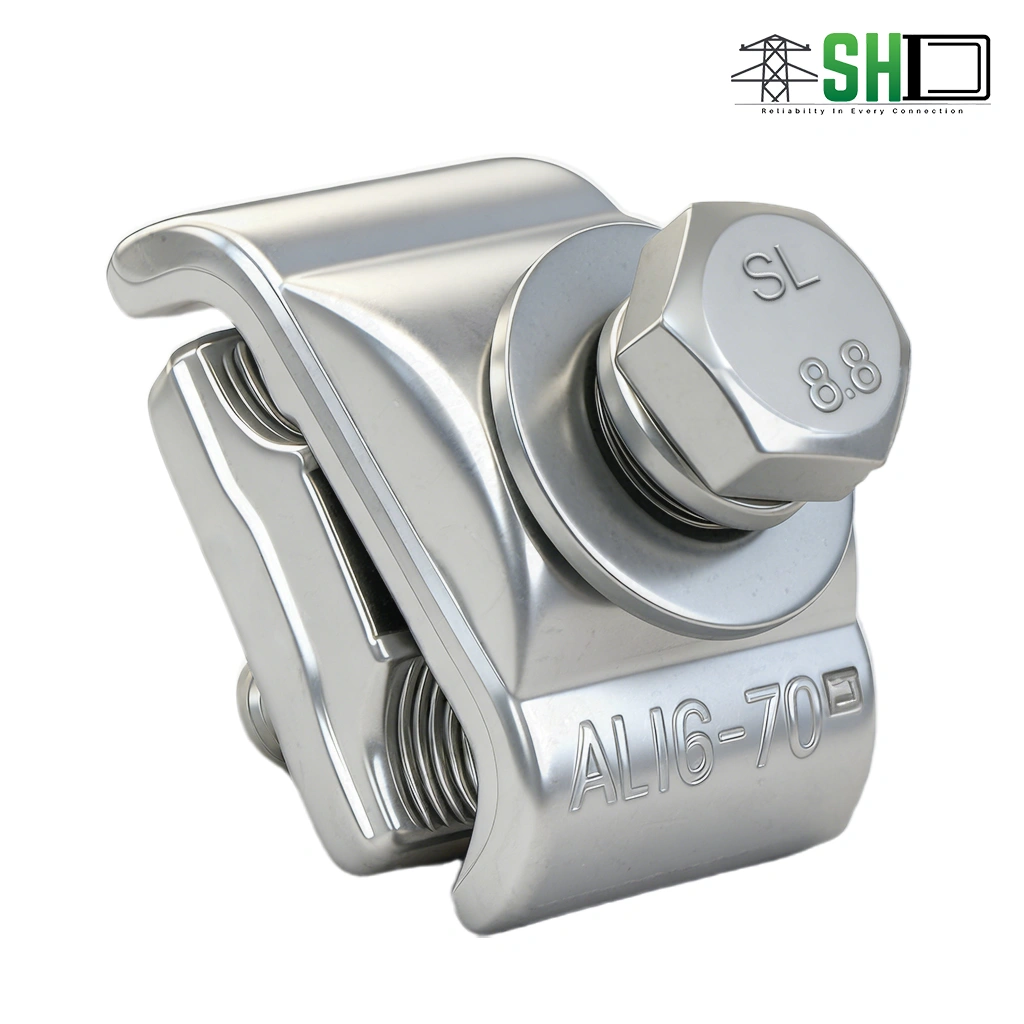

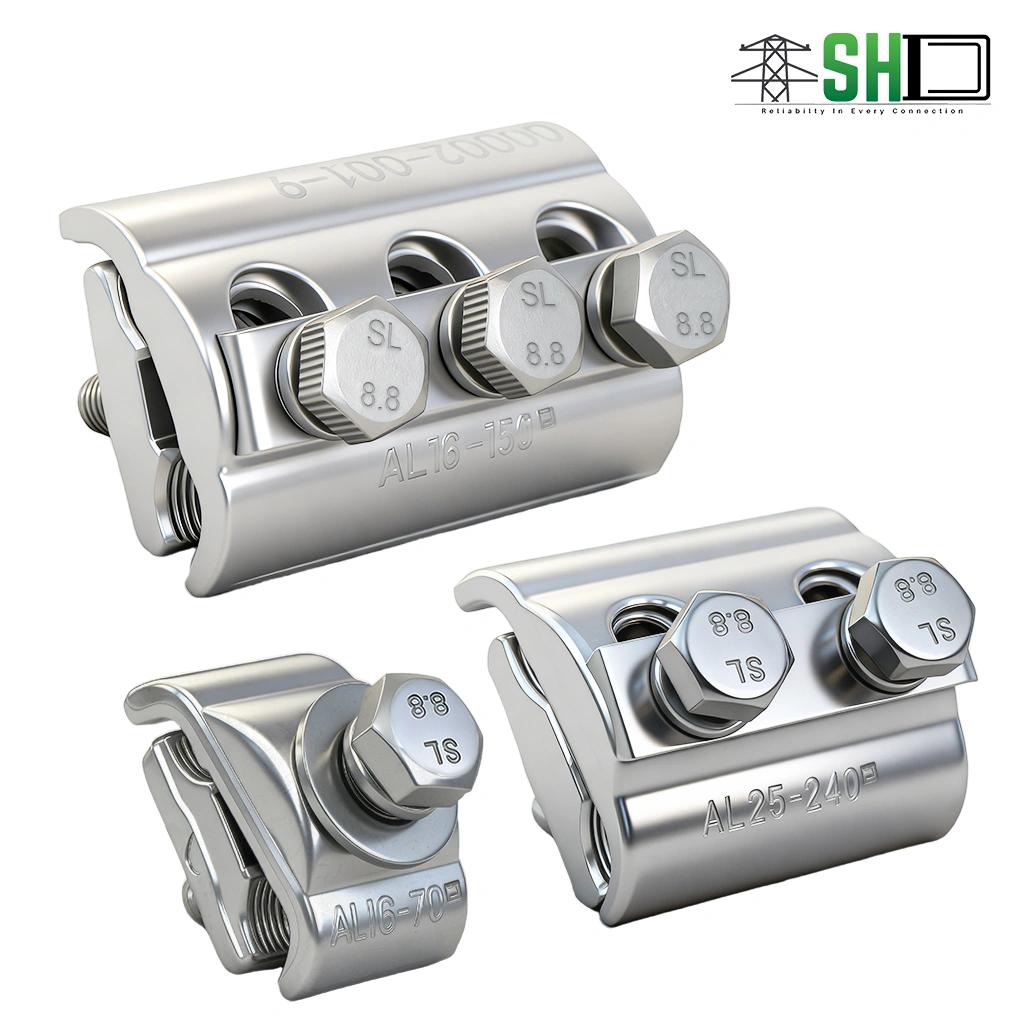

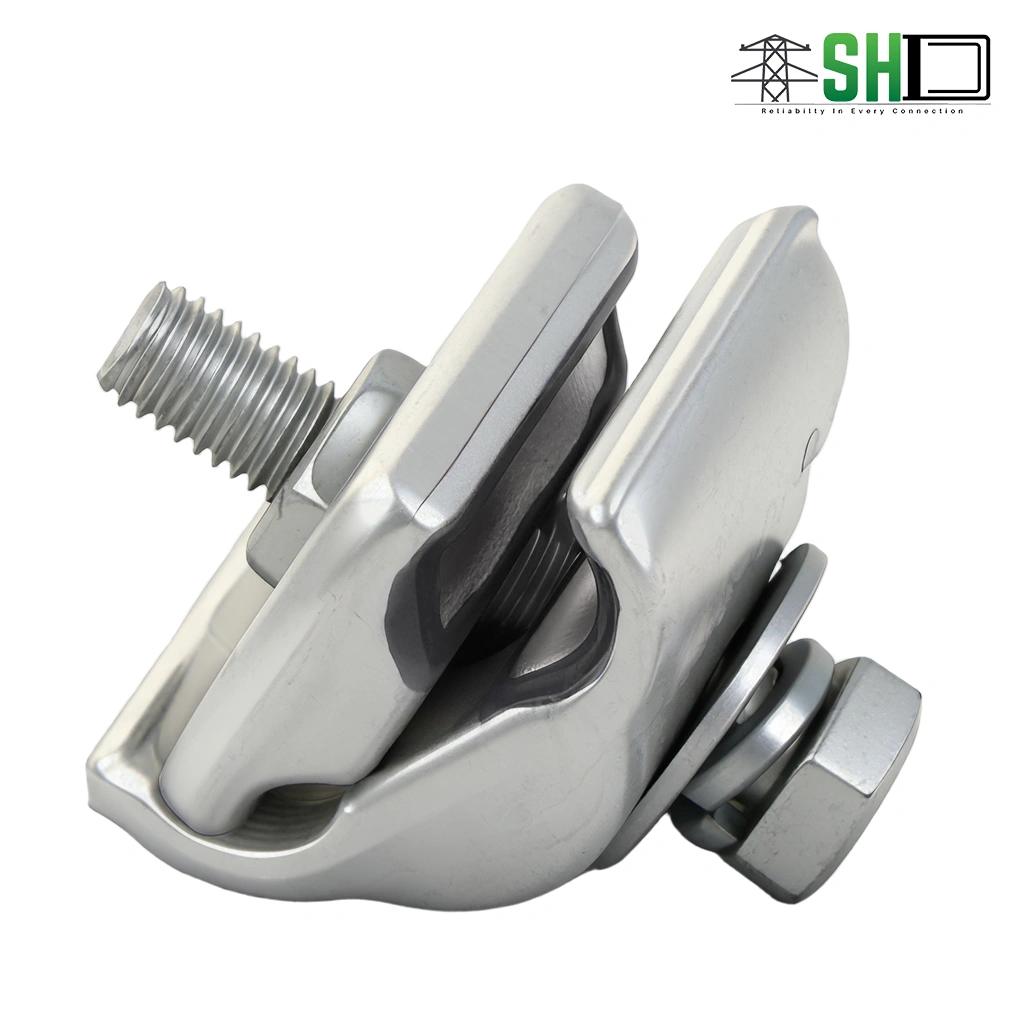

The PG clamp is a non-tension connector, it used for parallel contact of Aluminium strand conductor, steel reinforced Aluminium conductor or jumper conductor of non-linear pole.
The Aluminum parallel groove clamp is consist of a aluminium upper jaw, a aluminium low jaw, and grade 8.8 fasteners.
The aluminium PG clamp have a slip strength of 10% of calculative tensile strength of applied conductor and
The DKLINE Aluminium to Aluminium PG clamp will not reduce the electric capacity of the conductor.
The DKLINE Aluminium to Aluminium PG clamp not greater than 1.1 times of the equivalent length of the reference conductor.
The temperature rise of the surface of joint no higher than the reference conductor.
■ Fast and easy installation;
■ Provided with an oxide-inhibiting compound intended to reduce metal oxidation;
■ Hot-forged aluminium to confirm the volume density;
■ Hot dip and stainless steel fasteners for choose;
■ wide range of conductor application.
ADVANTAGE:
1.Full set quality control plan to confirm the quality;
2.ISO 9001, ISO 14001 and ISO 18001 factor;
3.Low cost low price.
4.Quick response, fast quotation.
5.Dependably after-sale service.
6.Full set documents to submit the tender.
