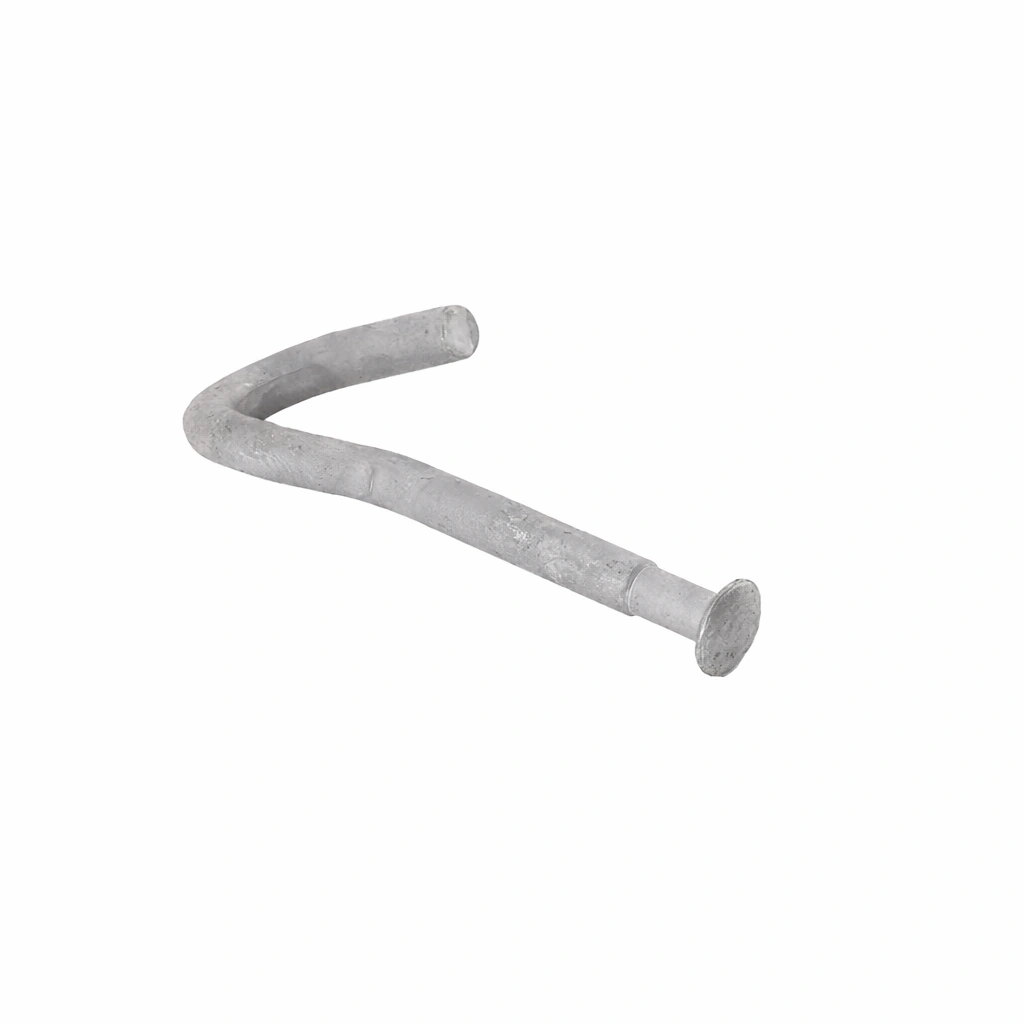

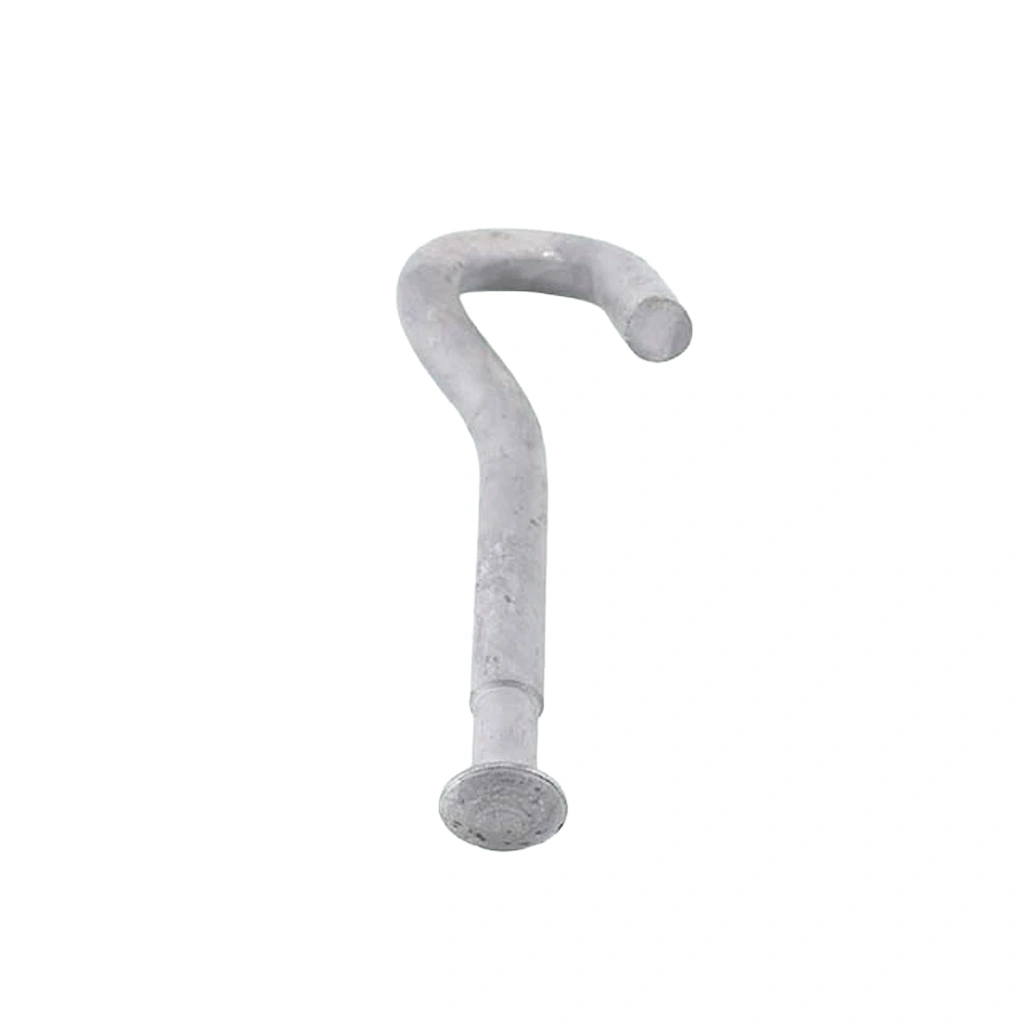

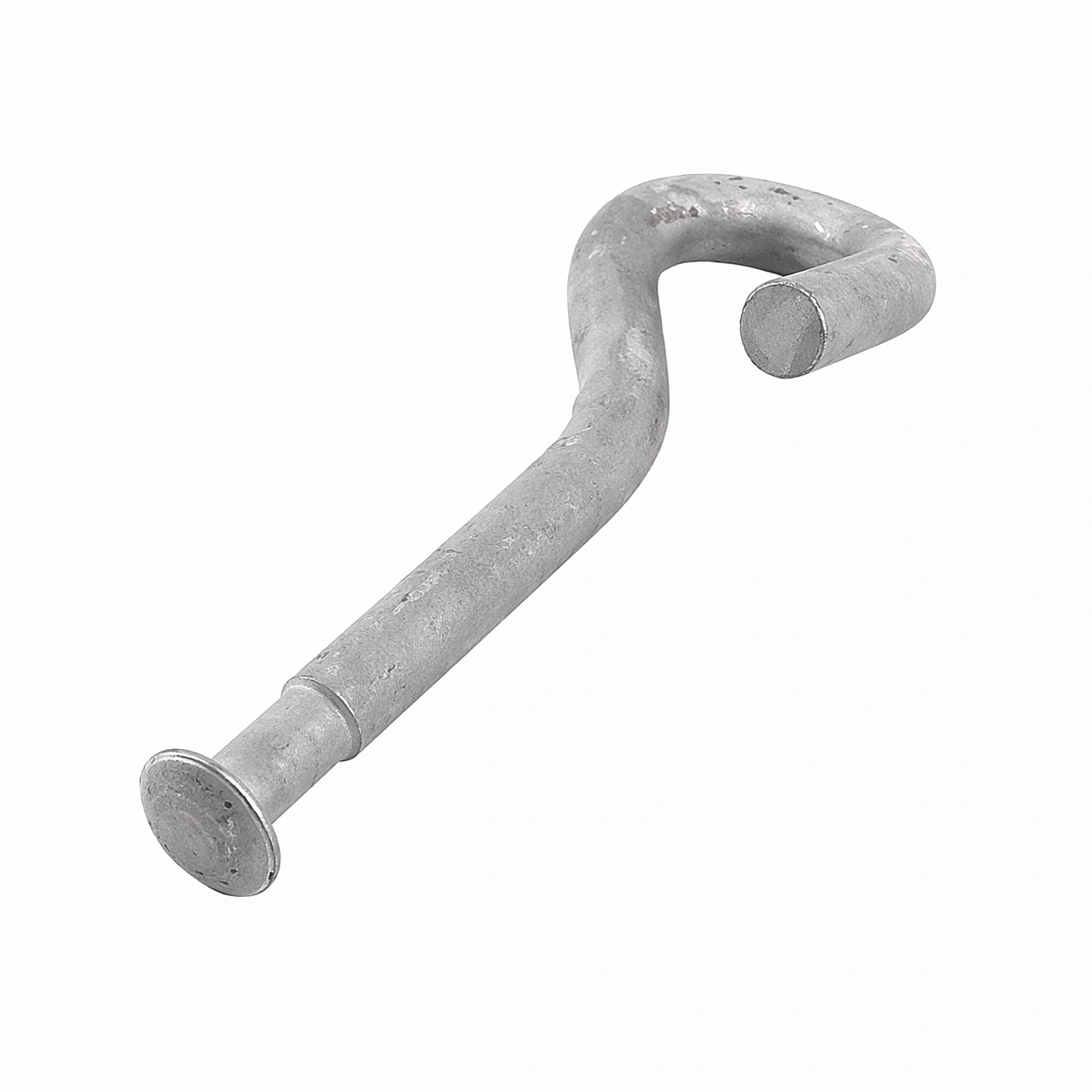

Pigtail Bolt Overview
This Pigtail Bolt is designed for high-performance industrial linkage, providing a simple yet highly effective attachment point.
- Constructed from high-strength metal and fully Hot-Dip Galvanized (H.D.G) steel.
- Features a heavy-duty zinc coating thickness of more than 85 microns for superior protection.
- Shaped as a versatile single hook with a clean silver finish.
- Supports full OEM customization, including brand naming as per specific customer requirements.
Pigtail Bolt Features
Deploying the pigtail nail ensures a fast installation process backed by highly flexible direct-factory B2B terms:
- Corrosion Resistance: The >85 micron galvanized layer ensures long-lasting performance and good performance in harsh outdoor environments.
- Certified Quality: Manufactured under strict quality control plans conforming strictly to ISO 9001, ISO 14001, and ISO 18001.
- Order Flexibility: Zero Minimum Order Quantity (MOQ) on initial purchases (100 pcs thereafter). Free samples are provided (buyer covers freight).
- EPC Project Ready: Delivers low-cost pricing, fast quotation responses, professional technology support, and complete tender documents.
Pigtail Bolt Applications
Built for secure overhead linkage, the industrial Pigtail Bolt is strictly utilized for:
- Connecting insulators securely to pole structures.
- Linking overhanging wire clips and tensioning wire clips safely.
- Attaching protective fittings to form durable tensioning string groups in low and medium-voltage (LV and MV) EPC networks.
Pigtail Bolt Specifications
Review the precise material data and dimensional sizing for the Pigtail Bolt series below. (Note: Additional custom sizes are available upon consultation).
Material & Design Data:
| Component / Parameter | Specification Details |
|---|---|
| Hardware Type | Connecting Fitting / Pigtail Bolt (Pigtail Nail) |
| Body Material | Hot-Dip Galvanized (H.D.G) Steel |
| Galvanizing Thickness | > 85 microns |
| Shape / Type | Single Hook |
| Usage | Industrial |
| Factory Certifications | ISO 9001, ISO 14001, ISO 18001 |
Dimensional Parameters:
| Specification Format | Diameter (Φ mm) | Length (mm) | Availability |
|---|---|---|---|
| Φ18 x 245 | 18 | 245 | Standard |
| Φ20 x 200 | 20 | 200 | Standard |
| Custom Sizes | As Required | As Required | OEM Customization Available |

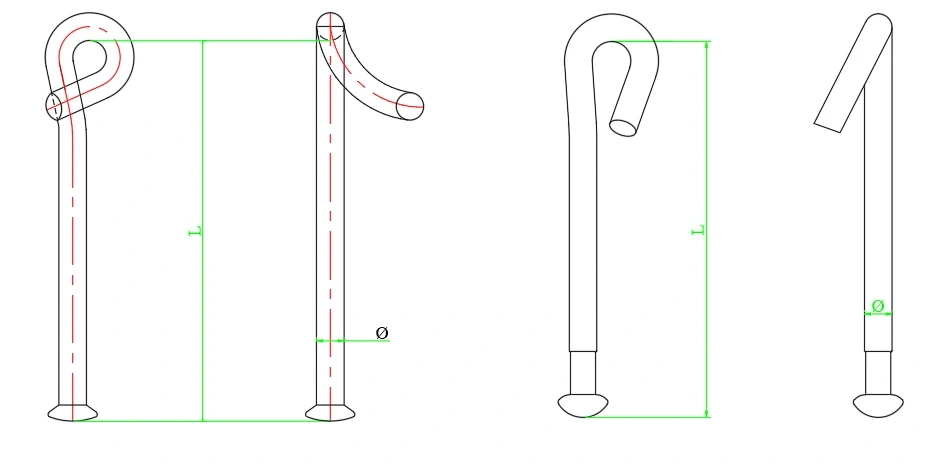

DIMENSION for Pigtail Bolt:
