Pole Clamp 2A Product Overview:
Utility crews deploy the Pole Clamp 2A as a multipurpose fastening solution for overhead lines. Selecting the exact size is critical; oversized bands will not attach tightly, while undersized bands risk breaking during installation.
- Secures overhead line hardware efficiently without structurally weakening the pole with drilled holes.
- Manufactured entirely from Hot-Dip Galvanized (H.D.G.) steel according to strict international standards.
- Engineered with exact dimensions to ensure a tight, secure fit for dead-ending and stay assemblies.
- Delivers a long working life and rapid, easy field installation.
Key Features of the Pole Clamp 2A:
Integrating the certified 2A Pole Clamp into your network guarantees reliable mechanical performance alongside highly flexible B2B procurement terms:
- Manufactured under full quality control plans within ISO 9001, ISO 14001, and ISO 18001 certified facilities.
- Buyers benefit from zero minimum order quantities (MOQ) on initial purchases (100 pcs for further orders).
- Highly competitive low-cost pricing complemented by quick responses, fast B2B quotations, and short lead times.
- Complete tender documents and free initial samples (buyer covers freight) are readily available for immediate EPC submission.
Pole Clamp 2A Applications:
Built for diverse utility requirements, the Pole Clamp 2A provides steadfast holding power across LV and MV networks. Field technicians consistently utilize this hardware for:
- Reliable guy attachment and stay assembly dead-ending.
- Supporting secondary rack attachments and cross braces securely.
- Providing stable insulator support on diverse pole materials.
- Facilitating street light holding, pole sign attaching, and equipment/panel/enclosure installation.
Pole Clamp 2A Technical Specifications:
Review the exact dimensional parameters below to verify that the Pole Clamp 2A aligns with your specific pole diameters. The data sheets summarize the exact material composition and precise millimeter dimensions for the entire 2A series.
| Technical Parameter | Specification Details |
|---|---|
| Hardware Type | Universal Pole Band / Pole Fasting Clamp |
| Clamp Style | Type 2A |
| Body Material | H.D.G. (Hot-Dip Galvanized) Steel |
| Pole Compatibility | Wooden, Concrete, and Metal Poles |
| Grid Compatibility | LV and MV EPC material networks |
| Factory Certifications | ISO 9001, ISO 14001, ISO 18001 |

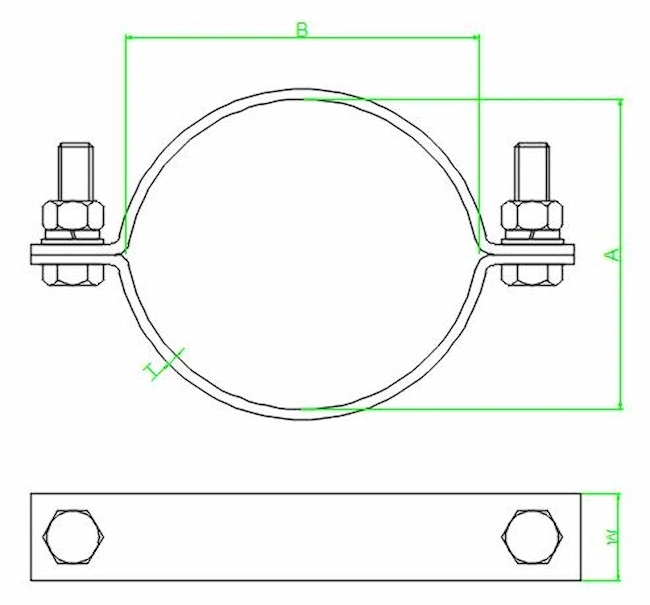

Dimensions Data Sheet:
| Part No. | Pole Dia. Range | Dimensions (mm) | ||||
|---|---|---|---|---|---|---|
| mm | inch | A | B | W | T | |
| DK-2A1L | 127 – 152 | 5 – 6 | 127 | 152 | 50 | 6 |
| DK-2A1H | 152 – 178 | 6 – 7 | 127 | 152 | 64 | 8 |
| DK-2A2L | 178 – 203 | 7 – 8 | 178 | 203 | 50 | 6 |
| DK-2A2H | 178 – 203 | 7 – 8 | 178 | 203 | 64 | 8 |
| DK-2A3L | 203 – 229 | 8 – 9 | 203 | 229 | 50 | 6 |
| DK-2A3H | 203 – 229 | 8 – 9 | 203 | 229 | 64 | 8 |
| DK-2A4L | 229 – 254 | 9 – 10 | 229 | 254 | 50 | 6 |
| DK-2A4H | 229 – 254 | 9 – 10 | 229 | 254 | 64 | 8 |
| DK-2A5L | 254 – 279 | 10 – 11 | 254 | 279 | 50 | 6 |
| DK-2A5H | 254 – 279 | 10 – 11 | 254 | 279 | 64 | 8 |
| DK-2A6L | 279 – 305 | 11 – 12 | 279 | 305 | 50 | 6 |
| DK-2A6H | 279 – 305 | 11 – 12 | 279 | 305 | 64 | 8 |
