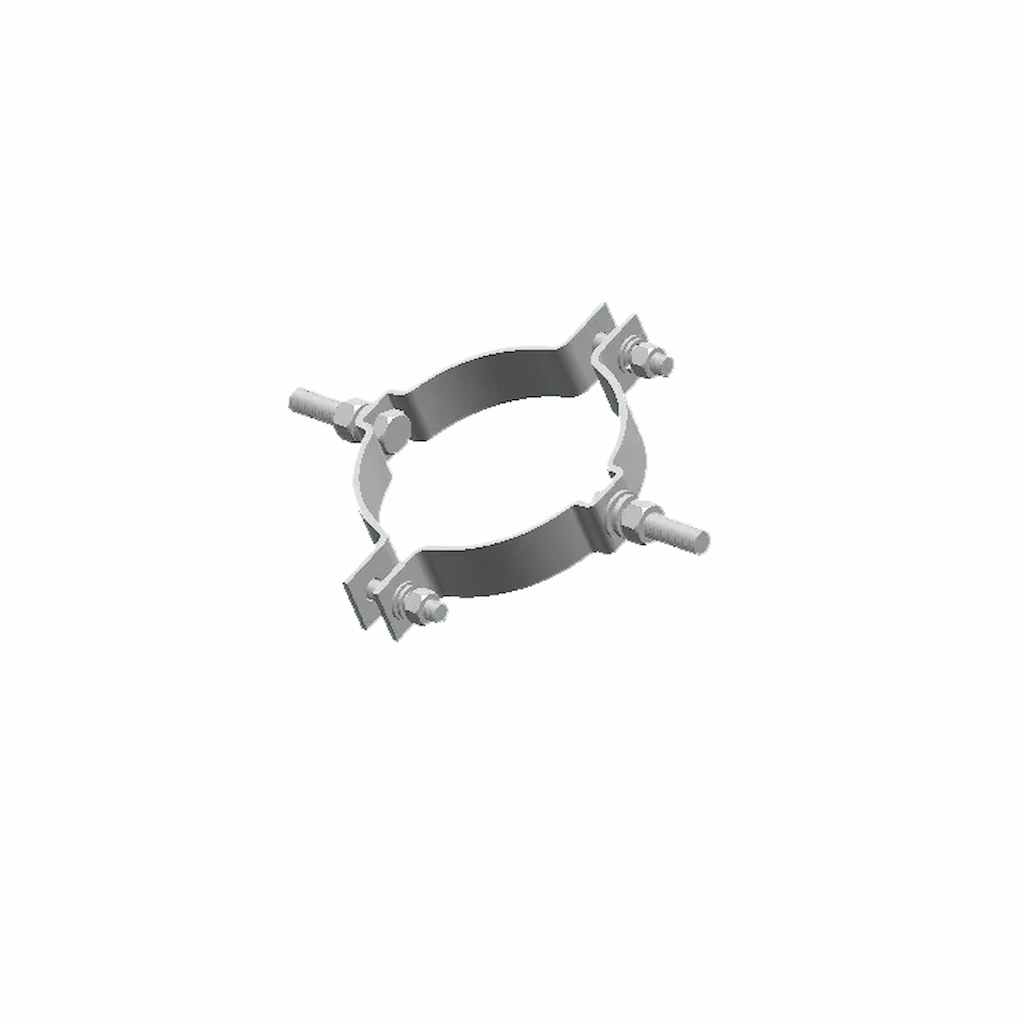

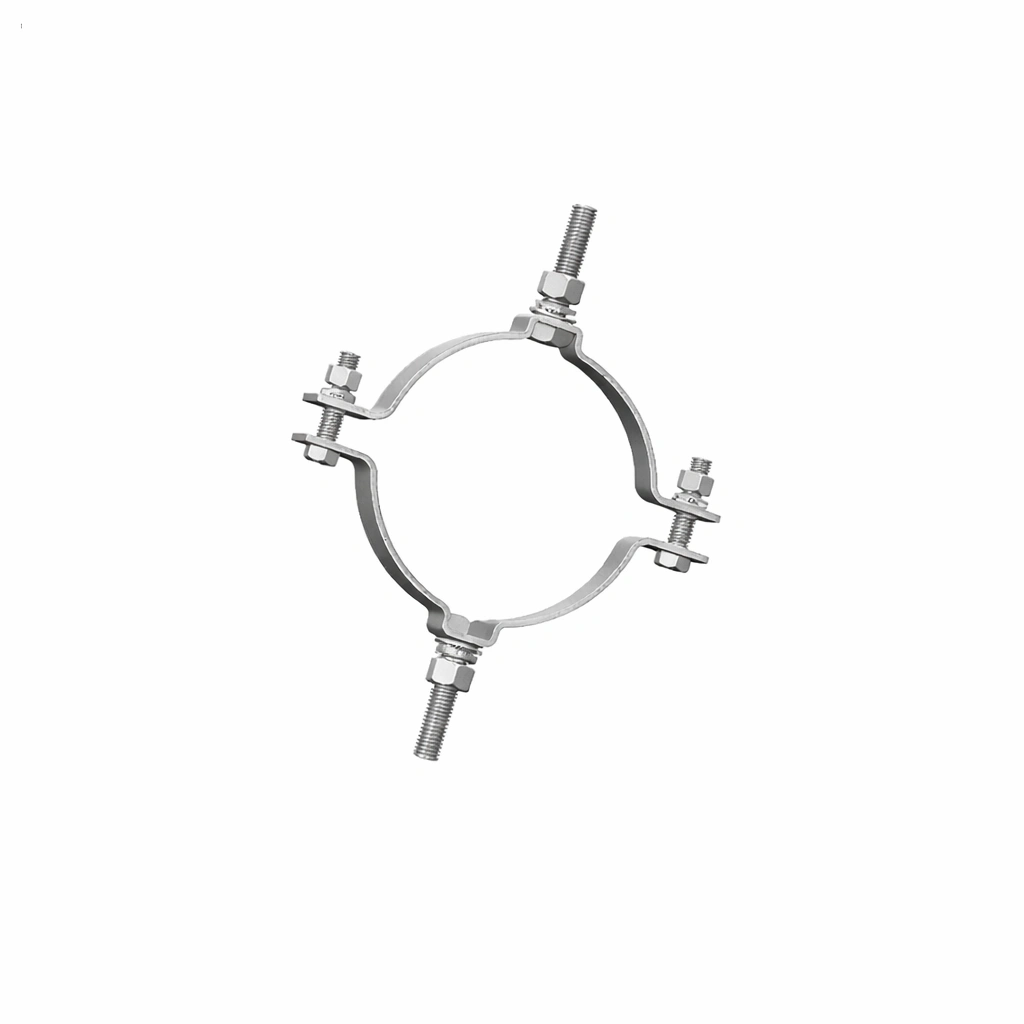

RL Pole Clamp Galvanized Double Mounting Band

RL Pole Clamp
RL Pole Clamp

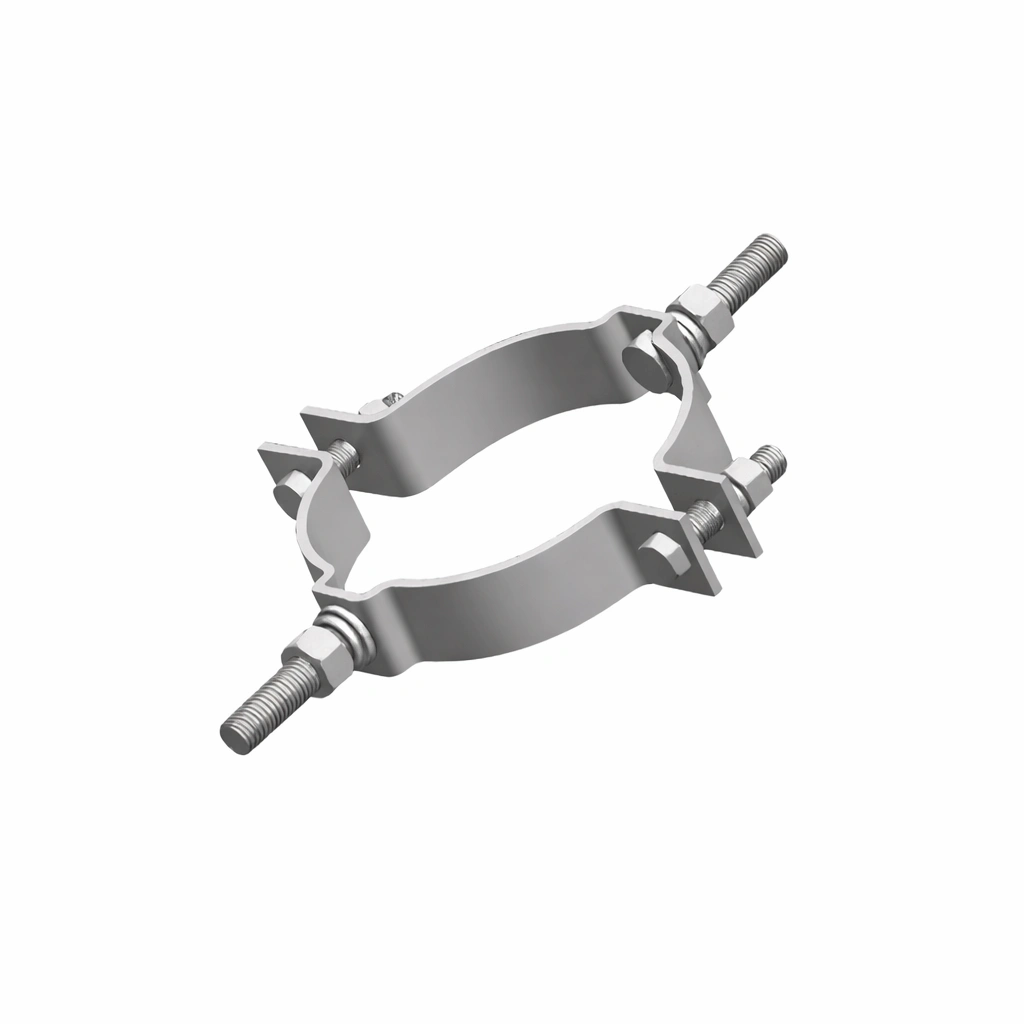

Pole Clamp Rl

RL Pole Clamp Galvanized Double Mounting Band

The RL Pole Clamp is a specialized double mounting pole band primarily used for attaching one or two-piece secondary racks or D-irons. Functioning as a highly reliable Pole Clamp RL, this hardware allows utility crews to securely attach essential accessories to wooden, concrete, or metal poles without the need to drill holes, preserving the pole’s structural integrity.

Production Capacity: Up to 45,000 sets / month.

Request a Quote
Category:




RL Pole Clamp Product Overview:

Utility crews deploy the RL Pole Clamp to establish secure overhead line connections. Selecting the exact size is critical before installation; oversized bands will not grip the pole tightly, while undersized bands risk breaking under tension.

  • Manufactured entirely from Hot-Dip Galvanized (H.D.G.) steel according to international standards.
  • Engineered with exact dimensions to ensure a tight, secure fit for secondary rack attachments.
  • Eliminates the need for pole drilling, ensuring fast and easy installation.
  • Delivers a long working life under continuous outdoor exposure.

Key Features of the RL Pole Clamp:

Integrating the certified RL Pole Clamp into your network guarantees reliable mechanical performance alongside highly flexible B2B procurement terms:

  • Manufactured under strict quality control plans within ISO 9001, ISO 14001, and ISO 18001 certified facilities.
  • Buyers benefit from zero minimum order quantities (MOQ) on initial purchases (100 pcs for further orders).
  • Highly competitive low-cost pricing complemented by quick responses and short lead times.
  • Complete tender documents and free initial samples (buyer covers freight) are readily available for immediate EPC submission.

RL Pole Clamp Applications:

Built for diverse utility requirements, the RL Pole Clamp provides steadfast holding power across LV and MV networks. Field technicians consistently utilize this hardware for:

  • Mounting one or two-piece secondary racks efficiently.
  • Attaching D-irons directly to utility poles.
  • Supporting various overhead line hardware, including guy attachments, cross braces, and insulator supports.
  • Facilitating street light holding, pole sign attaching, and equipment or panel installation.

RL Pole Clamp Technical Specifications:

Review the exact dimensional parameters below to verify that the RL Pole Clamp aligns with your specific pole diameters. The data sheets summarize the material composition and precise millimeter measurements for the entire RL series.

General Technical Data:

Technical Parameter Specification Details
Hardware Type Double Mounting Pole Band / Universal Pole Band
Clamp Style Type RL
Body Material H.D.G. (Hot-Dip Galvanized) Steel
Pole Compatibility Wooden, Concrete, and Metal Poles
Grid Compatibility LV and MV EPC material networks
Factory Certifications ISO 9001, ISO 14001, ISO 18001

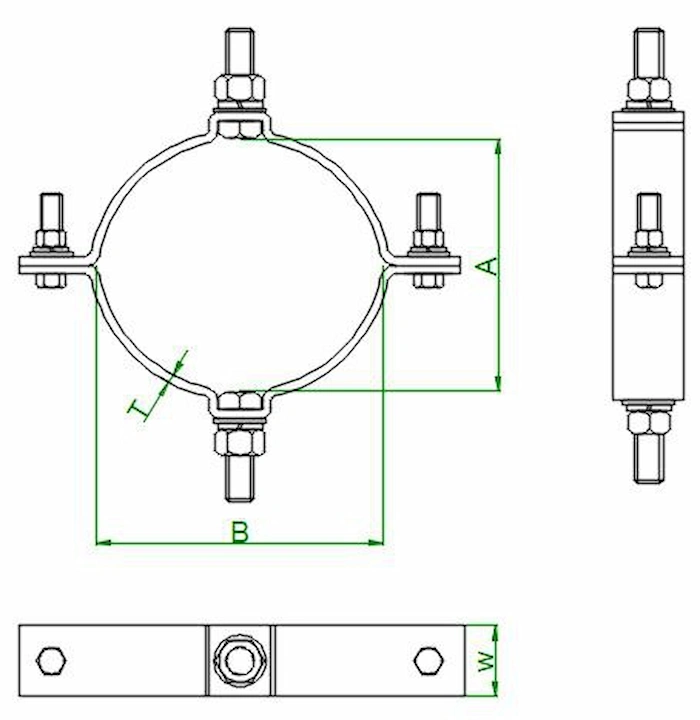

Dimensions Data:

RL Pole Clamp

Part No. Pole Dia. Range Dimensions (mm)
mm inch A B W T
DK-RL1L 127 – 152 5 – 6 127 152 50 6
DK-RL1H 152 – 178 6 – 7 127 152 64 8
DK-RL2L 178 – 203 7 – 8 178 203 50 6
DK-RL2H 178 – 203 7 – 8 178 203 64 8
DK-RL3L 203 – 229 8 – 9 203 229 50 6
DK-RL3H 203 – 229 8 – 9 203 229 64 8
DK-RL4L 229 – 254 9 – 10 229 254 50 6
DK-RL4H 229 – 254 9 – 10 229 254 64 8
DK-RL5L 254 – 279 10 – 11 254 279 50 6
DK-RL5H 254 – 279 10 – 11 254 279 64 8
DK-RL6L 279 – 305 11 – 12 279 305 50 6
DK-RL6H 279 – 305 11 – 12 279 305 64 8
