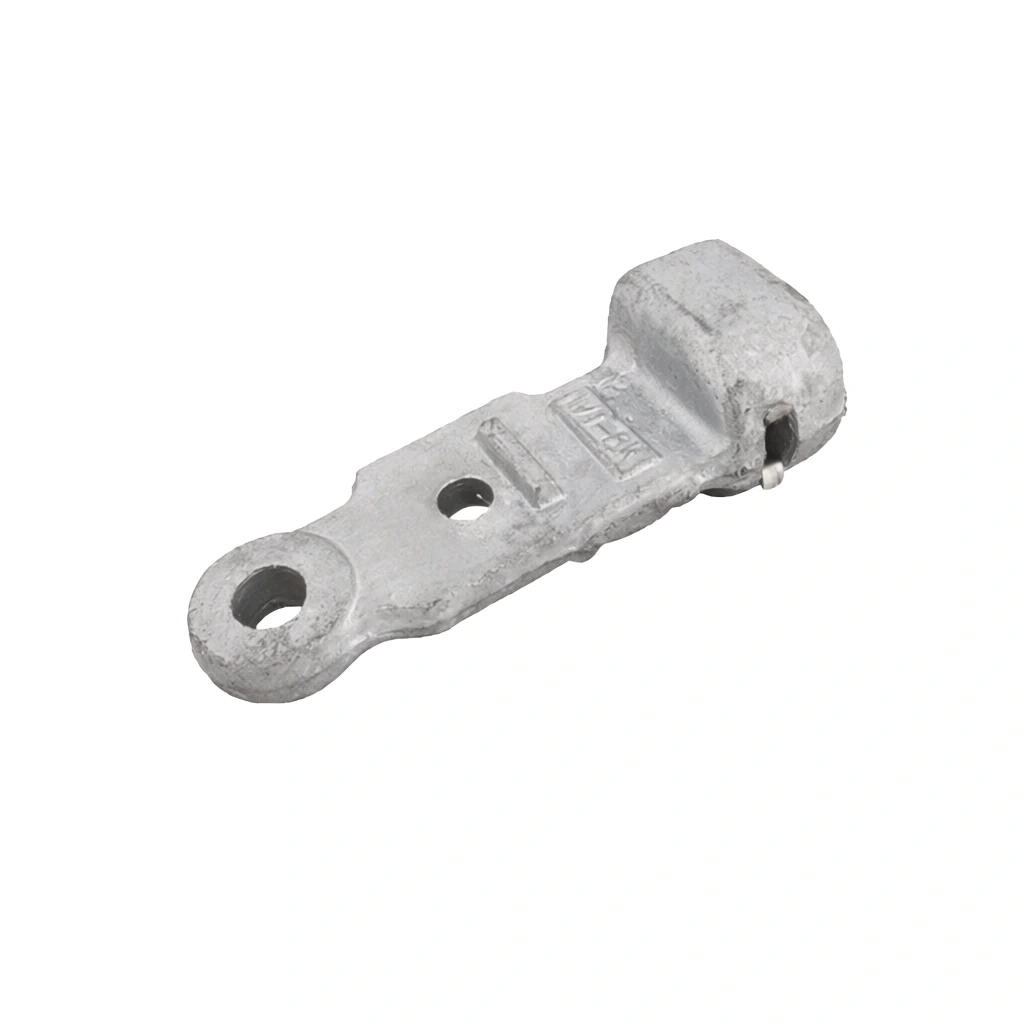

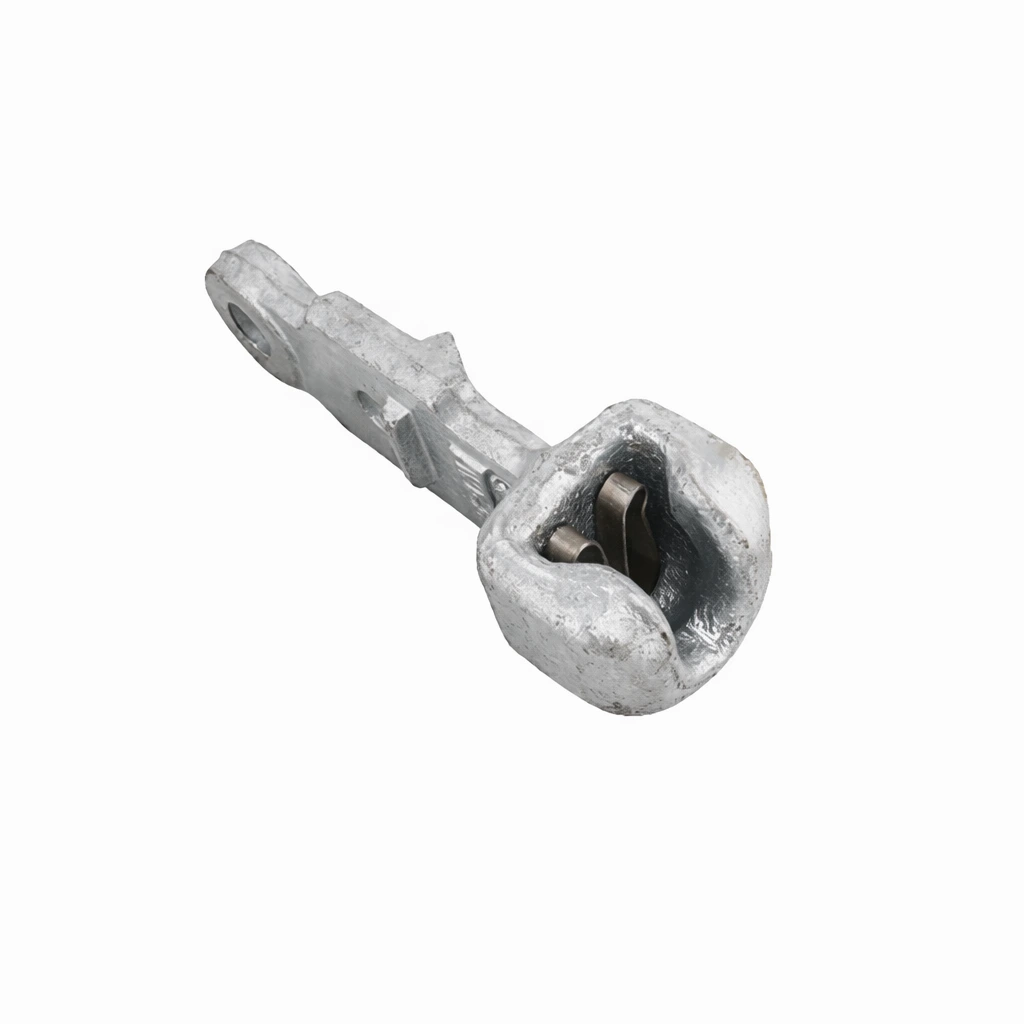

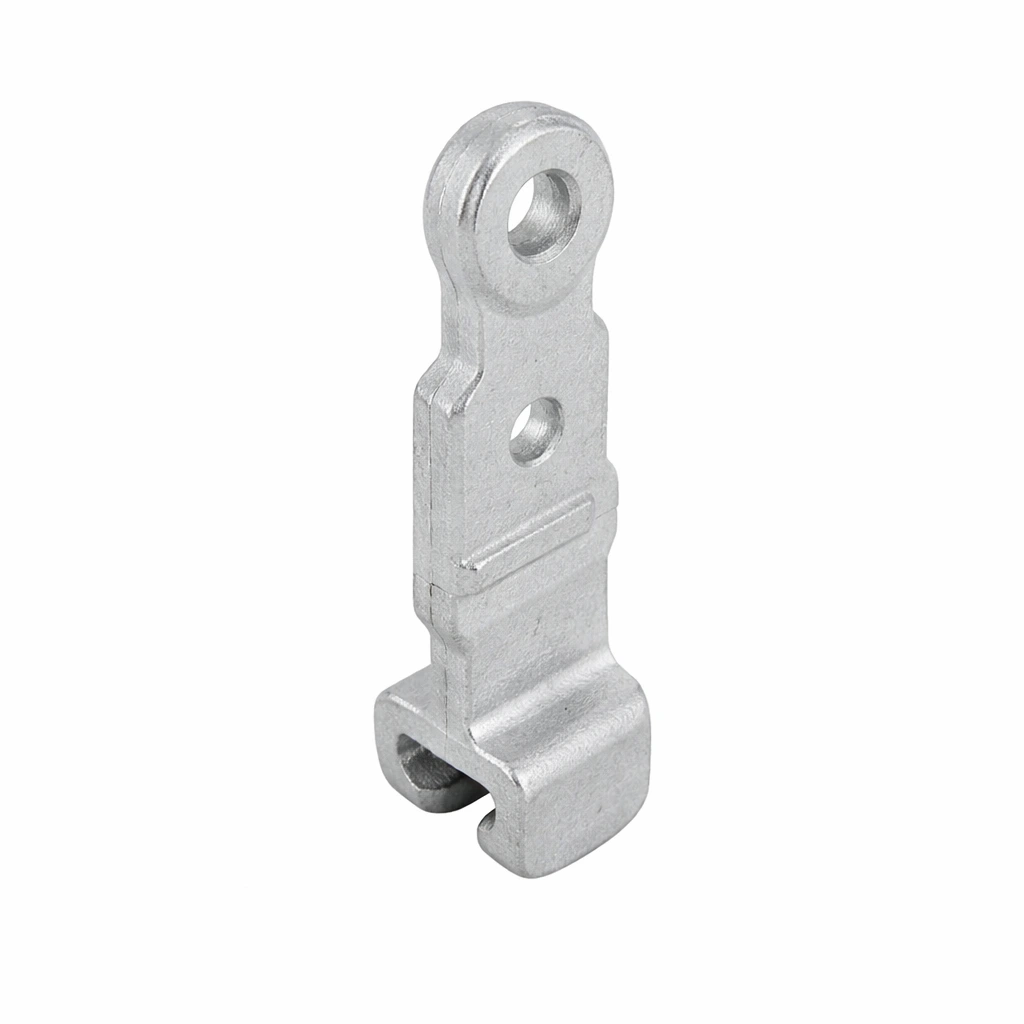

Socket Eye W-K Type Overview
Operating as a highly dependable special-type linkage hardware (socket clevis), this Socket Eye W-K ensures excellent mechanical performance under various mounting conditions.
- Constructed from durable malleable iron or casting steel, with all ferrous parts Hot-Dip Galvanized (H.D.G) to prevent rust.
- Equipped with robust security clips manufactured from bronze or stainless steel.
- Features high-strength stainless steel cotter pins for a secure and stable assembly.
- Designed to provide reliable connection points without compromising structural integrity.
Socket Eye W-K Type Features
Integrating the Socket Eye W-K Type into your utility network guarantees an easy-to-use installation backed by excellent B2B procurement terms:
- Corrosion Resistance: The combination of hot-dip galvanization and stainless/bronze components ensures long-lasting protection against environmental wear.
- Certified Quality: Manufactured strictly under ISO 9001, ISO 14001, and ISO 18001 quality control standards.
- Order Flexibility: Zero Minimum Order Quantity (MOQ) on initial purchases, followed by a 100-piece threshold. Free samples are provided (buyer covers freight).
- Project Readiness: Professional technology support, OEM customization availability, low cost pricing, and complete tender documents ready for submission.
Socket Eye W-K Type Applications
Engineered for crucial overhead connections, the Socket Eye W-K is an essential fitting strictly utilized for:
- Linking suspension clamps directly to insulators in transmission networks.
- Connecting insulators and ground wire clamps safely to tower arms or subjection structures.
- Supporting continuous supply for low and medium-voltage (LV and MV) EPC grid engineering lots.
Socket Eye W-K Type Specifications
Review the exact material breakdown and dimensional failure loads for the W-K Type series below to ensure precise compatibility with your mounting conditions.
Material & Design Data
| Component / Parameter | Specification Details |
|---|---|
| Hardware Type | Link Fitting / Socket Eye W-K Type |
| Body Material | Malleable Iron or Casting Steel (H.D.G) |
| Security Clips Material | Bronze or Stainless Steel |
| Cotter Pins Material | Stainless Steel |
| Factory Certifications | ISO 9001, ISO 14001, ISO 18001 |
Dimensional & Failure Load Parameters
| Cat. No. | Dimension (mm) | Failure Load (kN) | Weight (kg) | ||||
|---|---|---|---|---|---|---|---|
| L1 | L2 | Φ | D | B | |||
| W1-7K | 70 | 120 | 14 | 18 | 20 | 70 | 1.0 |
| W1-8K | 96.5 | 150 | 14 | 18 | 20 | 80 | 1.2 |
| W1-12K | 70 | 120 | 14 | 24 | 22 | 120 | 3.0 |
