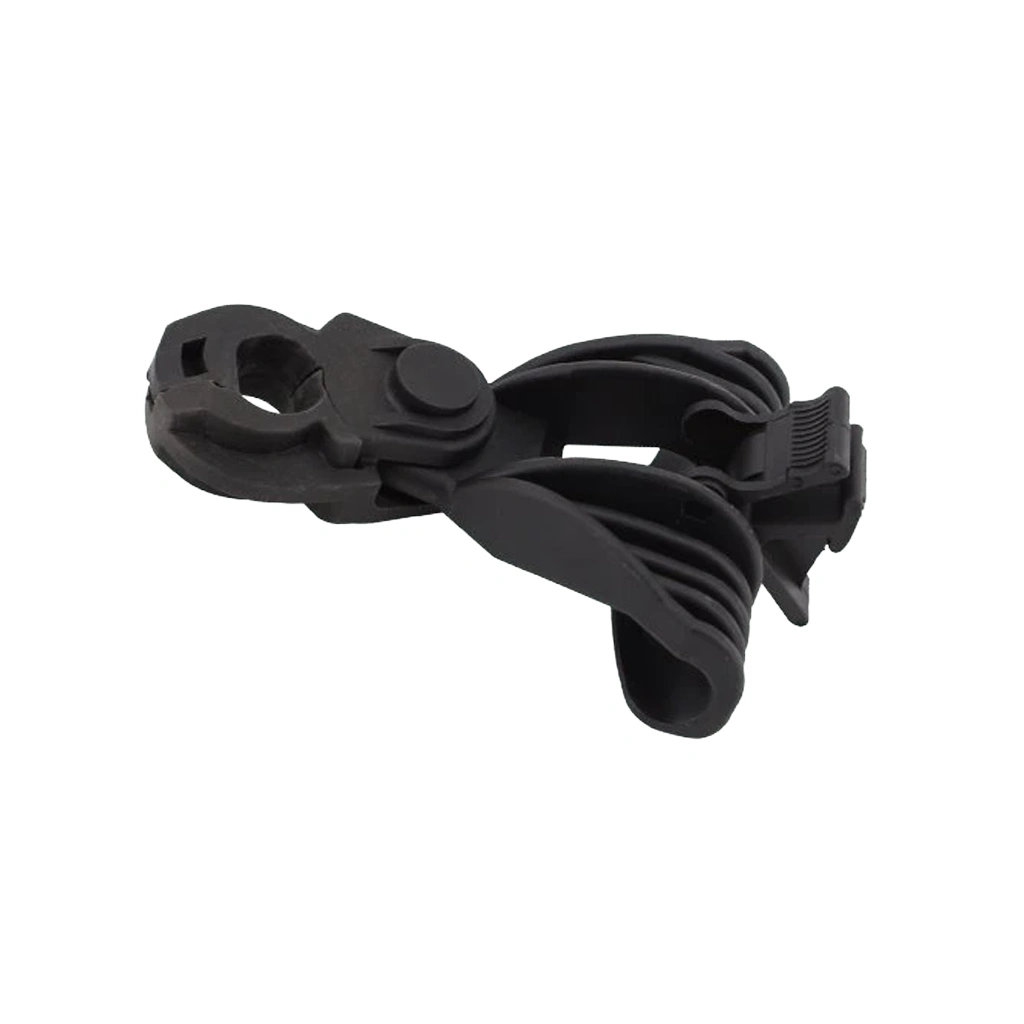

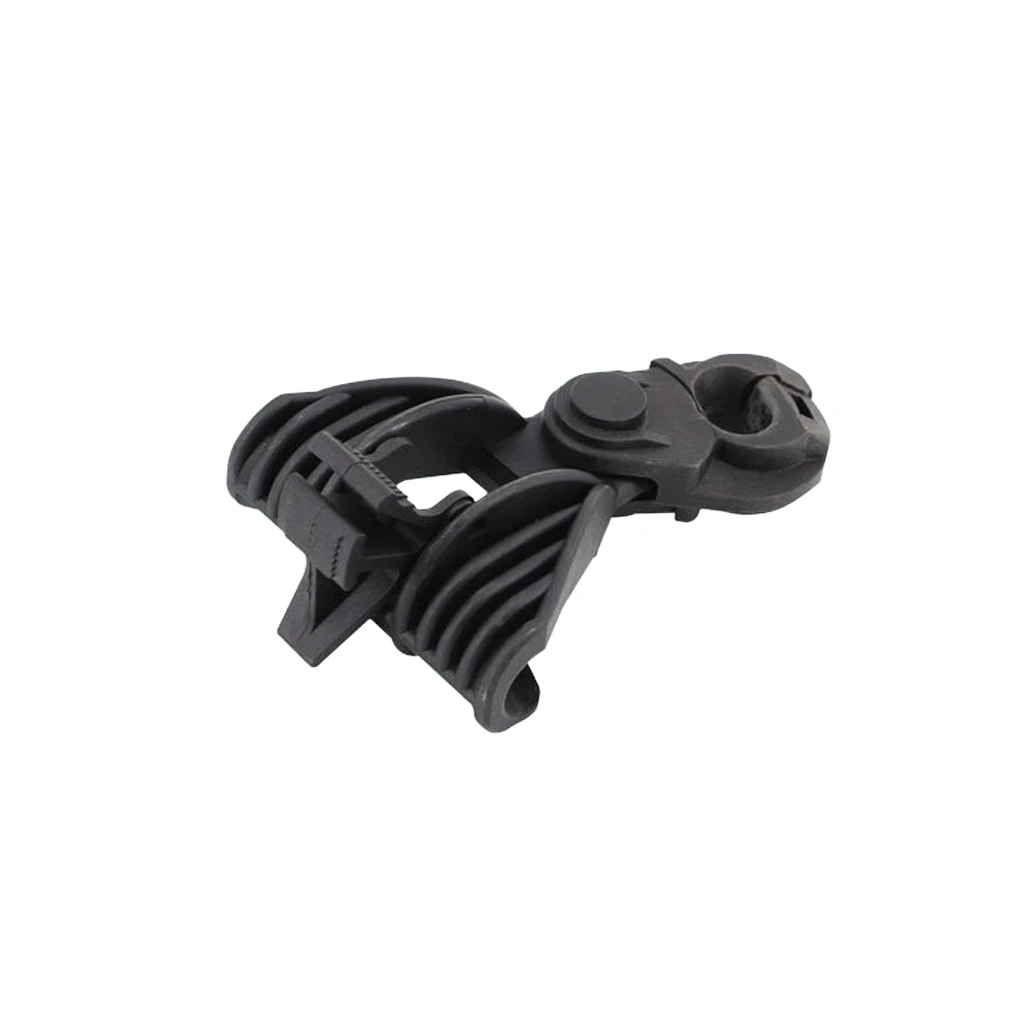

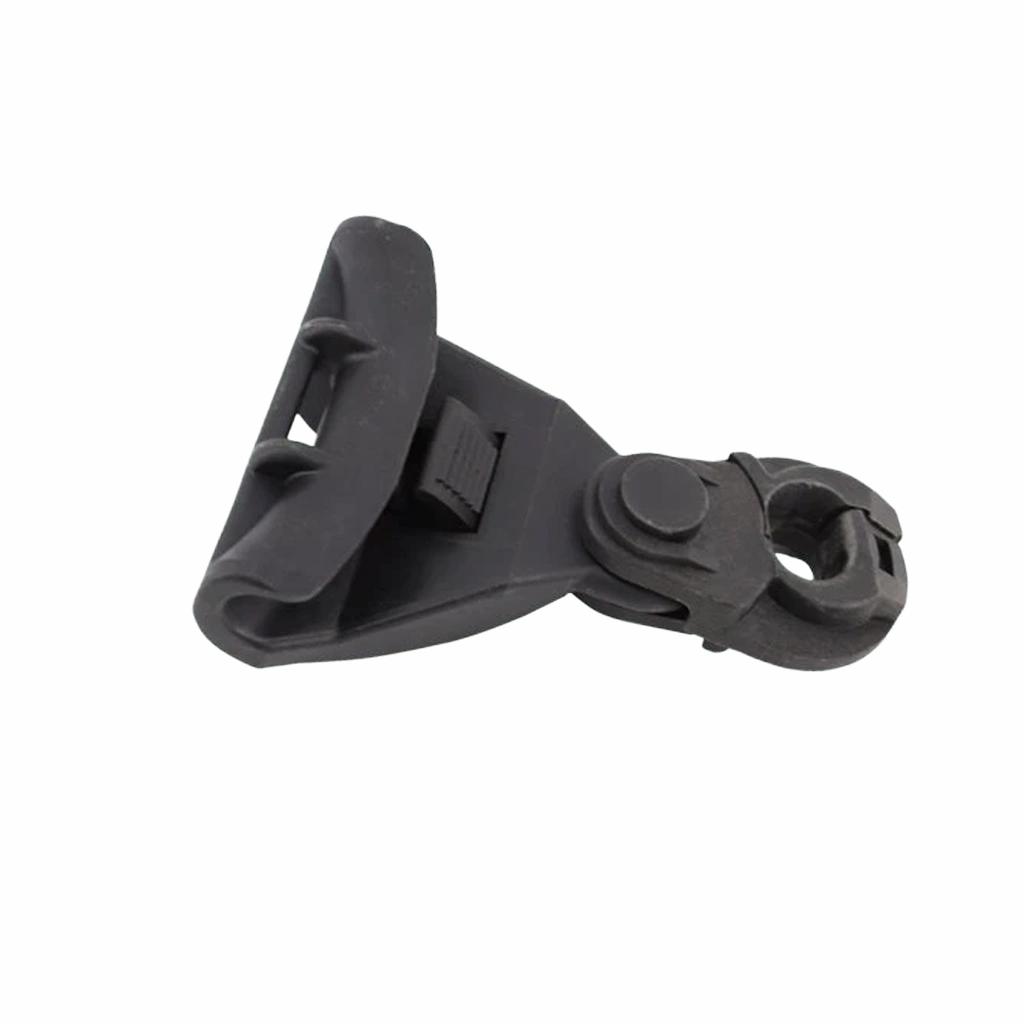

Suspension Clamp With Mobile Link Product Overview
This Suspension Clamp With Mobile Link ensures a reliable mechanical hold without compromising the insulated conductor’s integrity.
- Constructed entirely from UV-resistant fiberglass-reinforced thermoplastic for maximum strength.
- Consists of a durable insulated body paired with an insulating pressure shoe.
- Designed strictly to accommodate an application angle of ≤50°.
- Complies directly with NF C33-040 design standards and is fully tested under BS EN 50483-3.
Suspension Clamp With Mobile Link Key Features
Integrating this Suspension Clamp With Mobile Link into your grid guarantees a fast installation backed by highly efficient B2B procurement terms:
- Toolless Installation: Engineered for quick, secure on-site assembly without the need for special tools.
- Core Protection: The insulating material strongly secures the conductor without damaging the core sheath.
- Integrated Design: Manufactured with an overall product design ensuring no individual parts will be lost during handling.
- Order Flexibility: Zero Minimum Order Quantity (MOQ) on initial purchases, free samples (buyer covers freight), and complete tender documents ready for submission.
Suspension Clamp With Mobile Link Applications
Built specifically to support aerial bundles safely, this Suspension Clamp With Mobile Link provides crucial structural mounting solutions. It is used strictly for:
- Mounting insulated neutral messengers directly on utility poles (supports) or facades.
- Working in conjunction with insulation piercing connectors to provide service connections by safely tapping the mainline.
Suspension Clamp With Mobile Link Technical Specifications
Review the precise material breakdown and mechanical parameters for the Suspension Clamp With Mobile Link below to ensure exact compatibility with your network lines.
Material & Design Data
| Component / Parameter | Specification Details |
|---|---|
| Hardware Type | Fusible Suspension Clamp (PS25/95-FW) |
| Body & Shoe Material | UV Resistance Fiberglass Reinforced Thermoplastic |
| Bolt Material | UV Resistance Fiberglass Reinforced Thermoplastic |
| Application Angle | ≤ 50° |
| Cable Diameter Range | 8.5 mm – 16 mm |
| Cable Cross Section Range | 25 mm² – 95 mm² |
| Design Standards | NF C33-040 |
| Testing Standard | BS EN 50483-3 |
Mechanical Strength & Packaging Parameters
| Mechanical Parameter | Force Rating | Packaging Details |
|---|---|---|
| Bearing Force (TP) | 5.2 kN / 520 daN | Qty / Carton: 100 pcs |
| Tensile Force Threshold (TS) | 6.5 kN / 650 daN | Carton Size: 375(L) × 385(W) × 295(H) mm |
| Rupture Threshold (TM) | 9 kN / 900 daN | Gross Weight: 17 kgs |
