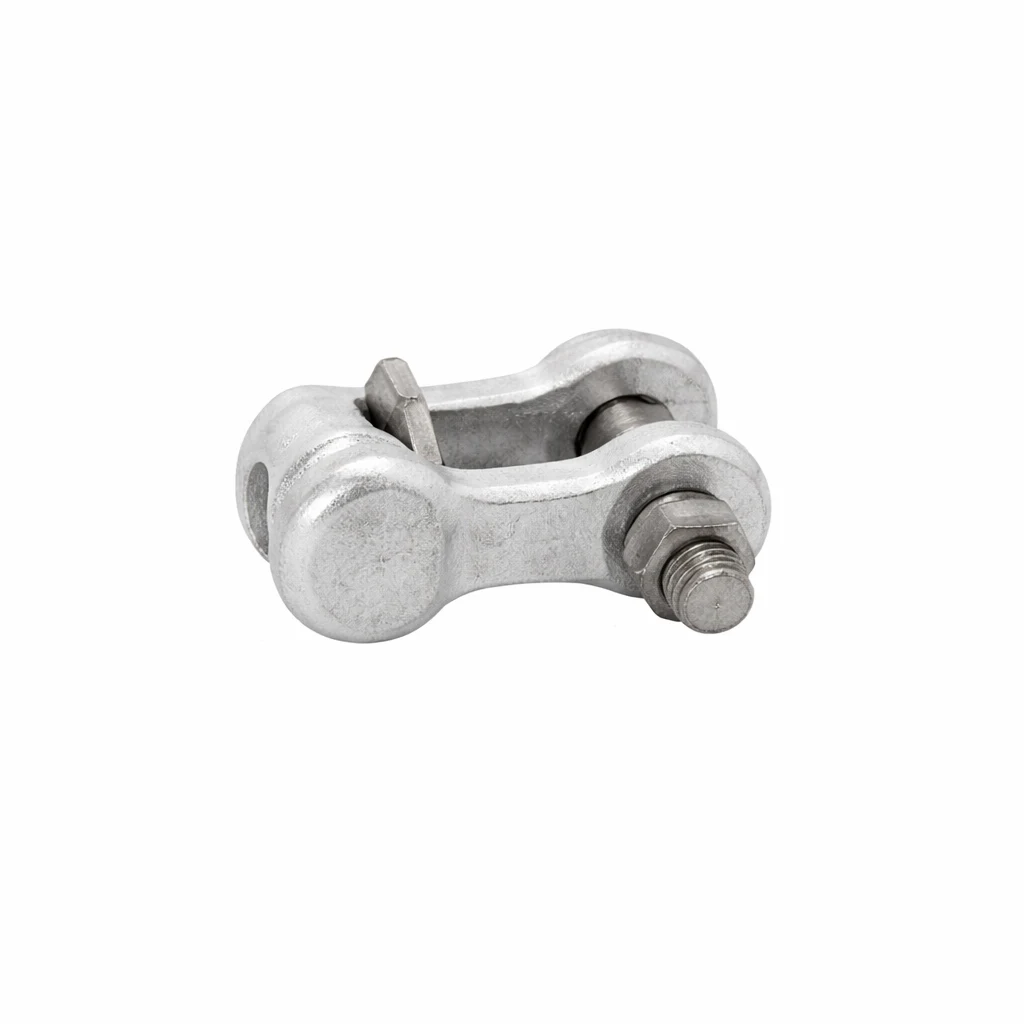

WS Socket Eye Clevis For Insulator Connections

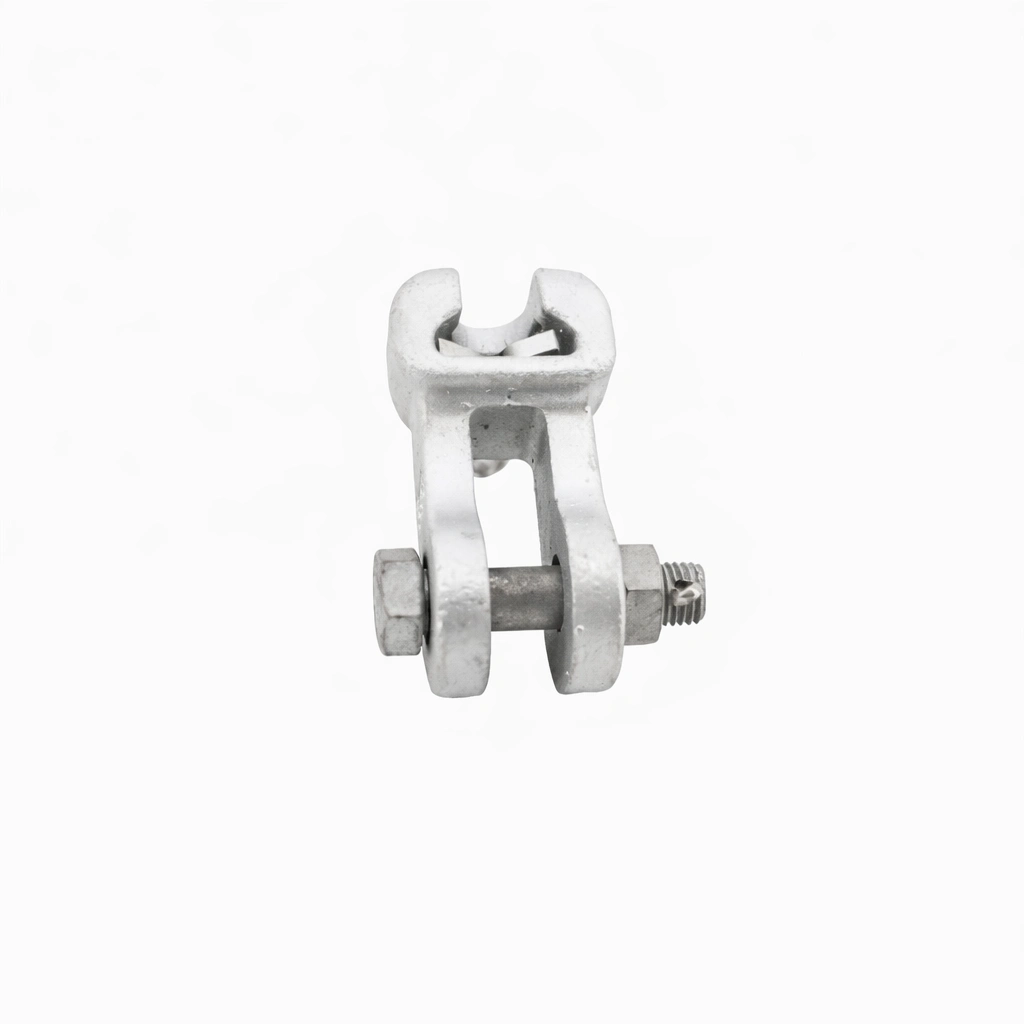

WS Socket Eye
WS Socket Eye

WS Socket Eye Clevis For Insulator Connections

The WS Socket Eye (also known widely as the WS Socket Clevis) is a highly reliable connecting fitting designed to link insulators, overhanging wire clips, tensioning wire clips, and protective hardware. It efficiently forms robust pendulous or tensioning string groups across overhead utility networks.

Producing capacity: 1,000,000 pcs / month (Ensuring a steady supply for large-scale LV and MV EPC material lots).

Request a Quote
Category:




WS Socket Eye Product Overview

Engineered for heavy-duty mechanical connections, this WS Socket Eye ensures structural stability within demanding power grid setups.

  • Main body manufactured from highly durable ductile iron (grade 604512).
  • Features robust C-1040 steel clevis pins and stainless steel cotter pins.
  • Finished with Hot-Dip Galvanization (H.D.G) for maximum rust prevention.
  • Classified as a Q.QS, QP Type Electric Power Fitting.

WS Socket Eye Key Features

Integrating this WS Socket Eye into your infrastructure guarantees a resilient installation supported by flexible direct-factory B2B terms:

  • Corrosion Resistant: Premium H.D.G finishing extends the operational lifespan in harsh outdoor environments.
  • Certified Quality: Produced under a strict quality control plan within ISO 9001, ISO 14001, and ISO 18001 standard facilities.
  • Order Flexibility: Zero Minimum Order Quantity (MOQ) on initial purchases, and a 100-piece threshold for subsequent orders. Free samples are provided (buyer covers freight).
  • Project Readiness: Easy to use on-site, supported by professional technology assistance, fast quotations, and complete tender documents ready for submission.

WS Socket Eye Applications

Built specifically for overhead string assemblies, this WS Socket Eye provides crucial utility reinforcement. It is used strictly for:

  • Connecting insulators and protective fittings securely to the main pole structure.
  • Forming stable pendulous or tensioning string groups of fittings.
  • Fulfilling standard hardware requirements for low and medium-voltage (LV and MV) EPC material lots.

WS Socket Eye Technical Specifications

Review the precise material breakdown and strength parameters for the WS series below to ensure exact compatibility with your network hardware.

Material & Design Data

Component / Parameter Specification Details
Hardware Type Connecting Fitting / WS Socket Eye (WS Socket Clevis)
Main Body Material Ductile Iron (Grade 604512)
Clevis Pin Material C-1040 Steel
Cotter Pin Material Stainless Steel
Surface Finish Hot-Dip Galvanized (H.D.G)
Fitting Type Classification Q.QS, QP Type
Factory Certifications ISO 9001, ISO 14001, ISO 18001

Dimensional & Failure Load Parameter List

WS Socket Eye

Catalog No. Main Dimensions (mm) Designated Size of Coupling Failure Load (kN) Weight (kg)
A B C M H
WS-7 34.5 19.2 20 16 70 16 70 0.97
WS-10 34.5 19.2 20 18 85 16 100 1.70
WS-12 34.5 19.2 24 22 85 16 120 3.81
WS-16 42.5 23.0 26 24 95 20 160 2.60
WS-21 51.0 27.5 30 27 100 24 210 4.30
WS-20D 42.5 23.0 30 27 100 20 200 4.30
WS-30 51.0 27.5 36 36 110 24 320 5.70
WS-0770 34.5 19.2 20 16 70 16 70 0.97
WS-1085 34.5 19.2 20 18 85 16 100 1.70
WS-1290 34.5 19.2 20 22 90 16 120 1.70
WS-1695 42.5 23.0 22 24 95 20 160 2.60
WS-21100 42.5 23.0 24 24 100 20 210 3.80
WS-25100 51.0 27.5 28 27 100 24 250 4.30
WS-32110 51.0 27.5 32 30 110 24 320 5.70
