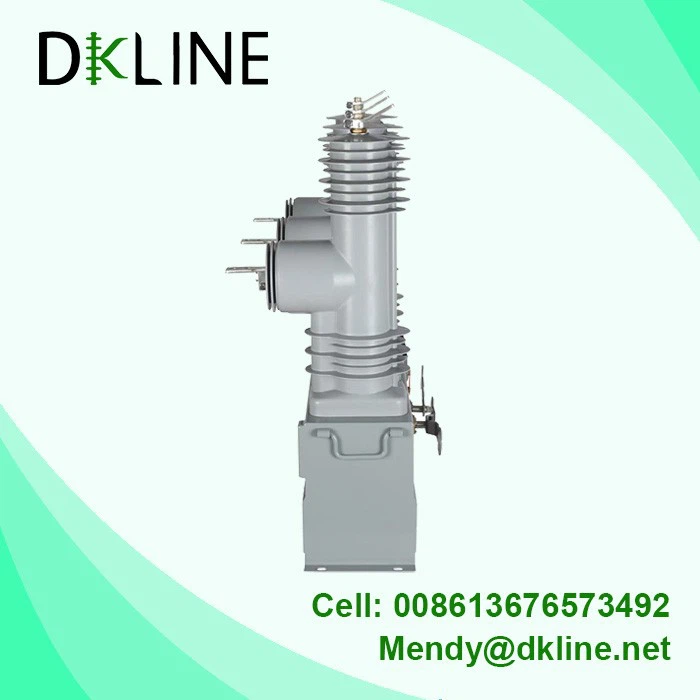

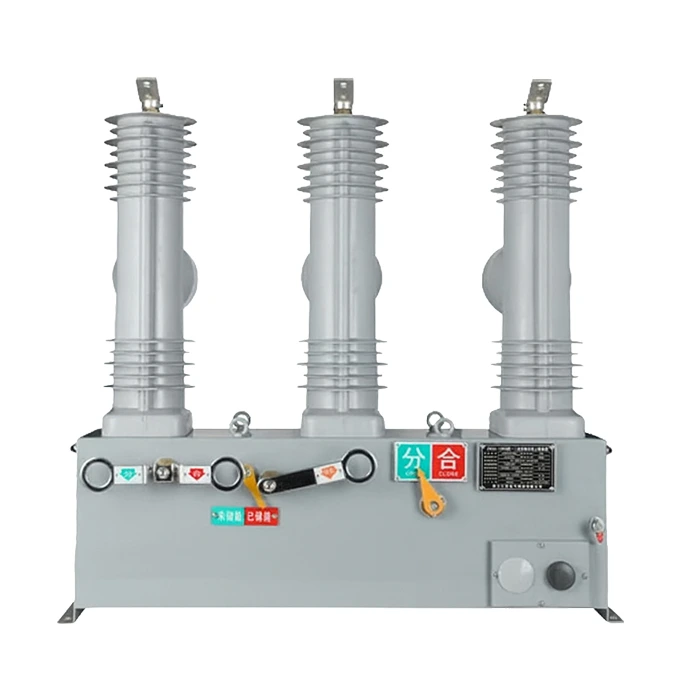

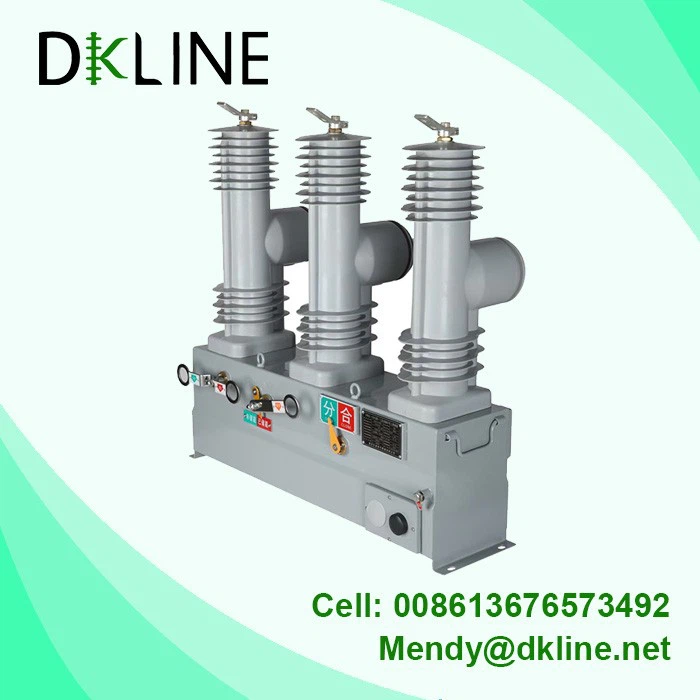

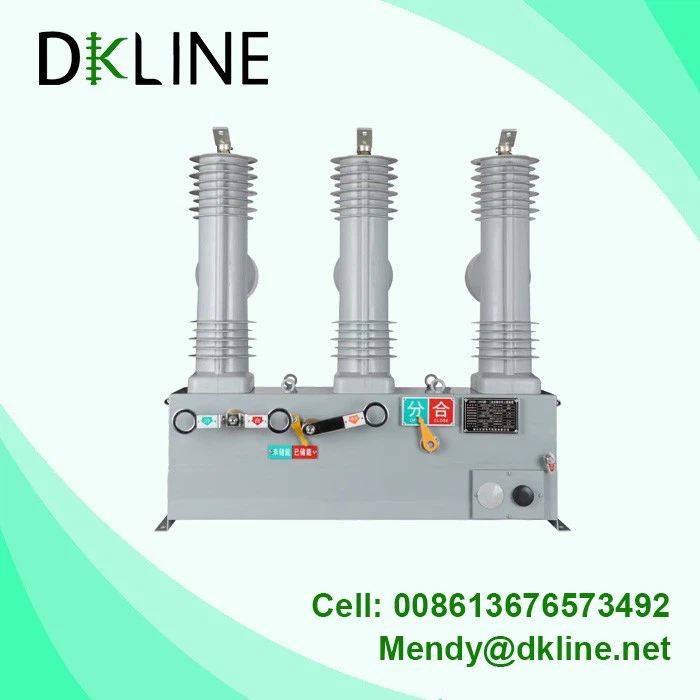

This product uses the most advanced circular ceramic capacitor for power collection and sampling, which can maintain stable performance in a variety of harsh environments.
This product adopts innovative design, has independent intellectual property rights, and has obtained a number of national technical patents.
This product has 12 power taking and sampling capacitors (expandable up to 15 capacitors),6 current sampling; The phase voltage and zero sequence voltage of the power supply side and the load side can be sampled and taken, and the phase current and zero sequence current of the load side can be sampled.
Using a new bistable, double coil repulsion + magnetic drive operating mechanism, its structure is novel and simple, small size, fast execution rate, stable action, can achieve synchronous breaking function, reduce the splitting and closing pull arc and current impact, high reliability.
Built-in FTU adopts the whole life design scheme, increase the waterproof, shock-proof and anti-electromagnetic interference design, no output cable, will be integrated once and twice, high reliability, more convenient installation.
Comes with APP handheld operating tablet, automatic connection, password input control.
In order to solve the problem of data transmission in plateau and remote areas, this product has medium voltage online carrier technology, which can realize seamless control and monitoring of the whole region and the whole climate.
FTU, combined with advanced fast fault judgment algorithm, can reliably remove faults from the power supply side in the shortest time, reduce the impact of voltage dips, prevent “fault crossing”, and ensure the operation of other users’ equipment and the normal operation of the power grid.
With built-in temperature compensation constant temperature system, when the ambient temperature is below 0 degrees, it automatically heats the battery to ensure the life and temperature quality of the battery.
The fault detection response time of the circuit breaker controller (from the time when the fault occurs to the time when the controller determines the fault and outputs the breaking instruction) is 2.64ms
Circuit breaker fault removal time (from fault occurrence to fault removal and isolation) 11.68ms
GB/T11022 《High Voltage Switchgear and control equipment standard common technical requirements》
GB/T1984 《High Voltage AC Vacuum Circuit Breaker》
IEC62271-100 《High Voltage AC Vacuum Circuit Breaker》
GB/T20840.2 《Transformers – Part 2: Supplementary technical requirements for current transformers》
GB/T20840.7 《Transformers – Part 7: Electronic voltage transformers》
GB/T20840.8 《Transformers – Part 8: Electronic current transformers》
Ambient air temperature: -40° C ~+70° C, daily temperature difference of 25° C;
Altitude: no more than 5000 meters;
Wind pressure: not more than 700Pa (equivalent to wind speed 35m/s);
Air pollution level: IV;
Earthquake intensity: not more than 8 degrees;
Installation place: no inflammable, explosive danger, chemical corrosion or violent vibration place.
