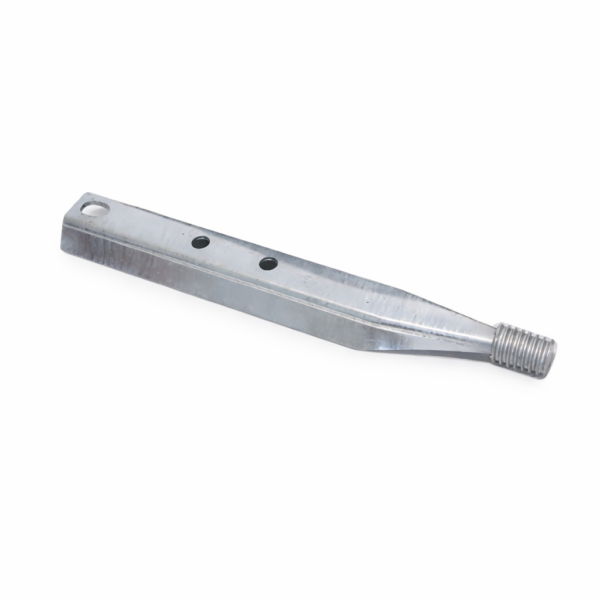

Pole Top Pin Product Overview:
Operating as a primary fastening node for overhead hardware, the Pole Top Pin actively prevents insulator displacement during high mechanical stress. Procurement teams select these reliable Pole Top Insulator Pins to streamline grid construction and ensure long-term alignment through the following structural elements:
- Secure Mounting: Features a straight base design equipped with two mounting holes, allowing utility engineers to fasten it tightly against the pole.
- Thread Adaptability: Available as a lead thread pole top pin or with advanced nylon alloy threads to match specific insulator requirements.
- B2B Ready: Backed by a strong engineering team capable of supplying full LV and MV EPC material lots with complete tender documents ready for submission.
Key Features & Benefits of the Pole Top Pin:
Integrating the Pole Top Pin into your overhead infrastructure guarantees superior structural security and hardware longevity. The specific material formulation targets direct mechanical endurance:
- Heavy-Duty Construction: Formed from high-strength pressed steel, delivering exceptional physical durability against dynamic loads.
- Advanced Galvanizing: The H.D.G steel receives an intensive treatment, achieving a protective zinc thickness of min. 85 microns to maximize outdoor operational life.
- Precision Threads: Utilizes engineered pole top pin nylon threads or cast lead, locking insulators firmly without stripping.
- Customization: Acts as a versatile nylon alloy insulator pin solution, with OEM availability to meet custom engineering requirements.
Pole Top Pin Applications & Use Cases:
The weather-resistant construction makes this unit an optimal fastening solution for versatile power distributions. Whenever technical teams deploy a reliable Pole Top Insulator Pin, they ensure exact load management across multiple sectors:
- Overhead transmission lines utilizing pin-type insulators to support bare conductors.
- Low Voltage (LV) and Medium Voltage (MV) utility poles requiring secure top-mounting points.
- High-tension structures demanding a robust Insulator Pole Top Pin for stable bare wire alignment.
- Large-scale EPC electrical grids operating in highly corrosive or humid environments.
Technical Specifications:
Evaluate the precise mechanical and commercial parameters below to confirm that the Pole Top Pin aligns flawlessly with your procurement requirements and B2B grid standards.
| Technical / Commercial Parameter | Specification Details |
|---|---|
| Pin Body Material | Pressed Steel |
| Galvanizing Standard | H.D.G (Zinc thickness min. 85 micron) |
| Insulator Threads | Nylon Alloy or Cast Lead |
| Base Design | Straight Base with Two Mounting Holes |
| Mounting Hardware | 5/8-inch Bolts |
| Voltage Application | LV and MV EPC Material |
| MOQ (Minimum Order Quantity) | No limit in first order / 100 pcs for further orders |
| OEM / Customization | Available as per custom requirements |
