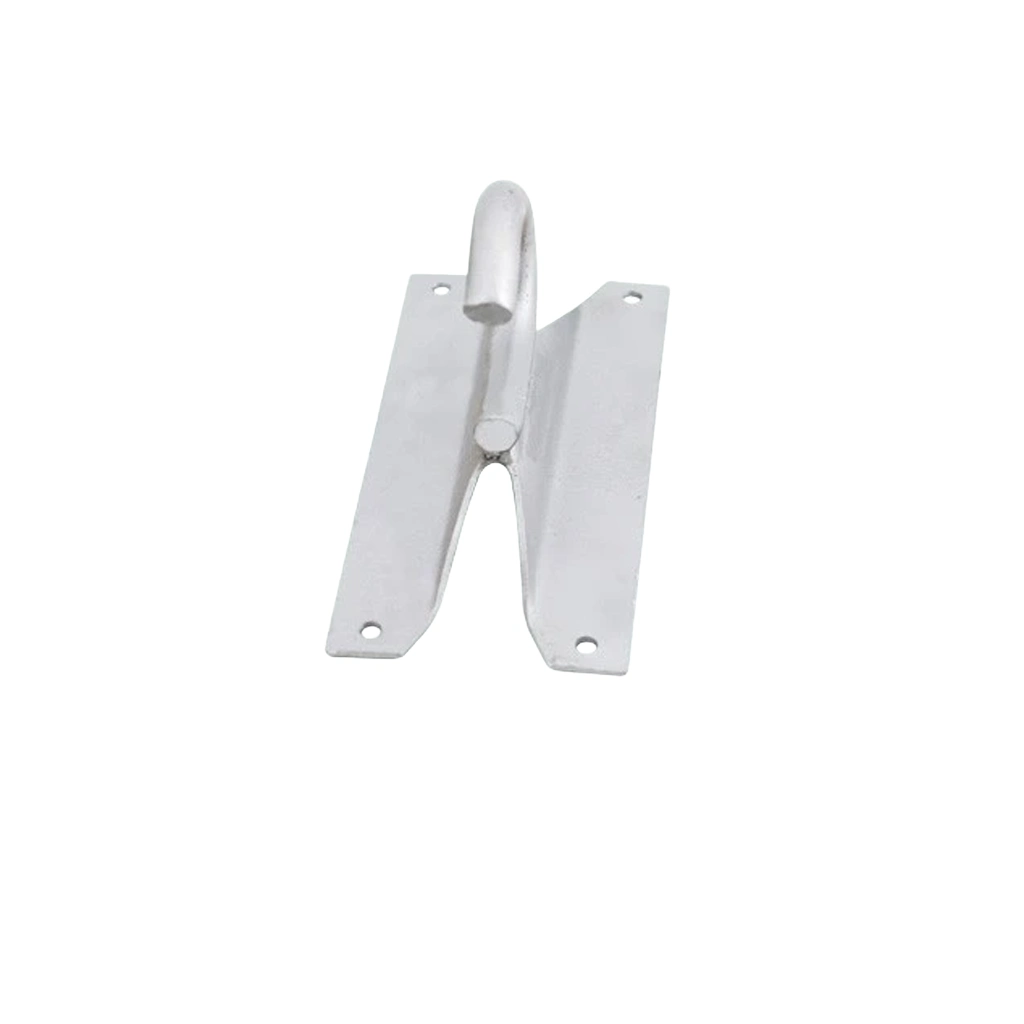

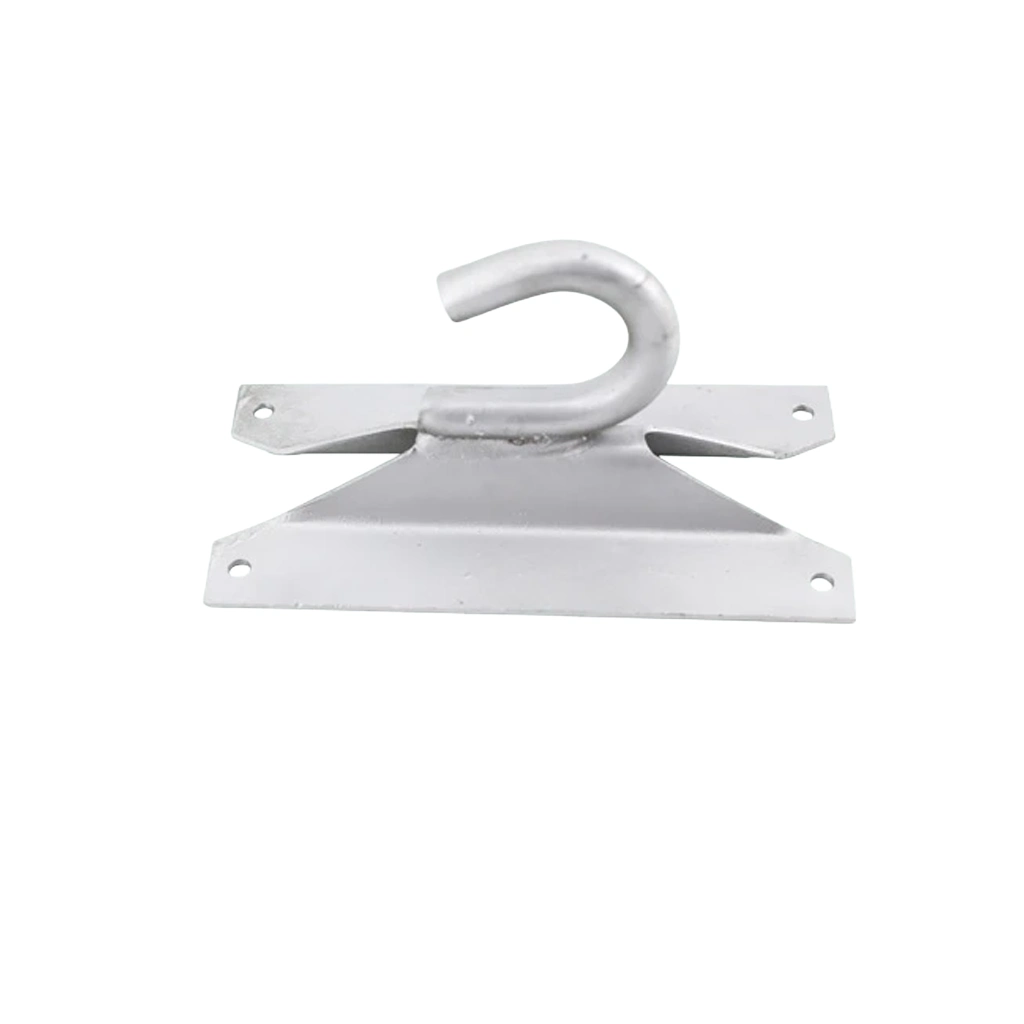

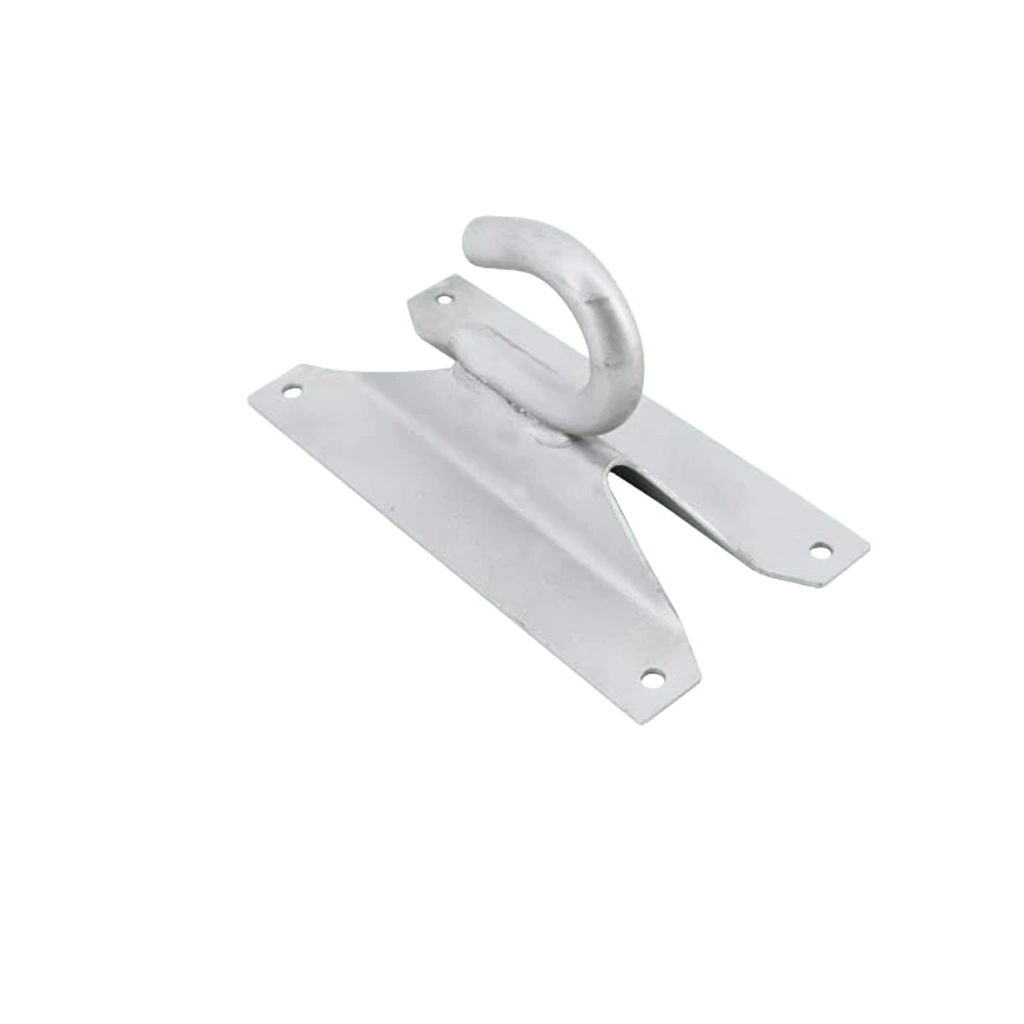

Anchor Hook Metal Wall Bracket Overview

This Anchor Hook Metal Wall Bracket delivers excellent tensile strength and long-lasting performance for overhead networks.

Constructed from a combination of high-strength aluminium alloy and H.D.G steel for maximum durability.
Features a specially designed radian surface to firmly touch and grip cylindrical poles.
Functions highly effectively as an anchor bracket, stay bracket, and drop wire bracket.
Widely utilized as a dependable fitting for both ABC and ADSS network lines.
Available in its original color, with optional sandblasting or polishing finishes based on specific project requirements.

Anchor Hook Metal Wall Bracket Key Features

Integrating this Anchor Hook Metal Wall Bracket into your infrastructure ensures a versatile installation supported by flexible B2B procurement terms:

Universal Mounting: Accepts both M14 and M16 bolts (bolt length is dictated by pole diameter), as well as 20mm (width) x 0.7mm (thickness) stainless steel straps.
Environmental Endurance: Highly corrosion-resistant materials ensure the bracket withstands diverse and harsh climatic environments.
Order Flexibility: Zero Minimum Order Quantity (MOQ) on initial purchases, and free samples are provided (buyer covers freight charge).
Project Readiness: Offers OEM customization, complete tender documents ready for submission, and a reliable factory output of 10,000 sets per month.

Anchor Hook Metal Wall Bracket Applications

Engineered to cover multiple mounting locations and all installation situations, this Anchor Hook Metal Wall Bracket is used strictly for:

Serving securely as a dead-end anchor bracket, angle pole anchor bracket, and straight pole anchor bracket.
Mounting safely onto wooden poles, concrete poles, and metal poles.
Supporting overhead messenger networks and securing utility drop wires.

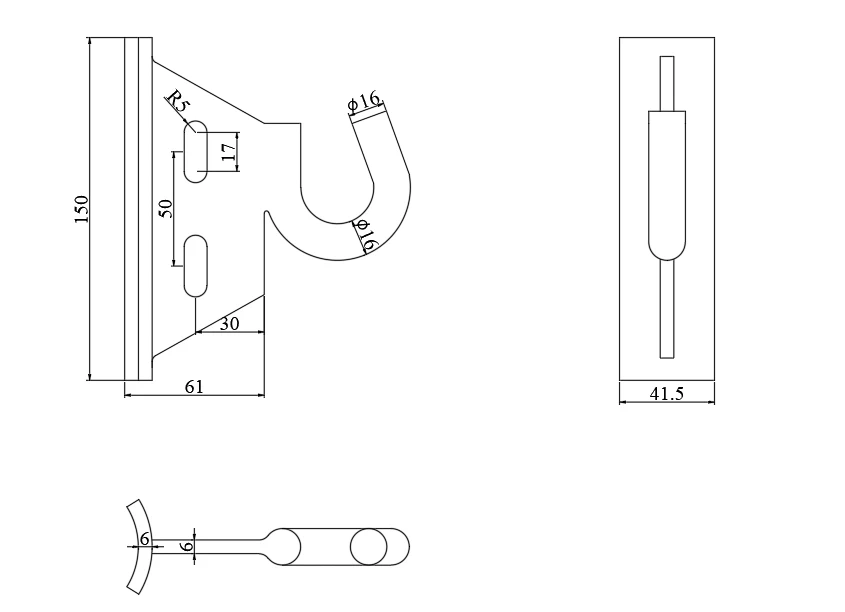

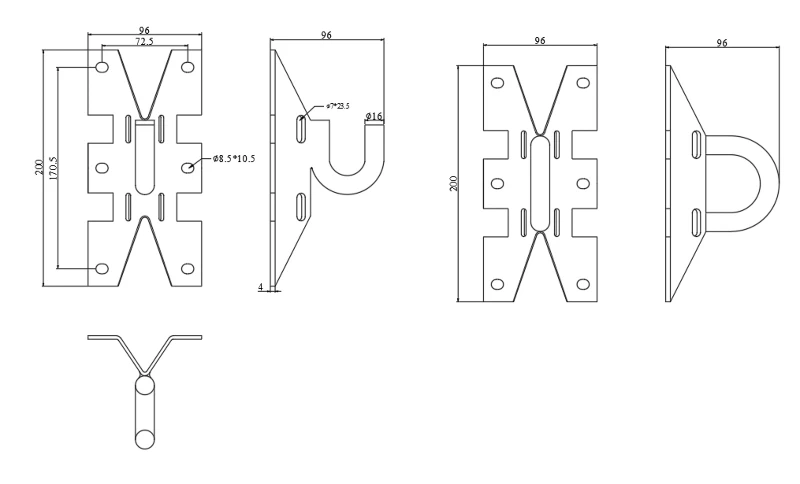

Anchor Hook Metal Wall Bracket Specifications

Review the precise material and mounting parameters for the Anchor Clamp (sot Hook) below to ensure exact compatibility with your network lines.

Material & Technical Data

Component / Parameter	Specification Details
Hardware Type	Universal Pole Bracket / Anchor Clamp (sot Hook)
Body Material	High Strength Aluminium Alloy / H.D.G Steel
Pole Compatibility	Wooden, Metal, and Concrete Poles
Bolt Compatibility	M14 and M16 Bolts
Strap Compatibility	20mm (Width) × 0.7mm (Thickness) Stainless Steel Strap
Surface Finish	Original Color, Sandblasting, or Polishing (Optional)
Producing Capacity	10,000 sets per month
