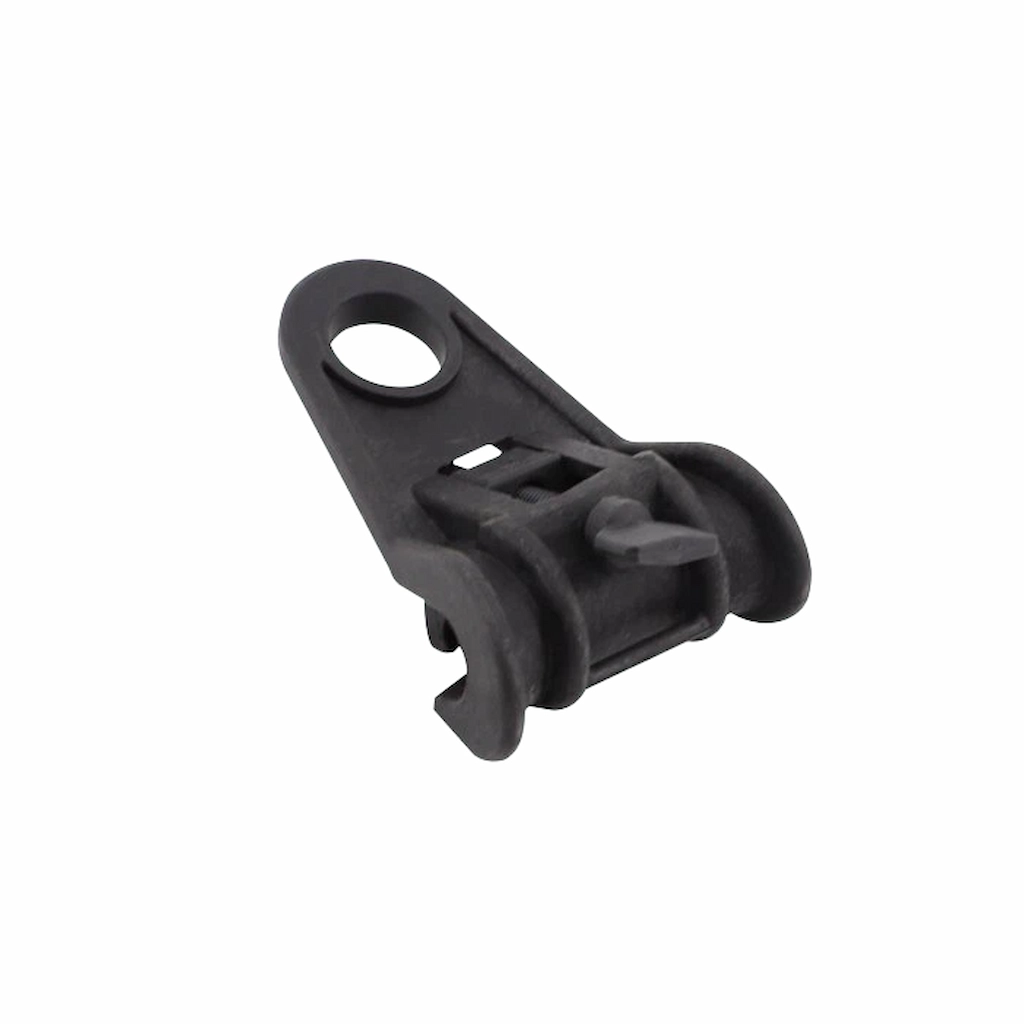

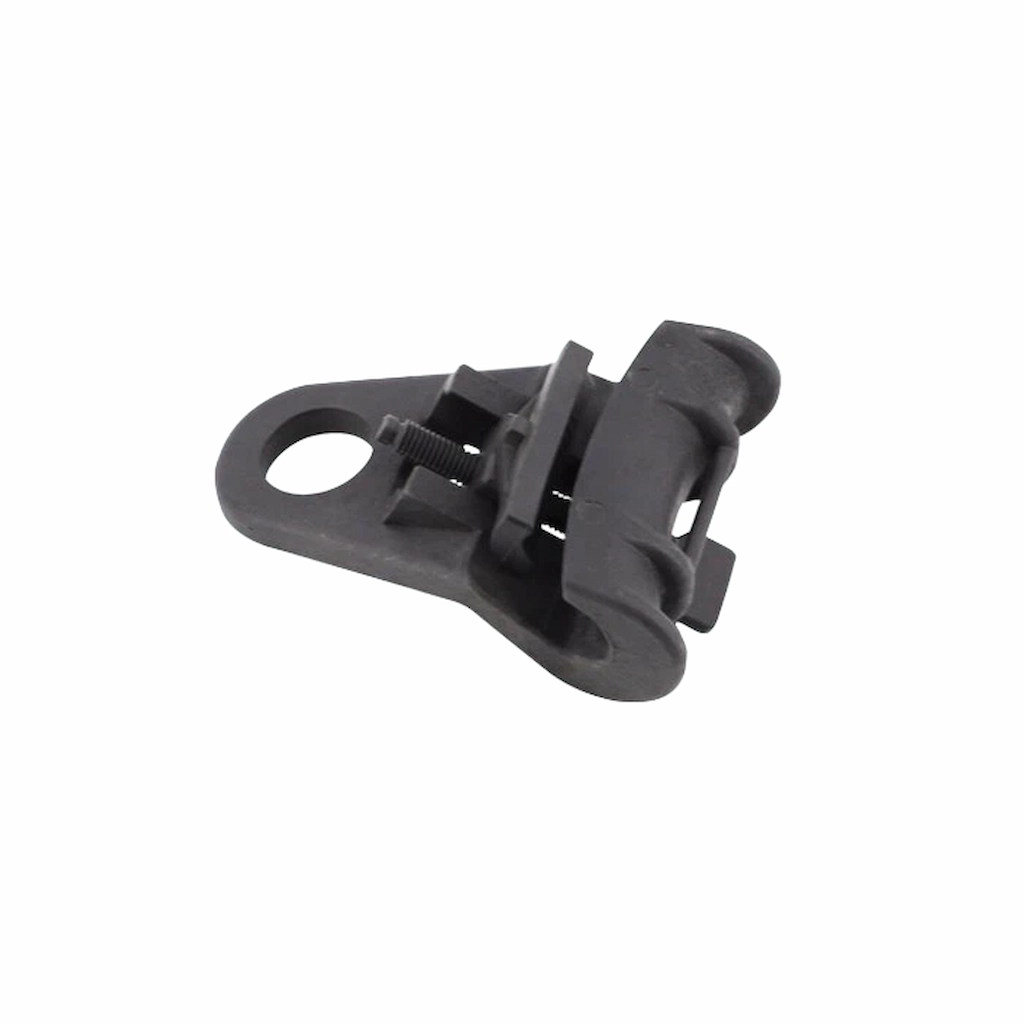

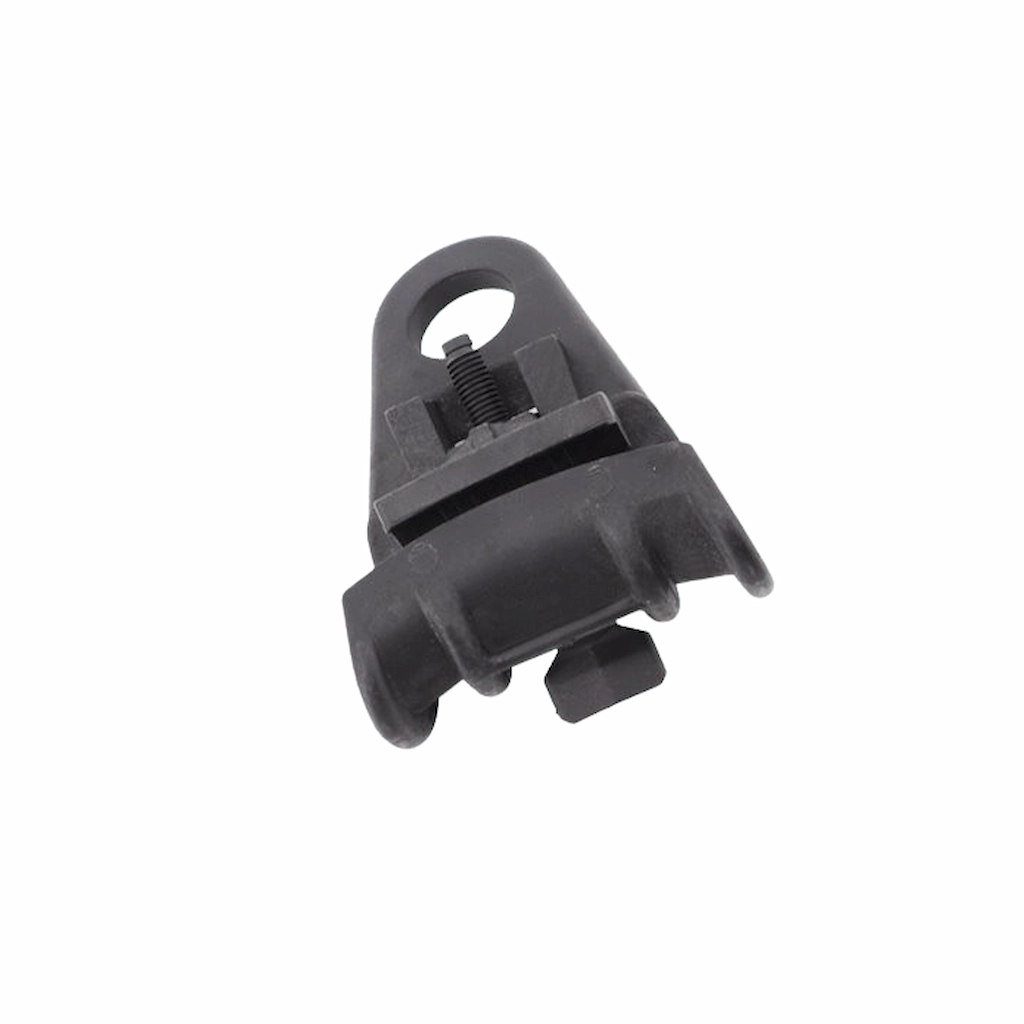

ABC Suspension Clamp Overview:
The PS25/95-IM model provides an uncompromising anchoring solution specifically designed for the realization of overhead networks using neutral messengers.
Rely on our structurally optimized hardware to secure your lines firmly on support poles or building facades:
- Engineered to flawlessly manage twisted insulated conductors with an application angle of ≤50°.
- Manufactured with an exceptional production capacity of 500,000pcs to fulfill massive grid infrastructure demands.
Key Features & Benefits:
Every structural component is engineered to eliminate field installation delays and maximize long-term weathering resistance.
Upgrade your grid reliability instantly with this premium suspension clamp for abc cable:
- Rapid Tool-Free Setup: Innovatively designed for manual installation, significantly reducing labor time and operational costs.
- Ultimate Sheath Protection: Features a highly specialized insulating body and pressure shoe to grip conductors without damaging the core sheath.
- Extreme Weather Resilience: Constructed entirely from UV resistance fibreglass reinforced material to sustain prolonged environmental exposure.
- Fail-Safe Design: Engineered as a cohesive overall product where no individual parts will ever loosen or get lost during field mounting.
Applications & Use Cases for ABC Suspension Clamp:
Deploy this highly durable fastening solution to establish flawless mechanical connections across dynamic power distribution frameworks.
This versatile suspension clamp for abc cable is the ultimate choice for the following critical utility tasks:
- Suspending twisted insulated conductors ranging from 25mm² to 95mm² securely on heavy-duty utility poles.
- Facilitating highly stable and long-lasting overhead network routes along residential and industrial facades.
- Working seamlessly in conjunction with insulation piercing connectors to provide highly efficient mainline tapping and service connections.
- Upgrading aging utility infrastructures with a modern suspension clamp for ab cable tested to stringent NFC standards.
Technical Specifications:
Review the exact mechanical strength thresholds and physical dimensions below to guarantee perfect operational compatibility.

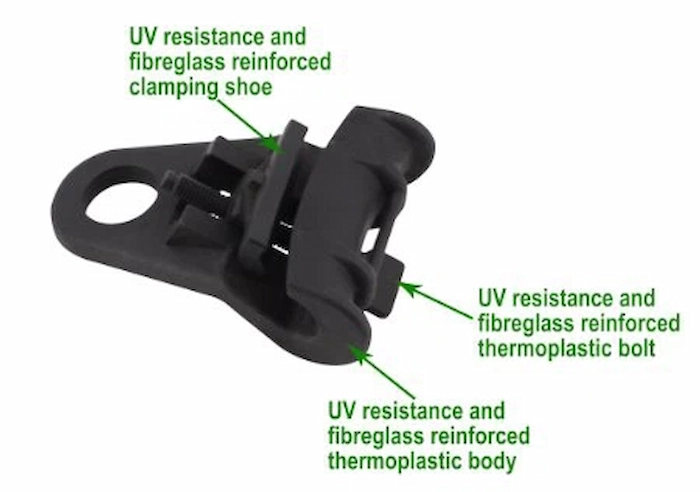

| Material and Construction | |
| Body | UV resistance fibreglass reinforced thermoplastic |
| Pressure shoe | UV resistance fibreglass reinforced thermoplastic |
| Bolt | UV resistance fibreglass reinforced thermoplastic |
| Mechanical Strength | |
| TP | 5.2kN / 520daN |
| TS | 6.5kN / 650daN |
| TM | 9kN / 900daN |
| Cable application | |
| Diameter (Min.) | 8.5mm |
| Diameter (Max.) | 16mm |
| Cross section (Min.) | 25mm² |
| Cross section (Max.) | 95mm² |
| Packing | |
| Qty. | 100pcs / carton |
| Carton Length | 475mm |
| Carton Width | 245mm |
| Carton Height | 295mm |
| Weight | 12.5kgs |
| Standard | |
| Design | NF C33-040 |
| Testing | BS EN 50483-3 |
TP: Bearing force during the test (0.80 TS).
TS: Tensile force threshold below which no failure of the subset.
TM: Tensile force threshold below which the rupture of the fuse system must be observed.

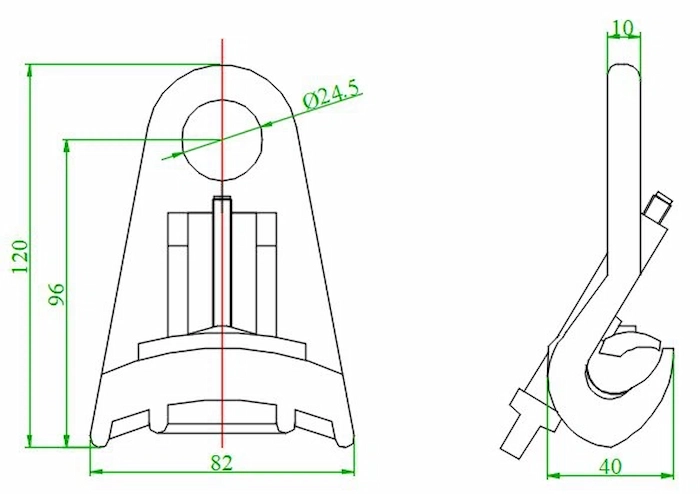

NFC STANDARD ABC SUSPENSION CLAMP DIMENSIONS:
