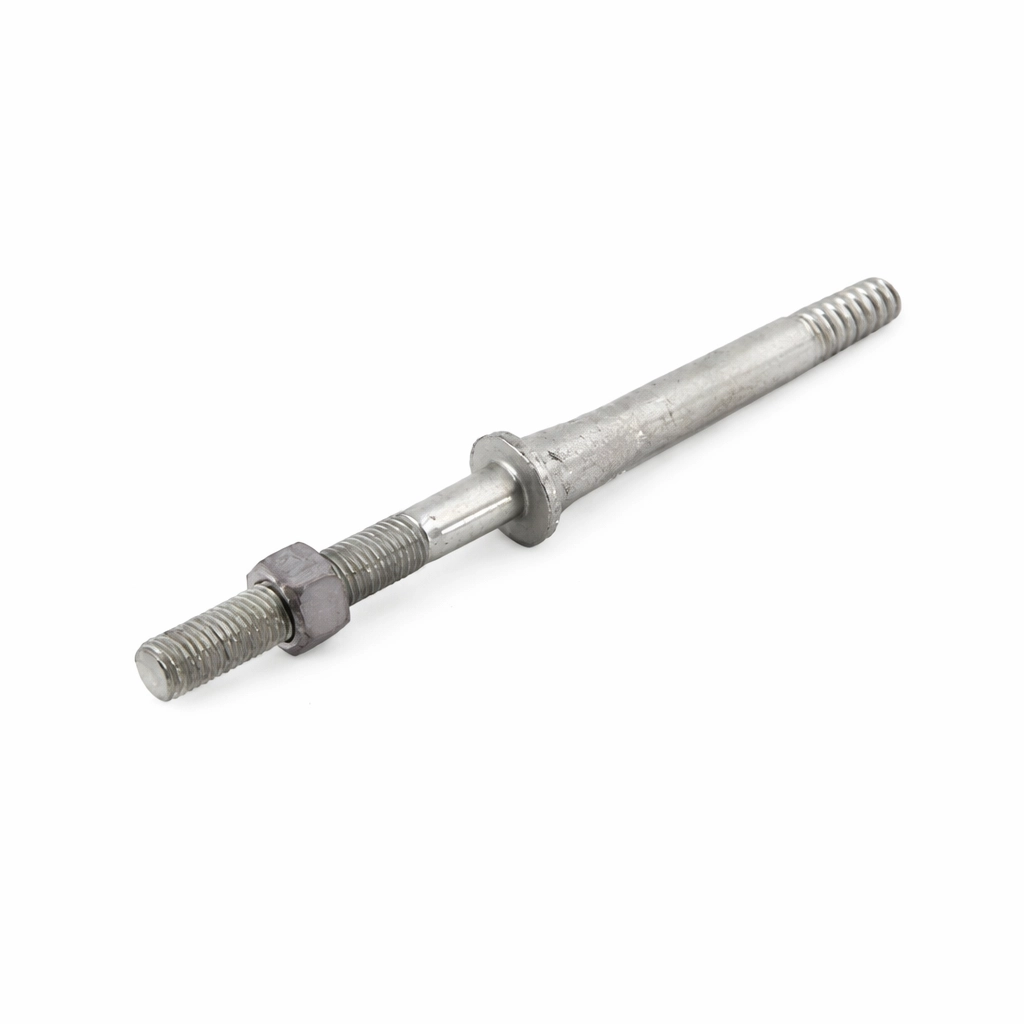

Cross Arm Pin Product Overview:
Functioning as a critical anchor point for overhead insulators, the Cross Arm Pin actively distributes mechanical loads to prevent structural damage. Procurement teams and utility engineers select this specific crossarm pin to streamline grid construction and ensure hardware stability through the following structural elements:
- Load Distribution: Engineered with a large base design that efficiently distributes operational loads without crushing flat wood cross arms.

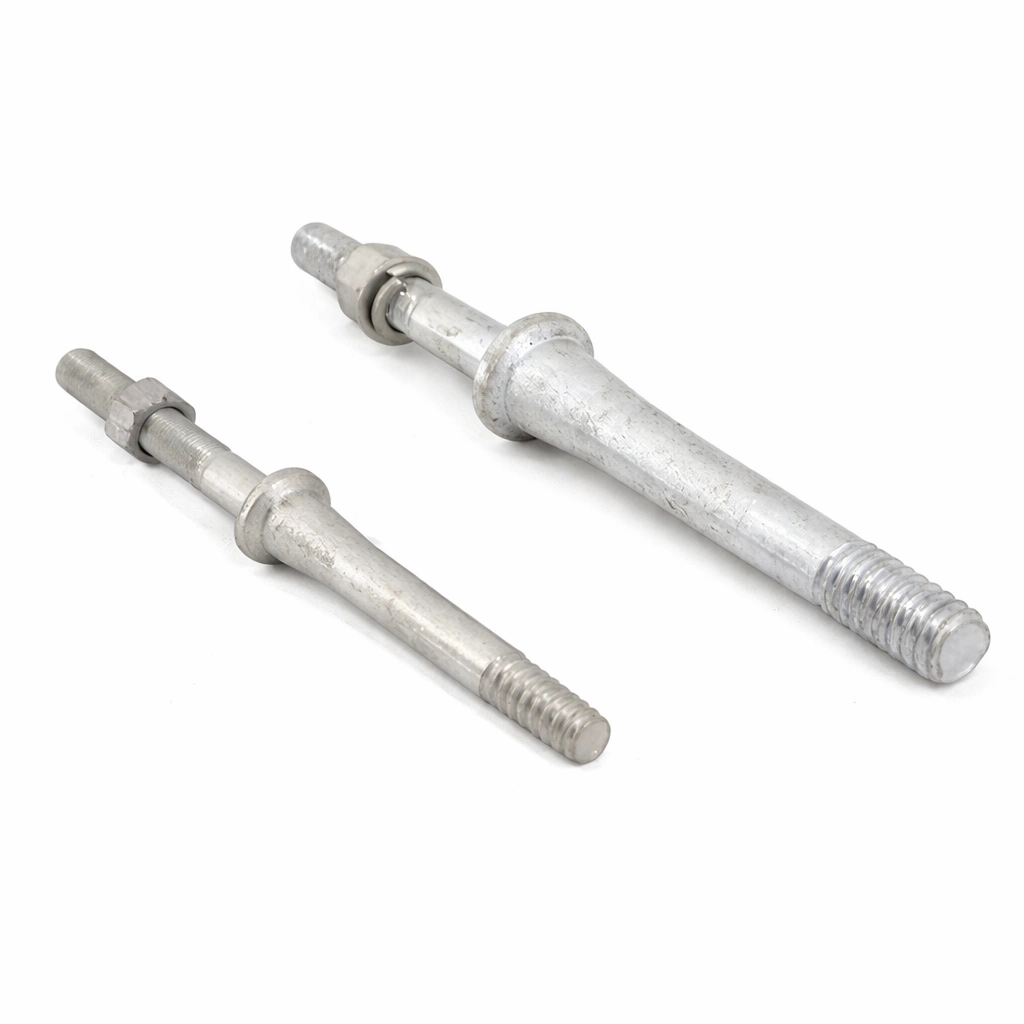

- Shank Variations: Offers short shank variants tailored specifically for steel cross arms, alongside long shank options designed for thick wooden structures.

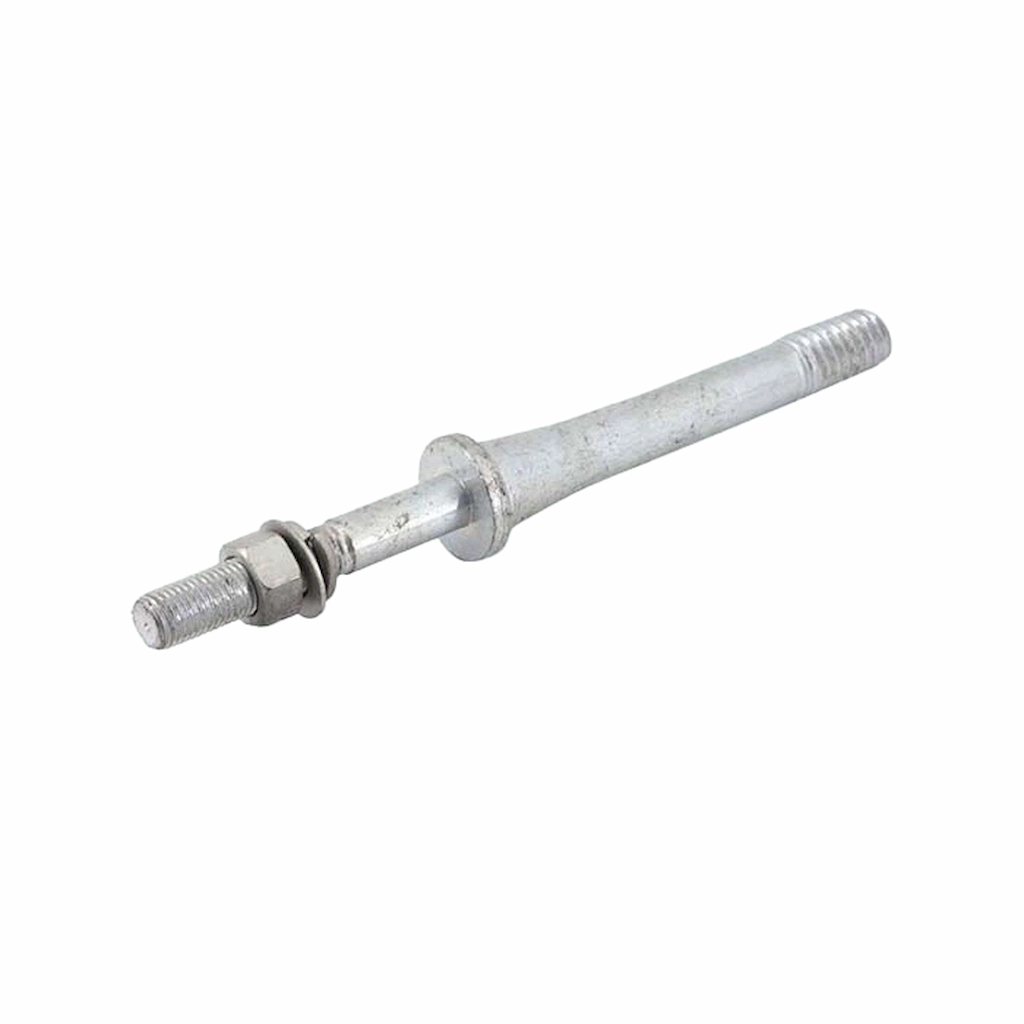

- Complete Hardware Sets: Long shank models are supplied fully equipped with a square washer, a square nut, and an MF concave lock washer for immediate and secure installation.
Key Features & Benefits of the Cross Arm Pin:
Integrating the Cross Arm Pin into your overhead infrastructure guarantees superior structural security and hardware longevity. The specific material formulation targets direct mechanical endurance:
- Heavy-Duty Construction: Forged entirely from a single piece of steel, delivering exceptional physical strength and eliminating weak weld points.
- Advanced Corrosion Resistance: The H.D.G steel receives an intensive galvanizing treatment, achieving a zinc thickness of min. 85 microns to maximize outdoor operational life.
- ANSI Compliant Threads: Utilizes precision-engineered Nylon alloy or cast lead threads to securely lock insulators in place without thread stripping.
- Versatile Sizing: Available in standard P-11-Y and P-33-Y dimensions, making the Cross Arm Steel Pin highly adaptable for diverse utility setups.
Cross Arm Pin Applications & Use Cases:
The robust, weather-resistant construction makes this unit an optimal fastening solution for versatile power expansions. Whenever technical teams deploy a reliable Cross Arm Pin, they ensure exact load management across multiple high-tension sectors:
- Overhead transmission lines utilizing pin-type insulators to support bare conductors.
- Utility poles requiring secure load distribution to prevent structural wood crushing.
- Steel cross arm configurations deployed in heavy-duty industrial substations.
- Large-scale B2B electrical grids operating in highly corrosive or humid environments.
Technical Specifications:
Evaluate the precise mechanical and material parameters below to confirm that the Cross Arm Pin aligns flawlessly with your procurement requirements and B2B grid standards.
| Technical Parameter | Specification Details |
|---|---|
| Pin Body Material | H.D.G Steel (Hot Dip Galvanized Alloy Steel) |
| Manufacturing Process | Forged in one piece |
| Thread Material | Nylon Alloy or Cast Lead (ANSI Standard) |
| Galvanizing Standard | Zinc thickness min. 85 micron |
| Standard Models | P-11-Y / P-33-Y (Custom sizes available) |
| Short Shank Application | Used on Steel Cross Arms |
| Long Shank Application | Used on Wood Cross Arms |
| Long Shank Included Hardware | Square Washer, Square Nut, MF Concave Lock Washer |
| Compatibility | Pin Type Insulators |

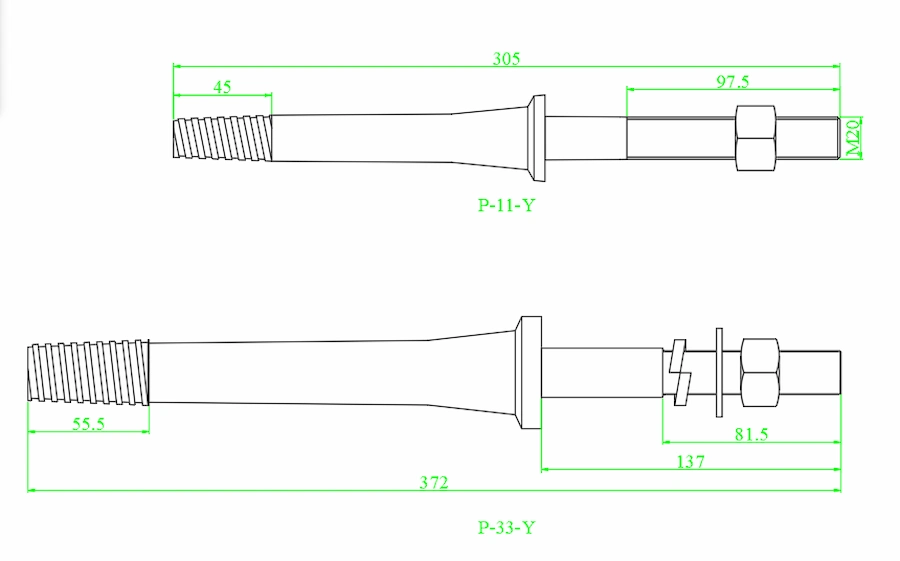

Cross Arm Pin Dimensions:
