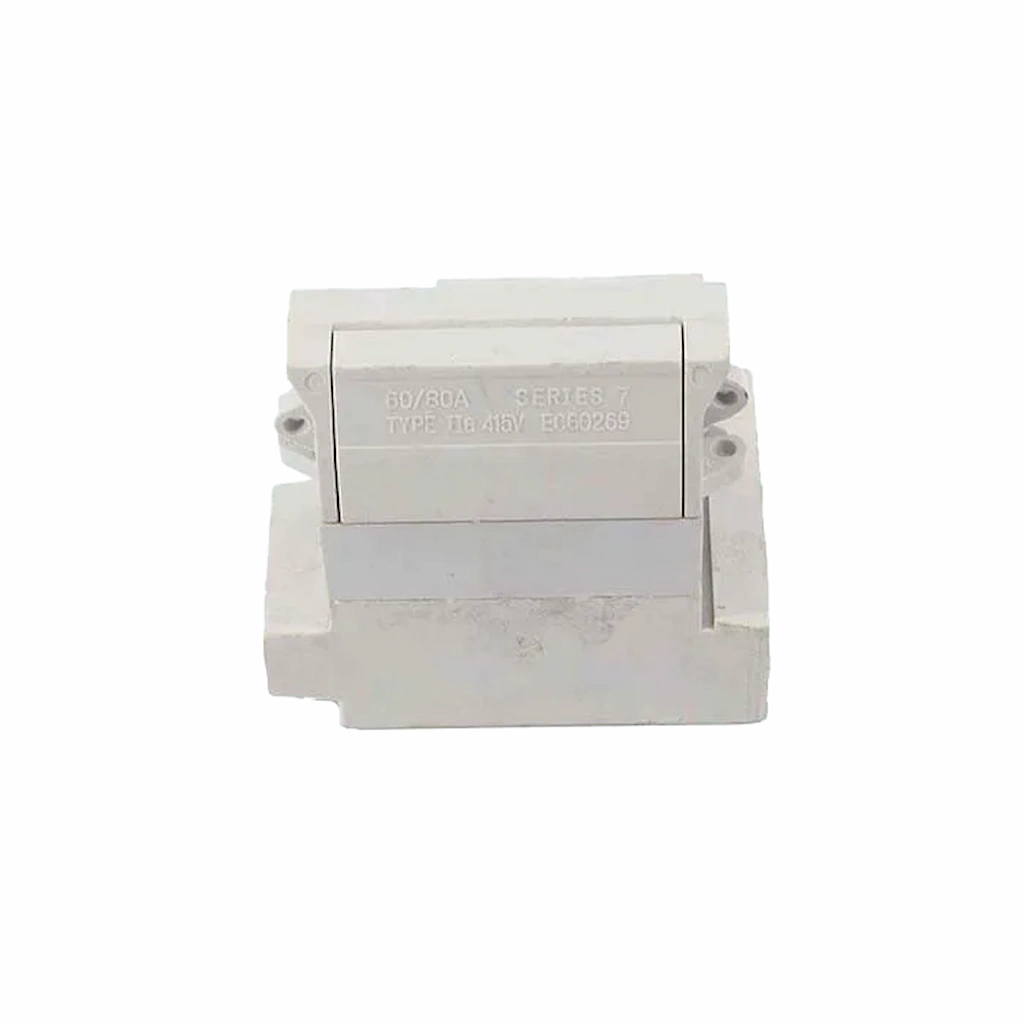

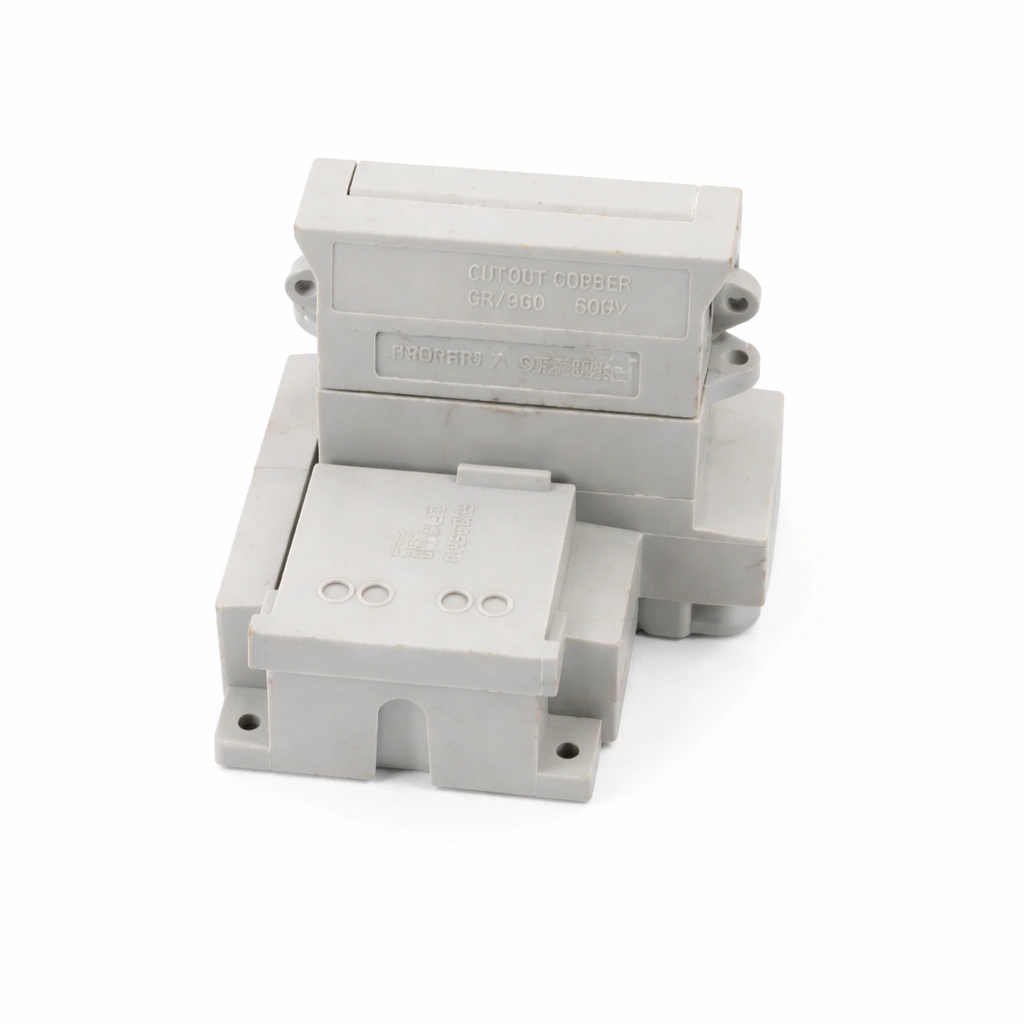

House Service Cut Out Fuse Product Overview:
Procurement teams specify the premium House Service Cut Out Fuse to safeguard residential and commercial control systems perfectly. This advanced 1P+N hardware possesses non-hydroscopic and non-tracking qualities, ensuring flawless service for years without structural degradation.
- Compatible with standard BS88 cylindrical fuse links operating at a 415V AC rated voltage.
- Terminals explicitly support both aluminum and copper conductors with sectional areas up to 35mm².

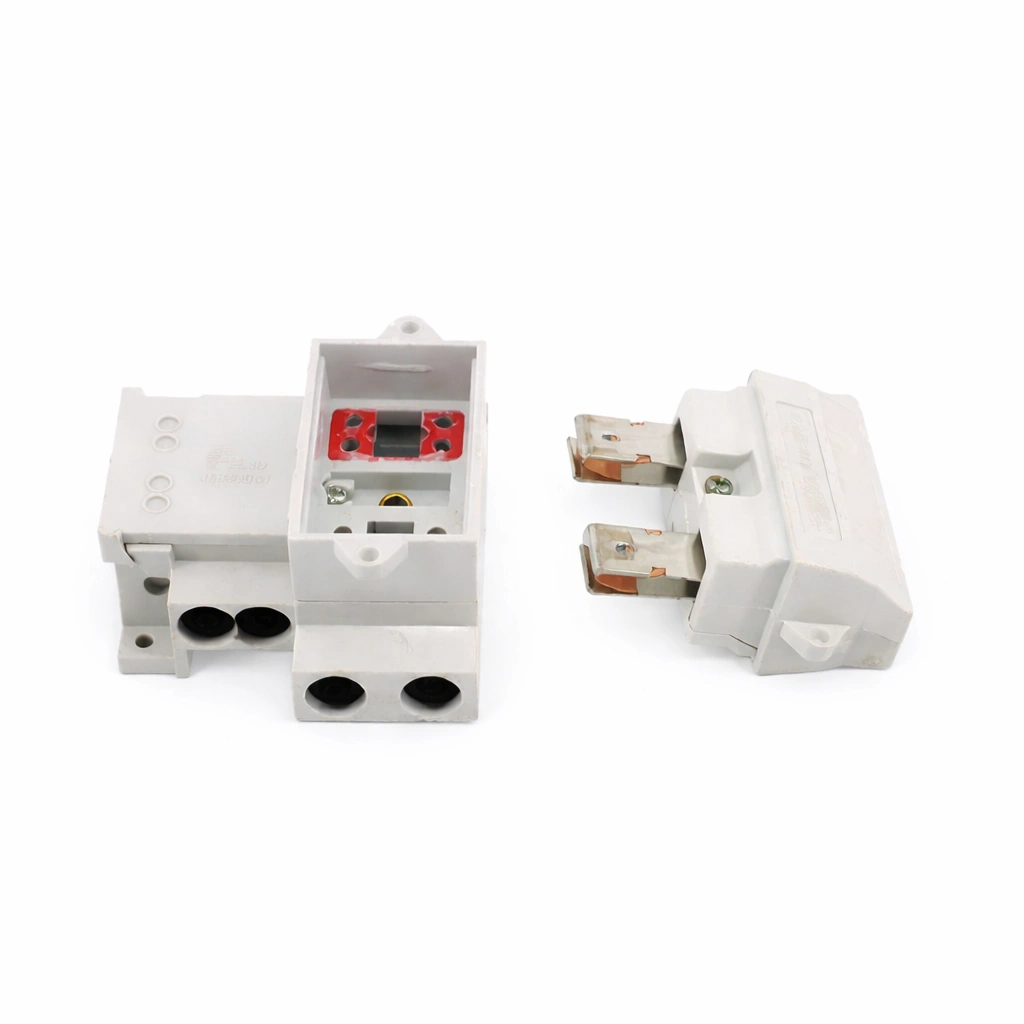

- Electrolytic copper components pair perfectly with phosphor bronze backup compression springs for optimal conductivity.

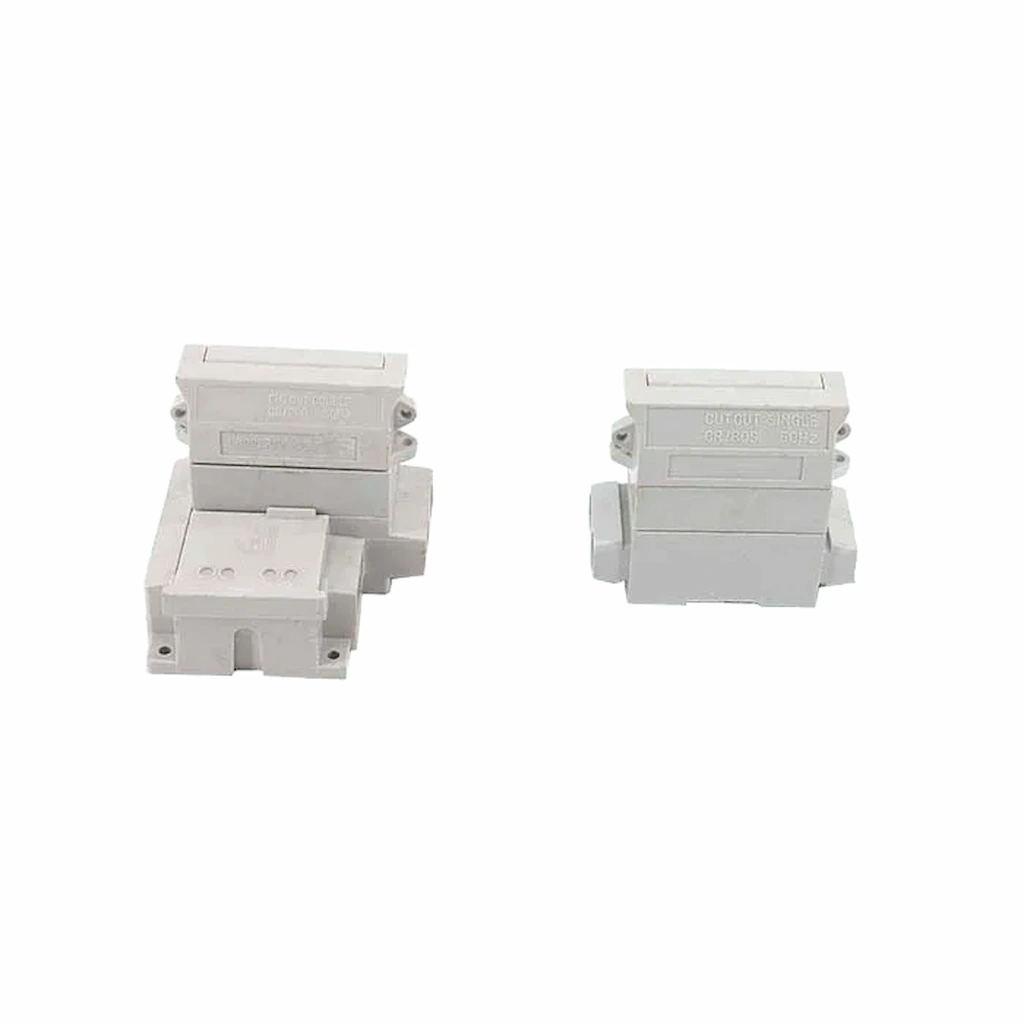

- Available in Black bakelite or Light Grey resin finishes.
Key Features & Benefits of the House Service Cut Out Fuse:
Upgrading your low-voltage networks with a reliable House Service Cut Out Fuse drastically minimizes short-circuit risks. Utility contractors secure immediate operational advantages when deploying this protective equipment:
- Strict compliance with IEC60269 standards guarantees uncompromised global electrical safety.
- Delivers a robust 33KA breaking capacity to halt severe faults instantly.
- Produced within ISO 9001, ISO 14001, and ISO 18001 certified facilities.
- Flexible B2B procurement featuring zero MOQ on the initial order, alongside free testing samples.
House Service Cut Out Fuse Applications & Use Cases:
Built to operate dependably across fluctuating environments, the House Service Cut Out Fuse is an indispensable safety mechanism for modern grids. Field technicians consistently utilize this 1P+N cut out to execute secure and isolated power distribution:
- Safeguarding residential dwellings by providing a safe LV isolation point directly at the service entrance.
- Protecting control panels and open wire networks from sudden overcurrents.
- Operating flawlessly in demanding conditions ranging from -1°C to +40°C and humidity levels up to 90%.
- Massive EPC utility expansions that require complete tender documentation and immediate lot deliveries.
House Service Cut Out Fuse Technical Specifications:
Review the precise engineering parameters below to verify that the House Service Cut Out Fuse aligns perfectly with your network’s capacity. The data sheet details the electrical limits and structural ratings for the 1P+N series.
Electrical & Material Data:
| Technical Parameter | Specification Details |
|---|---|
| Rated Voltage | 415V AC |
| Current Rating Options | 60A / 80A / 100A |
| Rated Frequency | 50Hz |
| Breaking Capacity | 33 KA |
| Max Conductor Size | Up to 35mm² (Al / Cu) |
| Short-Circuit Protection | Type AR |
| Operating Temperature | -1°C to +40°C |
| Max Operating Altitude | ≤ 2000m Above Sea Level |
| Humidity Tolerance | Up to 90% |
| Protection Range | IP23 |
| Housing Finish | Light Grey Resin / Black Bakelite |

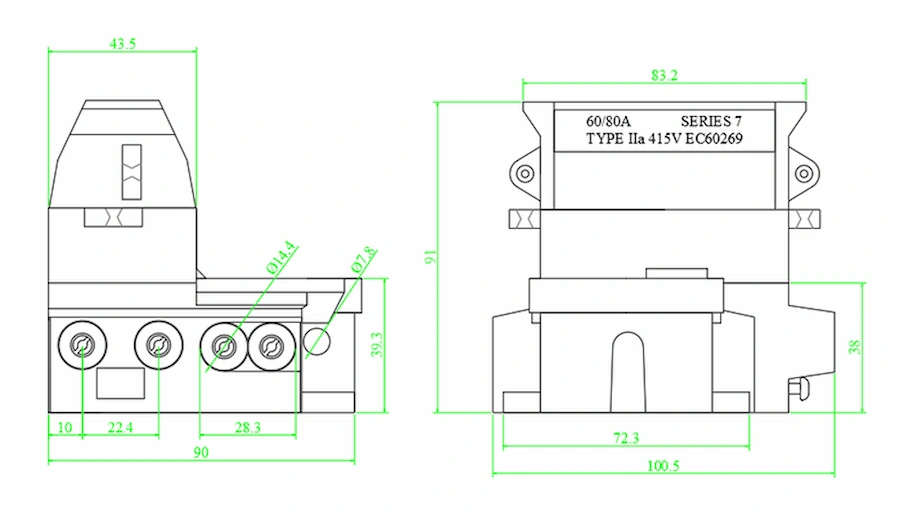

Dimensions:
