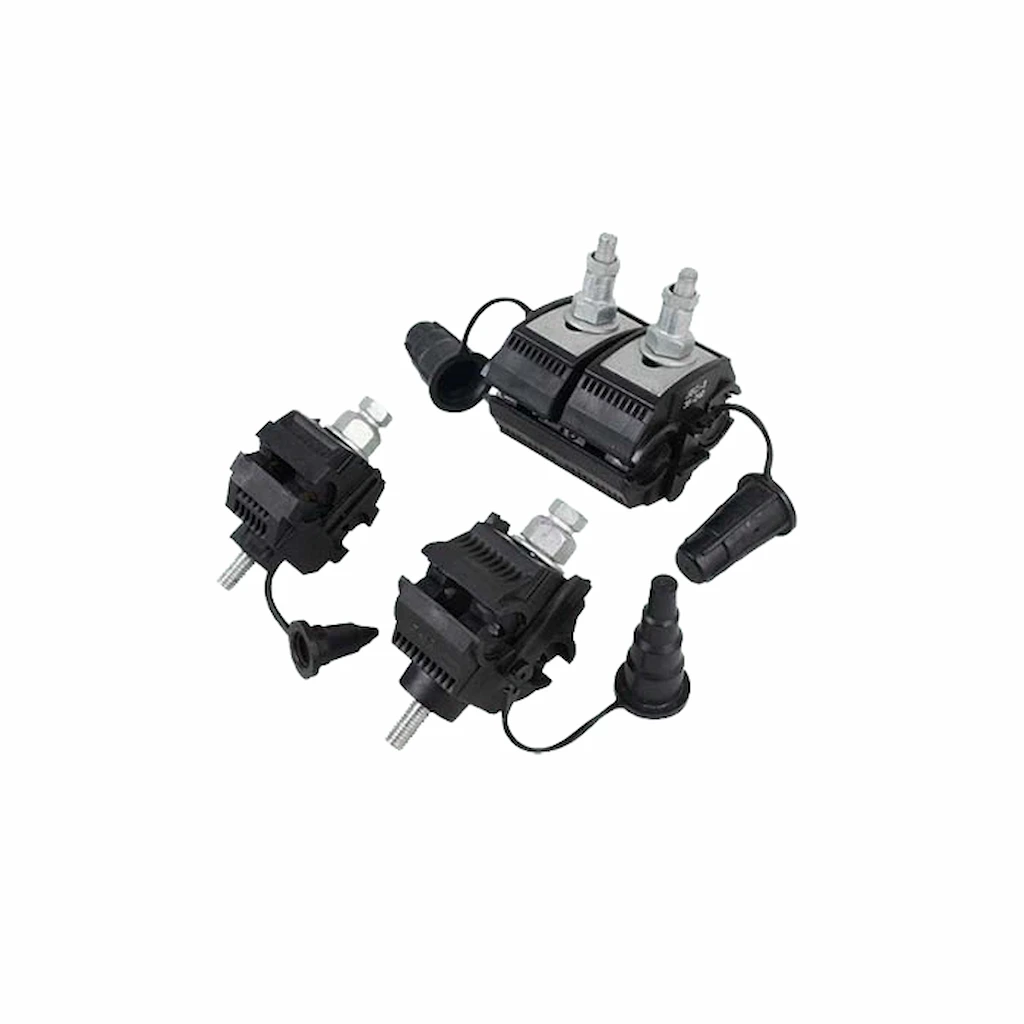

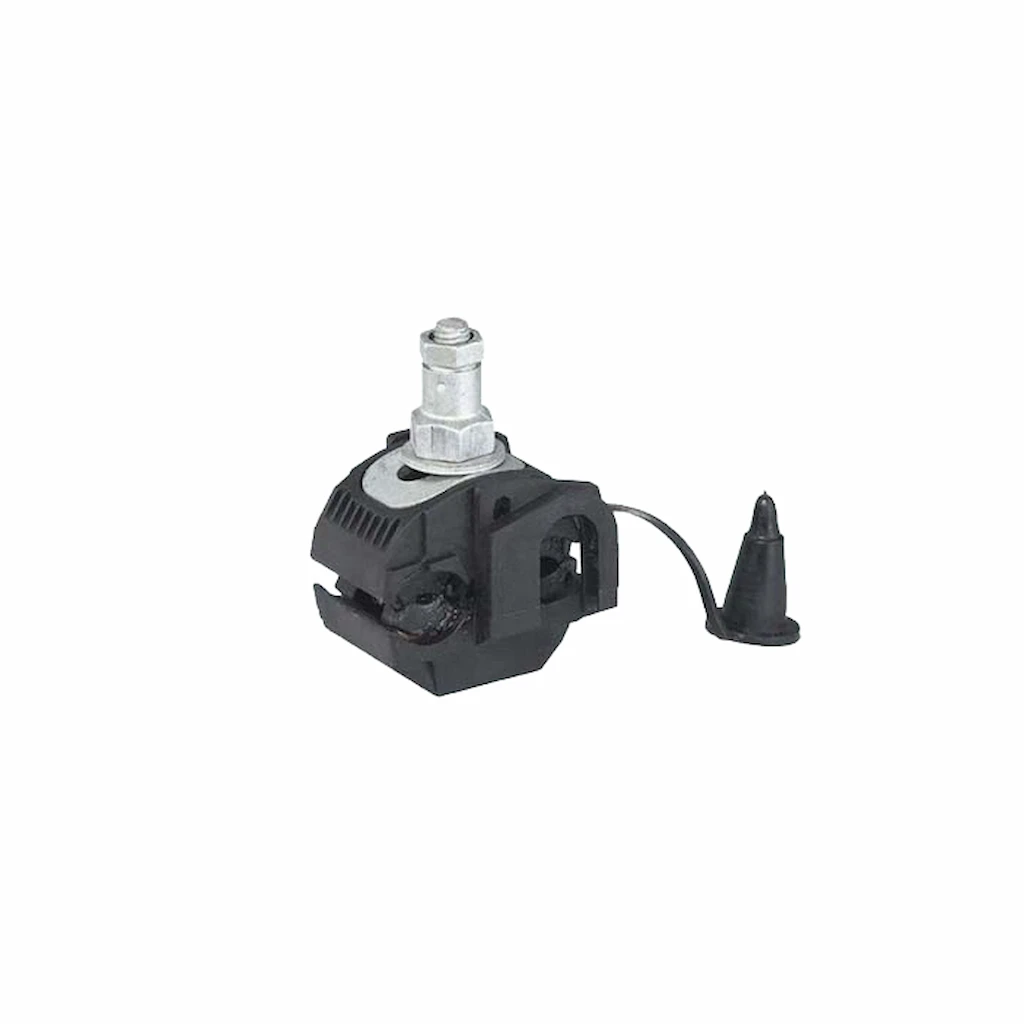

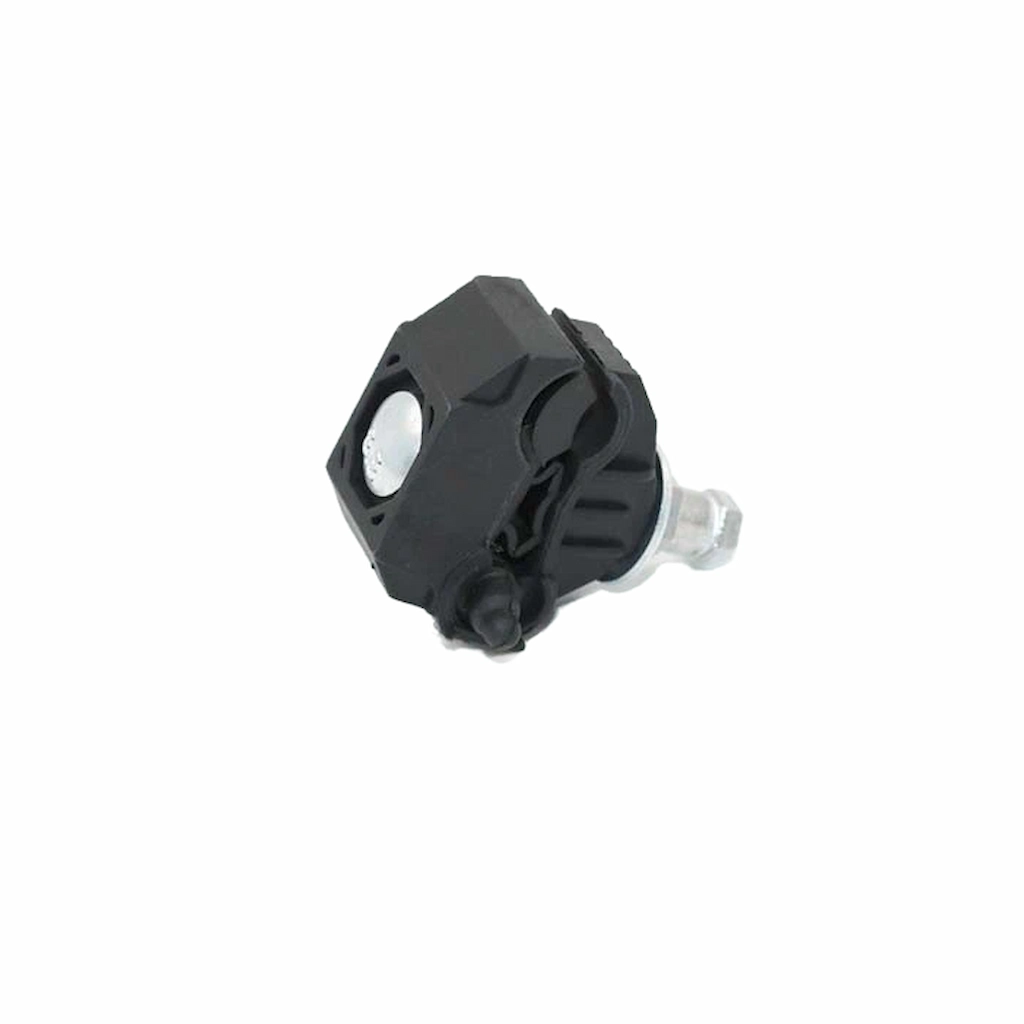

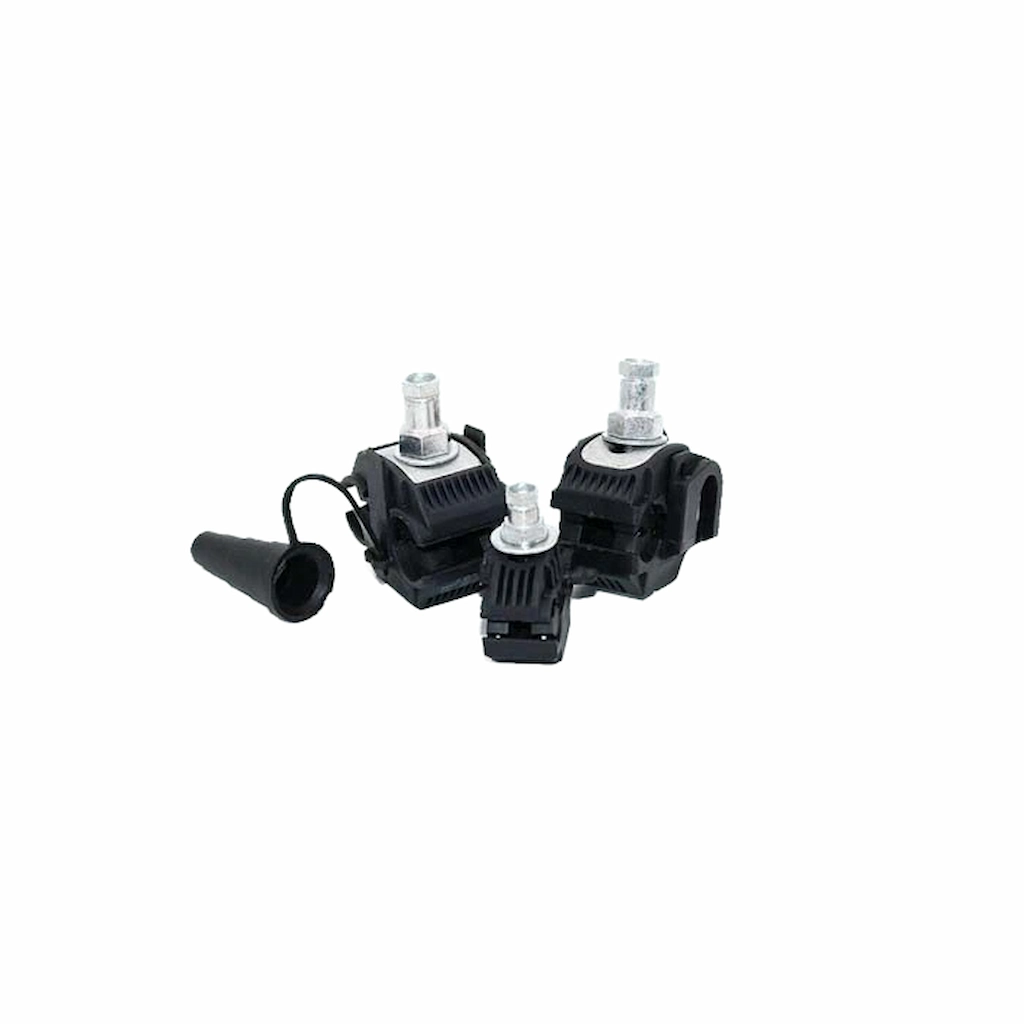

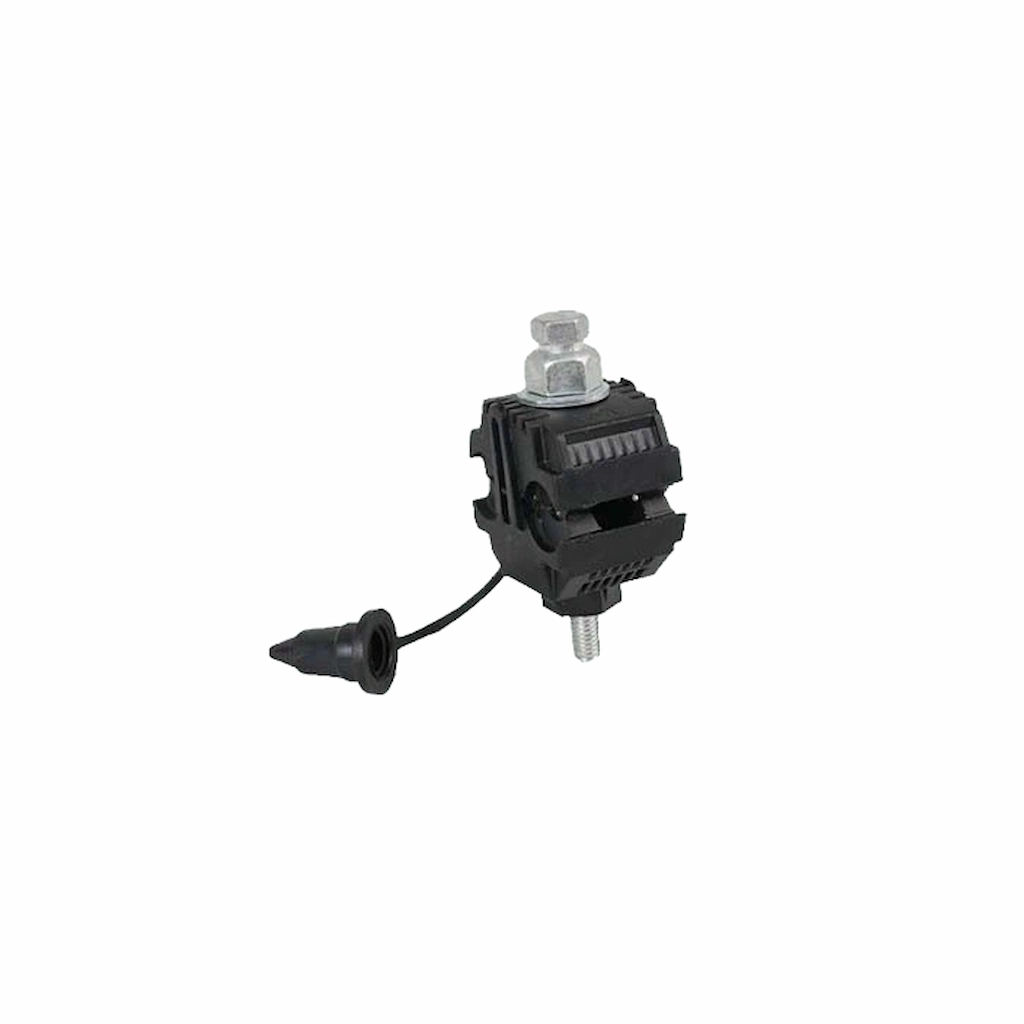

Insulation Piercing Connectors Overview:
Failing to maintain a precise and weatherproof branch joint can lead to severe resistance issues and overall network degradation over time.
Deploy our specialized hardware to guarantee a permanent, fail-proof electrical connection:
- Designed with an innovative self-seam frame that is entirely wetproof, waterproof, and anticorrosive to significantly extend the using life of the insulated lead and connector.
- Features a precision moment nut mechanism that guarantees the piercing pressure remains constant to make no damage to the lead.
- Delivers exceptional electrical performance with connecting resistance strictly less than 1.1 times the resistance of a branch conductor of the exact same length.
Key Features & Benefits:
Optimize your overhead distribution networks instantly with these rigorously tested, high-performance physical advantages:
- Enables incredibly simple and rapid installation as field professionals need not strip the coat of the line.
- Manufactured with a special insulated case body providing ultimate resistance to illumination and aggressive environmental aging.
- Adopted a special connecting tablet to seamlessly apply to the joint of Cu(Al) and Cu(Al), or strictly Cu and Al configurations.
- Boasts a smart arc surface design to seamlessly apply to connections with the same or entirely different line diameters.
- Functions flawlessly as a highly reliable insulation piercing connector guaranteeing absolute waterproof and moisture-proof operations for long life utility service.
Applications & Use Cases For insulation piercing connectors:
Ensure the absolute stability of your power distribution infrastructure with hardware built for extreme endurance.
This advanced unit is the definitive engineering choice for the following critical utility tasks:
- Executing highly secure overhead line taps and branch connections safely within modern distribution networks.
- Upgrading utility grid components seamlessly using reliable insulation piercing connector for abc cable layouts.
- Connecting various main and branch section configurations ranging up to 400mm2 safely utilizing our heavy-duty piercing connector for ab cable.
- Completing heavy commercial and utility installations smoothly utilizing the specialized piercing connector for abc cable hardware.
Technical Specifications:
Review the exact nominal current, equivalent types, weights, bolt quantities, and applicable line sections below to perfectly align with your specific utility hardware requirements.
Main Technical Parameters
| Type | Equivalentype | Main line secton (mm2) | Branch line section (mm2) | Norminal current | Wieght (G) | Bolt (Pcs) |
|---|---|---|---|---|---|---|
| DK041 | JJC-1 | 1.5-35 | 1.5-10 | 41 | 10 | 1 |
| DKEP | JJC-2 | 16-95 | 1.5-10 | 55 | 55 | 1 |
| DK2-95 | JJC-3 | 16-95 | 4-35(50) | 157 | 160 | 1 |
| DK2-150 | JJC-4 | 50-150 | 6-35(50) | 157 | 162 | 1 |
| DK3-95 | JJC-5 | 25-95 | 25-95 | 157 | 198 | 1 |
| DK3-120 | – | 16-120 | 16-120 | 214 | 198 | 1 |
| DK4-150 | JJC-6 | 50-150 | 50-150 | 316 | 280 | 1 |
| DK6 | JJC-7 | 120-240 | 25-120 | 276 | 360 | 1 |
| DK7 | – | 150-240 | 10-25 | 102 | 336 | 1 |
| DK240 | JJC-8 | 95-240 | 95-240 | 425 | 1020 | 2 |
| DK300 | – | 95-300 | 95-240 | 425 | 1040 | 2 |
| DK400 | – | 120-400 | 95-240 | 425 | 1050 | 2 |

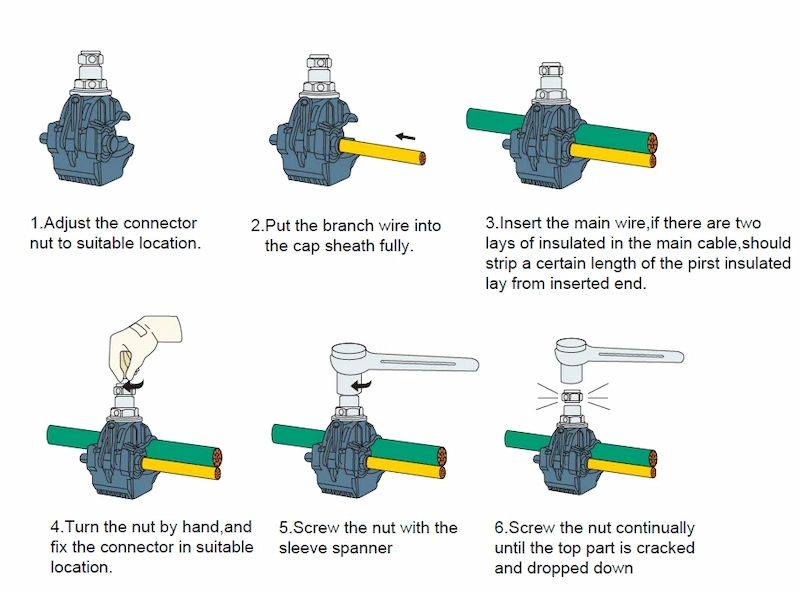

Installation Process:
