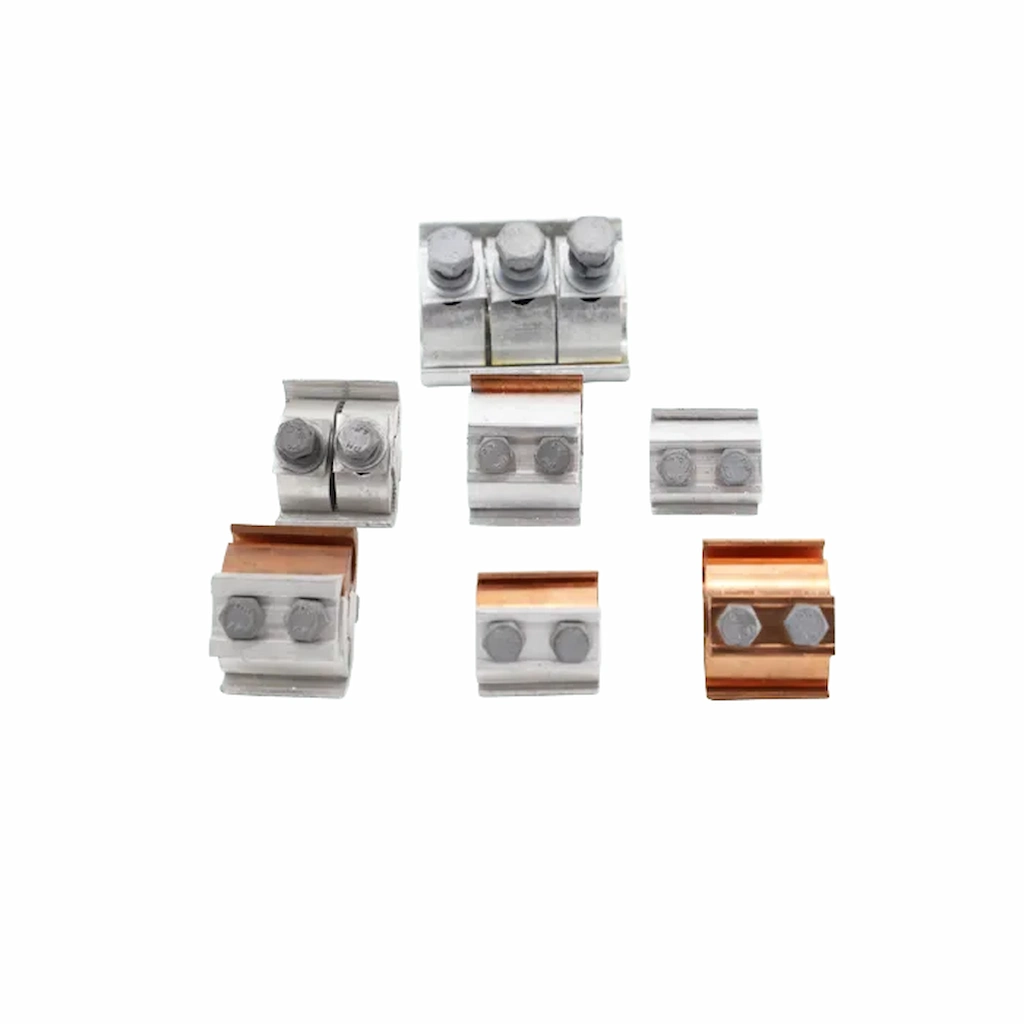

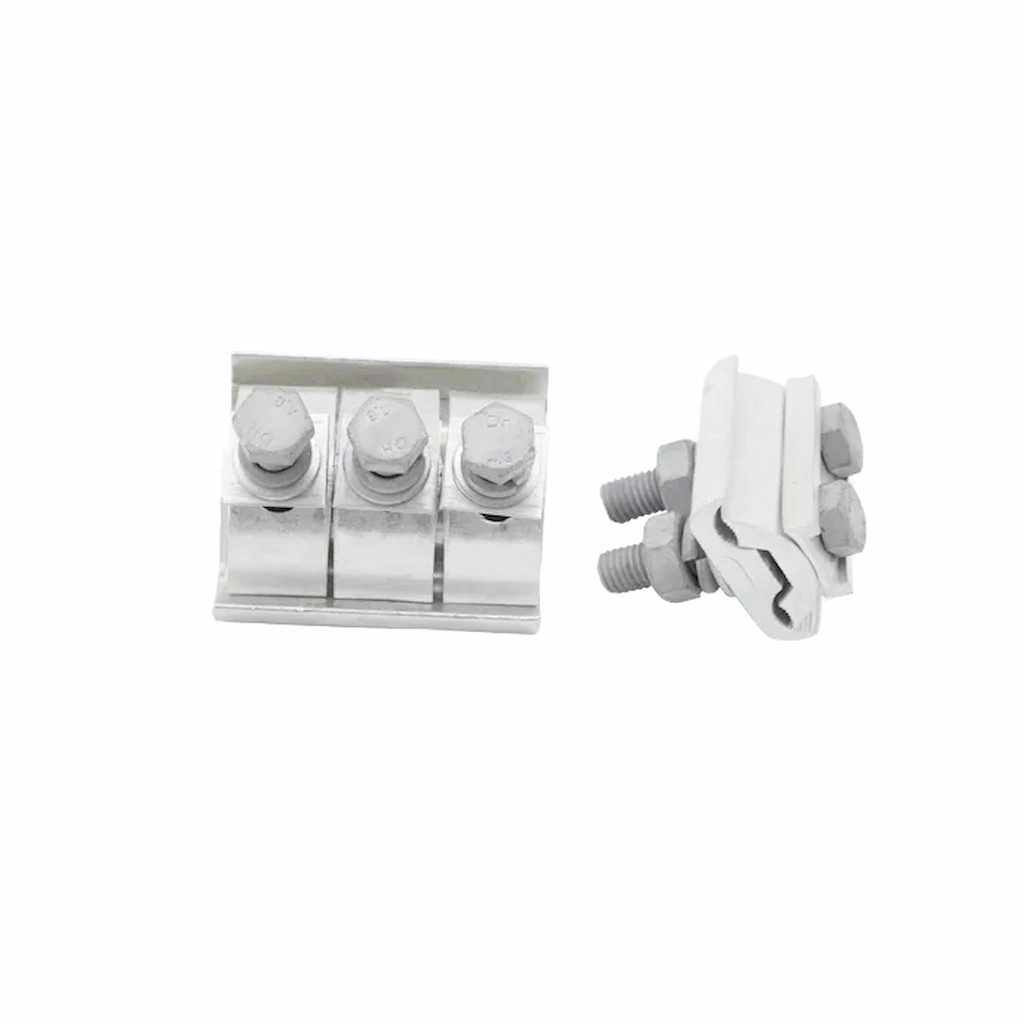

Parallel Groove Clamp Connector Product Overview:
Procurement teams specify the premium Parallel Groove Clamp Connector to execute highly reliable non-tension splices across demanding power networks. This bolted aluminum assembly delivers exceptional conductivity without reducing the overall electric capacity of the main utility line.
- A wide operational span effectively accommodates conductor cross-sections from 16mm² up to 240mm².
- Both upper and lower jaws are cast from high-grade aluminum alloy to match the exact thermal profile of the reference wire.
- Pre-filled entirely with a specialized oxide-inhibiting compound to combat harsh metal oxidation in humid or coastal areas.
- Flexible hardware configurations allow buyers to select between hot-dip galvanized steel or premium stainless steel fasteners.
Key Features of the Parallel Groove Clamp Connector JBL-B:
Upgrading your utility infrastructure with a certified Parallel Groove Clamp Connector JBL-B drastically minimizes localized joint overheating and electrical resistance. Grid contractors secure immediate operational advantages when sourcing this specialized B2B hardware for expanding overhead networks:
- Maintains a reliable slip strength explicitly rated at 10% of the reference conductor’s calculative tensile capacity.
- Manufactured strictly within ISO 9001, ISO 14001, and ISO 18001 certified facilities under an uncompromised quality control plan.
- Zero minimum order quantities (MOQ) on initial purchases grant immense procurement flexibility for utility buyers.
- A highly competitive low-cost pricing model complements the rapid B2B quotations and dependably responsive after-sale service.
Applications & Use Cases of the JBL-B Parallel Groove Clamp Connector:
Built to endure continuous outdoor exposure safely, the JBL-B Parallel Groove Clamp Connector serves as an indispensable electrical bridging tool for utility crews. Field technicians consistently deploy this heavy-duty hardware to execute safe, permanent connections:
- Establishing parallel contacts for aluminum strands and ACSR cables directly on non-linear utility poles.
- Managing safe electrical jumper pathways where joint lengths must never exceed 1.1 times the equivalent length of the conductor.
- Immediate municipal contract submissions utilizing the comprehensive set of IEC 61284 compliant technical documentation provided by our design team.
- Custom OEM grid projects requiring free testing samples prior to finalizing massive JBL-B lot purchases.
Parallel Groove Clamp Connector Technical Specifications:
Review the precise engineering constraints below to verify that the Parallel Groove Clamp Connector aligns perfectly with your designated wire gauge metrics. The detailed data sheets below cover exact mechanical standards, fastener sizes, and dimensions for the bolted aluminum clamps.
1. Technical Parameters & Standards:
| Technical Parameter | Specification Details |
|---|---|
| Upper & Lower Jaw Material | High-Conductivity Aluminium Alloy |
| Fastener Material Options | Hot-Dip Galvanized Steel or Stainless Steel |
| Mechanical Failure Load | 10% of the reference conductor’s tensile strength |
| Design Standards | IEC 61284, DIN 48072 |
| Testing Verification | IEC 61284 |
| Order Flexibility (MOQ) | No limit for 1st order / 100 pcs for further orders |

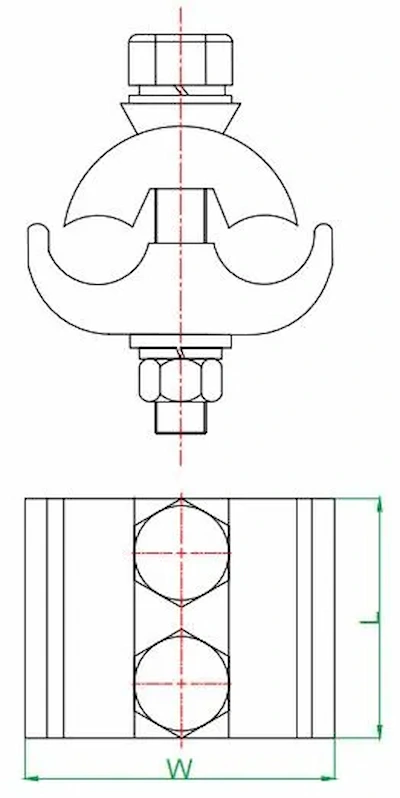

2. JBL-B Series Dimensional Data:
| Part No. | Application Range (mm²) | Number of Bolts | Bolt Size | Dimensions (mm) | |
|---|---|---|---|---|---|
| L | W | ||||
| JBL-1BB | 16 – 70 | 2 | M8 x 45 | 42 | 32 |
| JBL-2BB | 35 – 120 | 2 | M10 x 55 | 45 | 47 |
| JBL-3BB | 50 – 240 | 2 | M10 x 70 | 45 | 63 |
:
