Mechanical Cable Lug WCJB 16-240mm2 T2 Red Copper

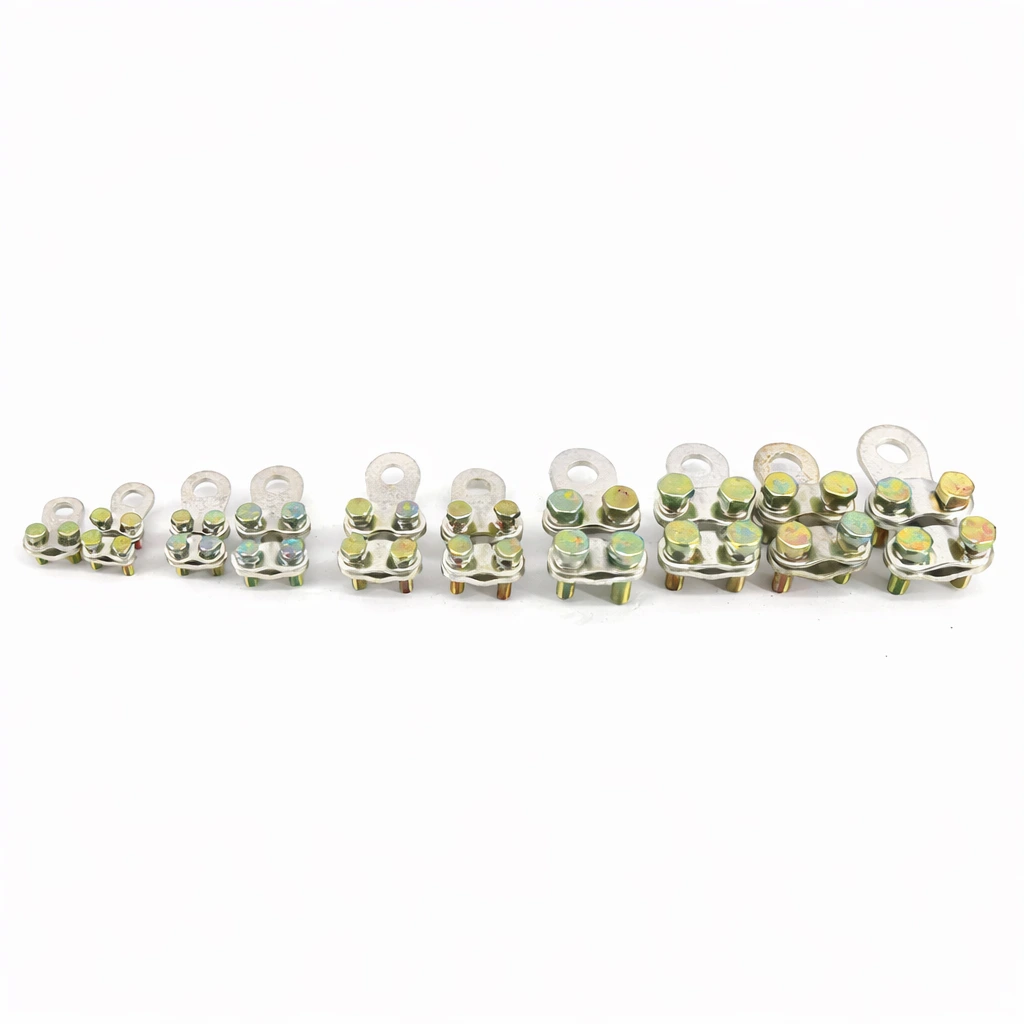

Mechanical Cable Lug

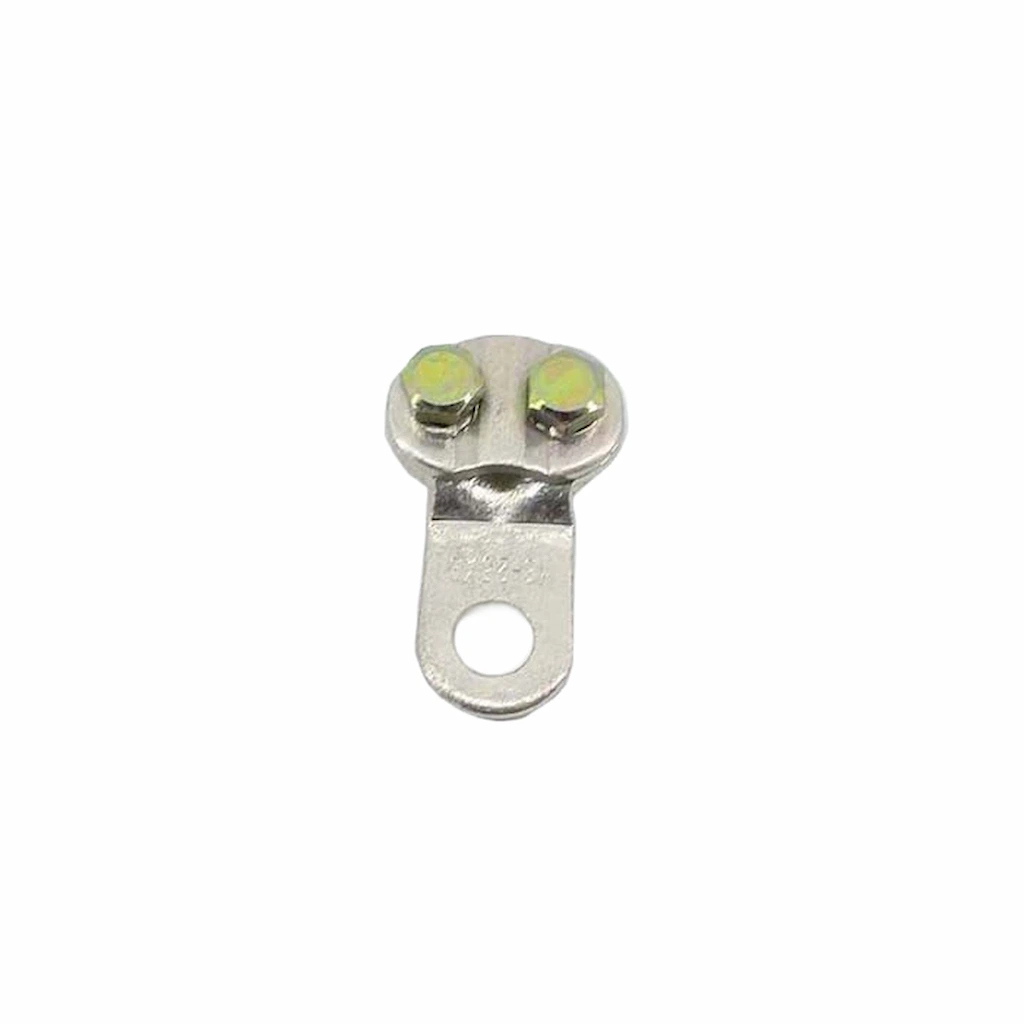

mechanical cable lug 02

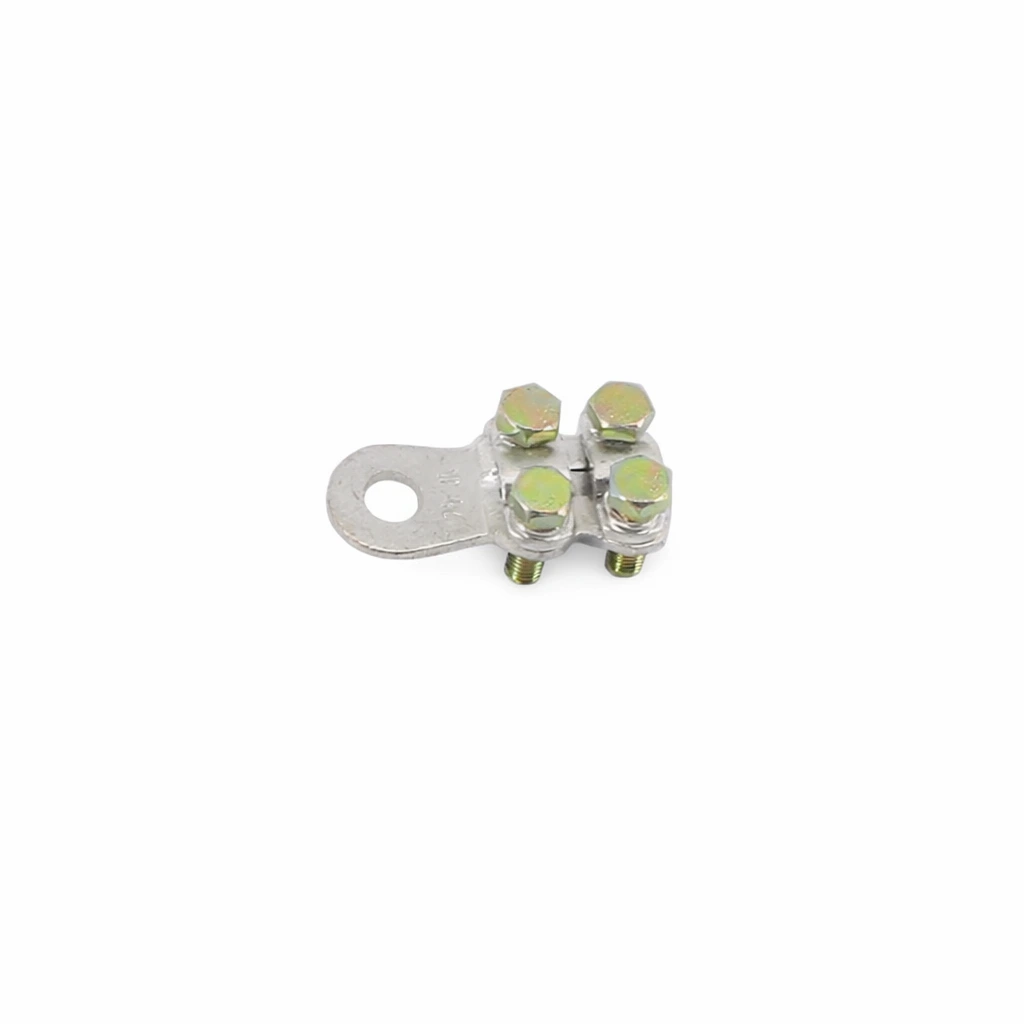

mechanical cable lug 03

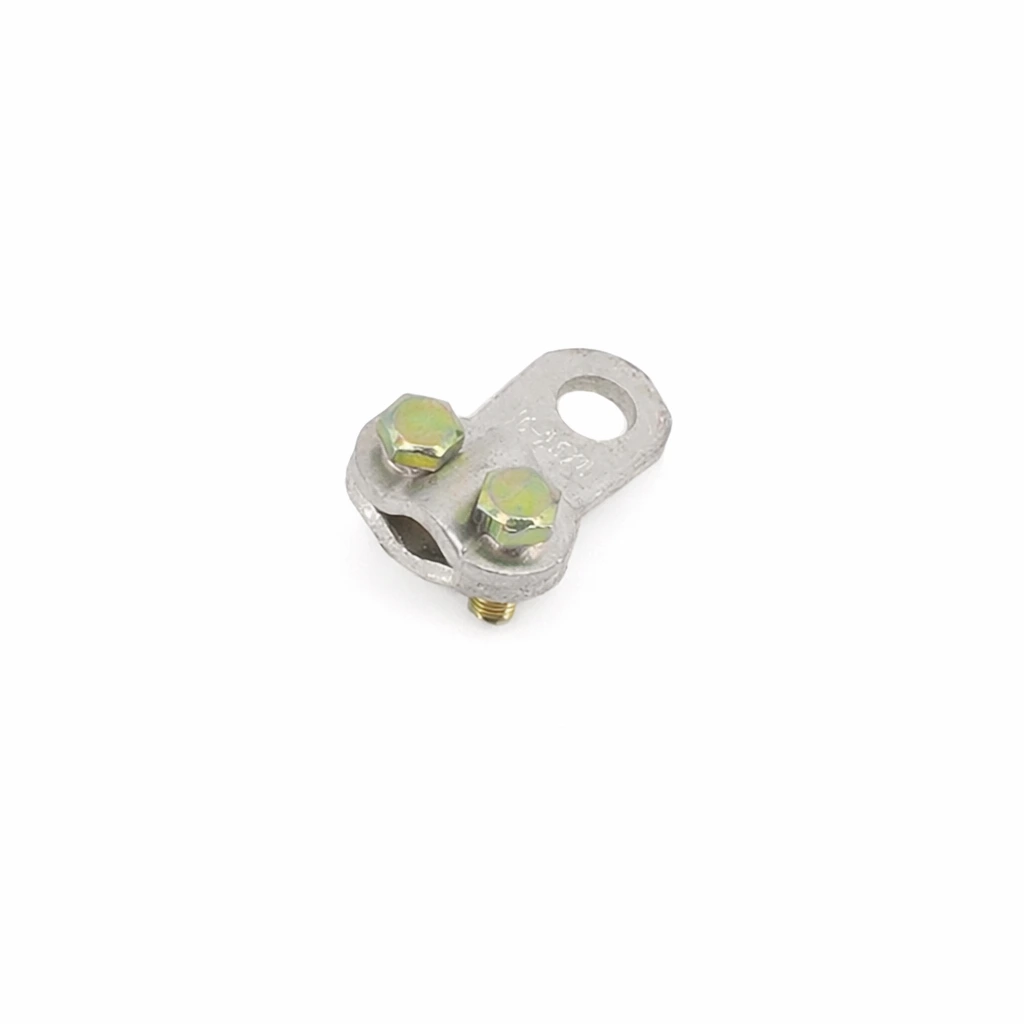

mechanical cable lugs

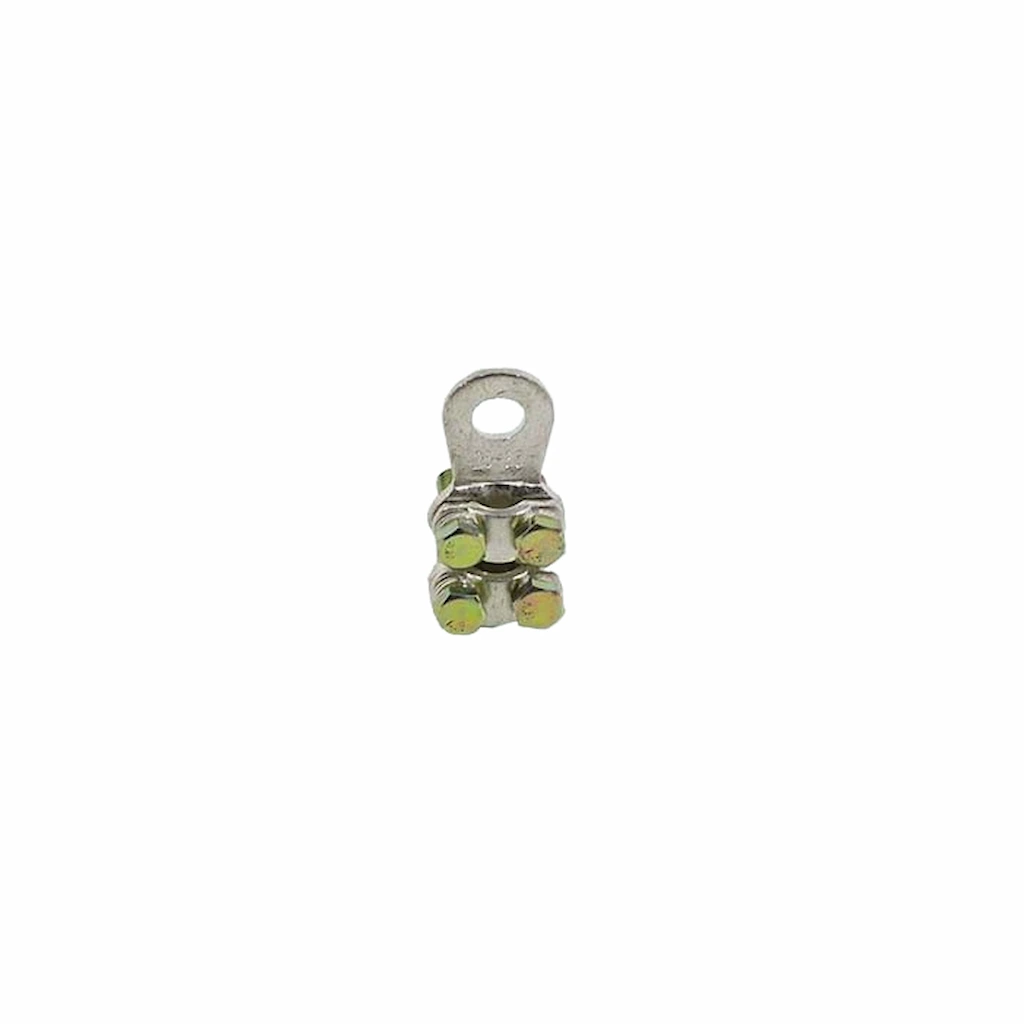

mechanical cable lug

Mechanical Cable Lug WCJB 16-240mm2 T2 Red Copper

Facilitating highly conductive indoor connections requires the specialized mechanical cable lug. Recognized globally, the WCJB model accommodates a wide conductor range from 16mm2 up to 240mm2 to streamline distribution device setups effectively. Manufactured exclusively from high-grade T2 red copper, this hardware is engineered with advanced surface nickel plating to actively resist oxidation. Utility professionals heavily depend on these Imported Copper Jointing Clamps to bridge appliance terminals securely, minimizing electrical resistance while ensuring consistent power transfer across the network.

Production Capacity: 5,000 pcs per month.

Request a Quote
Categories: ,




Mechanical Cable Lug Overview:

Managing power flow between indoor distributing devices demands low-resistance contact points to prevent thermal failure.

Integrating the WCJB series guarantees a stable, highly efficient electrical transition for your infrastructure:

  • Constructed meticulously from T2 red copper to support uninterrupted electrical conductivity under demanding operational loads.
  • Treated with a comprehensive nickel plating across the entire surface to combat long-term corrosion effectively.
  • Eliminates heat buildup at transition junctions by providing an exact, secure fit for various indoor appliance terminals.

Key Features & Benefits:

Upgrade your indoor distribution networks with these technically verified mechanical attributes:

  • The WCJB model ensures remarkably fast and easy installation, significantly reducing overall project downtime.
  • Forged strictly from T2 red copper to deliver maximum current-carrying capacity for critical indoor systems.
  • Operates efficiently across a massive 16-240mm2 conductor application range, ensuring ultimate project versatility.
  • Functions consistently as dependable mechanical cable lugs, safeguarding indoor electrical appliances from structural failure.
  • Provides durable surface protection via targeted nickel plating to withstand challenging industrial environments over time.

Applications & Use Cases For Mechanical Cable Lug:

Direct electrical transitions safely utilizing the robust WCJB component engineered for precise conductivity.

This hardware remains the primary engineering choice for the following requirements:

  • Establishing highly secure transition connections for indoor electric appliances and sophisticated distribution devices.
  • Linking diverse conductive lines seamlessly across demanding 16-240mm2 industrial and commercial networks.
  • Enhancing long-term appliance safety utilizing our specialized Imported Copper Jointing Clamps at critical transition points.

Technical Specifications:

Review the exact WCJB model configurations, material properties, and comprehensive dimensional data below to ensure precise alignment with your specific electrical requirements.

WCJB Material and Construction:

Technical Parameters
Material T2 red copper
Surface Treatment (Fasteners) Nickel plating

WCJB Datas and Dimension:

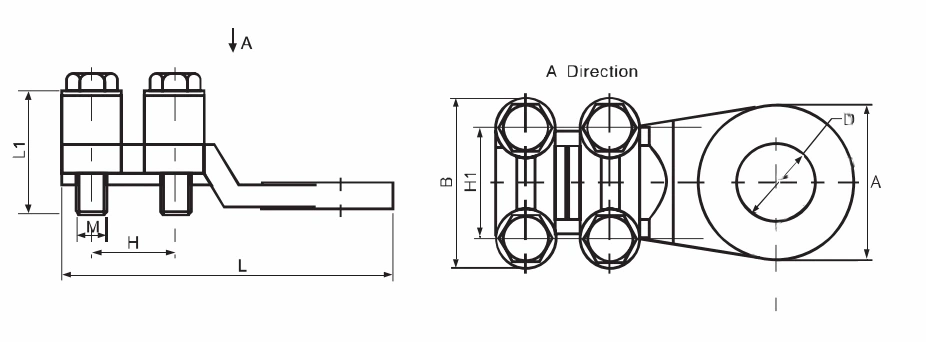

WCJB mechanical cable lug Datas and Dimension

Type Conductor (mm²) Dimensions (mm)
L L1 B B1 H H1 D M
WCJB-1 16~25 39.5 15 25 16.5 13 13 8.5 5
WCJB-2 16~25 45 15 22 18 13 13 8.5 5
WCJB-3 25~35 52.5 15 24.5 21.2 13.5 13.5 10.5 5
WCJB-4 50~70 61 21 31 23 18.5 18.5 10.5 6
WCJB-5 70~95 69 24 35 23.5 20 20 10.5 6
WCJB-6 95~120 74 20.5 42 28.5 22.5 22.5 13.5 7
WCJB-7 120~150 73.5 30 41 27 24 24 13.5 8
WCJB-8 150~185 76 30 42 28 24.5 24.5 13.5 8
WCJB-9 185~240 80 32 44 30 25 25 13.5 8
