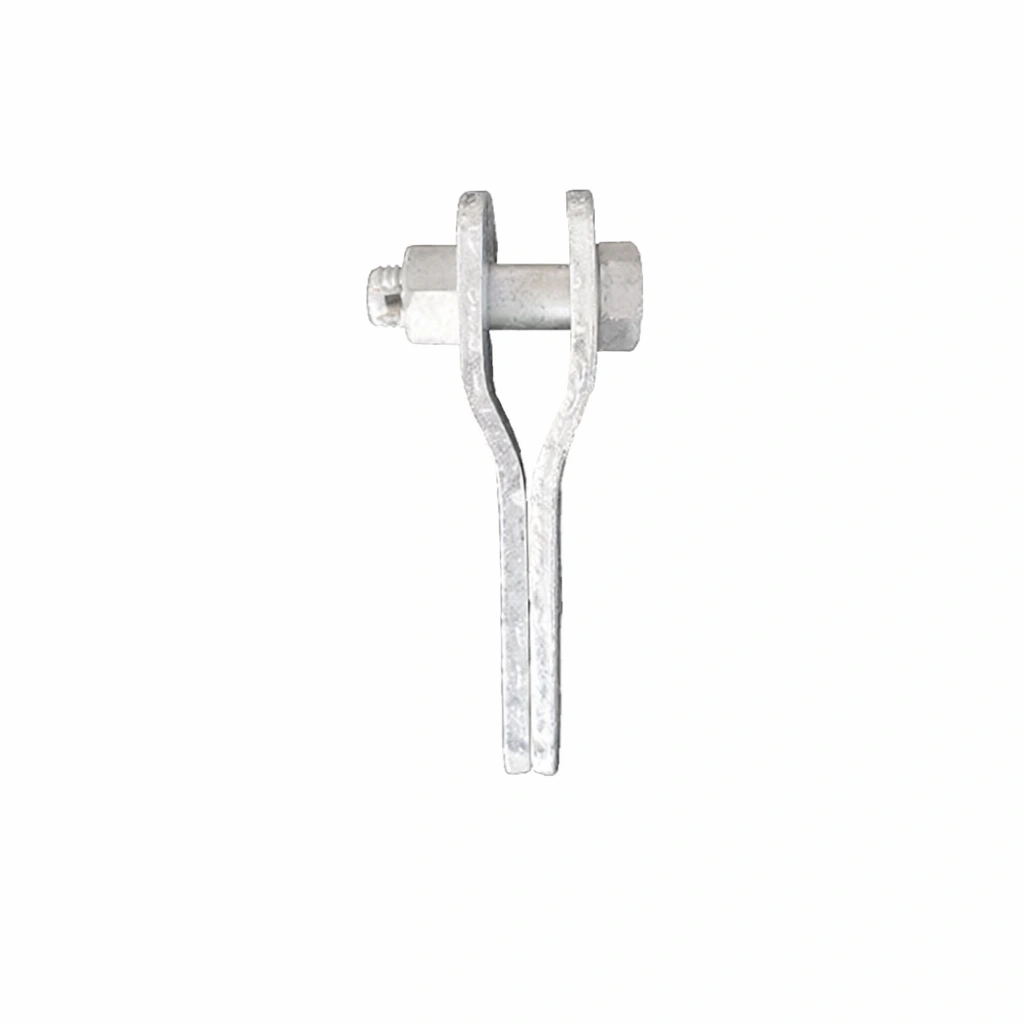

Link Clevis PS Overview
This Link Clevis PS delivers strong structural integrity as a standard PS-type link for power distribution.
- Constructed from high-strength Hot-Dip Galvanized (H.D.G) steel for maximum mechanical durability.
- Equipped with a premium stainless steel cotter pin to maintain a secure and rust-proof lock.
- Functions as a highly versatile parallel hanging clevis that can be customized in various shapes according to specific customer requirements.
Link Clevis PS Features
Integrating the Link Clevis PS (categorized among premium ps type parallel clevises) ensures an easy-to-use installation backed by highly flexible direct-factory terms:
- Corrosion Resistance: The heavy-duty galvanized coating protects the fitting against harsh weather and environmental degradation.
- Certified Quality: Manufactured under strict quality control plans conforming to ISO 9001, ISO 14001, and ISO 18001 standards.
- Ultimate Flexibility: There is absolutely no Minimum Order Quantity (MOQ) on any order. Free samples are provided (buyer covers freight).
- Project Support: Offers fast quotations, complete tender documents, and customized OEM design support (via drawings, photos, or samples).
Link Clevis PS Applications
Engineered for high-tension linkage, these ps parallel clevises provide essential coupling across various demanding sectors. The Link Clevis PS is strictly used for:
- Forming secure suspension and strain strings on overhead transmission lines.
- Supporting structural electrical connections in the thermoelectric, energy, power generation, and chemical industries.
- Supplying continuous, low-cost LV and MV EPC engineering material lots.
Link Clevis PS Specifications
Review the precise material data and dimensional failure loads for the PS series below to ensure exact compatibility with your network hardware.
Material & Design Data
| Component / Parameter | Specification Details |
|---|---|
| Hardware Type | Link Clevis PS / Parallel Clevis |
| Body Material | Hot-Dip Galvanized (H.D.G) Steel |
| Cotter Pin Material | Stainless Steel |
| Key Properties | Corrosion Resistant, High Failure Load |
| OEM Availability | Yes (Customizable shapes via drawings or samples) |
| Factory Certifications | ISO 9001, ISO 14001, ISO 18001 |
Dimensional & Failure Load Parameters
| Cat. No. | Dimension (mm) | Failure Load (kN) | Weight (kg) | ||||
|---|---|---|---|---|---|---|---|
| C | b | M | H | Φ | |||
| PS-7 | 18 | 16 | 16 | 90 | 20 | 70 | 0.60 |
| PS-10 | 18 | 18 | 18 | 100 | 22 | 100 | 0.80 |
| PS-12 | 24 | 20 | 22 | 95 | 24 | 120 | 1.50 |
| PS-16 | 26 | 24 | 24 | 155 | 26 | 160 | 2.70 |
| PS-30 | 38 | 34 | 36 | 140 | 39 | 300 | 5.30 |
| PS-0790 | 20 | 16 | 16 | 90 | 20 | 70 | 0.60 |
| PS-10100 | 20 | 18 | 18 | 100 | 20 | 100 | 0.80 |
